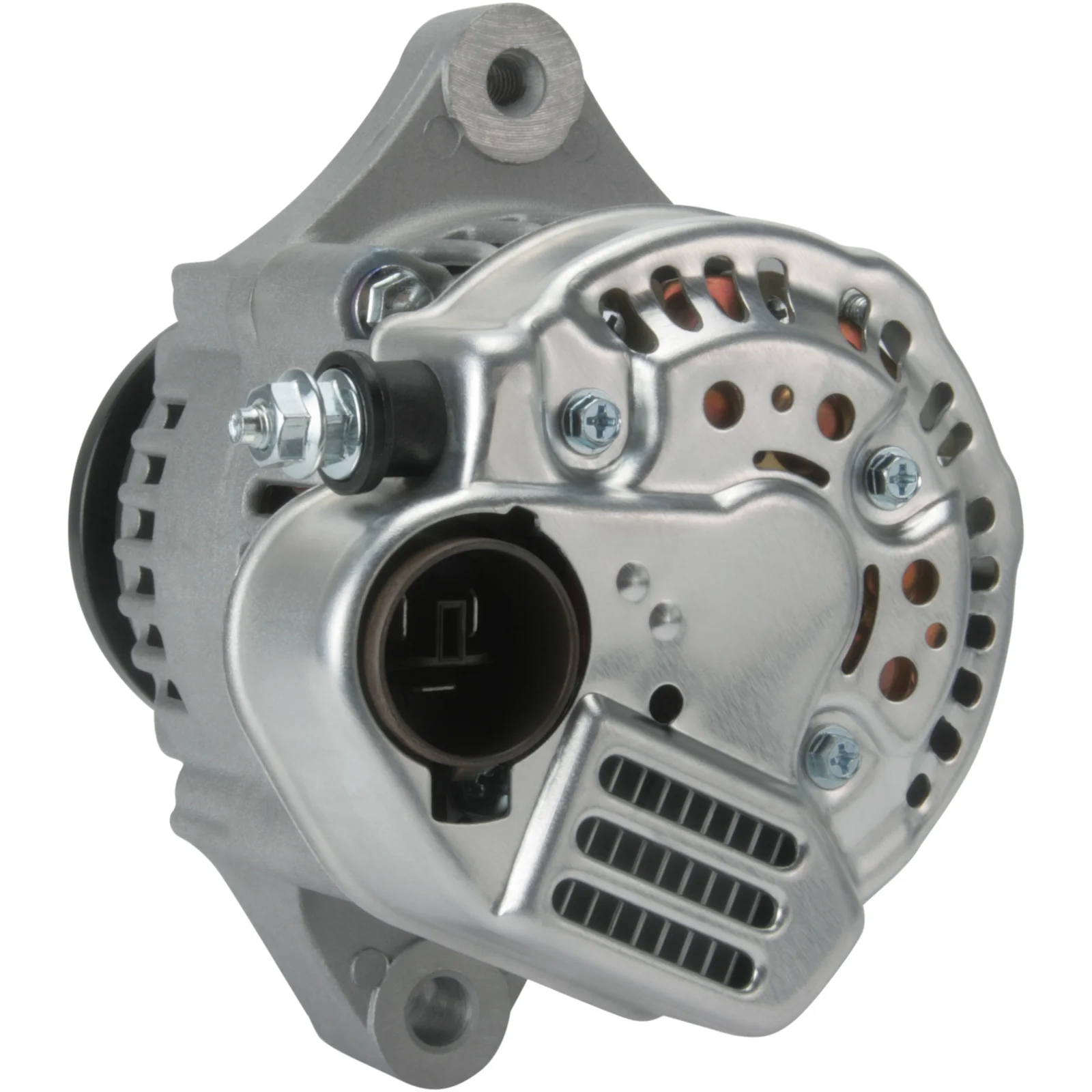

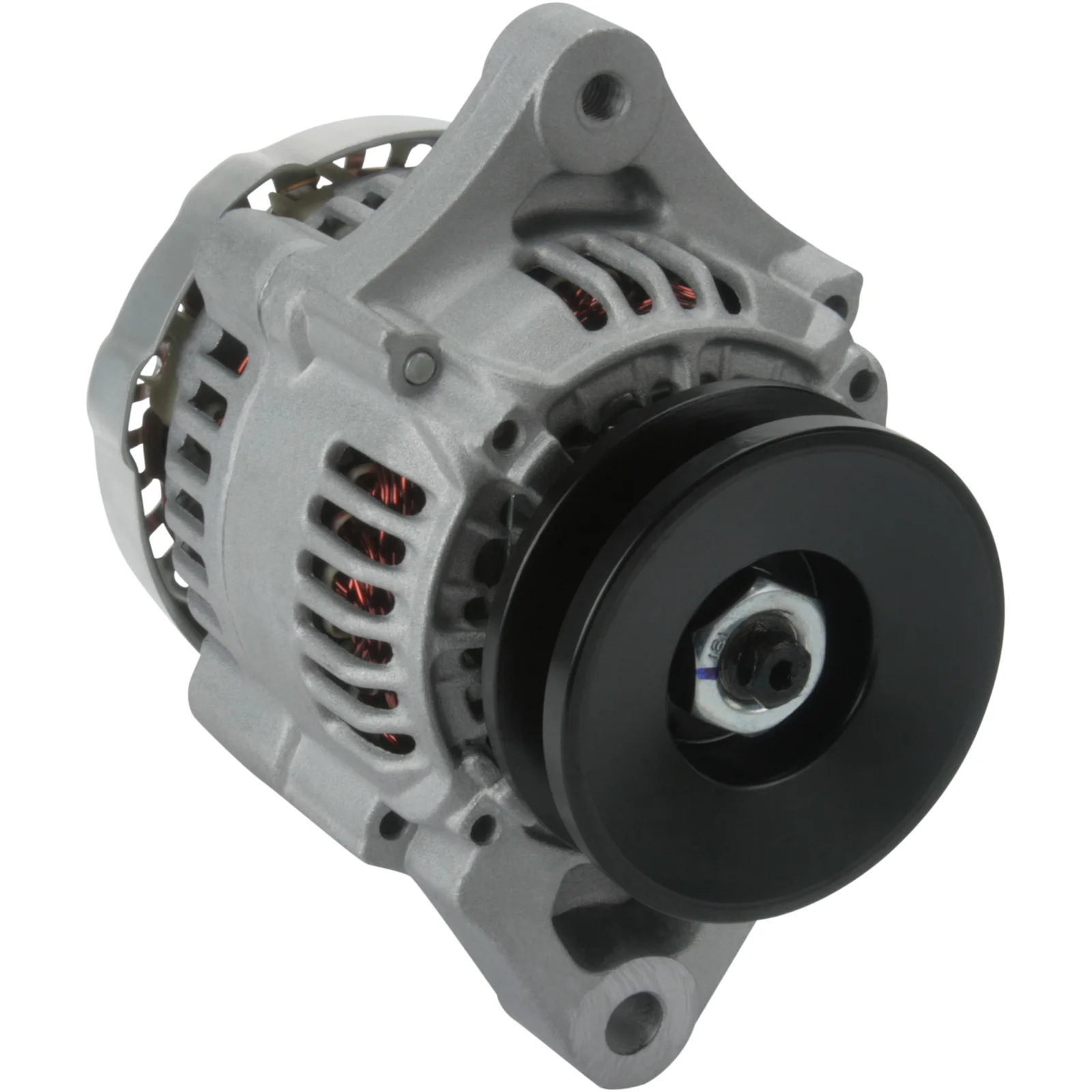

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032110629

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 35, Rotation: CW, Remskive diameter: 74,50

Beskrivelse

Spænding: 14
Amp: 35
Remskiva dist.: 44.00
Bredde/holderarm: 24.00
Bøjlehull: 10.00
Bæltespændingsregulator. bøjlehull position.: 60
Bæltespændingsregulator. bøjlehull 1: M8
Remskiva dia.: 74.50
Riller/remskiva: 1
Radius: 68.50
Radius 2: 65.50
B+: M6
Position/B+ i min.: 50
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL12
Total længde mm: 143.00
Remskiva: P
Regulator type: IR
Prod. info: BN
Service: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL12
Bracket hole 10.00
Position/B+ in min. 50
Prod. info BN
Pulley P
Pulley dia. 74.50
Pulley dist. 44.00
Radius 68.50
D+ Size Plug
Radius 2 65.50
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 1
Voltage 14
Total length 143.00 mm
Width/holder arm 24.00
Amp 35

  • OEM
    F032110629, ja970ir, 27060-78003-71, 100211-4540

  • Konkurrentreferens
    a-8282, A6392S, ALT-5301P, ALT30005, and0168, at-00122r, CAL40138, dra3519, DRA3519N, F042302109, F042302110, F042A02109, F042A02110, LRA01719, 1-2132-01nd, 8el732735-001, 28-2982, 90-29-5181, 535.104.352, 5460, 12187, 12187-SECN, 12187-SEN, 12187N, 12187R, 21624, 40970RI, 12060565, 20140102, 32118804

  • NormaliseratArtNr
    a6392s, a8282, alt30005, alt5301p, and0168, at00122r, cal40138, dra3519, dra3519n, f032110629, f042302109, f042302110, f042a02109, f042a02110, ja970ir, lra01719, 8el732735001, 5460, 12187, 12187n, 12187r, 12187secn, 12187sen, 21624, 40970ri, 282982, 1213201nd, 12060565, 20140102, 32118804, 90295181, 535104352, 1002114540, 270607800371

  • Passar modeller
    Toyota Model: 2FG Model series: 2FG-7 Approved: Yes
    Toyota Model: 2FG Model series: 2FG-9 Approved: Yes
    Toyota Model: 2FG Model series: 2FGL-7 Approved: Yes
    Toyota Model: 2FG Model series: 2FGL-9 Approved: Yes
    Toyota Model: 4SG Model series: 4SG-10 Approved: Yes
    Toyota Model: 4SG Model series: 4SG-12 Approved: Yes
    Toyota Model: 4SG Model series: 4SG-15 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-10 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-14 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-15 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-18 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-20 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-23 Approved: Yes
    Toyota Model: 5FD Model series: 5FD-25 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-10 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-14 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-15 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-18 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-20 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-23 Approved: Yes
    Toyota Model: 5FD Model series: 5FDL-25 Approved: Yes
    Toyota Model: 5FG Model series: 5FG-28 Approved: Yes
    Toyota Model: 5FG Model series: 5FG-30 Approved: Yes
    Toyota Model: 5FG Model series: 5FG10 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG14 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG15 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG18 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG23 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG25 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL-25 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL10 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL14 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL15 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL18 From date: 01-01-1986 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL23 From date: 01-01-1989 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-10 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-14 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-15 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-18 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-20 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-23 Approved: Yes
    Toyota Model: 6FD Model series: 6FDL-25 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-10 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-14 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-15 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-18 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-20 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-23 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-25 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-28 Approved: Yes
    Toyota Model: 6FG Model series: 6FG-30 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-10 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-14 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-15 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-18 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-20 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-23 Approved: Yes
    Toyota Model: 6FG Model series: 6FGL-25 Approved: Yes
