Vare nr.: F032110701

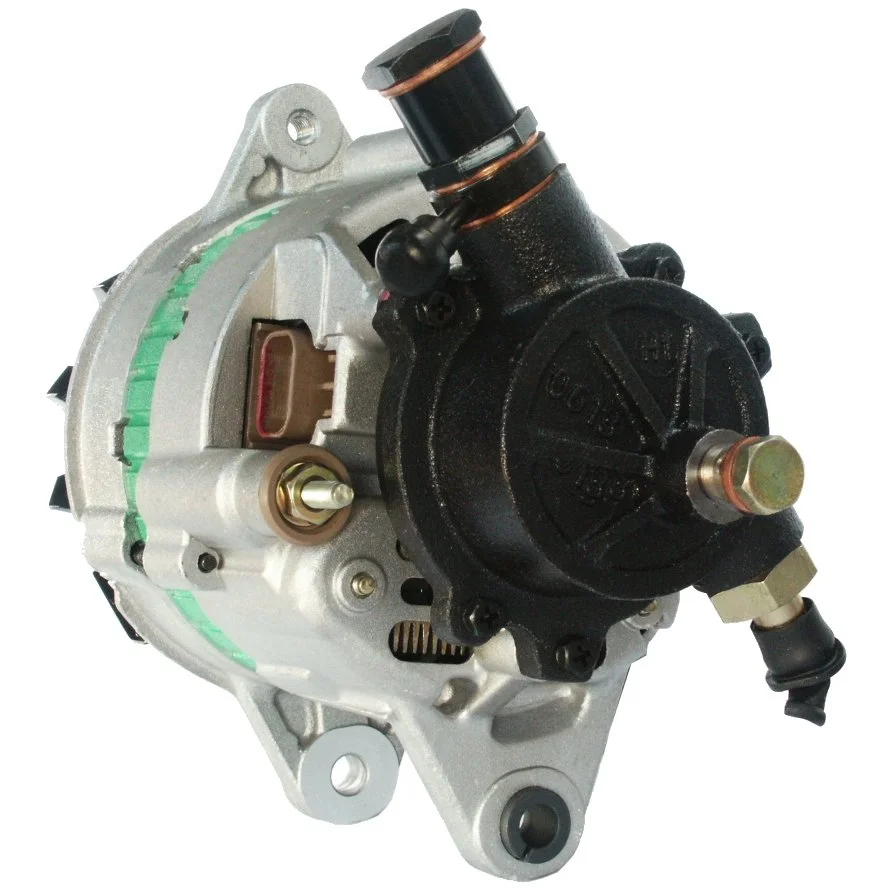

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Montering. bøjle. dist.: 80,50

Beskrivelse

Spænding: 14
Amp: 50
Remskive afstand: 41,80
Bredde/holderarm: 13,30
Monteringsbeslag afstand: 80,50
Beslaghul: 10,40
Bæltejusteringsbeslag hul position: 60
Bæltejustering beslag hul 1: M8
Remskive diameter: 86,00
U Rendering og valning: 2
Radius: 88,50
Radius 2: 84,00
B+: M6
Position/B+ i min.: 43
Rotation: CW
Stik nr.: PL07
Total længde mm: 258,00
Remskive: DP
Regulator type: IR
Vakuumpumpe: Ja
Produkt info: BN
Service: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 43
Prod. info BN
Pulley DP
Pulley dia. 86.00
Pulley dist. 41.80
Radius 88.50
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 258.00 mm
Width/holder arm 13.30
Amp 50

  • OEM
    F032110701, ja185ir, lr150-430, lr150-430c, lr150-430s, lr150-430t, lr150-435, lr150-435s, lr150-435t, 23100-02n12, 23100-02n16, 23100-02n20, 23100-11t10, 23100-11t13

  • Konkurrentreferens
    ALTV036, CAL20112, dra3215, DRA3215N, LRA02614, lrb00342, MG491, QA1922, 8el726330-001, 28-1500, 28-1940, 28-51.143, 227.112.502, 227.140.502, 3391, 22296R, 40185RI, 56433, 56448, 111077, 119107, 210135, 210135A, 437777, 9051160, 12060275, 20404080, 0986038501, 943354024010, 944390511600

  • NormaliseratArtNr
    altv036, cal20112, dra3215, dra3215n, f032110701, ja185ir, lr150430, lr150430c, lr150430s, lr150430t, lr150435, lr150435s, lr150435t, lra02614, lrb00342, mg491, qa1922, 8el726330001, 3391, 22296r, 40185ri, 56433, 56448, 111077, 119107, 210135, 210135a, 281500, 281940, 437777, 2310002n12, 2310002n16, 2310002n20, 2310011t10, 2310011t13, 2851143, 9051160, 12060275, 20404080, 227112502, 227140502, 0986038501, 943354024010, 944390511600

  • Passar modeller
    Nissan Model: Cabstar Model series: Cabstar Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: F23, H41, H42 Body: Platform / Chassis From date: 01-07-1992 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 From date: 01-11-1986 To date: 01-03-1989 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    1 / 2
