HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032110806

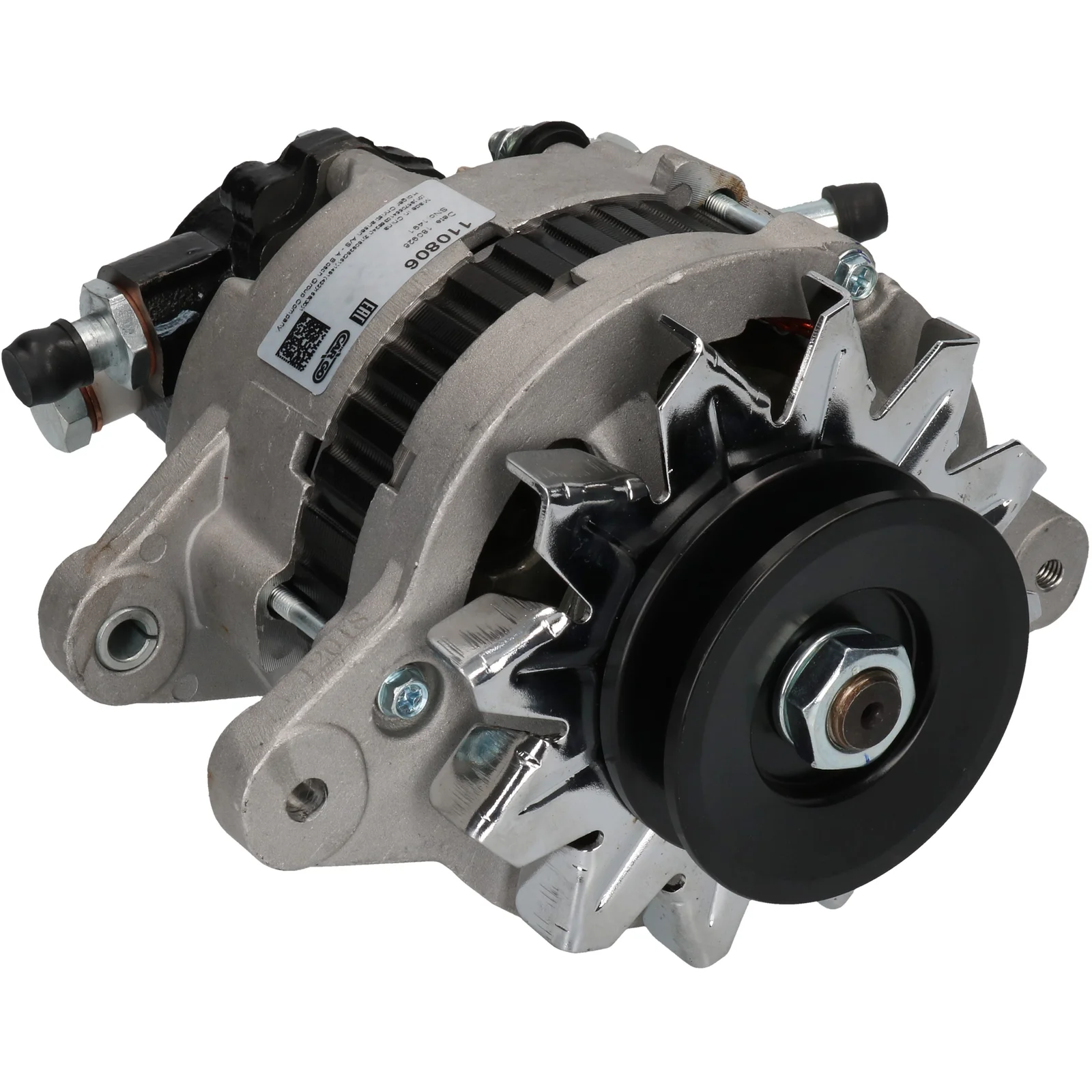

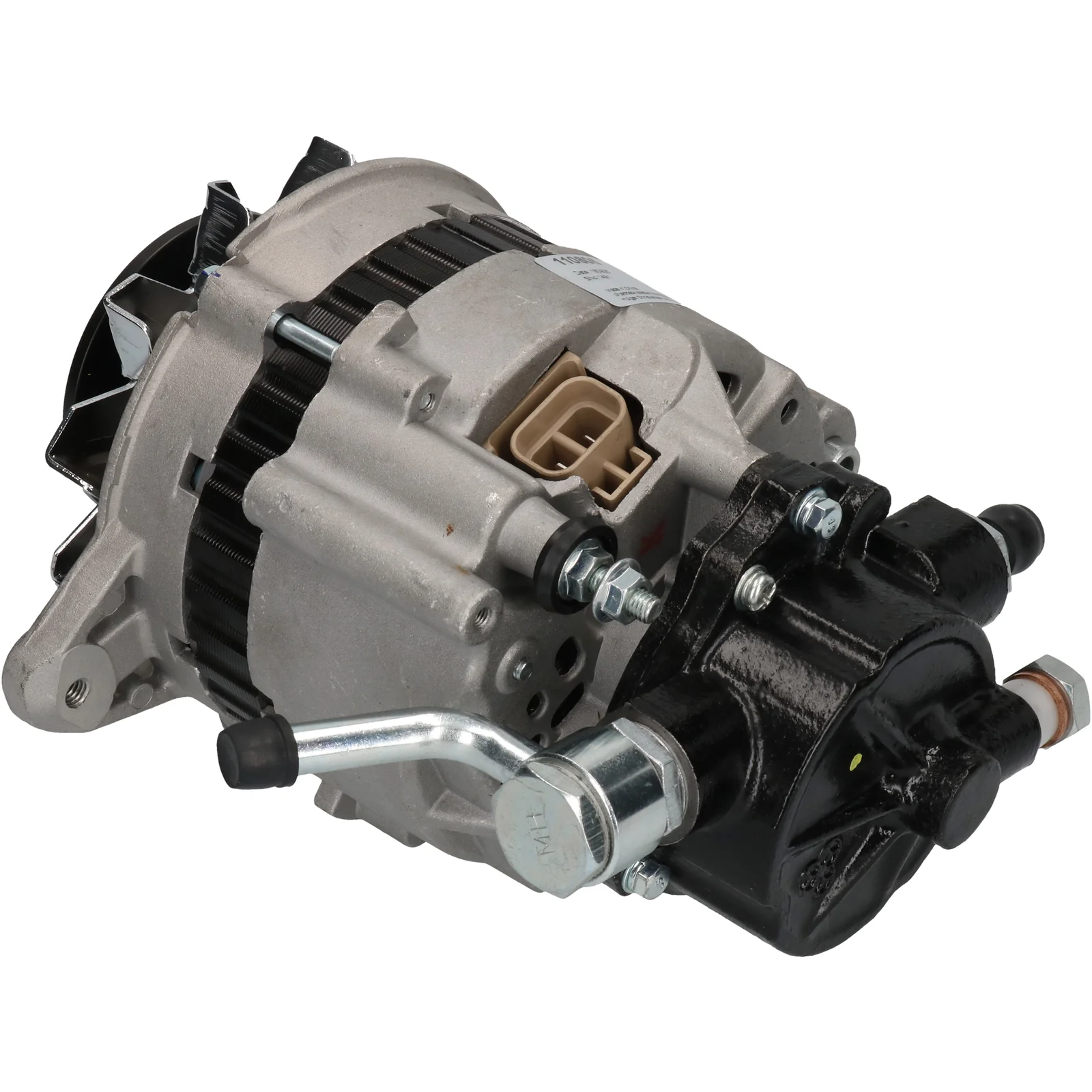

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 65, Rotation: CW, Monteringsbeslag afstand.: 56.30

Beskrivelse

Spænding: 14
Amp.: 65
Remskive dist.: 44,40
Bredde/beslagarm: 12,80
Mount. holder dist.: 56,30
Holderhul: 8,20
Bæltespændingsbeslag pos.: 4
Bæltespændingsbeslag hul 1: M8
Remskive dia.: 83,50
Riller/remskive: 1
Radius: 91,00
Radius 2: 85,00
B+: M6
Position/B+ i min.: 7
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL07
Total længde mm: 223,50
Remskive: P
Regulator type: IR
Vakuumpumpe: Ja
Produktinfo: BN
Service: Mitsubishi

Filer

Specifikation

B+ M6
Mount. bracket dist. 56.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL07
Bracket hole 8.20
Position/B+ in min. 7
Prod. info BN
Pulley P
Pulley dia. 83.50
Pulley dist. 44.40
Radius 91.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 223.50 mm
Width/holder arm 12.80
Amp 65

  • OEM
    A002T01483, A002T01583, A002T01683, A002T01686, A002T01783, A002T10083, a2t01483, a2t01583, a2t01683, a2t01686, a2t01783, a2t10083, ad165309, apr165aa, F032110806, had165500, M04418, md103373, md103564, md106319, md106320, md124233, 2EA0550D3, 37300-42116, 37300-42200, 37300-42202, 37300-42203, 37300-42204, 37300-42206

  • Konkurrentreferens
    A5006, A5342, aca-943, aca-948, ALT-V017, ALTV017, CAL35103, dra3038, DRA3038N, F042303101, F042A03101, lra00706, LRA02604, QA3189, 8EL011711-771, 8el726363-001, 27-51.506, 27-51.524, 27-51.550, 28-0918, 28-2554, 226.108.602, 5344, 9026, 12642N, 12642R, 40585RI, 56147, 119114, 210050, 210050A, 210645, 210645A, 437145, 437148, 600265, 9051524, 12060139, 063532605, 0986042261, 0986042271, 063532605010, 943346062010

  • NormaliseratArtNr
    a002t01483, a002t01583, a002t01683, a002t01686, a002t01783, a002t10083, a2t01483, a2t01583, a2t01683, a2t01686, a2t01783, a2t10083, a5006, a5342, aca943, aca948, ad165309, altv017, apr165aa, cal35103, dra3038, dra3038n, f032110806, f042303101, f042a03101, had165500, lra00706, lra02604, m04418, md103373, md103564, md106319, md106320, md124233, qa3189, 2ea0550d3, 8el011711771, 8el726363001, 5344, 9026, 12642n, 12642r, 40585ri, 56147, 119114, 210050, 210050a, 210645, 210645a, 280918, 282554, 437145, 437148, 600265, 2751506, 2751524, 2751550, 9051524, 12060139, 063532605, 226108602, 0986042261, 0986042271, 3730042116, 3730042200, 3730042202, 3730042203, 3730042204, 3730042206, 063532605010, 943346062010

  • Passar modeller
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: K24, 34T Body: Pick Up From date: 01-12-1987 To date: 01-05-1993 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Body: Pick Up From date: 01-11-1992 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: K14T Body: Pick Up From date: 01-11-1986 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Platform / Chassis From date: 01-11-1986 To date: 01-04-1994 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: PO5V, PO5W, P15V Body: Van From date: 01-11-1986 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel V8 Size of motor: 2.5 Brand of engine: 4D56 Type description: P05V, W, 15V Body: Bus From date: 01-11-1986 To date: 01-05-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Shogun Model series: Shogun Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56 Type description: P25W From date: 01-06-1986 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp.: 65
    Remskive dist.: 44,40
    Bredde/beslagarm: 12,80
    Mount. holder dist.: 56,30
    Holderhul: 8,20
    Bæltespændingsbeslag pos.: 4
    Bæltespændingsbeslag hul 1: M8
    Remskive dia.: 83,50
    Riller/remskive: 1
    Radius: 91,00
    Radius 2: 85,00
    B+: M6
    Position/B+ i min.: 7
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL07
    Total længde mm: 223,50
    Remskive: P
    Regulator type: IR
    Vakuumpumpe: Ja
    Produktinfo: BN
    Service: Mitsubishi

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 56.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL07
    Bracket hole 8.20
    Position/B+ in min. 7
    Prod. info BN
    Pulley P
    Pulley dia. 83.50
    Pulley dist. 44.40
    Radius 91.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 223.50 mm
    Width/holder arm 12.80
    Amp 65
  • Køretøjsmatchning

    • OEM
      A002T01483, A002T01583, A002T01683, A002T01686, A002T01783, A002T10083, a2t01483, a2t01583, a2t01683, a2t01686, a2t01783, a2t10083, ad165309, apr165aa, F032110806, had165500, M04418, md103373, md103564, md106319, md106320, md124233, 2EA0550D3, 37300-42116, 37300-42200, 37300-42202, 37300-42203, 37300-42204, 37300-42206

    • Konkurrentreferens
      A5006, A5342, aca-943, aca-948, ALT-V017, ALTV017, CAL35103, dra3038, DRA3038N, F042303101, F042A03101, lra00706, LRA02604, QA3189, 8EL011711-771, 8el726363-001, 27-51.506, 27-51.524, 27-51.550, 28-0918, 28-2554, 226.108.602, 5344, 9026, 12642N, 12642R, 40585RI, 56147, 119114, 210050, 210050A, 210645, 210645A, 437145, 437148, 600265, 9051524, 12060139, 063532605, 0986042261, 0986042271, 063532605010, 943346062010

    • NormaliseratArtNr
      a002t01483, a002t01583, a002t01683, a002t01686, a002t01783, a002t10083, a2t01483, a2t01583, a2t01683, a2t01686, a2t01783, a2t10083, a5006, a5342, aca943, aca948, ad165309, altv017, apr165aa, cal35103, dra3038, dra3038n, f032110806, f042303101, f042a03101, had165500, lra00706, lra02604, m04418, md103373, md103564, md106319, md106320, md124233, qa3189, 2ea0550d3, 8el011711771, 8el726363001, 5344, 9026, 12642n, 12642r, 40585ri, 56147, 119114, 210050, 210050a, 210645, 210645a, 280918, 282554, 437145, 437148, 600265, 2751506, 2751524, 2751550, 9051524, 12060139, 063532605, 226108602, 0986042261, 0986042271, 3730042116, 3730042200, 3730042202, 3730042203, 3730042204, 3730042206, 063532605010, 943346062010

    • Passar modeller
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: K24, 34T Body: Pick Up From date: 01-12-1987 To date: 01-05-1993 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Body: Pick Up From date: 01-11-1992 To date: 01-08-1996 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: K14T Body: Pick Up From date: 01-11-1986 To date: 01-10-1996 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Platform / Chassis From date: 01-11-1986 To date: 01-04-1994 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: PO5V, PO5W, P15V Body: Van From date: 01-11-1986 To date: 01-02-2006 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel V8 Size of motor: 2.5 Brand of engine: 4D56 Type description: P05V, W, 15V Body: Bus From date: 01-11-1986 To date: 01-05-2004 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Shogun Model series: Shogun Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56 Type description: P25W From date: 01-06-1986 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      1 / 3
