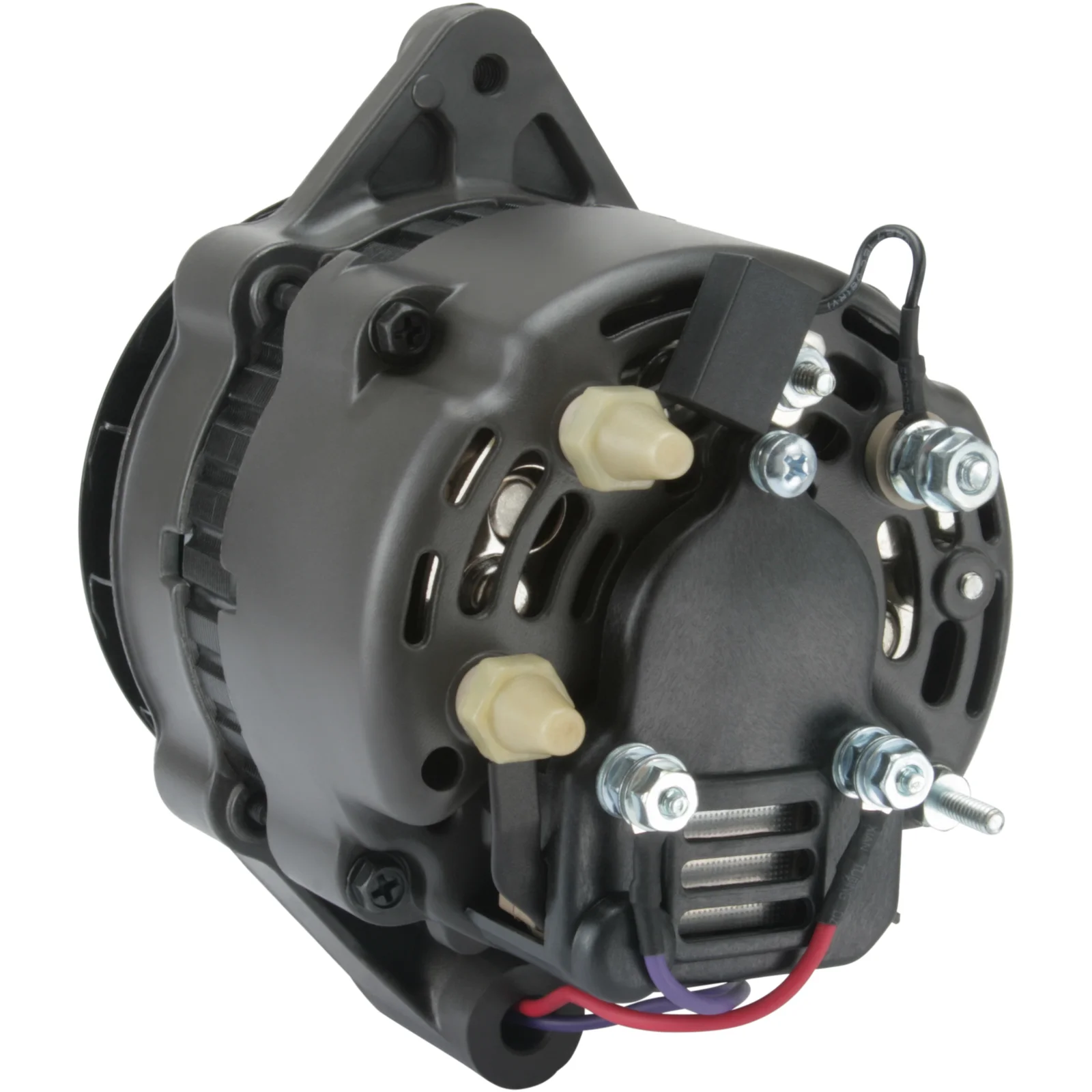

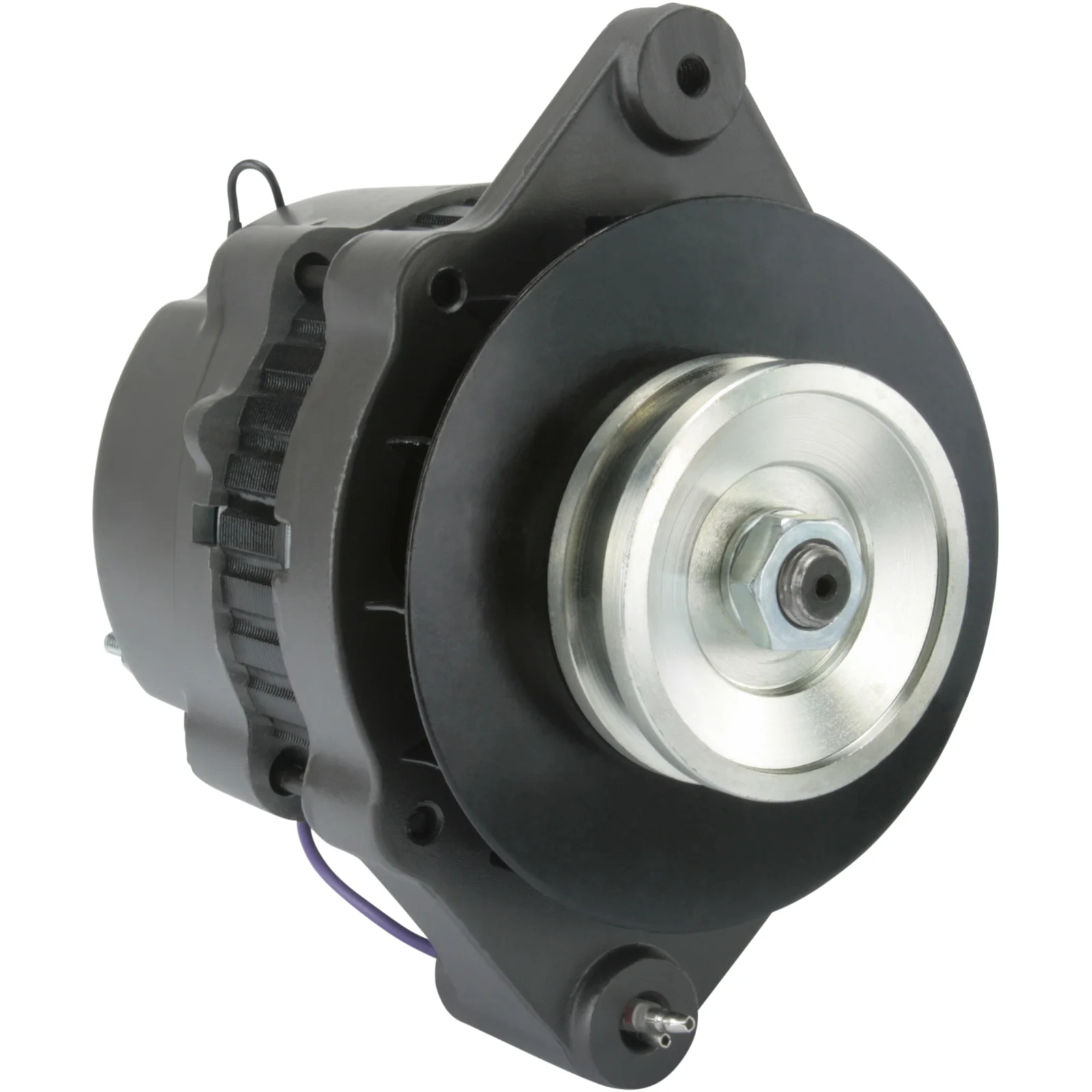

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032110959

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 55, Rotation: CW, Remskive diameter: 74.00

Beskrivelse

Spænding: 14
Ampere: 55
Terminal: W
Drevskive dist.: 76,30
Bredde/holderarm: 50,70
Holderhuls: 3/8" UNC
Bælte. justering. holderhul pos.: 60
Bælte. justering. holderhul 1: 5/16" UNC
Drevskive dia.: 74,00
Riller/drevskive: 1
Radius: 81,50
Radius 2: 82,50
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Stik
Rotation: Med uret
W stiktype: Stik
Samlet længde mm: 162,00
Drevskive: P
Regulator type: IR
Produktinfo: BN
Service: Mercury
Bemærkninger: Lilla ledning = +15. Rød ledning =S (+)

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 5/16" UNC
Belt. adj. brackethole pos. 60
Bracket hole 3/8" UNC
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 76.30
Radius 81.50
D+ Size Plug
Radius 2 82.50
Regulator type IR
Remarks Purple wire = +15. Red wire =S (+)
Rotation CW
Servicing Mercury
Grooves/pulley 1
Terminal W
Voltage 14
W plug type Plug
Total length 162.00 mm
Width/holder arm 50.70
Amp 55

  • OEM
    a000b0331, ar150aa, ar150ba, F032110959, ja1169ir, M31612, M40472, 2EA0436A, 8EM2003K, 8em2003ka, 8EM2004K, 8em2004kb, 8EM2004KBS, 8EM2007K, 8em2007ka, 8em2014ka, 8EM2017K, 8mr2023f, 8mr2024f, 8mr2036k, 8mr2039k, 8mr2044k, 8mr2049k, 8MR2049KA, 8mr2091kss, 81-7119, 81-71192, 110-292, 110-293, 110-294, 110-354, 110-355, 110-386, 110-389, 110-517, 110-686, 12449, 92497, 92497a3, 155602, 155603, 155604, 817119-2, 8171192

  • Konkurrentreferens
    a-8311, a-8763, a-9224, ALT34001, ALT3701, am-0055r, CAL11114, LRA01339, lra01960, 1-1947-01MD, 8el737224-001, 20-8600, 28-1715, 28-3856, 90-05-9161, 90-31-7001, 543.108.552, 543.120.552, 3144, 5641, 7465N, 7466N, 7466R, 12174N-1G, 12174R-1G, 553712RI, 600117

  • NormaliseratArtNr
    a000b0331, a8311, a8763, a9224, alt34001, alt3701, am0055r, ar150aa, ar150ba, cal11114, f032110959, ja1169ir, lra01339, lra01960, m31612, m40472, 2ea0436a, 8el737224001, 8em2003k, 8em2003ka, 8em2004k, 8em2004kb, 8em2004kbs, 8em2007k, 8em2007ka, 8em2014ka, 8em2017k, 8mr2023f, 8mr2024f, 8mr2036k, 8mr2039k, 8mr2044k, 8mr2049k, 8mr2049ka, 8mr2091kss, 3144, 5641, 7465n, 7466n, 7466r, 12174n1g, 12174r1g, 12449, 92497, 92497a3, 110292, 110293, 110294, 110354, 110355, 110386, 110389, 110517, 110686, 155602, 155603, 155604, 208600, 281715, 283856, 553712ri, 600117, 817119, 1194701md, 8171192, 90059161, 90317001, 543108552, 543120552

  • Passar modeller
    Mercruiser Model: Engine Model series: Various Models Size of motor: 3.0 Approved: Yes
    Mercury Model: Marine Model series: Various Models Approved: Yes
    OMC Model: Engine Model series: Various Models Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 55
    Terminal: W
    Drevskive dist.: 76,30
    Bredde/holderarm: 50,70
    Holderhuls: 3/8" UNC
    Bælte. justering. holderhul pos.: 60
    Bælte. justering. holderhul 1: 5/16" UNC
    Drevskive dia.: 74,00
    Riller/drevskive: 1
    Radius: 81,50
    Radius 2: 82,50
    B+: M8
    Position/B+ i min.: 10
    D+ Størrelse: Stik
    Rotation: Med uret
    W stiktype: Stik
    Samlet længde mm: 162,00
    Drevskive: P
    Regulator type: IR
    Produktinfo: BN
    Service: Mercury
    Bemærkninger: Lilla ledning = +15. Rød ledning =S (+)

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 5/16" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 3/8" UNC
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 76.30
    Radius 81.50
    D+ Size Plug
    Radius 2 82.50
    Regulator type IR
    Remarks Purple wire = +15. Red wire =S (+)
    Rotation CW
    Servicing Mercury
    Grooves/pulley 1
    Terminal W
    Voltage 14
    W plug type Plug
    Total length 162.00 mm
    Width/holder arm 50.70
    Amp 55
  • Køretøjsmatchning

    • OEM
      a000b0331, ar150aa, ar150ba, F032110959, ja1169ir, M31612, M40472, 2EA0436A, 8EM2003K, 8em2003ka, 8EM2004K, 8em2004kb, 8EM2004KBS, 8EM2007K, 8em2007ka, 8em2014ka, 8EM2017K, 8mr2023f, 8mr2024f, 8mr2036k, 8mr2039k, 8mr2044k, 8mr2049k, 8MR2049KA, 8mr2091kss, 81-7119, 81-71192, 110-292, 110-293, 110-294, 110-354, 110-355, 110-386, 110-389, 110-517, 110-686, 12449, 92497, 92497a3, 155602, 155603, 155604, 817119-2, 8171192

    • Konkurrentreferens
      a-8311, a-8763, a-9224, ALT34001, ALT3701, am-0055r, CAL11114, LRA01339, lra01960, 1-1947-01MD, 8el737224-001, 20-8600, 28-1715, 28-3856, 90-05-9161, 90-31-7001, 543.108.552, 543.120.552, 3144, 5641, 7465N, 7466N, 7466R, 12174N-1G, 12174R-1G, 553712RI, 600117

    • NormaliseratArtNr
      a000b0331, a8311, a8763, a9224, alt34001, alt3701, am0055r, ar150aa, ar150ba, cal11114, f032110959, ja1169ir, lra01339, lra01960, m31612, m40472, 2ea0436a, 8el737224001, 8em2003k, 8em2003ka, 8em2004k, 8em2004kb, 8em2004kbs, 8em2007k, 8em2007ka, 8em2014ka, 8em2017k, 8mr2023f, 8mr2024f, 8mr2036k, 8mr2039k, 8mr2044k, 8mr2049k, 8mr2049ka, 8mr2091kss, 3144, 5641, 7465n, 7466n, 7466r, 12174n1g, 12174r1g, 12449, 92497, 92497a3, 110292, 110293, 110294, 110354, 110355, 110386, 110389, 110517, 110686, 155602, 155603, 155604, 208600, 281715, 283856, 553712ri, 600117, 817119, 1194701md, 8171192, 90059161, 90317001, 543108552, 543120552

    • Passar modeller
      Mercruiser Model: Engine Model series: Various Models Size of motor: 3.0 Approved: Yes
      Mercury Model: Marine Model series: Various Models Approved: Yes
      OMC Model: Engine Model series: Various Models Approved: Yes
