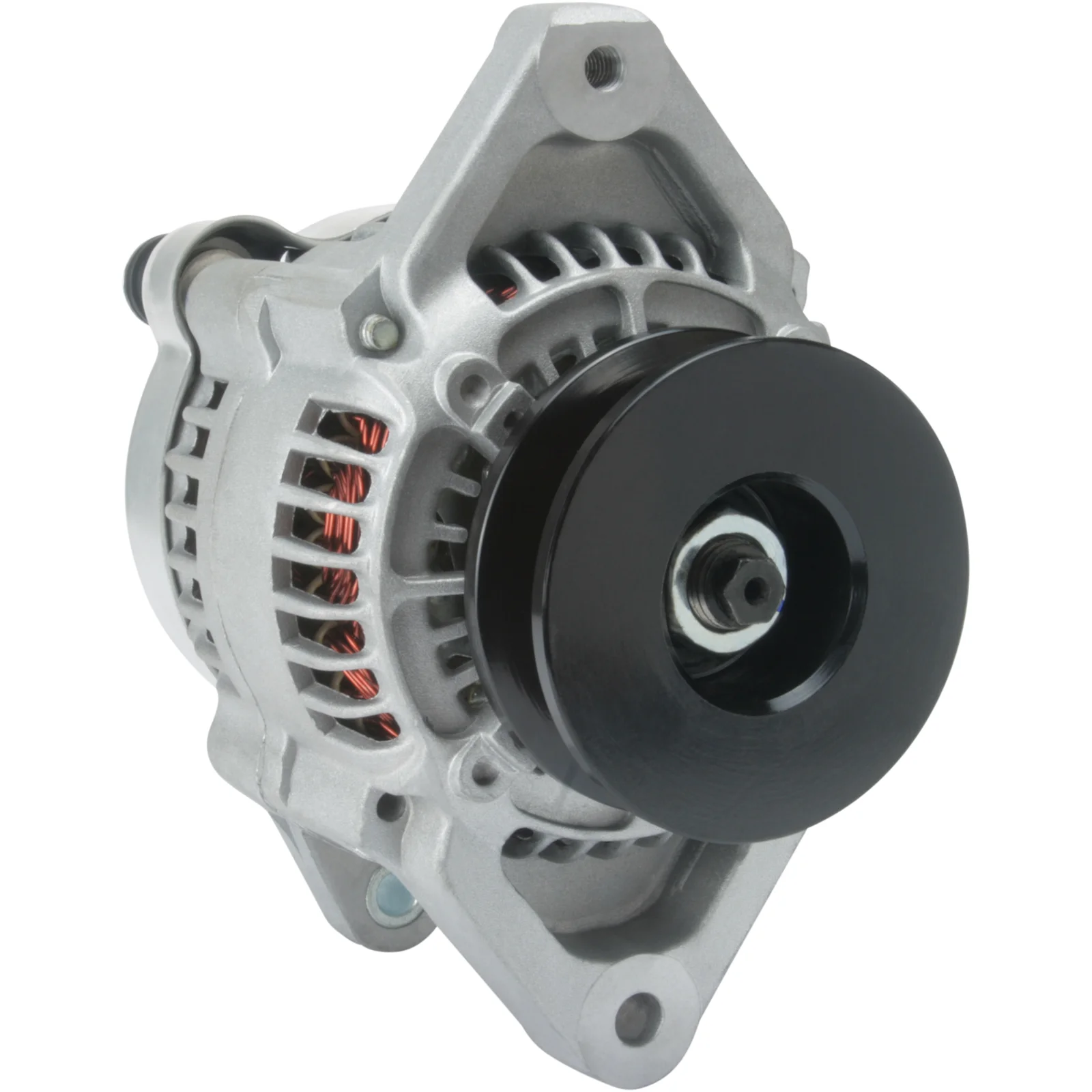

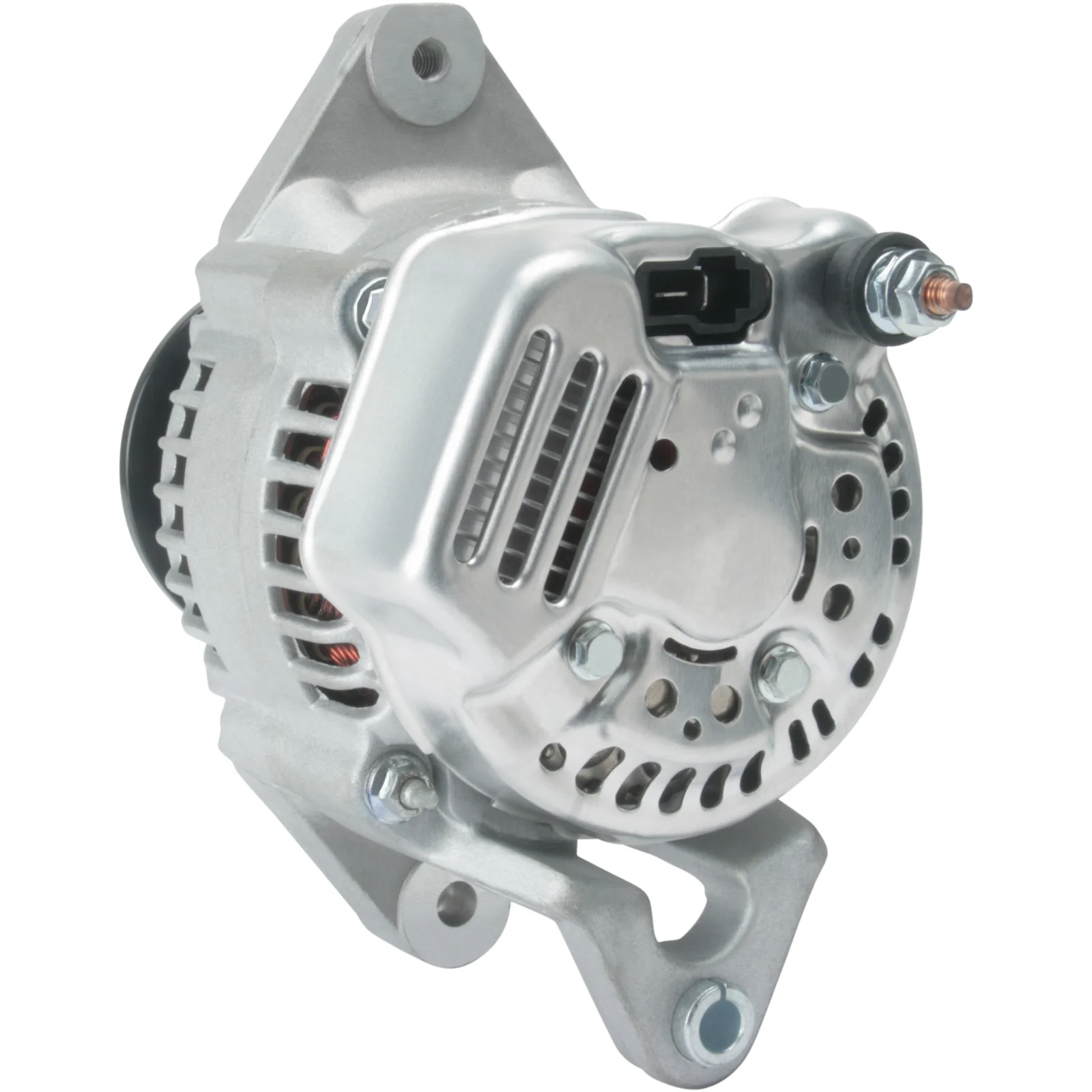

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111017

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Mount. bøsning for fordelerdæksel: 67.30

Beskrivelse

Spænding: 14
Amp: 50
Remskive dist.: 45,00
Bredde/holderarm: 20,00
Montagebeslag dist.: 67,30
Beslagshul: 8,50
Bælte. justering beslagshul position.: 60
Bælte. justering beslagshul 1: M8
Remskive dia.: 79,00
Riller/remskive: 1
Radius: 78,00
Radius 2: 78,00
B+: M6
Position/B+ i min.: 8
Rotationsretning: CW
Stik nr.: PL10
Samlet længde mm: 160,50
Remskive: P
Regulator type: IR
Produktinfo: BN
Service: Toyota

Filer

Specifikation

B+ M6
Mount. bracket dist. 67.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 8.50
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 79.00
Pulley dist. 45.00
Radius 78.00
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 1
Voltage 14
Total length 160.50 mm
Width/holder arm 20.00
Amp 50

  • OEM
    F032111017, 27070-23000-71, 100211-4200, 100211-4201, 100211-4210

  • Konkurrentreferens
    ALT5095, CAL40197, DRA1387, 28-2805, 535.109.502, 12181N, 12186, 12186N

  • NormaliseratArtNr
    alt5095, cal40197, dra1387, f032111017, 12181n, 12186, 12186n, 282805, 535109502, 1002114200, 1002114201, 1002114210, 270702300071

  • Passar modeller
    Toyota Model: 5FG Model series: 5FG20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG23 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG25 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL23 From date: 01-01-1989 Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 50
    Remskive dist.: 45,00
    Bredde/holderarm: 20,00
    Montagebeslag dist.: 67,30
    Beslagshul: 8,50
    Bælte. justering beslagshul position.: 60
    Bælte. justering beslagshul 1: M8
    Remskive dia.: 79,00
    Riller/remskive: 1
    Radius: 78,00
    Radius 2: 78,00
    B+: M6
    Position/B+ i min.: 8
    Rotationsretning: CW
    Stik nr.: PL10
    Samlet længde mm: 160,50
    Remskive: P
    Regulator type: IR
    Produktinfo: BN
    Service: Toyota

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 67.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 8.50
    Position/B+ in min. 8
    Prod. info BN
    Pulley P
    Pulley dia. 79.00
    Pulley dist. 45.00
    Radius 78.00
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Voltage 14
    Total length 160.50 mm
    Width/holder arm 20.00
    Amp 50
  • Køretøjsmatchning

    • OEM
      F032111017, 27070-23000-71, 100211-4200, 100211-4201, 100211-4210

    • Konkurrentreferens
      ALT5095, CAL40197, DRA1387, 28-2805, 535.109.502, 12181N, 12186, 12186N

    • NormaliseratArtNr
      alt5095, cal40197, dra1387, f032111017, 12181n, 12186, 12186n, 282805, 535109502, 1002114200, 1002114201, 1002114210, 270702300071

    • Passar modeller
      Toyota Model: 5FG Model series: 5FG20 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG23 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
      Toyota Model: 5FG Model series: 5FG25 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL20 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL23 From date: 01-01-1989 Approved: Yes
