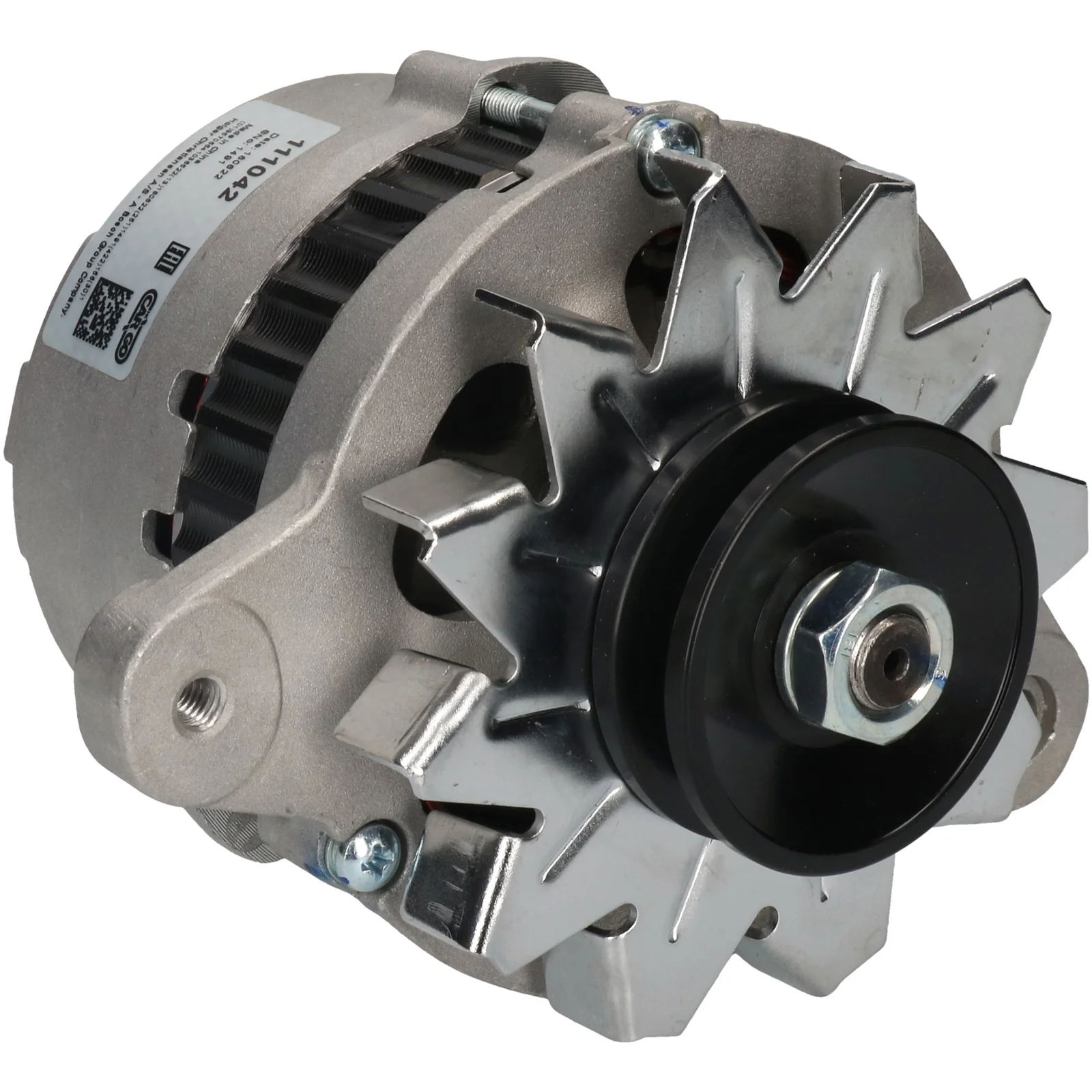

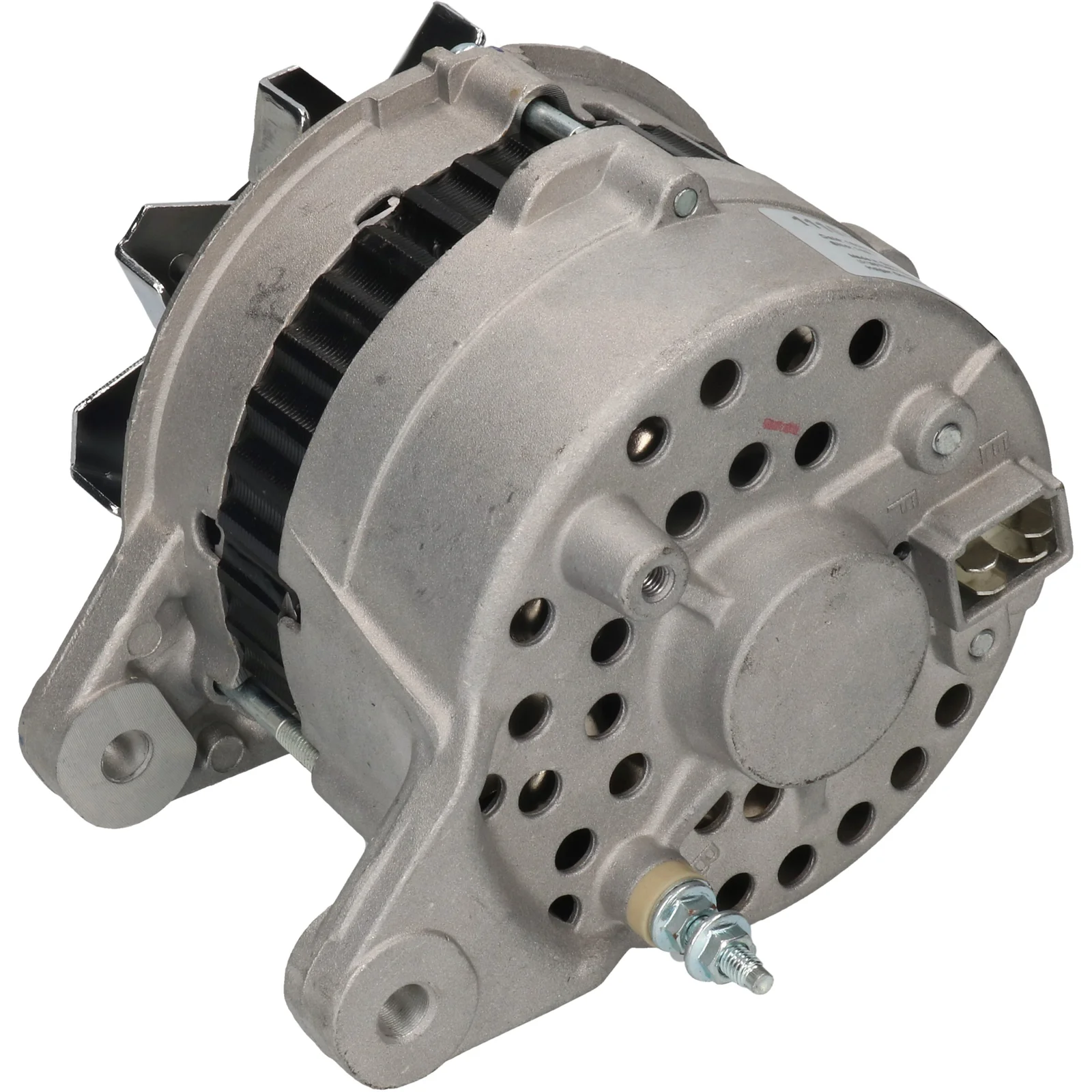

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111042

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 35, Rotation: CW, Monteringsbeslag afstand.: 65,00

Beskrivelse

Spænding: 14
Amp: 35
Remskive dist.: 42,00
Bredde/holderarm: 13,00
Monteringsbeslag dist.: 65,00
Beslaghul: 8,50
Web. just. beslaghul pos.: 55
Web. just. beslaghul 1: M8
Remskivens dia.: 62,00
Riller/remskive: 1
Radius: 78,00
Radius 2: 78,00
B+: M5
Pos./B+ i min.: 25
D+ Størrelse: Propel
Rotation: med uret
Propel nr.: PL02
Total længde mm: 162,00
Remskive: P
Regulator: uden
Produktsinfo: BN
Service: Iseki

Filer

Specifikation

B+ M5
Mount. bracket dist. 65.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL02
Bracket hole 8.50
Position/B+ in min. 25
Prod. info BN
Pulley P
Pulley dia. 62.00
Pulley dist. 42.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator w/o
Rotation CW
Servicing Iseki
Grooves/pulley 1
Voltage 14
Total length 162.00 mm
Width/holder arm 13.00
Amp 35

  • OEM
    A001T11574, A001T22074, a1t11574, a1t22074, ah2025m4, ah2035m, ah2035m4, F032111042, ja872, md017635, md017645, 021000-6980

  • Konkurrentreferens
    aca-322, CAL40133, dra3443, LRA01091, 8el732718-001, 27-1618, 90-27-3081, 526.002.352, 5446, 12132, 12132N, 40872, 119148, 12060487

  • NormaliseratArtNr
    a001t11574, a001t22074, a1t11574, a1t22074, aca322, ah2025m4, ah2035m, ah2035m4, cal40133, dra3443, f032111042, ja872, lra01091, md017635, md017645, 8el732718001, 5446, 12132, 12132n, 40872, 119148, 271618, 12060487, 90273081, 0210006980, 526002352

  • Passar modeller
    Iseki Model: 200 Model series: 234 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
    Iseki Model: 200 Model series: 235 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 244 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
    Iseki Model: 200 Model series: 245 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 254 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
    Iseki Model: 200 Model series: 255 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 265 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 200 Model series: 275 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
    Iseki Model: 2100 Model series: 2140 Approved: Yes
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 35
    Remskive dist.: 42,00
    Bredde/holderarm: 13,00
    Monteringsbeslag dist.: 65,00
    Beslaghul: 8,50
    Web. just. beslaghul pos.: 55
    Web. just. beslaghul 1: M8
    Remskivens dia.: 62,00
    Riller/remskive: 1
    Radius: 78,00
    Radius 2: 78,00
    B+: M5
    Pos./B+ i min.: 25
    D+ Størrelse: Propel
    Rotation: med uret
    Propel nr.: PL02
    Total længde mm: 162,00
    Remskive: P
    Regulator: uden
    Produktsinfo: BN
    Service: Iseki

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 65.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL02
    Bracket hole 8.50
    Position/B+ in min. 25
    Prod. info BN
    Pulley P
    Pulley dia. 62.00
    Pulley dist. 42.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator w/o
    Rotation CW
    Servicing Iseki
    Grooves/pulley 1
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 13.00
    Amp 35
  • Køretøjsmatchning

    • OEM
      A001T11574, A001T22074, a1t11574, a1t22074, ah2025m4, ah2035m, ah2035m4, F032111042, ja872, md017635, md017645, 021000-6980

    • Konkurrentreferens
      aca-322, CAL40133, dra3443, LRA01091, 8el732718-001, 27-1618, 90-27-3081, 526.002.352, 5446, 12132, 12132N, 40872, 119148, 12060487

    • NormaliseratArtNr
      a001t11574, a001t22074, a1t11574, a1t22074, aca322, ah2025m4, ah2035m, ah2035m4, cal40133, dra3443, f032111042, ja872, lra01091, md017635, md017645, 8el732718001, 5446, 12132, 12132n, 40872, 119148, 271618, 12060487, 90273081, 0210006980, 526002352

    • Passar modeller
      Iseki Model: 200 Model series: 234 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
      Iseki Model: 200 Model series: 235 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 244 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
      Iseki Model: 200 Model series: 245 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 254 From date: 01-01-1982 To date: 01-01-1984 Approved: Yes
      Iseki Model: 200 Model series: 255 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 265 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 200 Model series: 275 From date: 01-01-1985 To date: 01-01-1990 Approved: Yes
      Iseki Model: 2100 Model series: 2140 Approved: Yes
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
