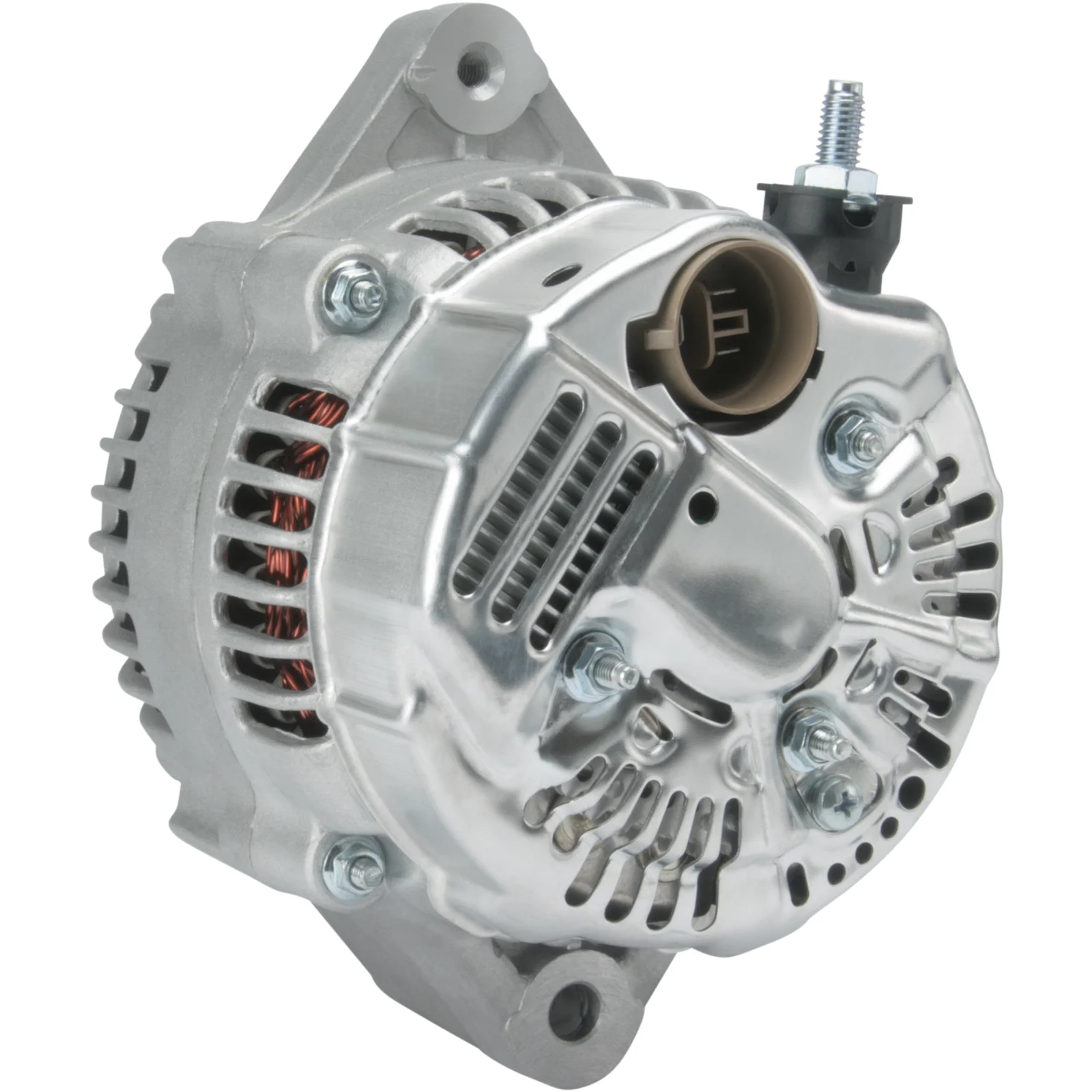

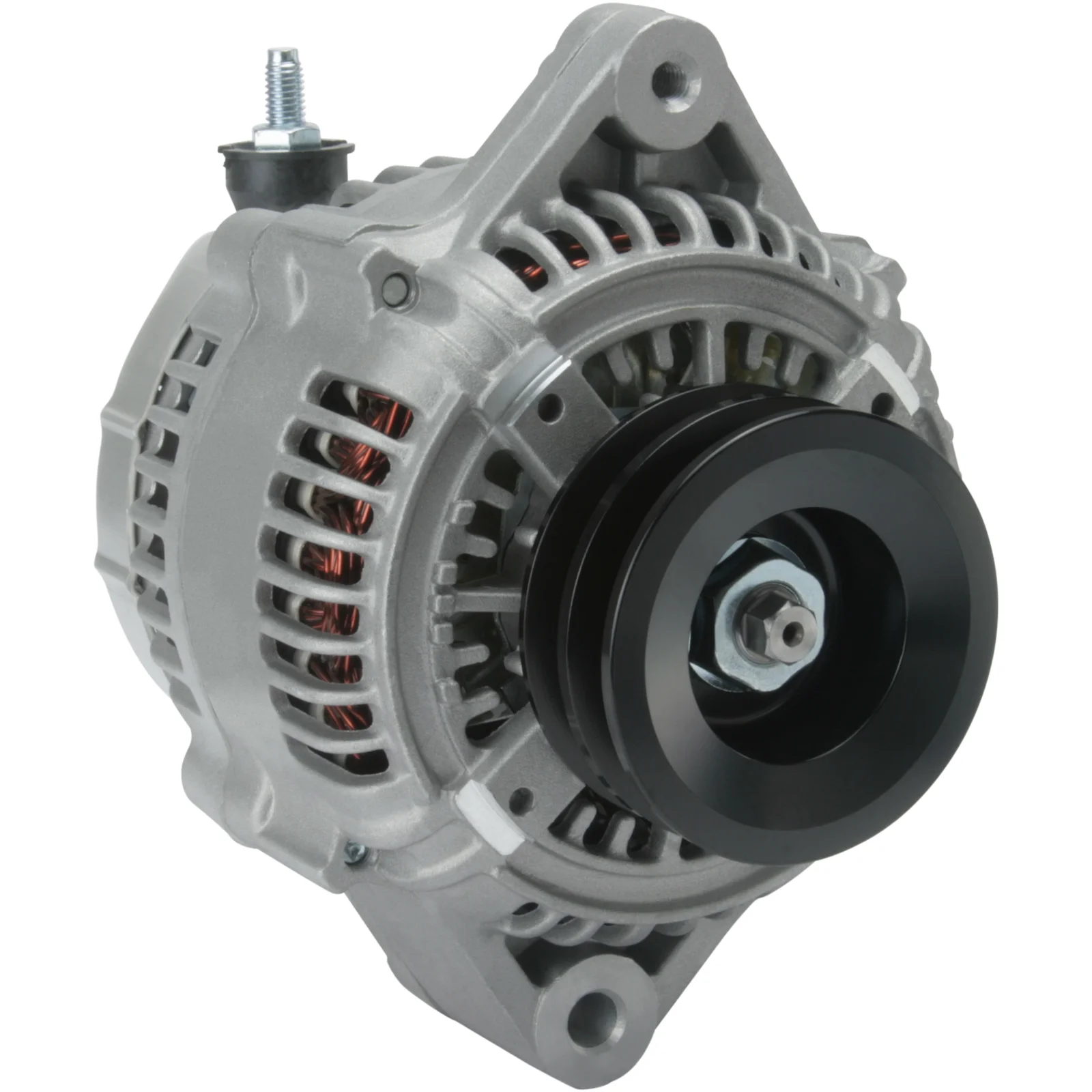

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111215

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Remskive di.: 76.00

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 92,00
Bredde/beslag arm: 58,00
Bøsning hul: 10,30
Bæltespændings reguleringsbeslag hul position: 60
Bæltespændings reguleringsbeslag hul 1: M8
Remskive diameter: 76,00
Riller/remskive: 2
Radius: 84,50
Radius 2: 86,00
B+: M8
Position/B+ i min.: 5
D+ Størrelse: Plug
Rotation: med uret
Plug nr.: PL12
Total længde mm: 175,00
Terminal type: L-IG-S
Remskive: DP
Regulator type: IR
Producentinfo: BN
Service: John Deere haveudstyr med kølende motor

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL12
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 76.00
Pulley dist. 92.00
Radius 84.50
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing John Deere lawn equipment w/ cooling eng
Grooves/pulley 2
Terminal type L-IG-S
Voltage 14
Total length 175.00 mm
Width/holder arm 58.00
Amp 120

  • OEM
    AL78690, F032111215, ja864ir, re36246, re37201, re42123, re44140, re51921, ty6684, TY6778, 100211-6030, 100211-6031, 100211-6050, 100211-6051

  • Konkurrentreferens
    al9942x, ALT10236, CAL40208, CAL40551, dra3128, LRA01308, MM159, 1-2851-01ND, 8EL011712-821, 8el731751-001, 28-1626, 146-37102, 586.104.1202, 5439, 12066, 12066N, 12066R, 40864RI, 111466, 111955, 0986036800

  • NormaliseratArtNr
    al78690, al9942x, alt10236, cal40208, cal40551, dra3128, f032111215, ja864ir, lra01308, mm159, re36246, re37201, re42123, re44140, re51921, ty6684, ty6778, 8el011712821, 8el731751001, 5439, 12066, 12066n, 12066r, 40864ri, 111466, 111955, 281626, 1285101nd, 14637102, 0986036800, 1002116030, 1002116031, 1002116050, 1002116051, 5861041202

  • Passar modeller
    John Deere Model: 1000 Series Model series: 1065 Size of motor: 5.9 From date: 01-11-1981 To date: 01-11-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Model series: 1068 Size of motor: 5.9 From date: 01-10-1981 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Model series: 1072 Size of motor: 5.9 From date: 01-10-1981 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Model series: 1075 Size of motor: 5.9 From date: 01-10-1981 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    John Deere Model: 1000 Series Size of motor: 7.6 From date: 01-02-1982 To date: 01-02-1997 Fuel: Diesel Approved: Yes
    John Deere Model: 4000 Series Model series: 4055 Size of motor: 7.6 Brand of engine: 6076 TRW-06 From date: 01-01-1989 To date: 01-06-1992 Fuel: Diesel Approved: Yes
    John Deere Model: 4000 Series Model series: 4255 Size of motor: 7.6 Brand of engine: 6076 TRW.. From date: 01-01-1989 To date: 01-06-1992 Fuel: Diesel Approved: Yes
    John Deere Model: 4000 Series Model series: 4755 Size of motor: 7.6 Brand of engine: 6076 TRW.. From date: 01-01-1989 To date: 01-05-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 4000 Series Model series: 4955 Size of motor: 7.6 Brand of engine: 6076 A From date: 01-09-1987 Fuel: Diesel Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
