Vare nr.: F032111238

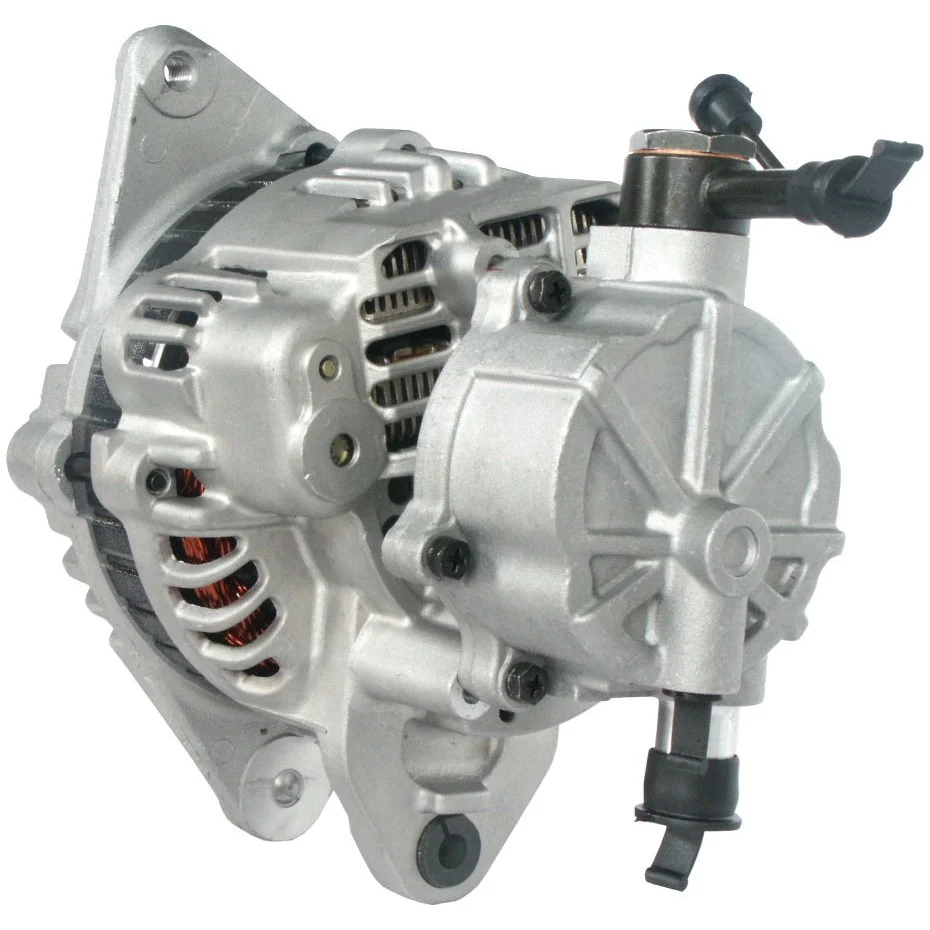

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Monteringsbeslag afstand: 55,10

Beskrivelse

Spænding: 14
Amp: 75
Fremstr. af remskive: 45,20
Bredde/holderarm: 12,80
Fastgørelsesbeslagets afstand: 55,10
Beslagshul: 8,20
Remjusteringsbeslagets hulposition: 5
Remjusteringsbeslagets hul M8: M8
Remskivens diameter: 85,00
Riller/remskive: 1
Radius: 90,00
Radius 2: 97,50
B+: M6
Position/B+ i min.: 13
Rotation: med uret
Stik nr.: PL07
Samlet længde mm: 222,50
Remskive: P
Regulator type: IR
Vakumpumpe: Ja
Produktion info: BN
Service: Mitsubishi

Filer

Specifikation

B+ M6
Mount. bracket dist. 55.10
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 8.20
Position/B+ in min. 13
Prod. info BN
Pulley P
Pulley dia. 85.00
Pulley dist. 45.20
Radius 90.00
Radius 2 97.50
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 222.50 mm
Width/holder arm 12.80
Amp 75

  • OEM
    A003T08183, a3t08183, F032111238, ja878ir, md160671

  • Konkurrentreferens
    A5014, aca-960, ALT31004, CAL35128, dra3276, DRA3276N, LRA01375, lrb00235, QA4128, 8EL011711-451, 8el732724-001, 27-51.538, 28-1784, 226.137.752, 5452, 9032, 23717R, 23718N, 40878RI, 56530, 119898, 210462, 210462A, 600055, 9212150, 12060193, 20130140, 0986042281

  • NormaliseratArtNr
    a003t08183, a3t08183, a5014, aca960, alt31004, cal35128, dra3276, dra3276n, f032111238, ja878ir, lra01375, lrb00235, md160671, qa4128, 8el011711451, 8el732724001, 5452, 9032, 23717r, 23718n, 40878ri, 56530, 119898, 210462, 210462a, 281784, 600055, 2751538, 9212150, 12060193, 20130140, 226137752, 0986042281

  • Passar modeller
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 75
    Fremstr. af remskive: 45,20
    Bredde/holderarm: 12,80
    Fastgørelsesbeslagets afstand: 55,10
    Beslagshul: 8,20
    Remjusteringsbeslagets hulposition: 5
    Remjusteringsbeslagets hul M8: M8
    Remskivens diameter: 85,00
    Riller/remskive: 1
    Radius: 90,00
    Radius 2: 97,50
    B+: M6
    Position/B+ i min.: 13
    Rotation: med uret
    Stik nr.: PL07
    Samlet længde mm: 222,50
    Remskive: P
    Regulator type: IR
    Vakumpumpe: Ja
    Produktion info: BN
    Service: Mitsubishi

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 55.10
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 8.20
    Position/B+ in min. 13
    Prod. info BN
    Pulley P
    Pulley dia. 85.00
    Pulley dist. 45.20
    Radius 90.00
    Radius 2 97.50
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 222.50 mm
    Width/holder arm 12.80
    Amp 75
  • Køretøjsmatchning

    • OEM
      A003T08183, a3t08183, F032111238, ja878ir, md160671

    • Konkurrentreferens
      A5014, aca-960, ALT31004, CAL35128, dra3276, DRA3276N, LRA01375, lrb00235, QA4128, 8EL011711-451, 8el732724-001, 27-51.538, 28-1784, 226.137.752, 5452, 9032, 23717R, 23718N, 40878RI, 56530, 119898, 210462, 210462A, 600055, 9212150, 12060193, 20130140, 0986042281

    • NormaliseratArtNr
      a003t08183, a3t08183, a5014, aca960, alt31004, cal35128, dra3276, dra3276n, f032111238, ja878ir, lra01375, lrb00235, md160671, qa4128, 8el011711451, 8el732724001, 5452, 9032, 23717r, 23718n, 40878ri, 56530, 119898, 210462, 210462a, 281784, 600055, 2751538, 9212150, 12060193, 20130140, 226137752, 0986042281

    • Passar modeller
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
