Vare nr.: F032111321

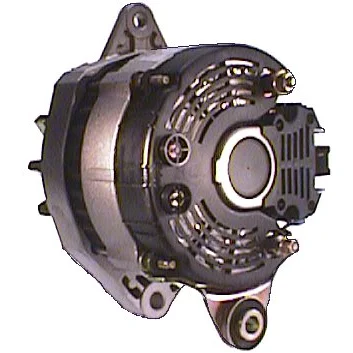

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag fordel.: 69,50

Beskrivelse

Spænding: 14
Amp: 70
Drevskive dist.: 46,50
Bredde/holderarm: 27,00
Monteringsbeslag dist.: 69,50
Beslagshuls diameter: 10,50
Bæltejustering beslag hul position.: 60
Bæltejustering beslag hul 1: 8,50
Drevskivens dia.: 55,00
Riller/drevskive: 6
Radius: 84,00
Radius 2: 85,00
B+: M6
Position/B+ i min.: 25
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL26
Total længde mm: 166,00
Drevskive: SP
Regulator type: IR
Produktinfo: BN
Service: Volvo

Filer

Specifikation

B+ M6
Mount. bracket dist. 69.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL26
Bracket hole 10.50
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 46.50
Radius 84.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Volvo
Grooves/pulley 6
Voltage 14
Total length 166.00 mm
Width/holder arm 27.00
Amp 70

  • OEM
    a13n133, a13n178, a13n232, a13n241, a13n289, aak3583, F032111321, 11.201.523, 574ir, 2541173, 2541445, 2541490, 2541807, 3417313, 3417318, 9031146, 0120489491

  • Konkurrentreferens
    A3004, ALT14014, ALT14030, BAO3041, CAL15113, dra3083, DRA4057, FRA771, ia0523, lra00966, MG529, NA346, QA1702, va271, 8EL012428-891, 8el725862-001, 28-0892, 40-36.880, 40-36.881, 200.119.702, 200.125.702, 2584, 3191N, 4350, 14959R, 20962R, 23139R, 30574RI, 55602, 118364, 209154, 209154A, 433079, 436306, 436309, 436310, 436645, 12036860, 12036880, 20100966, 35215040, 35215205, 0986036880, 0986036881

  • NormaliseratArtNr
    a13n133, a13n178, a13n232, a13n241, a13n289, a3004, aak3583, alt14014, alt14030, bao3041, cal15113, dra3083, dra4057, f032111321, fra771, ia0523, lra00966, mg529, na346, qa1702, va271, 8el012428891, 8el725862001, 574ir, 2584, 3191n, 4350, 14959r, 20962r, 23139r, 30574ri, 55602, 118364, 209154, 209154a, 280892, 433079, 436306, 436309, 436310, 436645, 2541173, 2541445, 2541490, 2541807, 3417313, 3417318, 4036880, 4036881, 9031146, 11201523, 12036860, 12036880, 20100966, 35215040, 35215205, 0120489491, 200119702, 200125702, 0986036880, 0986036881

  • Passar modeller
    Volvo Model: 440 Model series: 440 Size of motor: 1.6 Brand of engine: B16F Body: Hatchback From date: 01-09-1988 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 1.7 Brand of engine: B18EP Type description: 445 Body: Hatchback From date: 01-09-1988 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 1.7 Brand of engine: B18F Type description: 445 Body: Hatchback From date: 01-08-1988 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 1.7 Brand of engine: B18FP Type description: 445 Body: Hatchback From date: 01-08-1989 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 1.7 Brand of engine: B18KP Type description: 445 Body: Hatchback From date: 01-09-1988 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 1.8 Brand of engine: B18U Body: Hatchback From date: 01-09-1995 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 1.8 Brand of engine: B18U Type description: 445 Body: Hatchback From date: 01-08-1991 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 2.0 Brand of engine: B20F Type description: 445 Body: Hatchback From date: 01-08-1992 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Size of motor: 2.0 Brand of engine: B20F Type description: 445 Body: Hatchback From date: 01-08-1993 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Type of engine: TD Size of motor: 1.9 Brand of engine: D19T Body: Hatchback From date: 01-07-1994 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Volvo Model: 440 Model series: 440 Type of engine: Turbo Size of motor: 1.7 Brand of engine: B18FT Body: Hatchback From date: 01-01-1991 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 440 Model series: 440 Type of engine: Turbo Size of motor: 1.7 Brand of engine: B18FT Type description: 445 Body: Hatchback From date: 01-08-1988 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Size of motor: 1.6 Brand of engine: B16F From date: 01-07-1992 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Size of motor: 1.7 Brand of engine: B18EP Type description: 464 From date: 01-08-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Size of motor: 1.8 Brand of engine: B18U Type description: 464 From date: 01-08-1991 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Size of motor: 2.0 Brand of engine: B20F Type description: 464 From date: 01-08-1992 To date: 01-07-1995 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Size of motor: 2.0 Brand of engine: B20F Type description: 464 From date: 01-08-1993 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Type of engine: Turbo Size of motor: 1.7 Brand of engine: B18FT From date: 01-01-1991 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 460 Model series: 460 Type of engine: Turbo Size of motor: 1.7 Brand of engine: B18FT Type description: 464 From date: 01-08-1989 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Size of motor: 1.7 Brand of engine: B18E Body: Coupe From date: 01-04-1986 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Size of motor: 1.7 Brand of engine: B18E Body: Coupe From date: 01-08-1986 To date: 01-07-1988 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Size of motor: 1.7 Brand of engine: B18EP Body: Coupe From date: 01-08-1989 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Size of motor: 1.7 Brand of engine: B18F Body: Coupe From date: 01-08-1987 To date: 01-07-1989 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Size of motor: 2.0 Brand of engine: B20F Body: Coupe From date: 01-08-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Type of engine: Turbo Size of motor: 1.7 Brand of engine: B18FT Body: Coupe From date: 01-01-1991 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
    Volvo Model: 480 Model series: 480 Type of engine: Turbo Size of motor: 1.7 Brand of engine: B18FT Body: Coupe From date: 01-08-1987 To date: 01-07-1996 Fuel: Gasoline Approved: Yes
