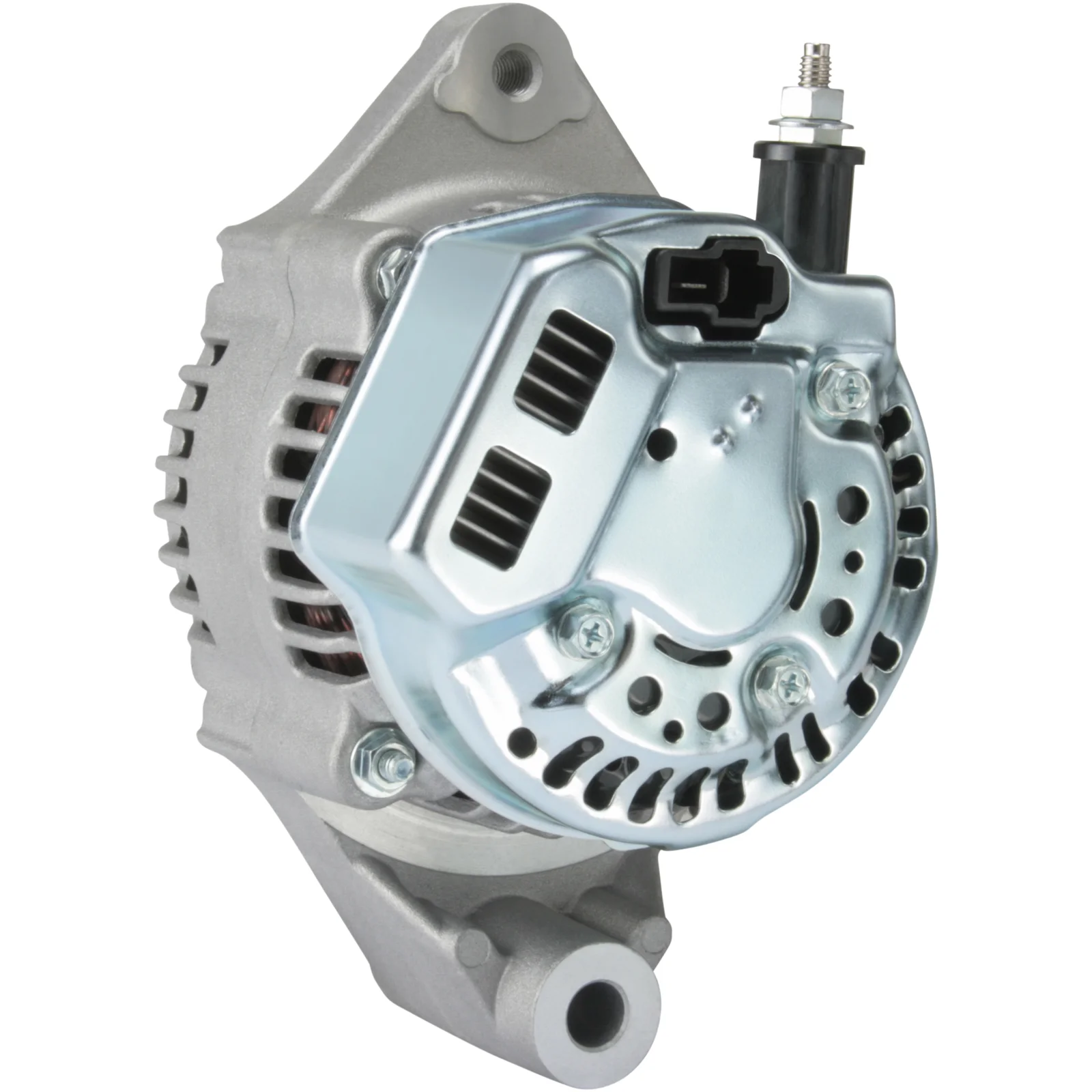

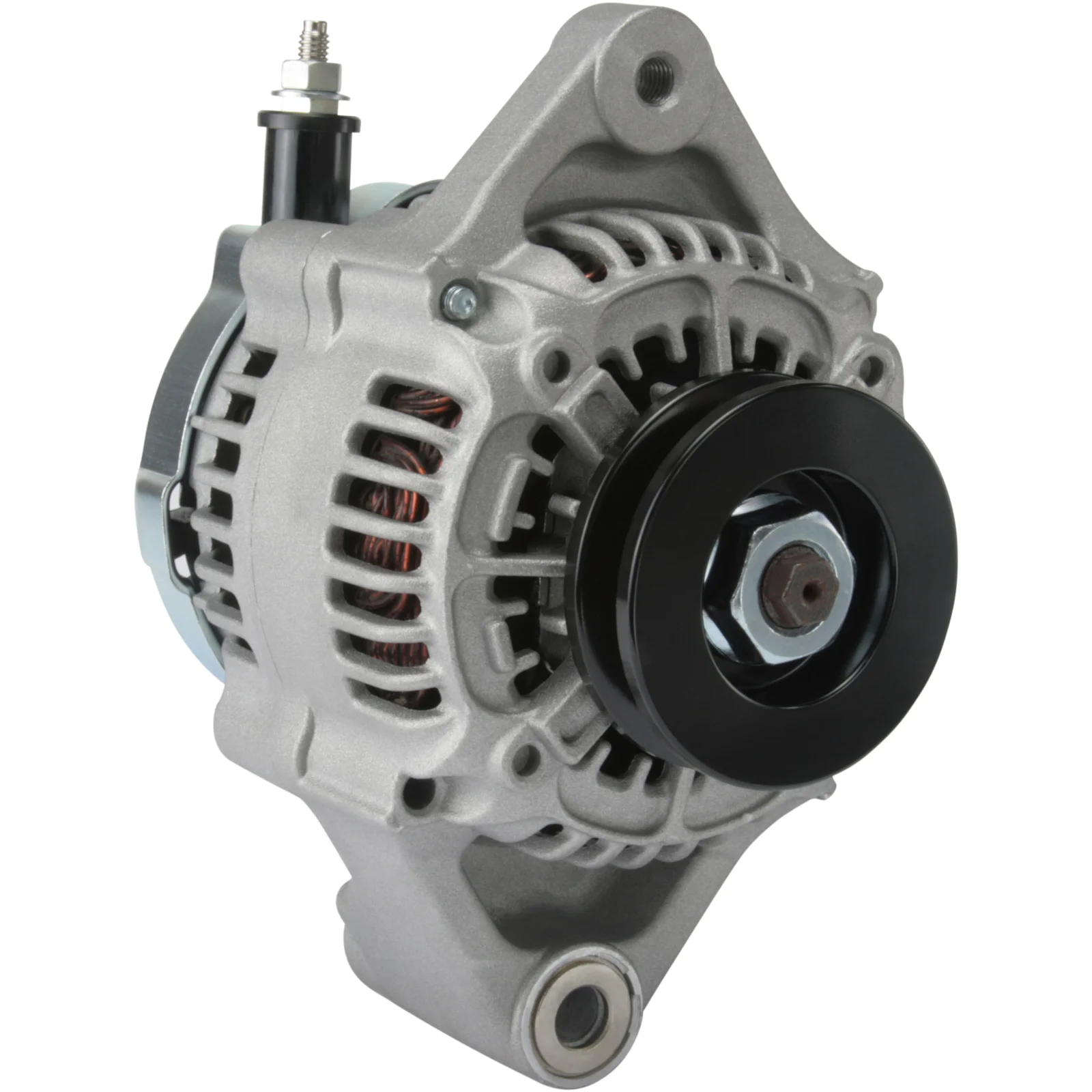

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111437

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 45, Rotation: CW, Remskive diameter: 63,20

Beskrivelse

Spænding: 14
Amp: 45
Remskive dist.: 95,70
Bredde/holderarm: 58,00
Holderhuls: 10,40
Bæltejusteringsholderhuls position.: 60
Bæltejusteringsholderhuls 1: M8
Remskive diameter: 63,20
Riller/remskive: 1
Radius: 79,00
Radius 2: 73,50
B+: M6
Position/B+ i min.: 6
D+ Størrelse: Stik
Rotationsretning: CW
Stik nr.: PL10
Samlet længde mm: 165,50
Lampsortiment: Inaktiv
Remskive: P
Spændingsregulator type: IR
Produktoplysninger: BN
Service: Daihatsu

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.40
Position/B+ in min. 6
Prod. info BN
Pulley P
Pulley dia. 63.20
Pulley dist. 95.70
Radius 79.00
D+ Size Plug
Radius 2 73.50
Regulator type IR
Rotation CW
Servicing Daihatsu
Grooves/pulley 1
Lamp type Inactive
Voltage 14
Total length 165.50 mm
Width/holder arm 58.00
Amp 45

  • OEM
    F032111437, ja880ir, 27060-87112-000, 27060-87512, 27060-87512-000, 27060-87601, 27060-87601-000, 27060-87602, 27060-87602-000, 27060-87Z06, 100211-3370, 100211-5730, 100211-6660, 100211-6730, 101211-3370, 101211-3770, 102211-6730, 2706087112

  • Konkurrentreferens
    A6024, ALT-H043, ALT30018, CAL40107, dra3348, F042A0H043, J5116013, LRB00442, QA1087, 8el732726-001, 18-51.613, 28-1934, 115.504.040, 115.504.050, 217.114.452, 5454, 21881N, 40880RI, 119312, 210279, 210279A, 437707, 12060034, 0986080620

  • NormaliseratArtNr
    a6024, alt30018, alth043, cal40107, dra3348, f032111437, f042a0h043, j5116013, ja880ir, lrb00442, qa1087, 8el732726001, 5454, 21881n, 40880ri, 119312, 210279, 210279a, 281934, 437707, 1851613, 2706087z06, 12060034, 115504040, 115504050, 217114452, 0986080620, 1002113370, 1002115730, 1002116660, 1002116730, 1012113370, 1012113770, 1022116730, 2706087112, 2706087512, 2706087601, 2706087602, 2706087112000, 2706087512000, 2706087601000, 2706087602000

  • Passar modeller
    Daihatsu Model: Feroza Model series: Feroza Type of engine: 16V Size of motor: 1.6 Brand of engine: HDC Body: Convertible From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes Manufacture type: Soft top
    Daihatsu Model: Feroza Model series: Feroza Type of engine: 16V Size of motor: 1.6 Brand of engine: HDC From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Feroza Model series: Feroza Type of engine: 16V Size of motor: 1.6 Type description: F300, F310 Body: Closed Off-Road Vehicle From date: 01-09-1993 To date: 01-12-1997 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Feroza Model series: Feroza Type of engine: i 16V Size of motor: 1.6 Brand of engine: HD-E Body: Convertible From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes Manufacture type: Soft top
    Daihatsu Model: Feroza Model series: Feroza Type of engine: i 16V Size of motor: 1.6 Brand of engine: HD-E From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Hijet Mk 2 Minibus Model series: Hijet Mk 2 Minibus Size of motor: 1.3 Brand of engine: HCE Type description: S85 Body: Bus From date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Hijet Model series: Hijet Model type: 4WD Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-10-2001 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Hijet Model series: Hijet Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
    Piaggio Model: Porter Model series: Porter Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Type of engine: i 16V Size of motor: 1.3 Brand of engine: HCEE Body: Van From date: 01-05-1998 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 45
    Remskive dist.: 95,70
    Bredde/holderarm: 58,00
    Holderhuls: 10,40
    Bæltejusteringsholderhuls position.: 60
    Bæltejusteringsholderhuls 1: M8
    Remskive diameter: 63,20
    Riller/remskive: 1
    Radius: 79,00
    Radius 2: 73,50
    B+: M6
    Position/B+ i min.: 6
    D+ Størrelse: Stik
    Rotationsretning: CW
    Stik nr.: PL10
    Samlet længde mm: 165,50
    Lampsortiment: Inaktiv
    Remskive: P
    Spændingsregulator type: IR
    Produktoplysninger: BN
    Service: Daihatsu

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.40
    Position/B+ in min. 6
    Prod. info BN
    Pulley P
    Pulley dia. 63.20
    Pulley dist. 95.70
    Radius 79.00
    D+ Size Plug
    Radius 2 73.50
    Regulator type IR
    Rotation CW
    Servicing Daihatsu
    Grooves/pulley 1
    Lamp type Inactive
    Voltage 14
    Total length 165.50 mm
    Width/holder arm 58.00
    Amp 45
  • Køretøjsmatchning

    • OEM
      F032111437, ja880ir, 27060-87112-000, 27060-87512, 27060-87512-000, 27060-87601, 27060-87601-000, 27060-87602, 27060-87602-000, 27060-87Z06, 100211-3370, 100211-5730, 100211-6660, 100211-6730, 101211-3370, 101211-3770, 102211-6730, 2706087112

    • Konkurrentreferens
      A6024, ALT-H043, ALT30018, CAL40107, dra3348, F042A0H043, J5116013, LRB00442, QA1087, 8el732726-001, 18-51.613, 28-1934, 115.504.040, 115.504.050, 217.114.452, 5454, 21881N, 40880RI, 119312, 210279, 210279A, 437707, 12060034, 0986080620

    • NormaliseratArtNr
      a6024, alt30018, alth043, cal40107, dra3348, f032111437, f042a0h043, j5116013, ja880ir, lrb00442, qa1087, 8el732726001, 5454, 21881n, 40880ri, 119312, 210279, 210279a, 281934, 437707, 1851613, 2706087z06, 12060034, 115504040, 115504050, 217114452, 0986080620, 1002113370, 1002115730, 1002116660, 1002116730, 1012113370, 1012113770, 1022116730, 2706087112, 2706087512, 2706087601, 2706087602, 2706087112000, 2706087512000, 2706087601000, 2706087602000

    • Passar modeller
      Daihatsu Model: Feroza Model series: Feroza Type of engine: 16V Size of motor: 1.6 Brand of engine: HDC Body: Convertible From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes Manufacture type: Soft top
      Daihatsu Model: Feroza Model series: Feroza Type of engine: 16V Size of motor: 1.6 Brand of engine: HDC From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Feroza Model series: Feroza Type of engine: 16V Size of motor: 1.6 Type description: F300, F310 Body: Closed Off-Road Vehicle From date: 01-09-1993 To date: 01-12-1997 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Feroza Model series: Feroza Type of engine: i 16V Size of motor: 1.6 Brand of engine: HD-E Body: Convertible From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes Manufacture type: Soft top
      Daihatsu Model: Feroza Model series: Feroza Type of engine: i 16V Size of motor: 1.6 Brand of engine: HD-E From date: 01-10-1988 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Hijet Mk 2 Minibus Model series: Hijet Mk 2 Minibus Size of motor: 1.3 Brand of engine: HCE Type description: S85 Body: Bus From date: 01-08-1998 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Hijet Model series: Hijet Model type: 4WD Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-10-2001 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Hijet Model series: Hijet Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
      Piaggio Model: Porter Model series: Porter Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Type of engine: i 16V Size of motor: 1.3 Brand of engine: HCEE Body: Van From date: 01-05-1998 Fuel: Gasoline Approved: Yes
