Vare nr.: F032111532

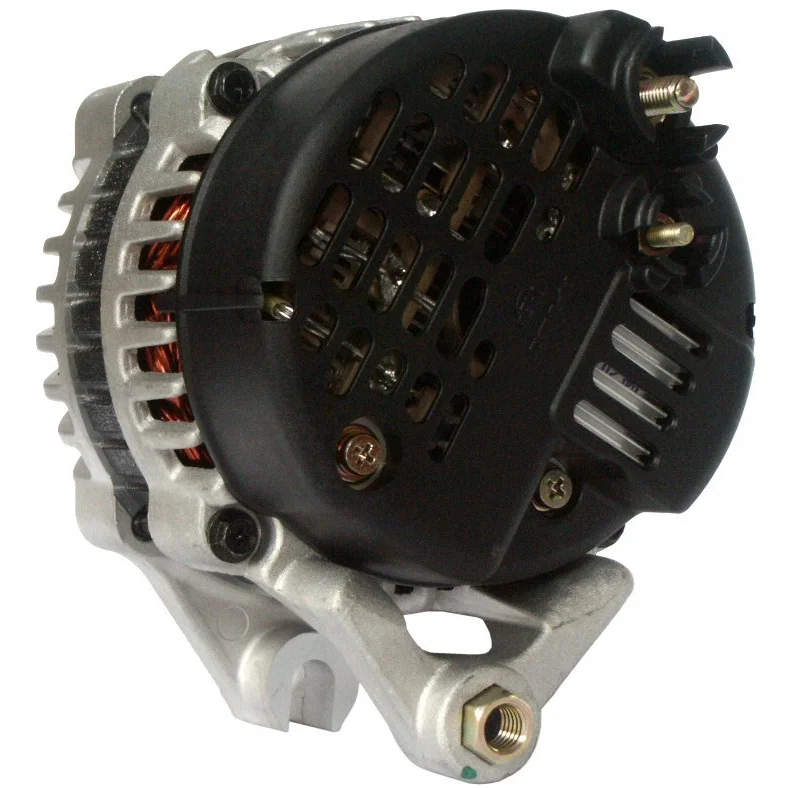

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag for fordelerdæksel: 58.00

Beskrivelse

Spænding: 14
Amp: 80
Poulie dist.: 53,00
Bredde/holderarm: 26,40
Mont. beslag dist.: 58,00
Beslagshul: 11,00
Bælte just. beslagshul pos.: 50
Bælte just. beslagshul 1: 8,50
Poulie dia.: 56,00
Riller/poulie: 5
Radius: 85,00
Radius 2: 96,00
B+: M8
Position/B+ i min.: 5
D+ Størrelse: M5
Rotation: U → U-retning
Total længde mm: 176,00
Poulie: SP
Regulator type: IR
Prod. info: BN
Service: Citroën

Filer

Specifikation

B+ M8
Mount. bracket dist. 58.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 50
Bracket hole 11.00
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 53.00
Radius 85.00
D+ Size M5
Radius 2 96.00
Regulator type IR
Rotation CW
Servicing Citroen
Grooves/pulley 5
Voltage 14
Total length 176.00 mm
Width/holder arm 26.40
Amp 80

  • OEM
    a13vi84, F032111532, 1203ir, 2541726, 2541726B, 2542375A, 9620333380

  • Konkurrentreferens
    A3306, A3446S, ALT-7020, ALT10060, BAO3273, CAL15157, drb0231, DRB0231N, DRB0231X, F032UA0037, F042A0B025, F042A0H243, FRA811, lrb00380, NA478, QA4218, va334, 8EL011360-971, 8EL011710-191, 8el737277-001, 28-2680, 225.578.090, 229.112.802, 4392, 4538, 5634, 5705hw, 5705l2, 5705n2, 5705N3, 5705x3, 21908N, 200125, 200137, 210217, 210217A, 436611, 439054, 746060, 746082, 746860, 746882, 839004, 9212792, 12040230, 0986040231, 943356966010

  • NormaliseratArtNr
    a13vi84, a3306, a3446s, alt10060, alt7020, bao3273, cal15157, drb0231, drb0231n, drb0231x, f032111532, f032ua0037, f042a0b025, f042a0h243, fra811, lrb00380, na478, qa4218, va334, 8el011360971, 8el011710191, 8el737277001, 1203ir, 4392, 4538, 5634, 5705hw, 5705l2, 5705n2, 5705n3, 5705x3, 21908n, 200125, 200137, 210217, 210217a, 282680, 436611, 439054, 746060, 746082, 746860, 746882, 839004, 2541726, 2541726b, 2542375a, 9212792, 12040230, 225578090, 229112802, 0986040231, 9620333380, 943356966010

  • Passar modeller
    Citroen Model: AX Model series: AX 15 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-08-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Citroen Model: AX Model series: AX 15 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-08-1994 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-09-1996 To date: 01-09-2003 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-09-1996 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S0, S1 Body: Hatchback From date: 01-07-2001 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Model series: Saxo Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S3_ Body: Hatchback From date: 01-07-2001 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    Citroen Model: Saxo Van Model series: Saxo Hatchback Van Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Type description: S3_ Body: Hatchback Van From date: 01-08-1999 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Citroen Model: Xsara Model series: Xsara Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Estate From date: 01-10-1997 To date: 01-09-2000 Fuel: Diesel Approved: Yes Manufacture type: break
    Citroen Model: Xsara Model series: Xsara Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJZ (TUD5) Body: Hatchback From date: 01-04-1997 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Citroen Model: ZX Model series: ZX Model type: SX Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: N2 Body: Estate From date: 01-06-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes Manufacture type: break
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJX (TUD5) Type description: 1_ Body: Van From date: 01-06-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Body: Hatchback From date: 01-05-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: 1A,1C Body: Hatchback From date: 01-06-1994 To date: 01-04-1996 Fuel: Diesel Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: Diesel Size of motor: 1.5 Brand of engine: VJY (TUD5) Type description: 1_ Body: Van From date: 01-05-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes
