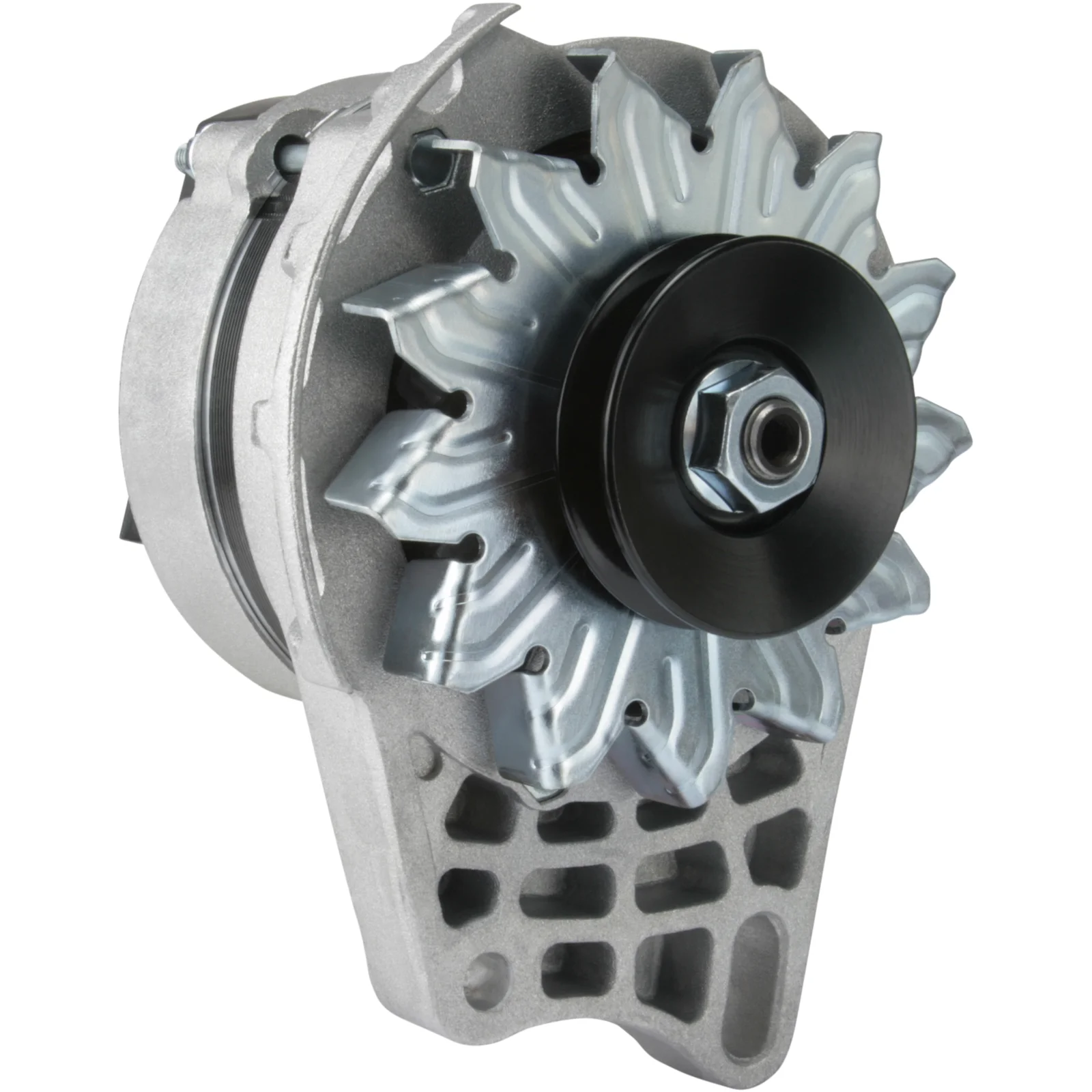

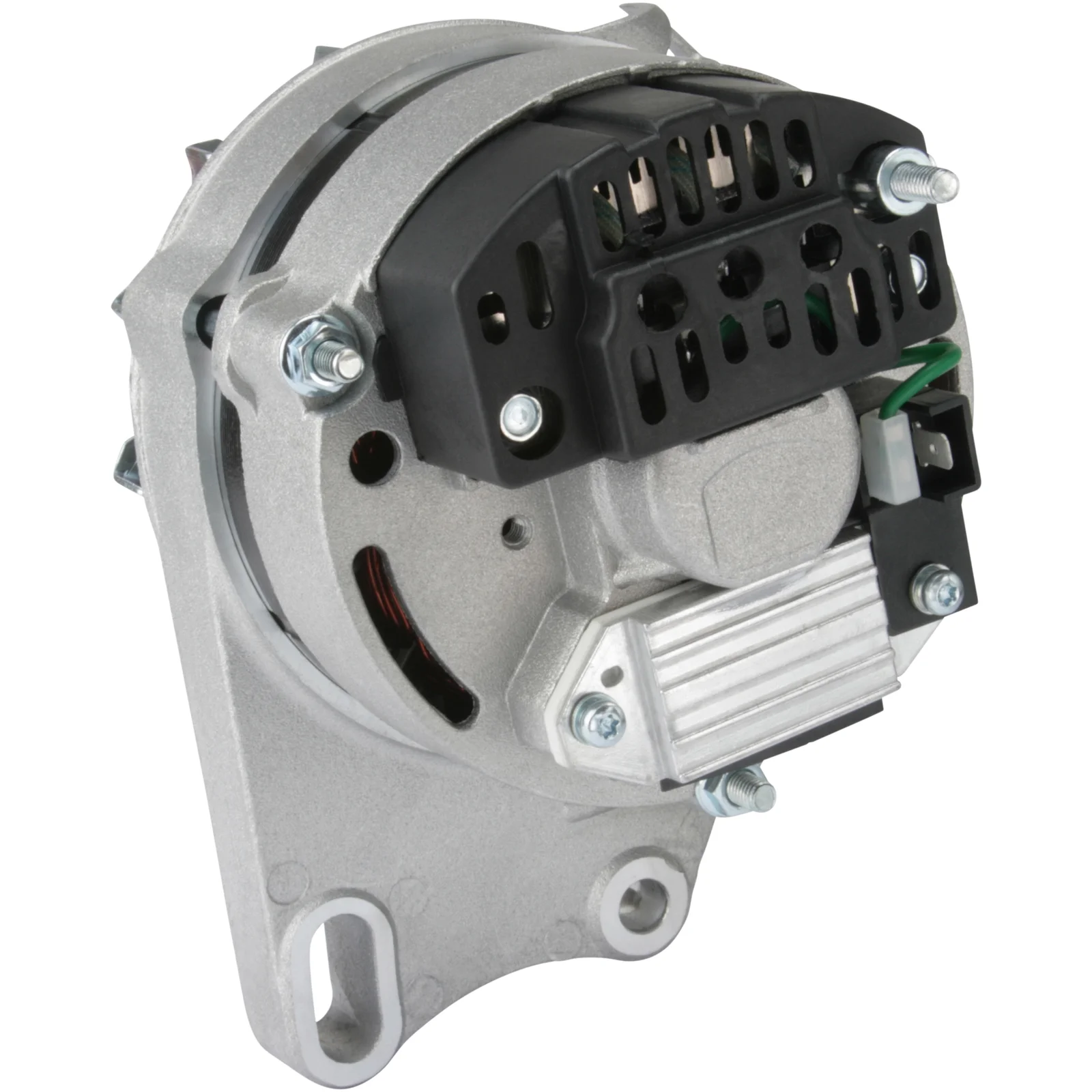

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111687

HC-Cargo Generator

Tekniske oplysninger:

Spændingsføler: 14, Amp: 55, Rotation: CW, Remskive diameter: 70,00

Beskrivelse

Spænding: 14
Amp: 55
Remskive fordeling: 53.00
Bredde/holderarm: 23.50
Holderhullesp. bracket: 10.50
Kanten på remskivens justeringsbøsning: 24
Justeringsbøsning for remskive position: 10.50
Remskivediameter: 70.00
Riller/remskive: 1
Radius: 101.50
Radius 2: 60.00
B+: M6
Position/B+ i min.: 7
D+ Størrelse: 6.30
Rotation: CW
Samlet længde mm: 174.00
Remskive: P
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 24
Bracket hole 10.50
Position/B+ in min. 7
Prod. info BN
Pulley P
Pulley dia. 70.00
Pulley dist. 53.00
Radius 101.50
D+ Size 6.30
Radius 2 60.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 174.00 mm
Width/holder arm 23.50
Amp 55

  • OEM
    a125-55e, a125-55t, aak4174, F032111687, 11.201.355, 893ir, 1986A01268, 0000007704356, 7704356, 7711092, 46231650, 46467694, 46472225, 46528045, 63320094, 63321165

  • Konkurrentreferens
    A4047, A4047PR, A4047SR, A6261(DENSO), A9261S, ALT-H053, ALT12050, BAO3143, CAL21119, CAL30110, DAN618, DENDAN618, dra9501, DRA9501N, DRA9501X, F042A0H053, FRA854, ia0347, ia0355, lrb00188, MAN382, MG608, QA1092, 8EL012427-471, 8el731727-001, 28-0877, 28-1832, 218.130.552, 4541, 5280, 21188N, 30893RI, 56323, 118697, 210023, 210023A, 437370, 443185, 746064, 746864, 839021, 9039501, 9212601, 12039500, 063321165, 943321165, 0986039501, 063321165010, 944390395010

  • NormaliseratArtNr
    a12555e, a12555t, a4047, a4047pr, a4047sr, a6261denso, a9261s, aak4174, alt12050, alth053, bao3143, cal21119, cal30110, dan618, dendan618, dra9501, dra9501n, dra9501x, f032111687, f042a0h053, fra854, ia0347, ia0355, lrb00188, man382, mg608, qa1092, 8el012427471, 8el731727001, 893ir, 1986a01268, 4541, 5280, 21188n, 30893ri, 56323, 118697, 210023, 210023a, 280877, 281832, 437370, 443185, 746064, 746864, 839021, 0000007704356, 7704356, 7711092, 9039501, 9212601, 11201355, 12039500, 46231650, 46467694, 46472225, 46528045, 63320094, 063321165, 63321165, 218130552, 943321165, 0986039501, 063321165010, 944390395010

  • Passar modeller
    Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 170 Body: Box Body / Hatchback From date: 01-07-1991 To date: 01-02-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 170A1.000 Body: Hatchback From date: 01-07-1991 To date: 01-12-1993 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Hatchback From date: 01-07-1991 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 170A1.046 Type description: 170AC Body: Hatchback From date: 01-07-1991 To date: 01-09-1994 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 141AT,GT Body: Hatchback From date: 01-04-1992 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Van From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 187 Body: Hatchback From date: 01-11-1997 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 55
    Remskive fordeling: 53.00
    Bredde/holderarm: 23.50
    Holderhullesp. bracket: 10.50
    Kanten på remskivens justeringsbøsning: 24
    Justeringsbøsning for remskive position: 10.50
    Remskivediameter: 70.00
    Riller/remskive: 1
    Radius: 101.50
    Radius 2: 60.00
    B+: M6
    Position/B+ i min.: 7
    D+ Størrelse: 6.30
    Rotation: CW
    Samlet længde mm: 174.00
    Remskive: P
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 24
    Bracket hole 10.50
    Position/B+ in min. 7
    Prod. info BN
    Pulley P
    Pulley dia. 70.00
    Pulley dist. 53.00
    Radius 101.50
    D+ Size 6.30
    Radius 2 60.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 174.00 mm
    Width/holder arm 23.50
    Amp 55
  • Køretøjsmatchning

    • OEM
      a125-55e, a125-55t, aak4174, F032111687, 11.201.355, 893ir, 1986A01268, 0000007704356, 7704356, 7711092, 46231650, 46467694, 46472225, 46528045, 63320094, 63321165

    • Konkurrentreferens
      A4047, A4047PR, A4047SR, A6261(DENSO), A9261S, ALT-H053, ALT12050, BAO3143, CAL21119, CAL30110, DAN618, DENDAN618, dra9501, DRA9501N, DRA9501X, F042A0H053, FRA854, ia0347, ia0355, lrb00188, MAN382, MG608, QA1092, 8EL012427-471, 8el731727-001, 28-0877, 28-1832, 218.130.552, 4541, 5280, 21188N, 30893RI, 56323, 118697, 210023, 210023A, 437370, 443185, 746064, 746864, 839021, 9039501, 9212601, 12039500, 063321165, 943321165, 0986039501, 063321165010, 944390395010

    • NormaliseratArtNr
      a12555e, a12555t, a4047, a4047pr, a4047sr, a6261denso, a9261s, aak4174, alt12050, alth053, bao3143, cal21119, cal30110, dan618, dendan618, dra9501, dra9501n, dra9501x, f032111687, f042a0h053, fra854, ia0347, ia0355, lrb00188, man382, mg608, qa1092, 8el012427471, 8el731727001, 893ir, 1986a01268, 4541, 5280, 21188n, 30893ri, 56323, 118697, 210023, 210023a, 280877, 281832, 437370, 443185, 746064, 746864, 839021, 0000007704356, 7704356, 7711092, 9039501, 9212601, 11201355, 12039500, 46231650, 46467694, 46472225, 46528045, 63320094, 063321165, 63321165, 218130552, 943321165, 0986039501, 063321165010, 944390395010

    • Passar modeller
      Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 170 Body: Box Body / Hatchback From date: 01-07-1991 To date: 01-02-1998 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 170A1.000 Body: Hatchback From date: 01-07-1991 To date: 01-12-1993 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Hatchback From date: 01-07-1991 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 170A1.046 Type description: 170AC Body: Hatchback From date: 01-07-1991 To date: 01-09-1994 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 141AT,GT Body: Hatchback From date: 01-04-1992 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Van From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 187 Body: Hatchback From date: 01-11-1997 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      1 / 2
