HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111956

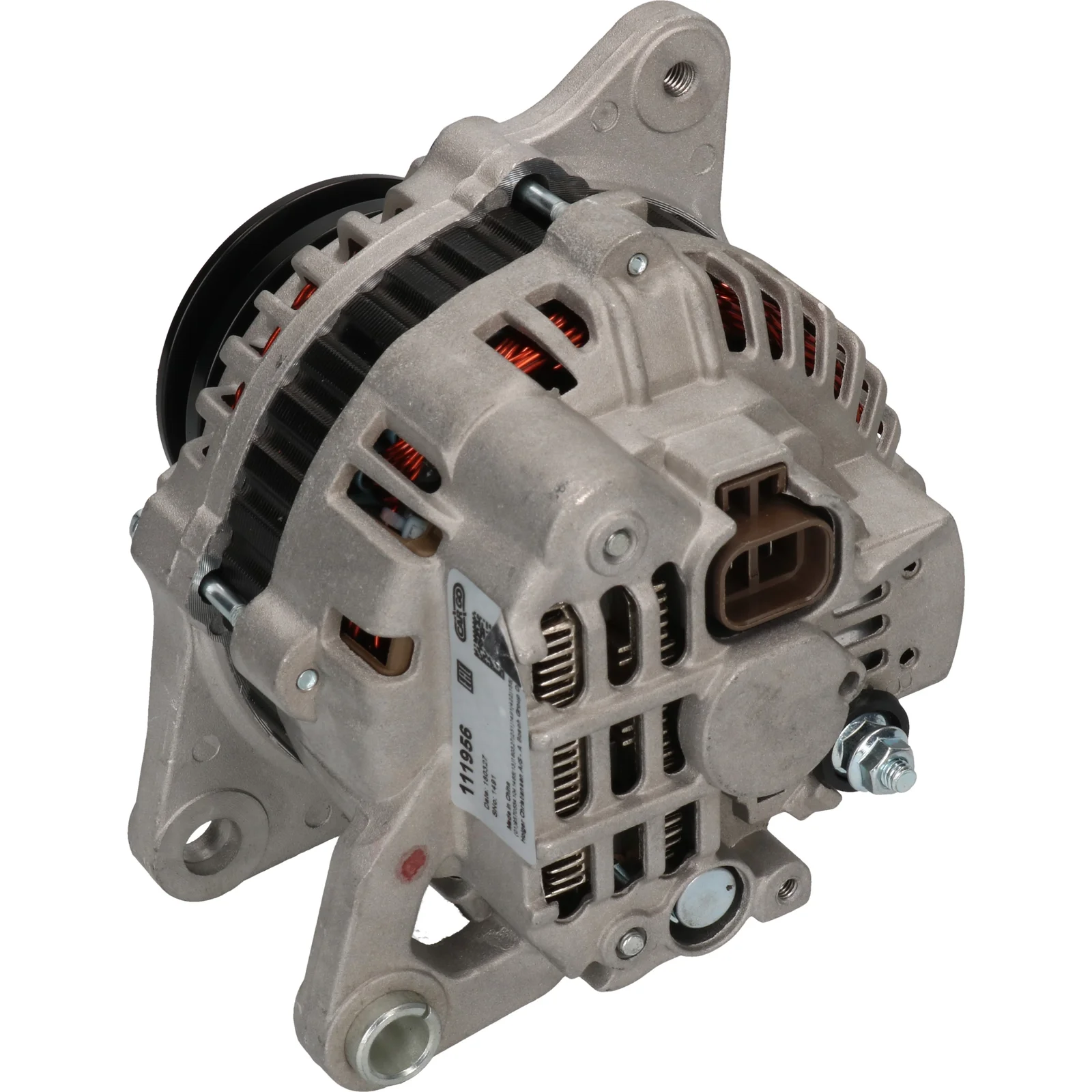

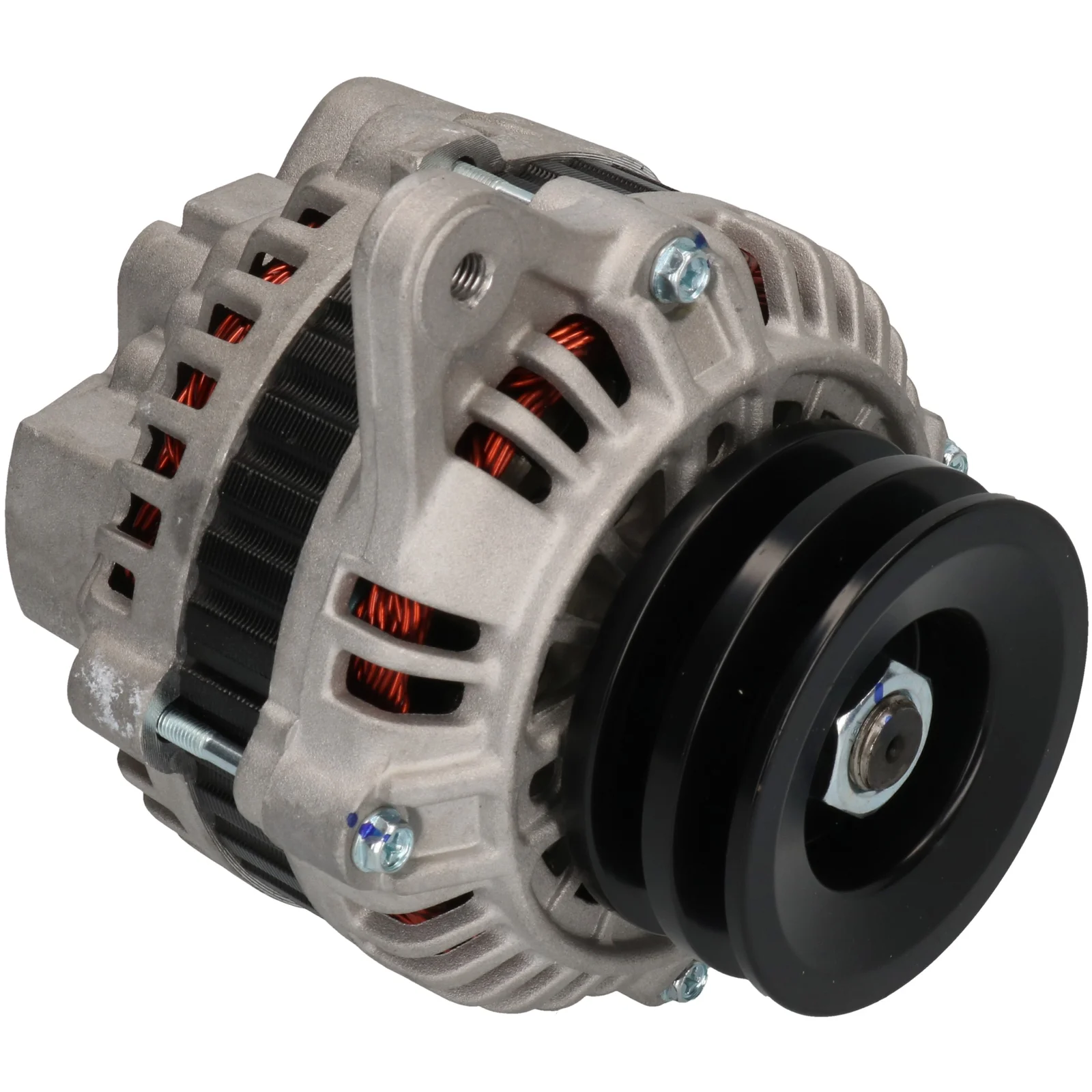

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Mount. bøjle afstand: 55,00

Beskrivelse

Spænding: 14
Amp: 75
Remskive fordeling: 41.00
Bredde/bærerarmsafstand: 13.00
Fastgørelsesbeslagsafstand: 55.00
Beslagshul: 12.50
Bæltejusteringsbeslags hul position: 4
Bæltejusteringsbeslags hul 1: M8
Remskive diameter: 87.00
Riller/remskive: 2
Radius: 90.00
Radius 2: 89.00
B+: M6
Position/B+ i min.: 15
D+ størrelse: Stik
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 167.00
Terminaltype: L-S
Remskive: DP
Regulator-type: IR
Produktinfo: BN
Service: Mitsubishi

Filer

Specifikation

B+ M6
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL07
Bracket hole 12.50
Position/B+ in min. 15
Prod. info BN
Pulley DP
Pulley dia. 87.00
Pulley dist. 41.00
Radius 90.00
D+ Size Plug
Radius 2 89.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 2
Terminal type L-S
Voltage 14
Total length 167.00 mm
Width/holder arm 13.00
Amp 75

  • OEM
    A003T08699, A003T09199, A003T09698, A003T09699, A003TB1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, F032111956, ja1375ir, lra0469, me200696, me200698, me201838, ME202971

  • Konkurrentreferens
    A5017, A5386PR, ALT-3040, ALT31006, CAL35129, dra3473, DRA3473N, F042303011, F042511340, F042A03011, lrb00237, QA2279, 8EL012428-061, 8el737596-001, 8el737597-001, 28-2799, 28-3538, 226.142.752, 5713, 5714, 12626N, 12636R, 111683, 210491, 210491A, 401375RI, 12060202, 20130169, 0986044661

  • NormaliseratArtNr
    a003t08699, a003t09199, a003t09698, a003t09699, a003tb1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, a5017, a5386pr, alt3040, alt31006, cal35129, dra3473, dra3473n, f032111956, f042303011, f042511340, f042a03011, ja1375ir, lra0469, lrb00237, me200696, me200698, me201838, me202971, qa2279, 8el012428061, 8el737596001, 8el737597001, 5713, 5714, 12626n, 12636r, 111683, 210491, 210491a, 282799, 283538, 401375ri, 12060202, 20130169, 226142752, 0986044661

  • Passar modeller
    Mitsubishi Model: Canter Model series: 2,8 Size of motor: 2.8 Brand of engine: 4M40-T Type description: FE3, FE4 Body: Platform / Chassis From date: 01-06-1994 To date: 01-08-1996 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 3C13 Size of motor: 3.0 Brand of engine: 4M42-0AT Type description: FE7, FE8 Body: Platform / Chassis From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-2AT Body: Platform / Chassis From date: 01-07-1998 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-A Body: Platform / Chassis From date: 01-08-1996 To date: 01-12-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 3.0 Brand of engine: 4M42-0AT Body: Platform / Chassis From date: 01-09-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 55 Size of motor: 3.0 Brand of engine: 4M42-0AT Body: Platform / Chassis From date: 01-09-2001 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.8 Brand of engine: 4M40-T Type description: V46W From date: 01-06-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 75
    Remskive fordeling: 41.00
    Bredde/bærerarmsafstand: 13.00
    Fastgørelsesbeslagsafstand: 55.00
    Beslagshul: 12.50
    Bæltejusteringsbeslags hul position: 4
    Bæltejusteringsbeslags hul 1: M8
    Remskive diameter: 87.00
    Riller/remskive: 2
    Radius: 90.00
    Radius 2: 89.00
    B+: M6
    Position/B+ i min.: 15
    D+ størrelse: Stik
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 167.00
    Terminaltype: L-S
    Remskive: DP
    Regulator-type: IR
    Produktinfo: BN
    Service: Mitsubishi

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL07
    Bracket hole 12.50
    Position/B+ in min. 15
    Prod. info BN
    Pulley DP
    Pulley dia. 87.00
    Pulley dist. 41.00
    Radius 90.00
    D+ Size Plug
    Radius 2 89.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 2
    Terminal type L-S
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 13.00
    Amp 75
  • Køretøjsmatchning

    • OEM
      A003T08699, A003T09199, A003T09698, A003T09699, A003TB1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, F032111956, ja1375ir, lra0469, me200696, me200698, me201838, ME202971

    • Konkurrentreferens
      A5017, A5386PR, ALT-3040, ALT31006, CAL35129, dra3473, DRA3473N, F042303011, F042511340, F042A03011, lrb00237, QA2279, 8EL012428-061, 8el737596-001, 8el737597-001, 28-2799, 28-3538, 226.142.752, 5713, 5714, 12626N, 12636R, 111683, 210491, 210491A, 401375RI, 12060202, 20130169, 0986044661

    • NormaliseratArtNr
      a003t08699, a003t09199, a003t09698, a003t09699, a003tb1299, a3t08699, a3t09199, a3t09698, a3t09699, a3tb1299, a5017, a5386pr, alt3040, alt31006, cal35129, dra3473, dra3473n, f032111956, f042303011, f042511340, f042a03011, ja1375ir, lra0469, lrb00237, me200696, me200698, me201838, me202971, qa2279, 8el012428061, 8el737596001, 8el737597001, 5713, 5714, 12626n, 12636r, 111683, 210491, 210491a, 282799, 283538, 401375ri, 12060202, 20130169, 226142752, 0986044661

    • Passar modeller
      Mitsubishi Model: Canter Model series: 2,8 Size of motor: 2.8 Brand of engine: 4M40-T Type description: FE3, FE4 Body: Platform / Chassis From date: 01-06-1994 To date: 01-08-1996 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 3C13 Size of motor: 3.0 Brand of engine: 4M42-0AT Type description: FE7, FE8 Body: Platform / Chassis From date: 01-10-2001 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-2AT Body: Platform / Chassis From date: 01-07-1998 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-A Body: Platform / Chassis From date: 01-08-1996 To date: 01-12-1999 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 3.0 Brand of engine: 4M42-0AT Body: Platform / Chassis From date: 01-09-2001 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: Canter 55 Size of motor: 3.0 Brand of engine: 4M42-0AT Body: Platform / Chassis From date: 01-09-2001 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.8 Brand of engine: 4M40-T Type description: V46W From date: 01-06-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
