Vare nr.: F032111960

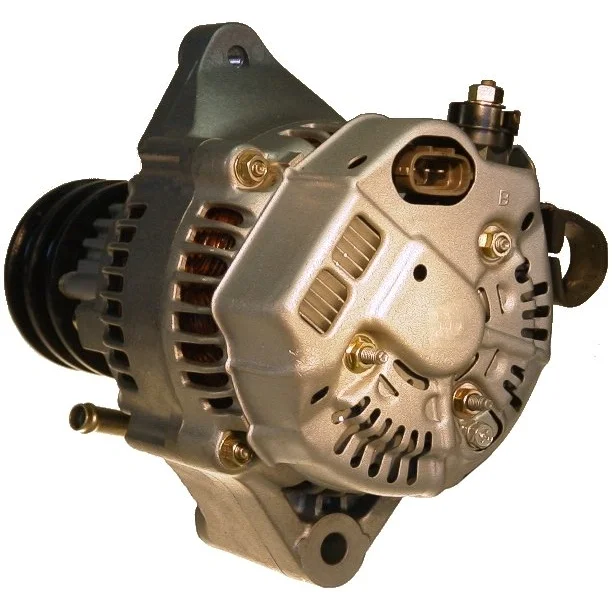

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Remskive dia.: 76,50

Beskrivelse

Jævnspænding: 14
Amp.: 80
Drevskive dist.: 147,00
Bredde/beslag arm: 71,00
Bøjle hul: 10,20
Bælte. just. bøjlehuls pos.: 2
Bælte. just. bøjlehul 1: M8
Drevskive dia.: 76,50
Riller/drevskive: 2
Radius: 79,50
Radius 2: 83,00
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL42
Samlet længde mm: 229,00
Drevskive: DP
Regulator type: IR
Kølepumpe: Ja
Produkts info: BN
Service: Toyota

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Plug no. PL42
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 76.50
Pulley dist. 147.00
Radius 79.50
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 229.00 mm
Width/holder arm 71.00
Amp 80
  • OEM

    F032111960, 27040-54350, 100213-1920, 100213-2280, 100213-2440, 100213-2450, 100213-2460, 100213-2520, 100213-2660
  • Konkurrentreferens

    ALT30017, ALT30025, 8el737523-001, 235.155.802, 5993, 119705, 401355RI
  • NormaliseratArtNr

    alt30017, alt30025, f032111960, 8el737523001, 5993, 119705, 401355ri, 235155802, 1002131920, 1002132280, 1002132440, 1002132450, 1002132460, 1002132520, 1002132660, 2704054350
  • Passar modeller

    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L From date: 01-08-1989 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Jævnspænding: 14
    Amp.: 80
    Drevskive dist.: 147,00
    Bredde/beslag arm: 71,00
    Bøjle hul: 10,20
    Bælte. just. bøjlehuls pos.: 2
    Bælte. just. bøjlehul 1: M8
    Drevskive dia.: 76,50
    Riller/drevskive: 2
    Radius: 79,50
    Radius 2: 83,00
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL42
    Samlet længde mm: 229,00
    Drevskive: DP
    Regulator type: IR
    Kølepumpe: Ja
    Produkts info: BN
    Service: Toyota
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 2
    Plug no. PL42
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley DP
    Pulley dia. 76.50
    Pulley dist. 147.00
    Radius 79.50
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 229.00 mm
    Width/holder arm 71.00
    Amp 80
  • Køretøjsmatchning
    • OEM

      F032111960, 27040-54350, 100213-1920, 100213-2280, 100213-2440, 100213-2450, 100213-2460, 100213-2520, 100213-2660
    • Konkurrentreferens

      ALT30017, ALT30025, 8el737523-001, 235.155.802, 5993, 119705, 401355RI
    • NormaliseratArtNr

      alt30017, alt30025, f032111960, 8el737523001, 5993, 119705, 401355ri, 235155802, 1002131920, 1002132280, 1002132440, 1002132450, 1002132460, 1002132520, 1002132660, 2704054350
    • Passar modeller

      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L From date: 01-08-1989 Fuel: Diesel Approved: Yes
