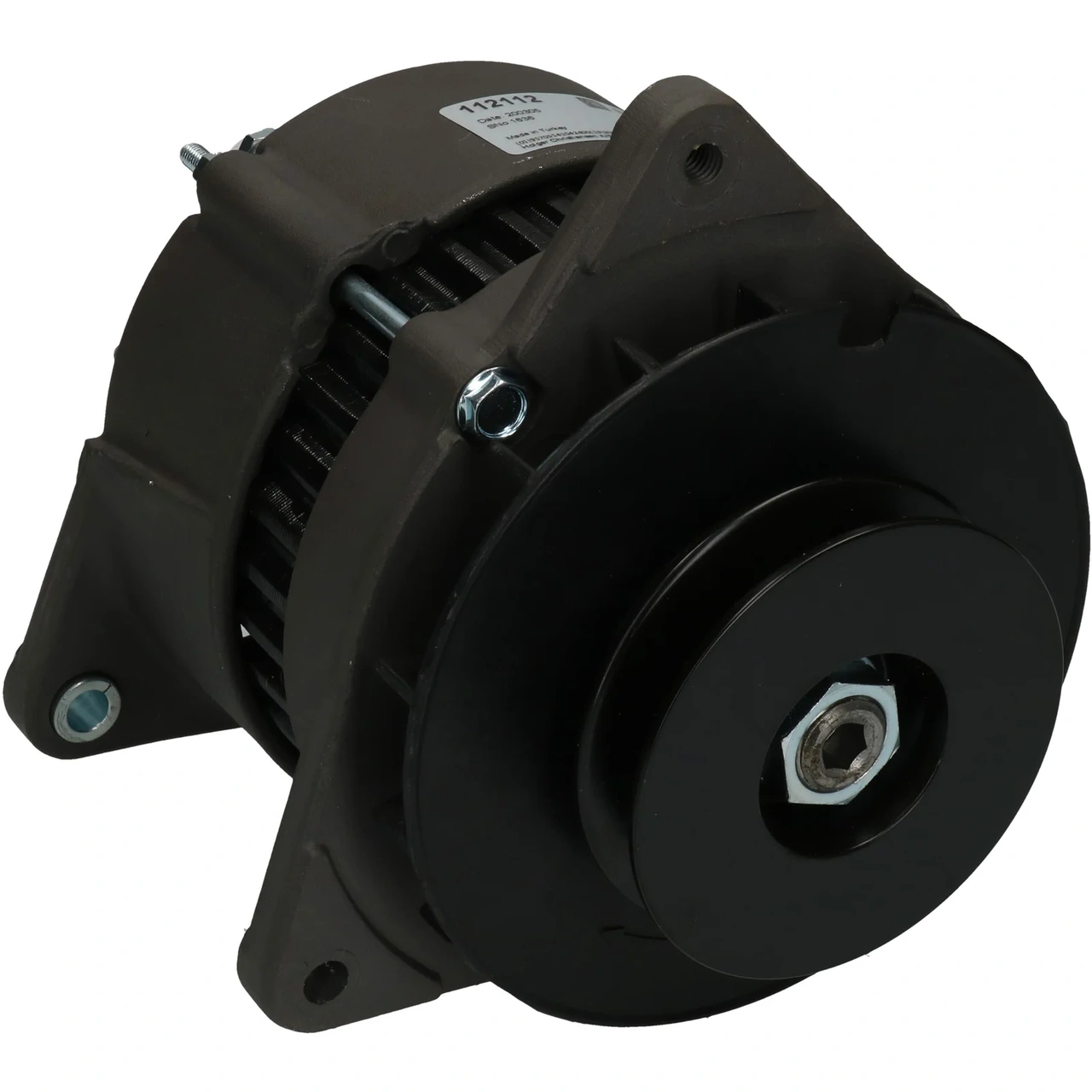

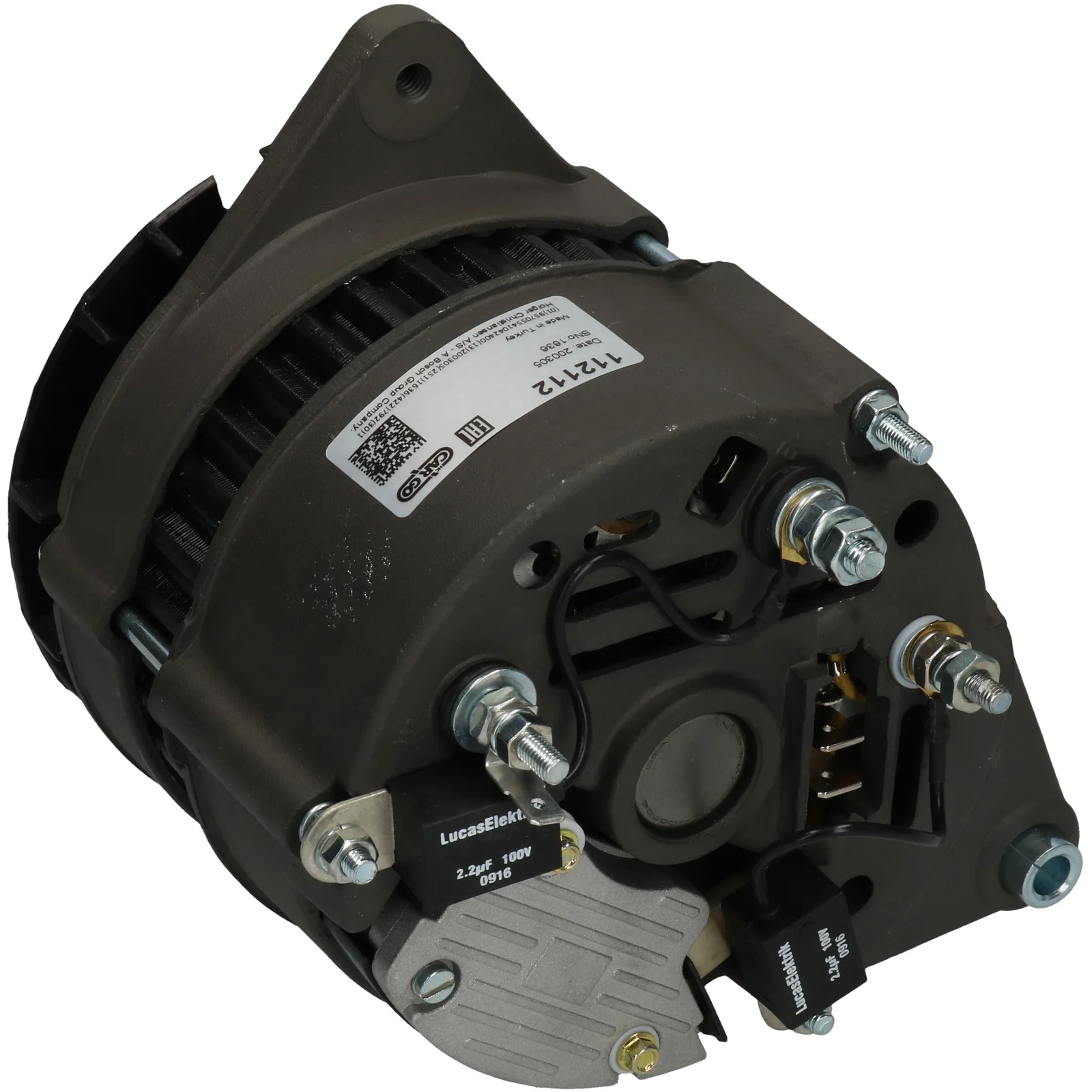

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112112

HC-Cargo Generator

Tekniske oplysninger:

Voltage: 14, Amp: 70, Rotation: CW/CCW, Mount. bøsning dist.: 82,50

Beskrivelse

Spænding: 14
Ampere: 70
Isoleret retur: Ja
Terminal: W
Bælte fordeler: 45.00
Bredde/bærer arm: 11.50
monteringsbeslag afstand: 82.50
Beslag hul: 8.20
Bæltejustering beslag hul pos.: 50
Bæltejustering beslag hul 1: M8
Bælte diameter: 81.50
Riller/bæltetrommel: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ i min.: 13
D+ Størrelse: Stikkontakt
Rotation: med uret / mod uret
Stikkontakt nr.: PL22
W stiktype: M5-6.30
Samlet længde mm: 170.50
Bælte: P
Regul. type: IR
Prod. info: BN
Service: Sabre

Filer

Specifikation

B+ M6
Mount. bracket dist. 82.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 50
Plug no. PL22
Bracket hole 8.20
Position/B+ in min. 13
Prod. info BN
Pulley P
Pulley dia. 81.50
Pulley dist. 45.00
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW/CCW
Servicing Sabre
Grooves/pulley 1
Terminal W
Insulated return Yes
Voltage 14
W plug type M5-6.30
Total length 170.50 mm
Width/holder arm 11.50
Amp 70

  • OEM
    aak3301, F032112112, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 11.201.332, 11.201.832, 510-810, 510-811, 510-812, 510-813, 510-822, 510-824, 510-825, 510-826, 510-842, 510-859, 714-16700, 714-40018, 2871A145, 2871a152, 2871a157, 2871a602, 40082, 2927440, 2928580, 2929580, 2929580A, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 836666738

  • Konkurrentreferens
    00-37.120, AL5003N, ALT23014, CAL11113, ia0332, ia0633, IA0832, LEA0437, lra00807, LRA01178, MG159, MG249, MG50, MG668, 8el737275-001, 28-0533, 218.116.702, 519.104.702, 595.033.090, 705.015.065, 815.030.070, 2154N-OE, 5632, 12154, 12154N-OE, 12292, 12405, 13905, 75844, 119497, 301201RI, 510823, 66021535, 66021587

  • NormaliseratArtNr
    aak3301, al5003n, alt23014, cal11113, f032112112, ia0332, ia0633, ia0832, lea0437, lra00807, lra01178, mg159, mg249, mg50, mg668, 8el737275001, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 2154noe, 2871a145, 2871a152, 2871a157, 2871a602, 5632, 12154, 12154noe, 12292, 12405, 13905, 0037120, 40082, 75844, 119497, 280533, 301201ri, 510810, 510811, 510812, 510813, 510822, 510823, 510824, 510825, 510826, 510842, 510859, 2927440, 2928580, 2929580, 2929580a, 11201332, 11201832, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 66021535, 66021587, 71416700, 71440018, 218116702, 519104702, 595033090, 705015065, 815030070, 836666738

  • Passar modeller
    Perkins Model: 4 Model series: 4-108 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Perkins Model: 6 Model series: 6-354 From date: 01-01-1980 Fuel: Diesel Approved: Yes
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Sabre Model: Various Models Model series: Various Models Approved: Yes
    Yanmar Model: Various Models Model series: Various Models Brand of engine: 2QM20 Fuel: Diesel Approved: Yes
    Yanmar Model: Various Models Model series: Various Models Size of motor: 1.4 Brand of engine: F115TJR From date: 01-01-2005 Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Ampere: 70
    Isoleret retur: Ja
    Terminal: W
    Bælte fordeler: 45.00
    Bredde/bærer arm: 11.50
    monteringsbeslag afstand: 82.50
    Beslag hul: 8.20
    Bæltejustering beslag hul pos.: 50
    Bæltejustering beslag hul 1: M8
    Bælte diameter: 81.50
    Riller/bæltetrommel: 1
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ i min.: 13
    D+ Størrelse: Stikkontakt
    Rotation: med uret / mod uret
    Stikkontakt nr.: PL22
    W stiktype: M5-6.30
    Samlet længde mm: 170.50
    Bælte: P
    Regul. type: IR
    Prod. info: BN
    Service: Sabre

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 82.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 50
    Plug no. PL22
    Bracket hole 8.20
    Position/B+ in min. 13
    Prod. info BN
    Pulley P
    Pulley dia. 81.50
    Pulley dist. 45.00
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW/CCW
    Servicing Sabre
    Grooves/pulley 1
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type M5-6.30
    Total length 170.50 mm
    Width/holder arm 11.50
    Amp 70
  • Køretøjsmatchning

    • OEM
      aak3301, F032112112, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 11.201.332, 11.201.832, 510-810, 510-811, 510-812, 510-813, 510-822, 510-824, 510-825, 510-826, 510-842, 510-859, 714-16700, 714-40018, 2871A145, 2871a152, 2871a157, 2871a602, 40082, 2927440, 2928580, 2929580, 2929580A, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 836666738

    • Konkurrentreferens
      00-37.120, AL5003N, ALT23014, CAL11113, ia0332, ia0633, IA0832, LEA0437, lra00807, LRA01178, MG159, MG249, MG50, MG668, 8el737275-001, 28-0533, 218.116.702, 519.104.702, 595.033.090, 705.015.065, 815.030.070, 2154N-OE, 5632, 12154, 12154N-OE, 12292, 12405, 13905, 75844, 119497, 301201RI, 510823, 66021535, 66021587

    • NormaliseratArtNr
      aak3301, al5003n, alt23014, cal11113, f032112112, ia0332, ia0633, ia0832, lea0437, lra00807, lra01178, mg159, mg249, mg50, mg668, 8el737275001, 9ar2723p, 9ar2724p, 9ar2732p, 9ar2733p, 9ar2734p, 9ar2735p, 9ar2744p, 9ar2745p, 9ar2746p, 9ar2747p, 9ar2831p, 9ar2854p, 9ar2958, 9ar2958p, 9ar2999p, 2154noe, 2871a145, 2871a152, 2871a157, 2871a602, 5632, 12154, 12154noe, 12292, 12405, 13905, 0037120, 40082, 75844, 119497, 280533, 301201ri, 510810, 510811, 510812, 510813, 510822, 510823, 510824, 510825, 510826, 510842, 510859, 2927440, 2928580, 2929580, 2929580a, 11201332, 11201832, 36202344, 47020055, 47020057, 47020059, 47020065, 47020067, 47020068, 47020084, 47020086, 47020088, 47020089, 57020057, 66021535, 66021587, 71416700, 71440018, 218116702, 519104702, 595033090, 705015065, 815030070, 836666738

    • Passar modeller
      Perkins Model: 4 Model series: 4-108 From date: 01-01-1989 Fuel: Diesel Approved: Yes
      Perkins Model: 6 Model series: 6-354 From date: 01-01-1980 Fuel: Diesel Approved: Yes
      Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Sabre Model: Various Models Model series: Various Models Approved: Yes
      Yanmar Model: Various Models Model series: Various Models Brand of engine: 2QM20 Fuel: Diesel Approved: Yes
      Yanmar Model: Various Models Model series: Various Models Size of motor: 1.4 Brand of engine: F115TJR From date: 01-01-2005 Approved: Yes
