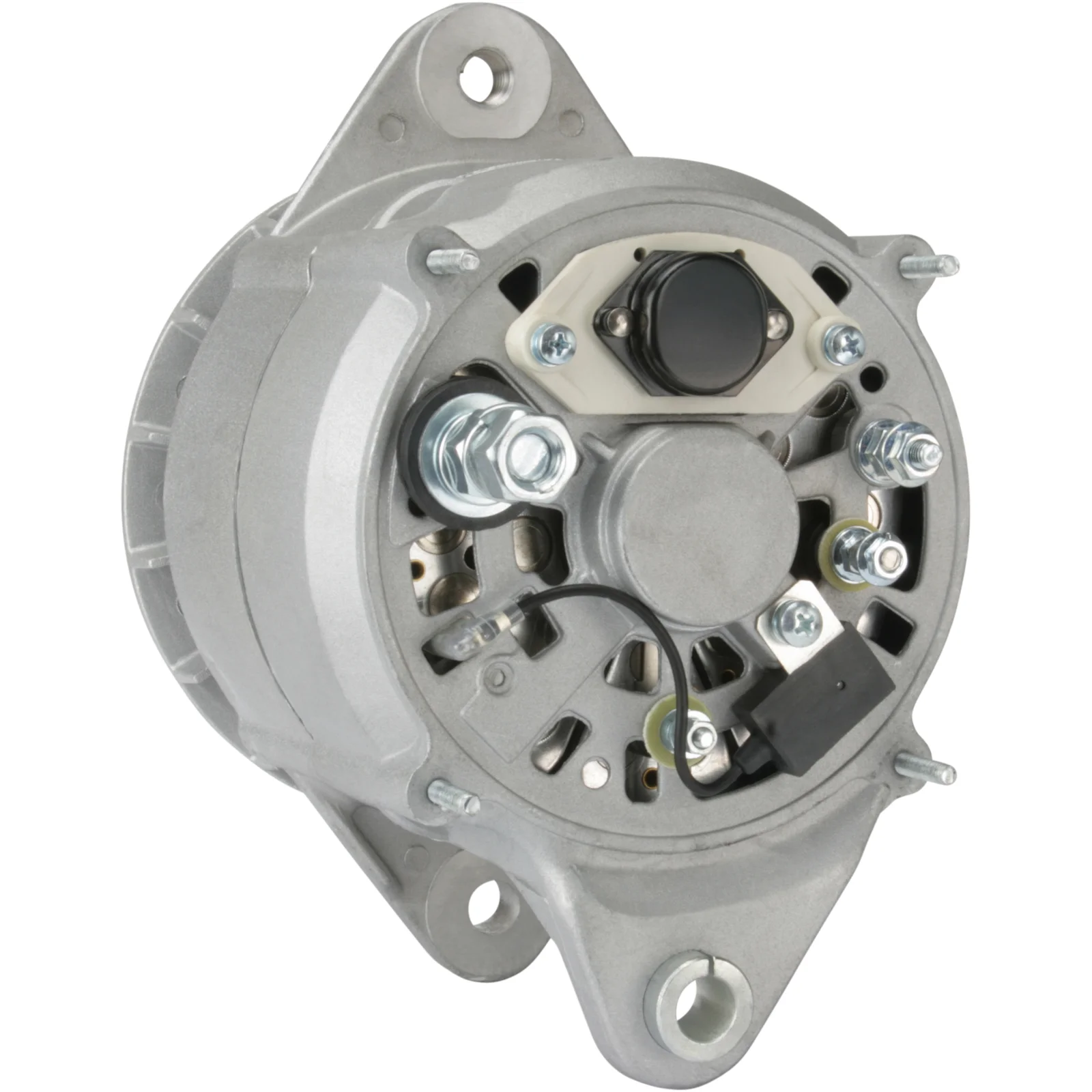

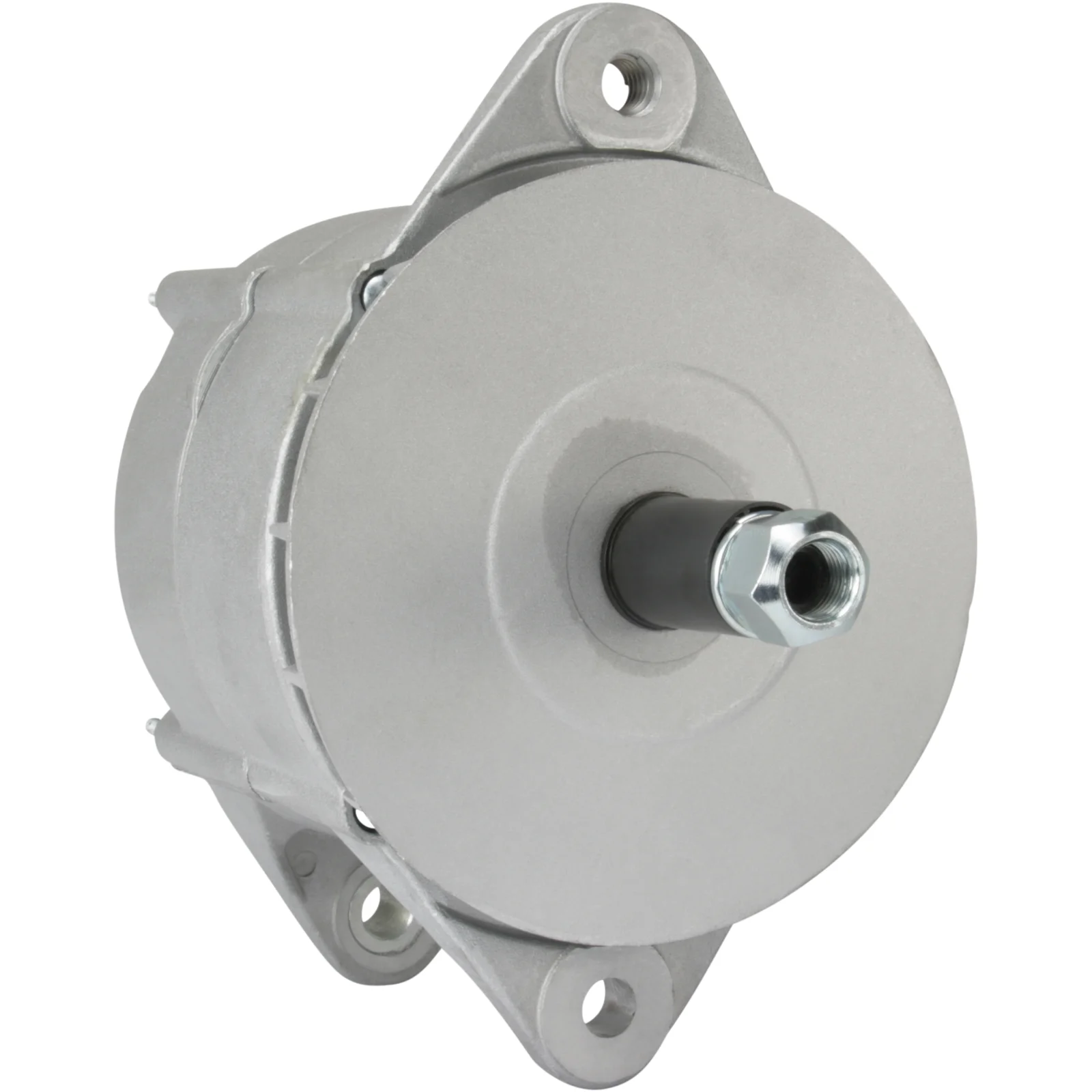

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112773

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 135, Rotation: med uret, Udstyrsbøjle afstand: 100,00

Beskrivelse

N apning: 14
Amp: 135
Terminal: W
Bredde/beslag arm: 14,20
Monteringsbeslag afstand: 100,00
Beslagshulder: 13,00
Bæltejustering beslag hulpos.: 60
Bæltejustering beslag hul 1: 1/2" UNC
Radius: 98,50
Radius 2: 98,50
B+: 7/16" UNC
Position/B+ i min.: 50
D+ Størrelse: M4
Rotation: med uret
W stiktype: M5
Samlet længde mm: 222,50
Remskive: uden
Regulator type: IR
Produktinfo: BN
Service: Kasse

Filer

Specifikation

B+ 7/16" UNC
Mount. bracket dist. 100.00
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 98.50
D+ Size M4
Radius 2 98.50
Regulator type IR
Rotation CW
Servicing Case
Terminal W
Voltage 14
W plug type M5
Total length 222.50 mm
Width/holder arm 14.20
Amp 135

  • OEM
    F032112773, F123188, re36268, ty6773, ty6795, 1986A00745, 1986A01125, 91448C2, 125849A1, 125849a1r, 125849A1R, 202360T91, 501349, 84136137, 86994128, 87774252, 0120468055, 120468055, 605576460

  • Konkurrentreferens
    a-6255, A0112, abo0222, al9941x, CAL21115, MG575, 1-2045-01BO, 1-2293-00dr, 1-3005-00BO, 90-15-6169, 90-15-6231, 585.105.1352, 635.019.095, 12162, 119725, 12043480, 12090684, 0986043453, 0986043454, 0986043457

  • NormaliseratArtNr
    a0112, a6255, abo0222, al9941x, cal21115, f032112773, f123188, mg575, re36268, ty6773, ty6795, 1986a00745, 1986a01125, 12162, 91448c2, 119725, 125849a1, 125849a1r, 202360t91, 501349, 1204501bo, 1229300dr, 1300500bo, 12043480, 12090684, 84136137, 86994128, 87774252, 90156169, 90156231, 0120468055, 120468055, 605576460, 635019095, 0986043453, 0986043454, 0986043457, 5851051352

  • Passar modeller
    Alfa Romeo Model: 164 Model series: 164 Size of motor: 3.0 Brand of engine: AR06410 Type description: 164_ Body: Saloon From date: 01-09-1990 To date: 01-12-1993 Fuel: Petrol Approved: Yes
    Case Model: 2000 Series Model series: 2144 From date: 01-01-1994 Approved: Yes
    Case Model: 2000 Series Model series: 2155 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2166 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2188 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2344 Size of motor: 5.9 From date: 01-01-1997 Approved: Yes
    Case Model: 2000 Series Model series: 2366 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2388 Model type: Combines Size of motor: 8.3 Brand of engine: 6CTAA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 2000 Series Model series: 2555 Size of motor: 8.3 From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 7000 Series Model series: 7120 Size of motor: 8.3 Brand of engine: 6CT From date: 01-01-1998 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Case Model: 7000 Series Model series: 7130 Size of motor: 8.3 Brand of engine: 6CT From date: 01-01-1998 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Case Model: 7000 Series Model series: 7140 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1998 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Case Model: 8000 Series Model series: 8920 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 8000 Series Model series: 8930 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 8000 Series Model series: 8940 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Case Model: 8000 Series Model series: 8950 Size of motor: 8.3 Brand of engine: 6CTA From date: 01-05-1997 Fuel: Diesel Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
    John Deere Model: 500 Model series: 540 Approved: Yes
    John Deere Model: 500 Model series: 544 Approved: Yes
    John Deere Model: 500 Model series: 548 Approved: Yes
    John Deere Model: 600 Model series: 640 Approved: Yes
    John Deere Model: 600 Model series: 648 Approved: Yes
    John Deere Model: 700 Model series: 740 Approved: Yes
    John Deere Model: 700 Model series: 748 Approved: Yes
    New Holland Model: TG Model series: TG210 Size of motor: 8.3 Approved: Yes
    New Holland Model: TG Model series: TG230 Size of motor: 8.3 Approved: Yes
    New Holland Model: TG Model series: TG255 Size of motor: 8.3 Approved: Yes
    New Holland Model: TG Model series: TG285 Size of motor: 8.3 Approved: Yes
    New Holland Model: TJ Model series: TJ275 Size of motor: 8.3 Fuel: Diesel Approved: Yes
    New Holland Model: TJ Model series: TJ325 Size of motor: 8.9 Fuel: Diesel Approved: Yes
    New Holland Model: TJ Model series: TJ375 Size of motor: 15.0 Fuel: Diesel Approved: Yes
    New Holland Model: TJ Model series: TJ425 Size of motor: 15.0 Fuel: Diesel Approved: Yes
    New Holland Model: TJ Model series: TJ450 Size of motor: 15.0 Fuel: Diesel Approved: Yes
    New Holland Model: TJ Model series: TJ500 Size of motor: 15.0 Fuel: Diesel Approved: Yes
