Vare nr.: F032112888

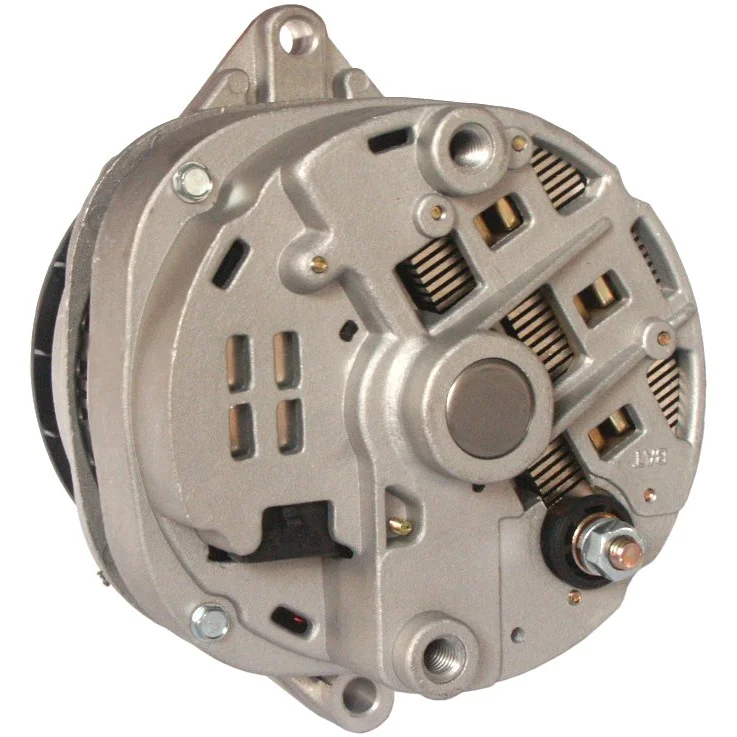

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Remskive dia.: 62.00, Radius: 89.50

Beskrivelse

Spænding: 14
Amp: 140
Drevskive: 72,50
Bredde/holderarm: 51,00
Holderskruens hul: 10,30
Belt. justering. bøjlehuls position.: 60
Belt. justering. bøjlehuls 1: 10,30
Drevskive di.: 62,00
Furer/drevskive: 6
Radius: 89,50
Radius 2: 94,50
B+: M8
Position/B+ i min.: 23
D+ Størrelse: Stik → Plug
Stik nr.: PL24
Samlet længde mm: 179,50
Drevskive: SP
Regulator type: IR
Produktoplysninger: BN
Servicing: Pontiac

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 60
Plug no. PL24
Bracket hole 10.30
Position/B+ in min. 23
Prod. info BN
Pulley SP
Pulley dia. 62.00
Pulley dist. 72.50
Radius 89.50
D+ Size Plug
Radius 2 94.50
Regulator type IR
Servicing Pontiac
Grooves/pulley 6
Voltage 14
Total length 179.50 mm
Width/holder arm 51.00
Amp 140

  • OEM
    F032112888, 321-1056, 10463523, 10463680, 10480111, 10480203

  • Konkurrentreferens
    a1775-7, adr0265, al8697x, ALT-1096, da04296-7, F042300059, F042A00059, 1-1730-31dr, 13-4631f, 20-1129-31, 29-1974, 90-01-4226, 7645, 8172-7, 8172N, 8172R, 8196-7, 21056

  • NormaliseratArtNr
    a17757, adr0265, al8697x, alt1096, da042967, f032112888, f042300059, f042a00059, 7645, 8172n, 8172r, 21056, 81727, 81967, 134631f, 291974, 1173031dr, 3211056, 10463523, 10463680, 10480111, 10480203, 20112931, 90014226

  • Passar modeller
    Pontiac Model: Firebird Model series: Firebird Model type: Formula Size of motor: 5.7 From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firebird Model series: Firebird Model type: Trans Am GT Size of motor: 5.7 From date: 01-01-1994 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firebird Model series: Firebird Model type: Trans Am Size of motor: 5.7 From date: 01-01-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Pontiac Model: Firebird Model series: Firebird Model type: Trans Am Size of motor: 5.7 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 140
    Drevskive: 72,50
    Bredde/holderarm: 51,00
    Holderskruens hul: 10,30
    Belt. justering. bøjlehuls position.: 60
    Belt. justering. bøjlehuls 1: 10,30
    Drevskive di.: 62,00
    Furer/drevskive: 6
    Radius: 89,50
    Radius 2: 94,50
    B+: M8
    Position/B+ i min.: 23
    D+ Størrelse: Stik → Plug
    Stik nr.: PL24
    Samlet længde mm: 179,50
    Drevskive: SP
    Regulator type: IR
    Produktoplysninger: BN
    Servicing: Pontiac

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 60
    Plug no. PL24
    Bracket hole 10.30
    Position/B+ in min. 23
    Prod. info BN
    Pulley SP
    Pulley dia. 62.00
    Pulley dist. 72.50
    Radius 89.50
    D+ Size Plug
    Radius 2 94.50
    Regulator type IR
    Servicing Pontiac
    Grooves/pulley 6
    Voltage 14
    Total length 179.50 mm
    Width/holder arm 51.00
    Amp 140
  • Køretøjsmatchning

    • OEM
      F032112888, 321-1056, 10463523, 10463680, 10480111, 10480203

    • Konkurrentreferens
      a1775-7, adr0265, al8697x, ALT-1096, da04296-7, F042300059, F042A00059, 1-1730-31dr, 13-4631f, 20-1129-31, 29-1974, 90-01-4226, 7645, 8172-7, 8172N, 8172R, 8196-7, 21056

    • NormaliseratArtNr
      a17757, adr0265, al8697x, alt1096, da042967, f032112888, f042300059, f042a00059, 7645, 8172n, 8172r, 21056, 81727, 81967, 134631f, 291974, 1173031dr, 3211056, 10463523, 10463680, 10480111, 10480203, 20112931, 90014226

    • Passar modeller
      Pontiac Model: Firebird Model series: Firebird Model type: Formula Size of motor: 5.7 From date: 01-01-1995 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firebird Model series: Firebird Model type: Trans Am GT Size of motor: 5.7 From date: 01-01-1994 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firebird Model series: Firebird Model type: Trans Am Size of motor: 5.7 From date: 01-01-1993 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Pontiac Model: Firebird Model series: Firebird Model type: Trans Am Size of motor: 5.7 From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
