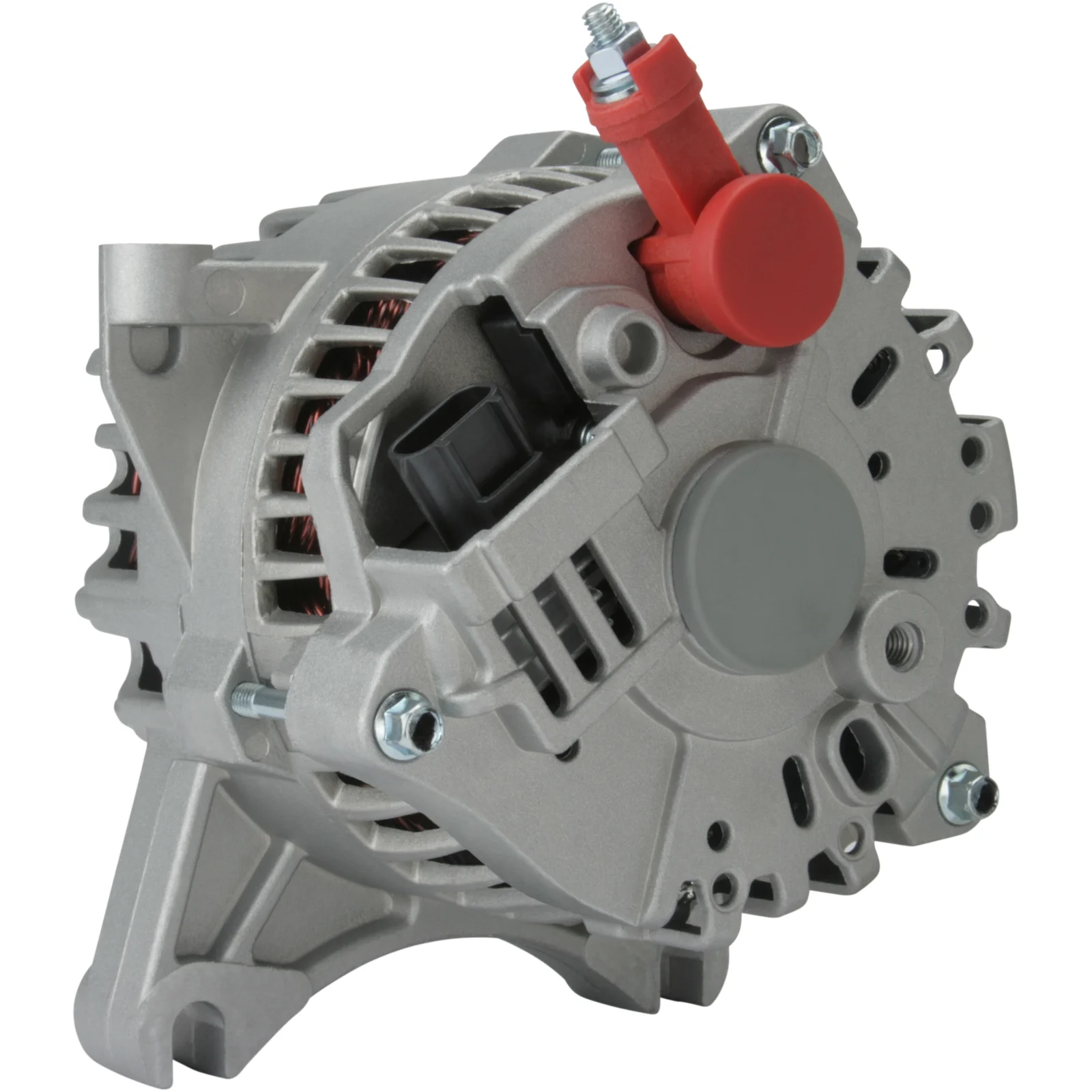

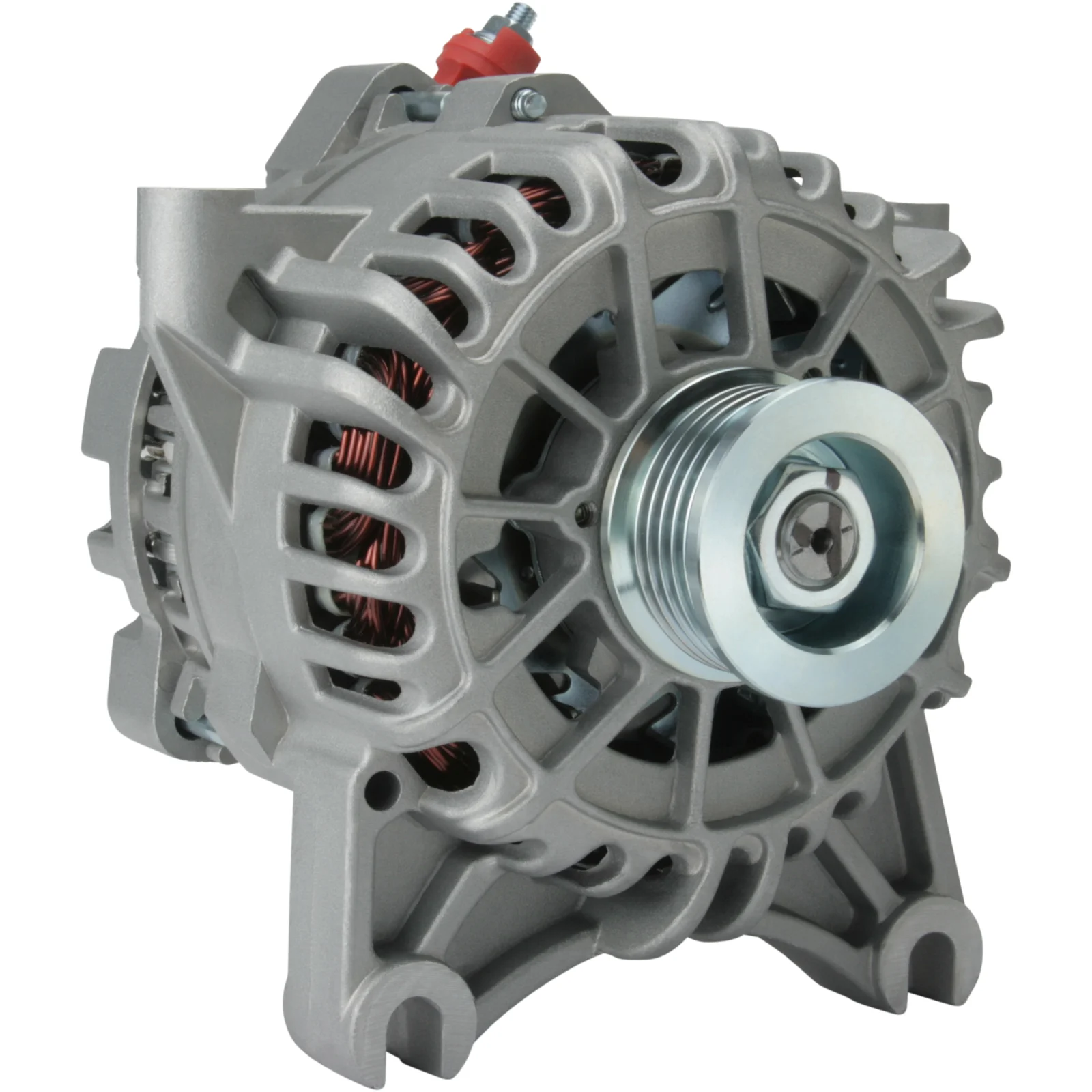

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112954

HC-Cargo Generator

Tekniske oplysninger:

Spenning: 14, Amp: 105, Rotation: CW, Remskive diameter: 48.50

Beskrivelse

Spænding: 14
Amp: 105
Drevningsskive dist.: 50,00
Bredde/holderarm: 25,50
Bøjlehullet: 9,80
Bælte justeringsbrackets position: 20
Bælte justeringsbracket hul 1: 9,80
Drevningsskive diameter: 48,50
Riller/drevningsskive: 6
Radius: 98,00
Radius 2: 105,50
B+: M6
Position/B+ i min.: 2
D+: Størrelse: Stik
Rotation: CW
Stik nr.: PL117
Total længde mm: 165,00
Drevningsskive: SP
Regulator type: IR
Produktoplysninger: BN
Servicing: Ford
Bemærkninger: Udskiftning: 6G serie

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 9.80
Belt. adj. brackethole pos. 20
Plug no. PL117
Bracket hole 9.80
Position/B+ in min. 2
Prod. info BN
Pulley SP
Pulley dia. 48.50
Pulley dist. 50.00
Radius 98.00
D+ Size Plug
Radius 2 105.50
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 25.50
Amp 105

  • OEM
    F032112954, gl424, GL424RM, XR3U10300AA, XR3U10300AB, XR3U10300AC, XR3Z10346AA

  • Konkurrentreferens
    AFD0059, AG-00461R, ALT-1606, 1-2264-31fd, 7728, 8252, 8252N, 8252R, 113434

  • NormaliseratArtNr
    afd0059, ag00461r, alt1606, f032112954, gl424, gl424rm, xr3u10300aa, xr3u10300ab, xr3u10300ac, xr3z10346aa, 7728, 8252, 8252n, 8252r, 113434, 1226431fd

  • Passar modeller
    Ford Model: Mustang Model series: Mustang Model type: Bullitt Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: Cobra Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: Cobra Type of engine: Super Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Mustang Model series: Mustang Model type: Mach 1 Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 105
    Drevningsskive dist.: 50,00
    Bredde/holderarm: 25,50
    Bøjlehullet: 9,80
    Bælte justeringsbrackets position: 20
    Bælte justeringsbracket hul 1: 9,80
    Drevningsskive diameter: 48,50
    Riller/drevningsskive: 6
    Radius: 98,00
    Radius 2: 105,50
    B+: M6
    Position/B+ i min.: 2
    D+: Størrelse: Stik
    Rotation: CW
    Stik nr.: PL117
    Total længde mm: 165,00
    Drevningsskive: SP
    Regulator type: IR
    Produktoplysninger: BN
    Servicing: Ford
    Bemærkninger: Udskiftning: 6G serie

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 9.80
    Belt. adj. brackethole pos. 20
    Plug no. PL117
    Bracket hole 9.80
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP
    Pulley dia. 48.50
    Pulley dist. 50.00
    Radius 98.00
    D+ Size Plug
    Radius 2 105.50
    Regulator type IR
    Remarks Replacing: 6G series
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 25.50
    Amp 105
  • Køretøjsmatchning

    • OEM
      F032112954, gl424, GL424RM, XR3U10300AA, XR3U10300AB, XR3U10300AC, XR3Z10346AA

    • Konkurrentreferens
      AFD0059, AG-00461R, ALT-1606, 1-2264-31fd, 7728, 8252, 8252N, 8252R, 113434

    • NormaliseratArtNr
      afd0059, ag00461r, alt1606, f032112954, gl424, gl424rm, xr3u10300aa, xr3u10300ab, xr3u10300ac, xr3z10346aa, 7728, 8252, 8252n, 8252r, 113434, 1226431fd

    • Passar modeller
      Ford Model: Mustang Model series: Mustang Model type: Bullitt Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: Cobra Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: Cobra Type of engine: Super Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: GT Size of motor: 4.6 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Mustang Model series: Mustang Model type: Mach 1 Size of motor: 4.6 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
