Vare nr.: F032112958

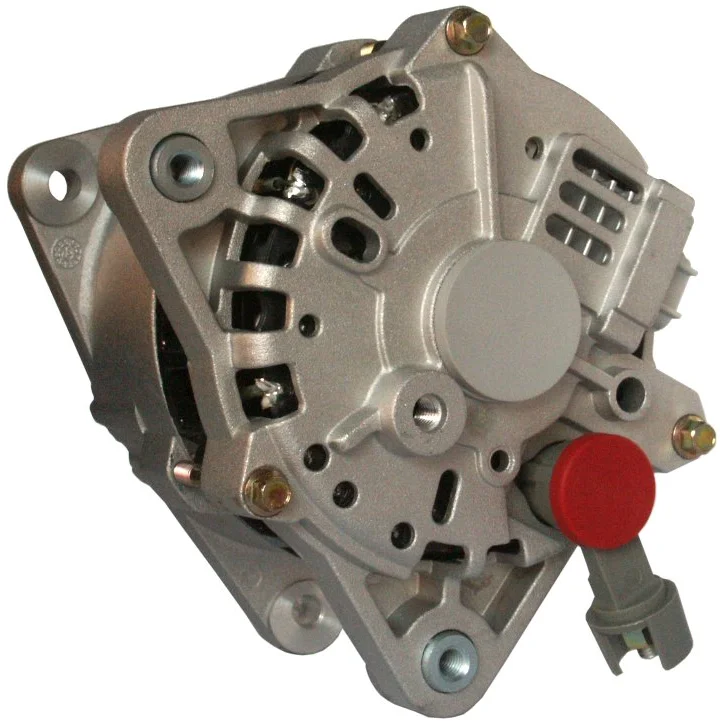

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Montering. bøsning for fordelingsboks: 63.00

Beskrivelse

Spænding: 14
Amp: 110
Ideskinne: 34,50
Bredde/beslag arm: 14,50
Fastgørelsesbeslag afstand: 63,00
Beslaghul: 9,00
Beltejuster. beslaghul pos.: 50
Beltejuster. beslaghul 1: 9,00
Ideskinnehøjde: 48,30
Riller/ideskinne: 6
Radius: 83,50
Radius 2: 85,00
B+: M6
Posisjon/B+ i min.: 6
D+ Størrelse: Kontakt
Rotation: med uret
Kontakt nummer: PL57
Total længde mm: 165,00
Ideskinne: SP
Regul. type: IR
Produktion info: BN
Service: Ford
Bemærkninger: Udskiftning: 6G serie

Filer

Specifikation

B+ M6
Mount. bracket dist. 63.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 50
Plug no. PL57
Bracket hole 9.00
Position/B+ in min. 6
Prod. info BN
Pulley SP
Pulley dia. 48.30
Pulley dist. 34.50
Radius 83.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 14.50
Amp 110

  • OEM
    F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

  • Konkurrentreferens
    A9354S, ALT-1616, CAL14117, DRA0066, F042304011, F042A04011, LEA0595, LRA02555, 1-2349-01fd, 1-2349-01FD-2, 27-4899, 224.168.1102, 8260, 8260N, 8260R, 8264, 23725, 210413, 210413A, 553414RI, 12060886

  • NormaliseratArtNr
    a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102

  • Passar modeller
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: S2 Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Street Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SVT Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 110
    Ideskinne: 34,50
    Bredde/beslag arm: 14,50
    Fastgørelsesbeslag afstand: 63,00
    Beslaghul: 9,00
    Beltejuster. beslaghul pos.: 50
    Beltejuster. beslaghul 1: 9,00
    Ideskinnehøjde: 48,30
    Riller/ideskinne: 6
    Radius: 83,50
    Radius 2: 85,00
    B+: M6
    Posisjon/B+ i min.: 6
    D+ Størrelse: Kontakt
    Rotation: med uret
    Kontakt nummer: PL57
    Total længde mm: 165,00
    Ideskinne: SP
    Regul. type: IR
    Produktion info: BN
    Service: Ford
    Bemærkninger: Udskiftning: 6G serie

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 63.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. brackethole pos. 50
    Plug no. PL57
    Bracket hole 9.00
    Position/B+ in min. 6
    Prod. info BN
    Pulley SP
    Pulley dia. 48.30
    Pulley dist. 34.50
    Radius 83.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Remarks Replacing: 6G series
    Rotation CW
    Servicing Ford
    Grooves/pulley 6
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 14.50
    Amp 110
  • Køretøjsmatchning

    • OEM
      F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

    • Konkurrentreferens
      A9354S, ALT-1616, CAL14117, DRA0066, F042304011, F042A04011, LEA0595, LRA02555, 1-2349-01fd, 1-2349-01FD-2, 27-4899, 224.168.1102, 8260, 8260N, 8260R, 8264, 23725, 210413, 210413A, 553414RI, 12060886

    • NormaliseratArtNr
      a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102

    • Passar modeller
      Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: S2 Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: Street Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: SVT Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
