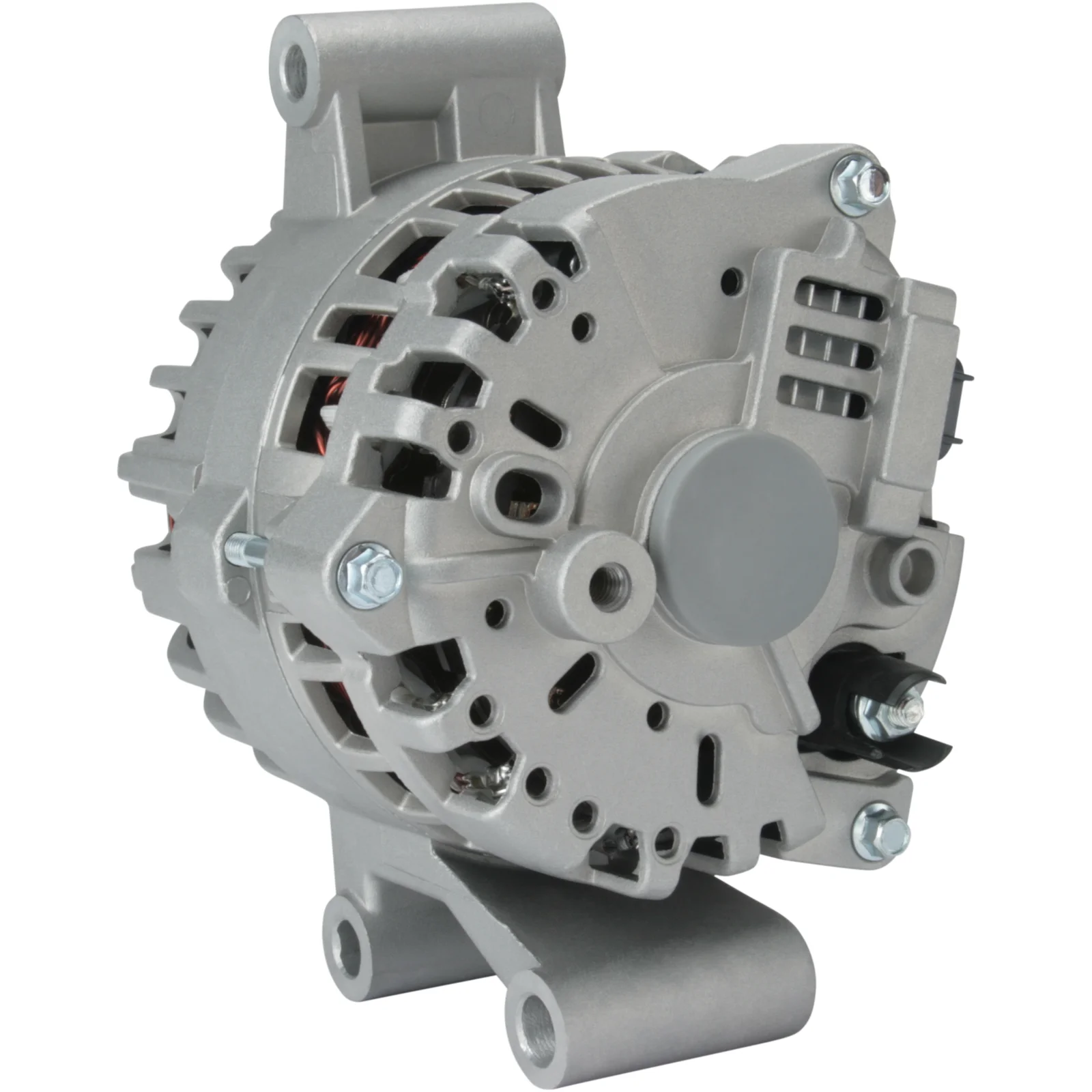

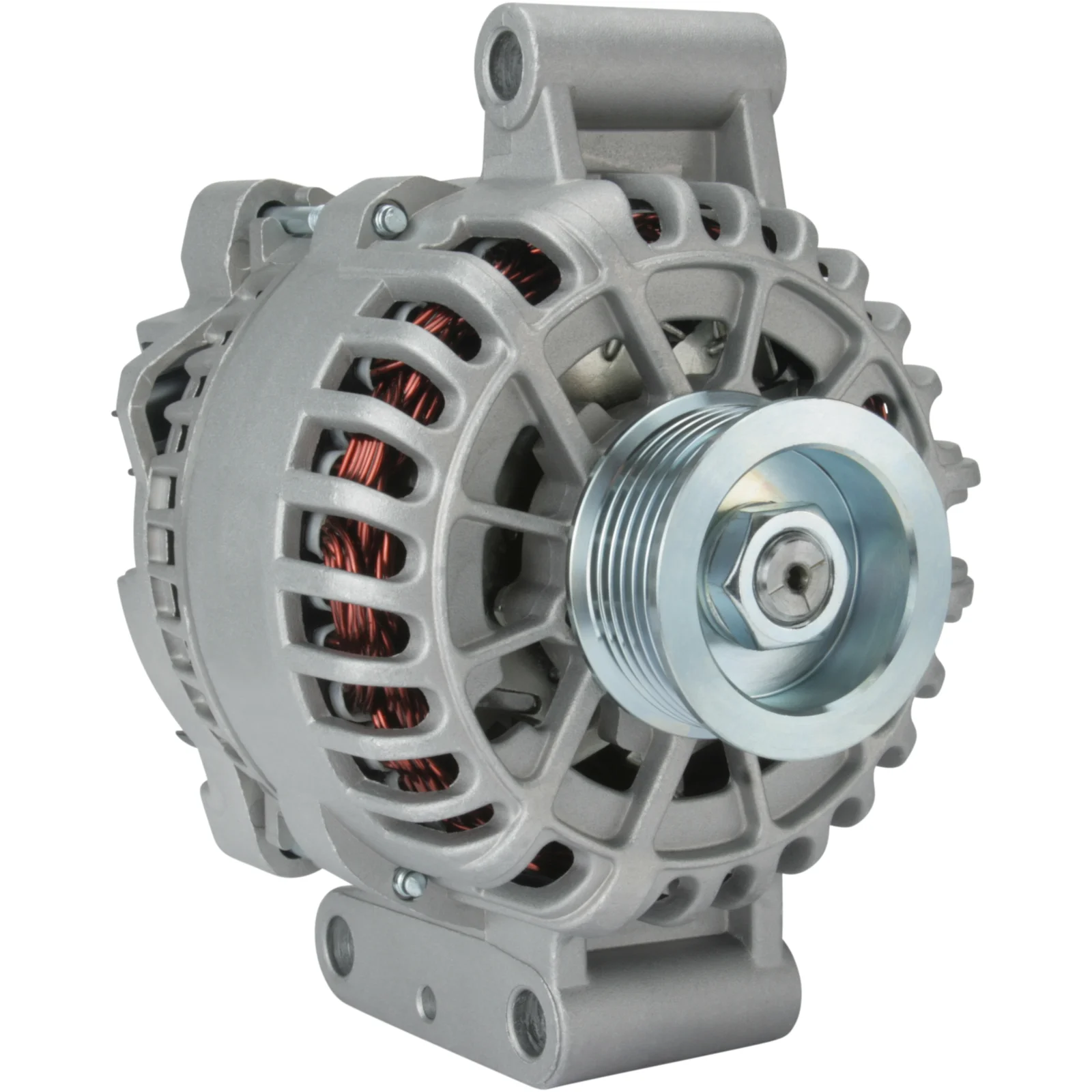

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112959

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Monteringsbeslag afstanden: 75,00

Beskrivelse

Spænding: 14
Amp: 110
Remskive afstand: 40.00
Bredde/holderarm: 55.00
Monteringsbeslag afstand: 75.00
Beslagshul: 13.20
Bæltejusteringsbeslags hul position: 60
Bæltejusteringsbeslags hul 1: 12.70
Remskive diameter: 56.60
Riller/remskive: 6
B+: M6
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL57
Samlet længde mm: 162.50
Remskive: SP
Regulator type: IR
Produktoplysninger: BN
Service: Ford
Bemærkninger: Udskiftning: 6G serie

Filer

Specifikation

B+ M6
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 12.70
Belt. adj. brackethole pos. 60
Plug no. PL57
Bracket hole 13.20
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 56.60
Pulley dist. 40.00
D+ Size Plug
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 162.50 mm
Width/holder arm 55.00
Amp 110

  • OEM
    F032112959, gl455, GL455RM, 98AB10300FC, 98AZ10346FA

  • Konkurrentreferens
    A9359S, afd0061, ALT-1608, F042304007, F042A04007, 1-2350-11FD, 1-2350-11FD-2, 8261, 8447N

  • NormaliseratArtNr
    a9359s, afd0061, alt1608, f032112959, f042304007, f042a04007, gl455, gl455rm, 98ab10300fc, 98az10346fa, 8261, 8447n, 1235011fd, 1235011fd2

  • Passar modeller
    Ford Model: Focus Model series: Focus Model type: LE Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SE Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
