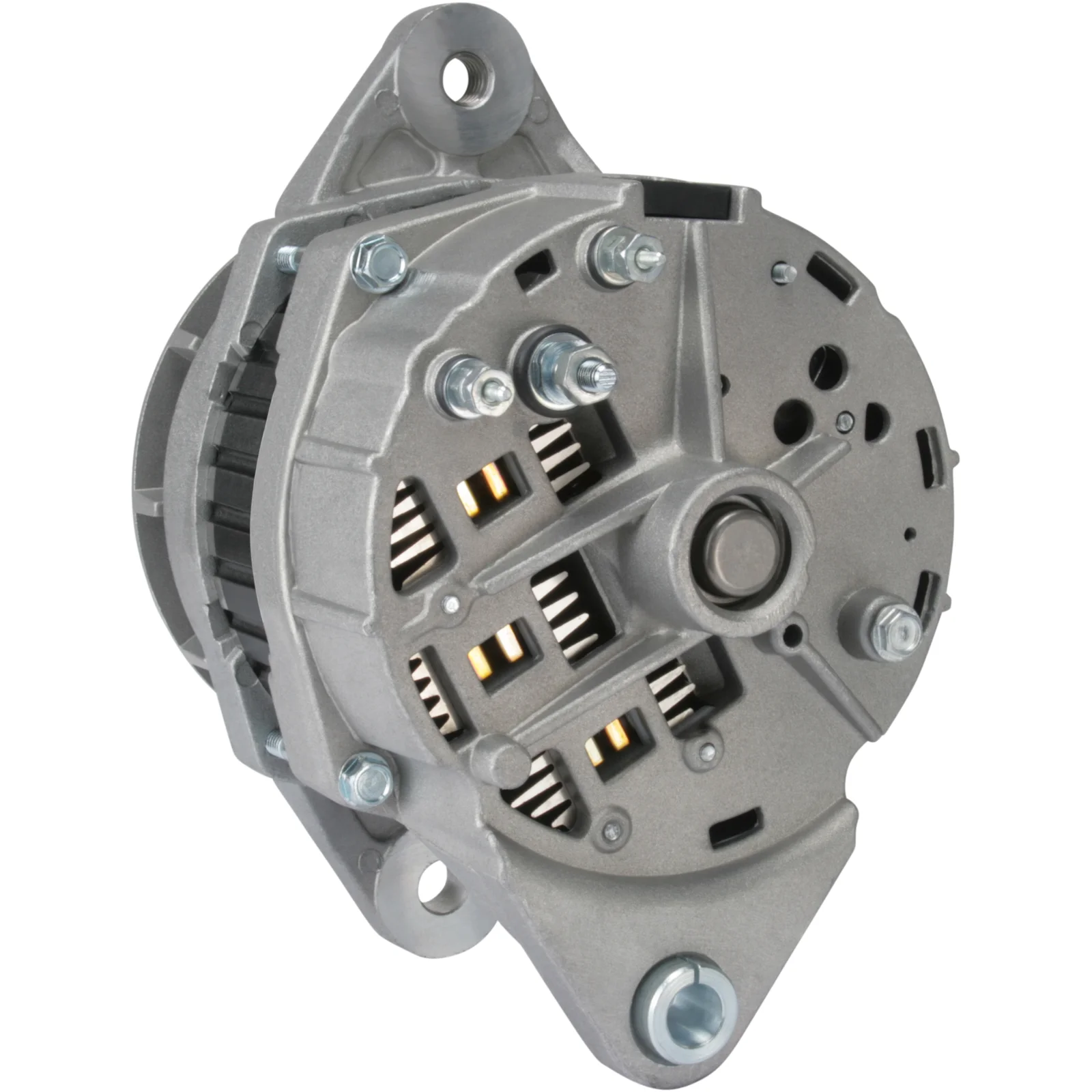

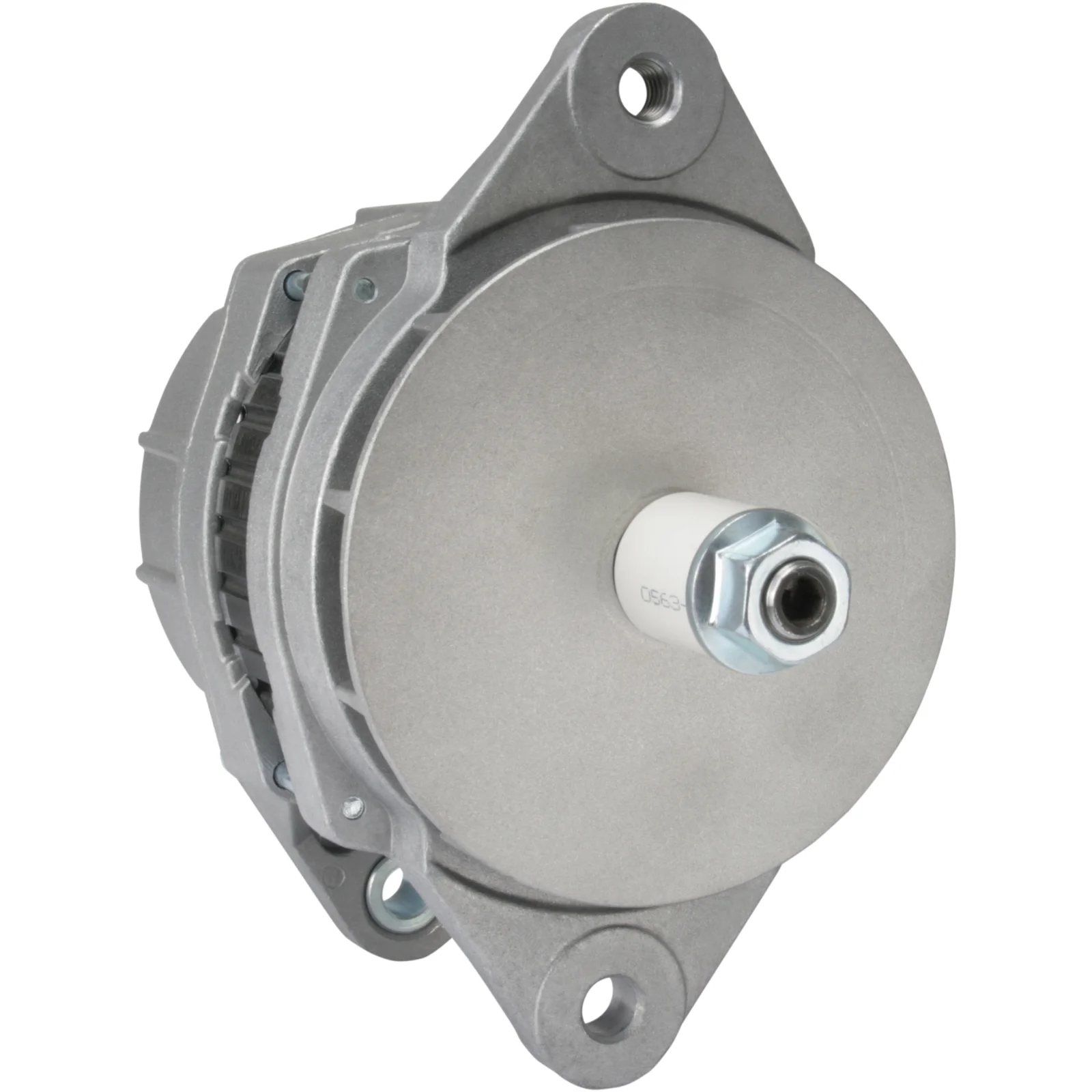

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112993

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 130, Rotation: CW/CCW, Monteringsbeslag afstand: 101.50

Beskrivelse

Spænding: 14
Amp: 130
Terminal: W
Bredde/holderarm: 14,20
Mount. bøjle afstand: 101,50
Bøjlehul: 13,00
Bælte. justering bøjlehuls position: 60
Bælte. justering bøjlehuls 1: 1/2" UNC
Radius: 98,00
Radius 2: 98,00
B+: 1/4" UNF
Position/B+ i min.: 50
Rotation: med uret/ mod uret
W-kontakttype: 10-24 UNC
Samlet længde mm: 217,00
Remskive: uden
Prod. info: BN
Servicing: Volvo
Info: aksel: 7/8" = 22,255 mm
Bemærkninger: Udskiftning: 21SI. Negativ jordforbindelse. Enkelt wire system. B+: 1/4".

Filer

Specifikation

B+ 1/4" UNF
Mount. bracket dist. 101.50
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 98.00
Radius 2 98.00
Remarks Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".
Rotation CW/CCW
Servicing Volvo
Terminal W
Info Shaft: 7/8" = 22.255 mm
Voltage 14
W plug type 10-24 UNC
Total length 217.00 mm
Width/holder arm 14.20
Amp 130

  • OEM
    F032112993, F3HT10300AA, F3HT10300BA, F3HT10300CA, F3HT10300HB, F3HZ10346H, F4HT10300DA, F4HT10300EA, F4HT10300FA, F4HT10300KA, F4PU10346BA, F5HZ10346A, F8ZU10300AA, gl332, gl358, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166

  • Konkurrentreferens
    a-1358, adr0011, ALT-1706, F042304024, F042A04024, 1-1918-00DR, 1-1918-00DR-1, 20-1111, 20-232-10-1, 20-232-10-2, 20-232-11-1, 20-232-11-2, 29-1867, 90-01-4058, 90-01-4093, 645.019.115, 7501, 7564, 7670N, 7771N-0G, 7771R-0G, 7976R, 8027N, 726874

  • NormaliseratArtNr
    a1358, adr0011, alt1706, f032112993, f042304024, f042a04024, f3ht10300aa, f3ht10300ba, f3ht10300ca, f3ht10300hb, f3hz10346h, f4ht10300da, f4ht10300ea, f4ht10300fa, f4ht10300ka, f4pu10346ba, f5hz10346a, f8zu10300aa, gl332, gl358, 7501, 7564, 7670n, 7771n0g, 7771r0g, 7976r, 8027n, 201111, 291867, 726874, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1191800dr, 1191800dr1, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166, 20232101, 20232102, 20232111, 20232112, 90014058, 90014093, 645019115

  • Passar modeller
    Cummins Model: K Series Model series: Engine Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 5.8 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1967 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 130
    Terminal: W
    Bredde/holderarm: 14,20
    Mount. bøjle afstand: 101,50
    Bøjlehul: 13,00
    Bælte. justering bøjlehuls position: 60
    Bælte. justering bøjlehuls 1: 1/2" UNC
    Radius: 98,00
    Radius 2: 98,00
    B+: 1/4" UNF
    Position/B+ i min.: 50
    Rotation: med uret/ mod uret
    W-kontakttype: 10-24 UNC
    Samlet længde mm: 217,00
    Remskive: uden
    Prod. info: BN
    Servicing: Volvo
    Info: aksel: 7/8" = 22,255 mm
    Bemærkninger: Udskiftning: 21SI. Negativ jordforbindelse. Enkelt wire system. B+: 1/4".

    Filer

  • Specifikation
    B+ 1/4" UNF
    Mount. bracket dist. 101.50
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley w/o
    Radius 98.00
    Radius 2 98.00
    Remarks Replacing: 21SI. Negative grounding. One-wire system. B+: 1/4".
    Rotation CW/CCW
    Servicing Volvo
    Terminal W
    Info Shaft: 7/8" = 22.255 mm
    Voltage 14
    W plug type 10-24 UNC
    Total length 217.00 mm
    Width/holder arm 14.20
    Amp 130
  • Køretøjsmatchning

    • OEM
      F032112993, F3HT10300AA, F3HT10300BA, F3HT10300CA, F3HT10300HB, F3HZ10346H, F4HT10300DA, F4HT10300EA, F4HT10300FA, F4HT10300KA, F4PU10346BA, F5HZ10346A, F8ZU10300AA, gl332, gl358, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166

    • Konkurrentreferens
      a-1358, adr0011, ALT-1706, F042304024, F042A04024, 1-1918-00DR, 1-1918-00DR-1, 20-1111, 20-232-10-1, 20-232-10-2, 20-232-11-1, 20-232-11-2, 29-1867, 90-01-4058, 90-01-4093, 645.019.115, 7501, 7564, 7670N, 7771N-0G, 7771R-0G, 7976R, 8027N, 726874

    • NormaliseratArtNr
      a1358, adr0011, alt1706, f032112993, f042304024, f042a04024, f3ht10300aa, f3ht10300ba, f3ht10300ca, f3ht10300hb, f3hz10346h, f4ht10300da, f4ht10300ea, f4ht10300fa, f4ht10300ka, f4pu10346ba, f5hz10346a, f8zu10300aa, gl332, gl358, 7501, 7564, 7670n, 7771n0g, 7771r0g, 7976r, 8027n, 201111, 291867, 726874, 1117889, 1117914, 1117923, 1117957, 1117958, 1117959, 1117962, 1191800dr, 1191800dr1, 1677974c91, 1677974c92, 1680859c91, 1680859c92, 3604666rx, 3918558, 19010120, 19010136, 19010137, 19010154, 19010157, 19010158, 19010159, 19010160, 19010161, 19010162, 19010163, 19010166, 20232101, 20232102, 20232111, 20232112, 90014058, 90014093, 645019115

    • Passar modeller
      Cummins Model: K Series Model series: Engine Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 5.8 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1967 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Ford Model: Fairlane Model series: Fairlane Size of motor: 7.0 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
