Vare nr.: F032113306

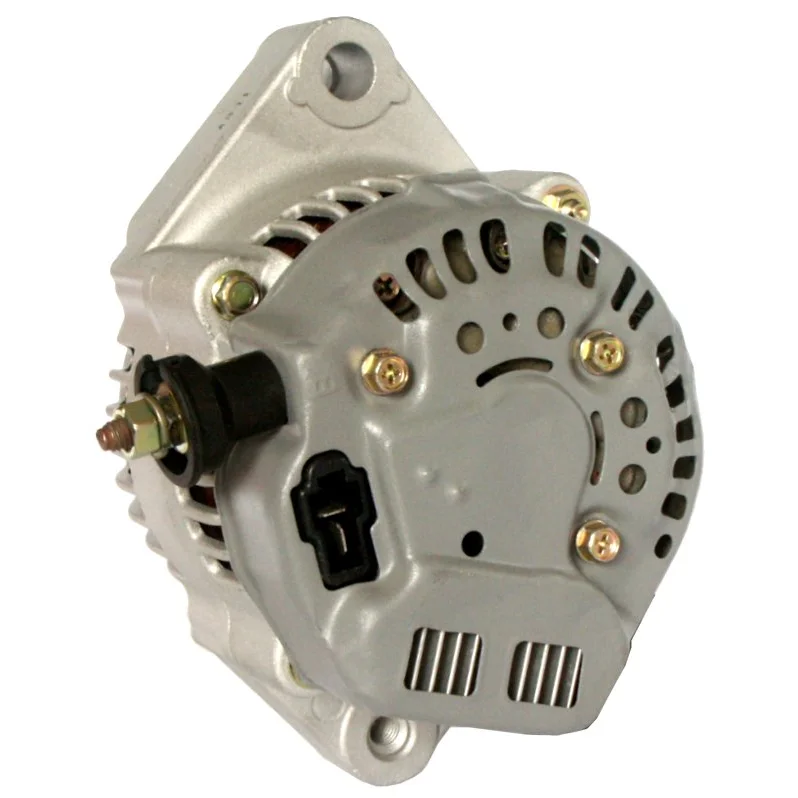

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 60, Rotation: CW, Remskive diameter: 57.50

Beskrivelse

Spænding: 14
Amp: 60
Remskivs. dist.: 48,00
Bredde/beslag arm: 29,20
Støttebeslag huls: 10,20
Bånd. just. beslag huls vej.: 60
Bånd. just. beslag hul 1: M8
Remskive diameter: 57,50
Riller/remskive: 4
Radius: 74,00
Radius 2: 70,00
B+: M6
Position/B+ i min.: 18
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL10
Samlet længde mm: 145,00
Remskive: SP
Regulator type: IR
Prod. info: Reman
Servicering: Daihatsu

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 18
Prod. info Reman
Pulley SP
Pulley dia. 57.50
Pulley dist. 48.00
Radius 74.00
D+ Size Plug
Radius 2 70.00
Regulator type IR
Rotation CW
Servicing Daihatsu
Grooves/pulley 4
Voltage 14
Total length 145.00 mm
Width/holder arm 29.20
Amp 60

  • OEM
    F032113306, ja1609ir, 27060-97202, 27060-97202-000, 27060-97203, 27060-97203-000, 27060-97282, 101211-2730, 101211-2731, 101211-2750, 101211-2751

  • Konkurrentreferens
    A6198(DENSO), A6199(DENSO), ALT-H125, ALT30135, CAL44107, DAN973, DAN974, DENDAN973, DENDAN974, DRA4183, F042A0H125, J5116020, J5116022, LRA01925, 8EL011712-271, 28-3811, 115.510.060, 217.119.602, 22925R, 401609RI, 9045461, 12060770, 0986045461, 063377513010

  • NormaliseratArtNr
    a6198denso, a6199denso, alt30135, alth125, cal44107, dan973, dan974, dendan973, dendan974, dra4183, f032113306, f042a0h125, j5116020, j5116022, ja1609ir, lra01925, 8el011712271, 22925r, 283811, 401609ri, 9045461, 12060770, 115510060, 217119602, 0986045461, 1012112730, 1012112731, 1012112750, 1012112751, 2706097202, 2706097203, 2706097282, 063377513010, 2706097202000, 2706097203000

  • Passar modeller
    Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: EJ-DE,EJ-VE Type description: L7_ Body: Hatchback From date: 01-11-1998 To date: 01-12-2002 Fuel: Petrol Approved: Yes
    Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: EJ-VE Type description: L251 Body: Hatchback From date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Move Model series: Move Type of engine: i Size of motor: 1.0 Brand of engine: EJDE Body: MPV From date: 01-10-1998 To date: 01-09-2002 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Model type: 4WD Type of engine: i Size of motor: 1.0 Brand of engine: EJ-VE Type description: M1 Body: Hatchback From date: 01-09-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Model type: 4WD Type of engine: i Size of motor: 1.0 Brand of engine: EJDE Type description: 1M Body: Hatchback From date: 01-04-1999 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Model type: Sport, 4WD Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Type of engine: i Size of motor: 1.0 Brand of engine: EJ-VE Type description: M1 Body: Hatchback From date: 01-09-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Type of engine: i Size of motor: 1.0 Brand of engine: EJDE Body: Hatchback From date: 01-04-1998 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 60
    Remskivs. dist.: 48,00
    Bredde/beslag arm: 29,20
    Støttebeslag huls: 10,20
    Bånd. just. beslag huls vej.: 60
    Bånd. just. beslag hul 1: M8
    Remskive diameter: 57,50
    Riller/remskive: 4
    Radius: 74,00
    Radius 2: 70,00
    B+: M6
    Position/B+ i min.: 18
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL10
    Samlet længde mm: 145,00
    Remskive: SP
    Regulator type: IR
    Prod. info: Reman
    Servicering: Daihatsu

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 18
    Prod. info Reman
    Pulley SP
    Pulley dia. 57.50
    Pulley dist. 48.00
    Radius 74.00
    D+ Size Plug
    Radius 2 70.00
    Regulator type IR
    Rotation CW
    Servicing Daihatsu
    Grooves/pulley 4
    Voltage 14
    Total length 145.00 mm
    Width/holder arm 29.20
    Amp 60
  • Køretøjsmatchning

    • OEM
      F032113306, ja1609ir, 27060-97202, 27060-97202-000, 27060-97203, 27060-97203-000, 27060-97282, 101211-2730, 101211-2731, 101211-2750, 101211-2751

    • Konkurrentreferens
      A6198(DENSO), A6199(DENSO), ALT-H125, ALT30135, CAL44107, DAN973, DAN974, DENDAN973, DENDAN974, DRA4183, F042A0H125, J5116020, J5116022, LRA01925, 8EL011712-271, 28-3811, 115.510.060, 217.119.602, 22925R, 401609RI, 9045461, 12060770, 0986045461, 063377513010

    • NormaliseratArtNr
      a6198denso, a6199denso, alt30135, alth125, cal44107, dan973, dan974, dendan973, dendan974, dra4183, f032113306, f042a0h125, j5116020, j5116022, ja1609ir, lra01925, 8el011712271, 22925r, 283811, 401609ri, 9045461, 12060770, 115510060, 217119602, 0986045461, 1012112730, 1012112731, 1012112750, 1012112751, 2706097202, 2706097203, 2706097282, 063377513010, 2706097202000, 2706097203000

    • Passar modeller
      Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: EJ-DE,EJ-VE Type description: L7_ Body: Hatchback From date: 01-11-1998 To date: 01-12-2002 Fuel: Petrol Approved: Yes
      Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: EJ-VE Type description: L251 Body: Hatchback From date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Move Model series: Move Type of engine: i Size of motor: 1.0 Brand of engine: EJDE Body: MPV From date: 01-10-1998 To date: 01-09-2002 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Model type: 4WD Type of engine: i Size of motor: 1.0 Brand of engine: EJ-VE Type description: M1 Body: Hatchback From date: 01-09-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Model type: 4WD Type of engine: i Size of motor: 1.0 Brand of engine: EJDE Type description: 1M Body: Hatchback From date: 01-04-1999 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Model type: Sport, 4WD Size of motor: 1.3 Brand of engine: K3-VE2 Type description: M1 Body: Hatchback From date: 01-08-2000 To date: 01-03-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Type of engine: i Size of motor: 1.0 Brand of engine: EJ-VE Type description: M1 Body: Hatchback From date: 01-09-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Type of engine: i Size of motor: 1.0 Brand of engine: EJDE Body: Hatchback From date: 01-04-1998 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
