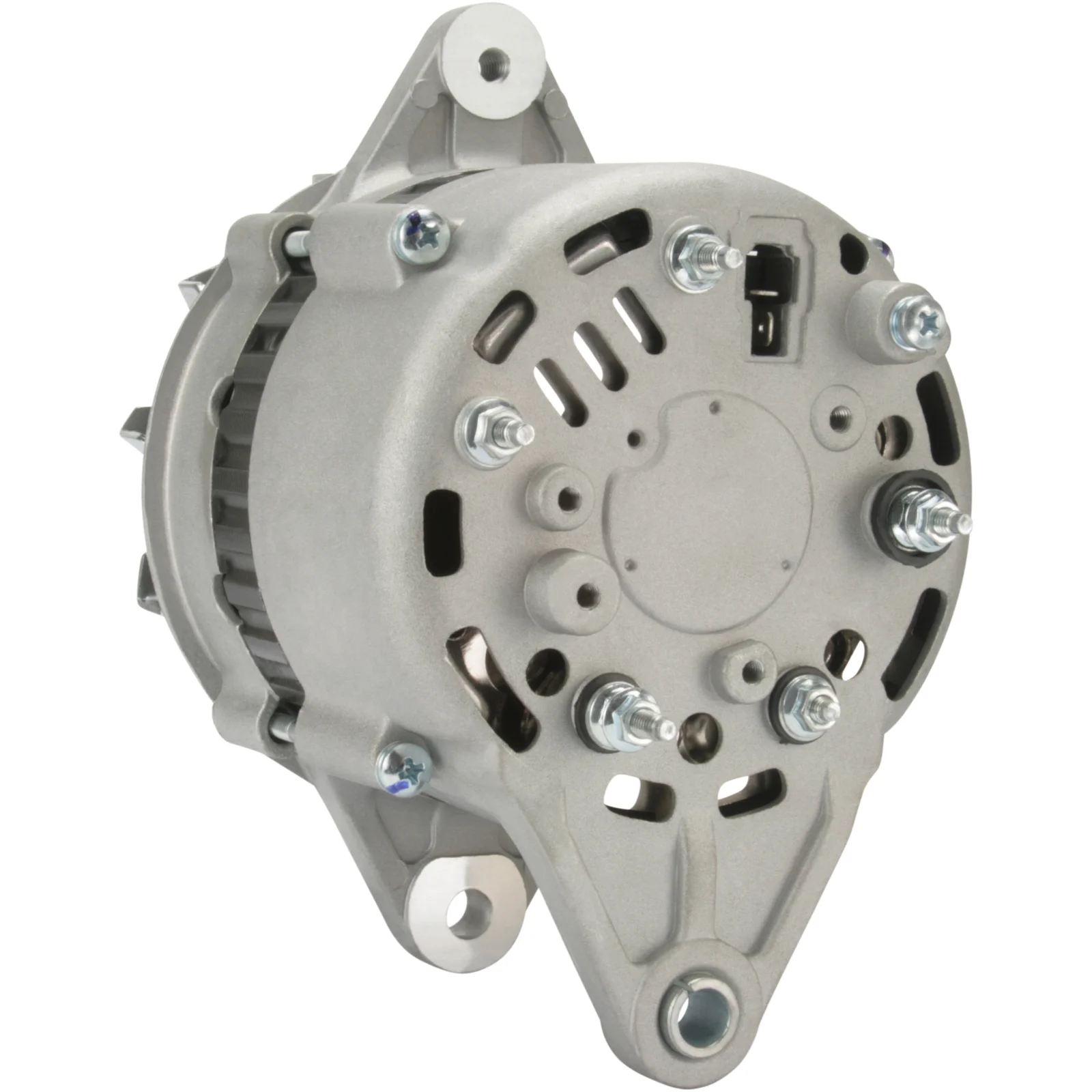

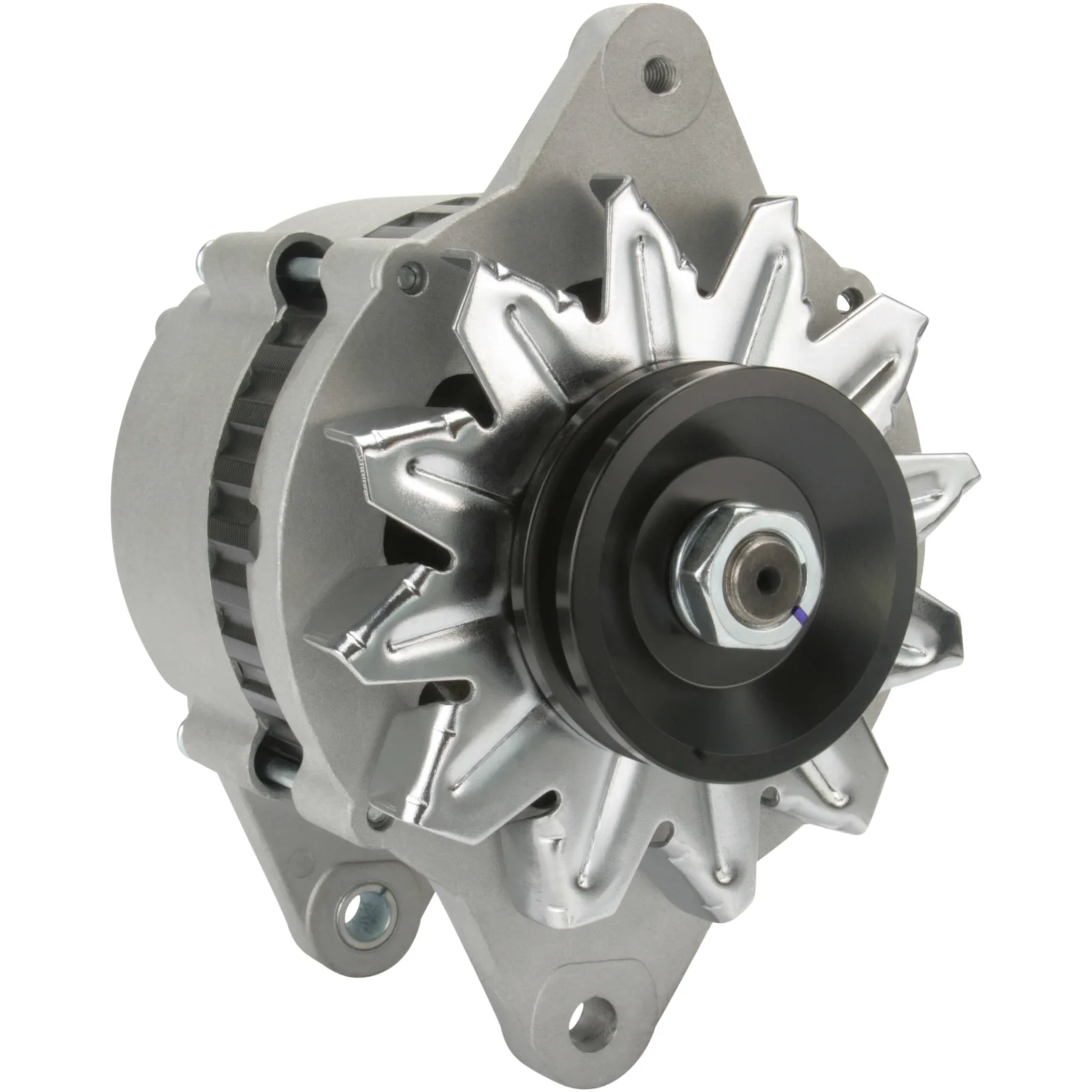

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113793

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 55, Rotation: Udløber med uret, Monteringsbeslag afstand: 80,00

Beskrivelse

Yanmar Marin Generator | Gen. 12V-55A | 12V - 55A, 1V, (R, L), isoleret Passing Yanmar Marin 4JMTE, 4JH2E Motorer Til Yourex produktordre 90-678-5520

Spenning: 14
Ampere: 55
Isoleret retur: Ja
Beskeder: 42.00
Bredde/holderarm: 13.00
Monteringsbeslag afstanden: 80.00
Beslags hul: 10.00
Remjust. beslag hul pos.: 60
Remjust. beslag hul 1: M8
Remskive dia.: 72.00
Riller/remskive: 1
Radius: 90.00
Radius 2: 85.00
B+: M5
Position/B+ i min.: 8
D+ Størrelse: Stikkontakt
Rotation: CW
Stik nr.: PL09
Total længde mm: 184.00
Remskive: P
Regulator type: IR
Produktinfo: BN
Service: Yanmar

Filer

Specifikation

B+ M5
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.00
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 72.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Yanmar
Grooves/pulley 1
Insulated return Yes
Voltage 14
Total length 184.00 mm
Width/holder arm 13.00
Amp 55

  • OEM
    F032113793, ja986ir, LR155-20, lr155-20, LR155-20B, lr155-20b, LR155-29, lr155-29, 129772-77200

  • Konkurrentreferens
    a-8864, A2126S, ahi0068, CAL20161, lra00348, LRA01248, va225, 8el737061-001, 28-0917, 28-1565, 90-25-1061, 90-25-1092, 135.017.055, 582.105.552, 985.003.055, 5476, 12107N, 12275N, 119756, 553903RI

  • Bilmärken
    Yanmar Marine

  • NormaliseratArtNr
    a2126s, a8864, ahi0068, cal20161, f032113793, ja986ir, lr15520, lr15520b, lr15529, lra00348, lra01248, va225, 8el737061001, 5476, 12107n, 12275n, 119756, 280917, 281565, 553903ri, 90251061, 90251092, 135017055, 582105552, 985003055, 12977277200

  • Passar modeller
    Yanmar Model: 2GM Model series: 2GM Approved: Yes
    Yanmar Model: 3GM Model series: 3GM Approved: Yes
    Yanmar Model: 4JH Model series: 4JH Approved: Yes
    Yanmar Model: 4LH Model series: 4LH Approved: Yes
    Yanmar Series: Marin Model: 4JH2-DTE / 4JH2-HTE
    Yanmar Series: Marin Model: 4JH2-E / 4JH2-TE
    Yanmar Series: Marin Model: 4JH2-UTE(B)
