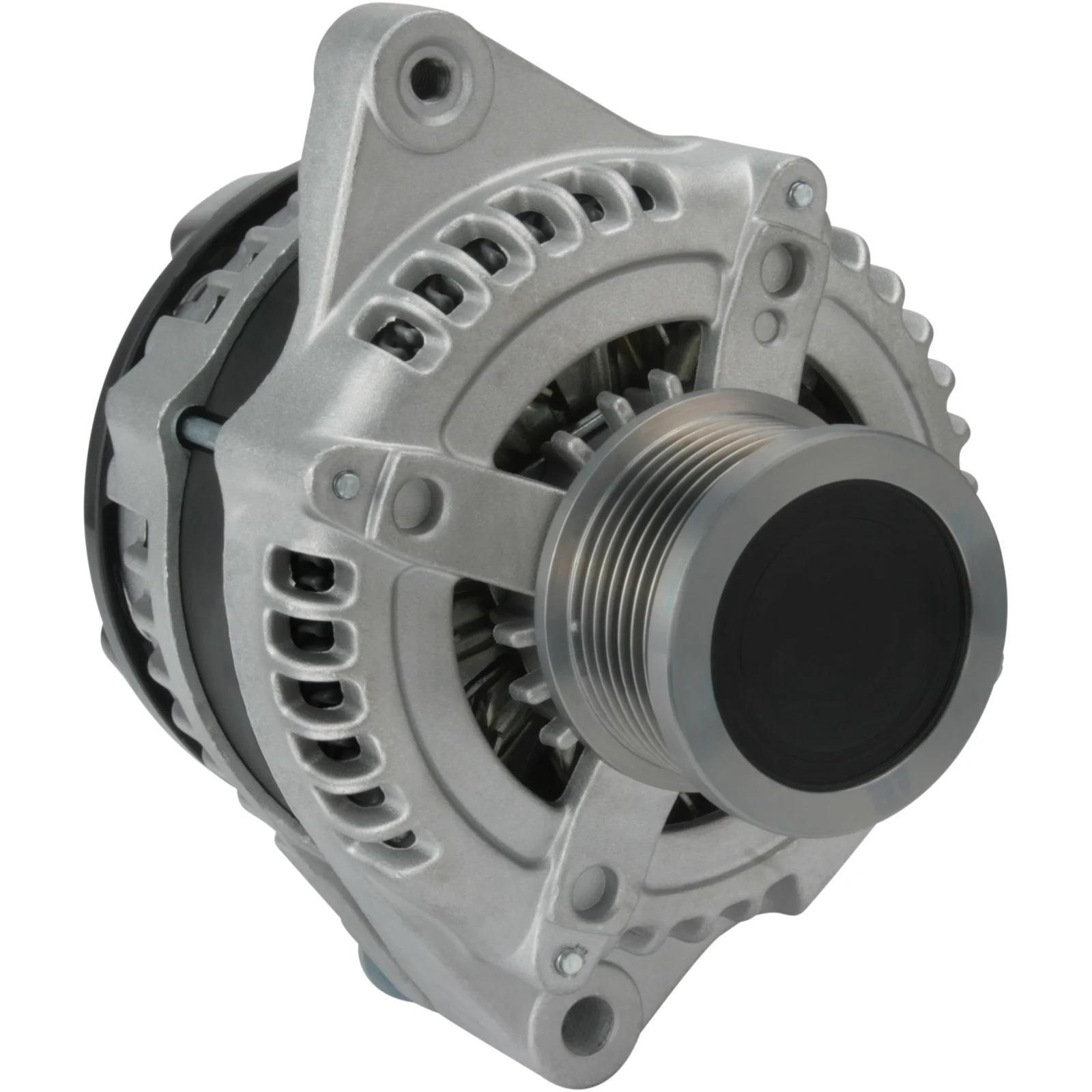

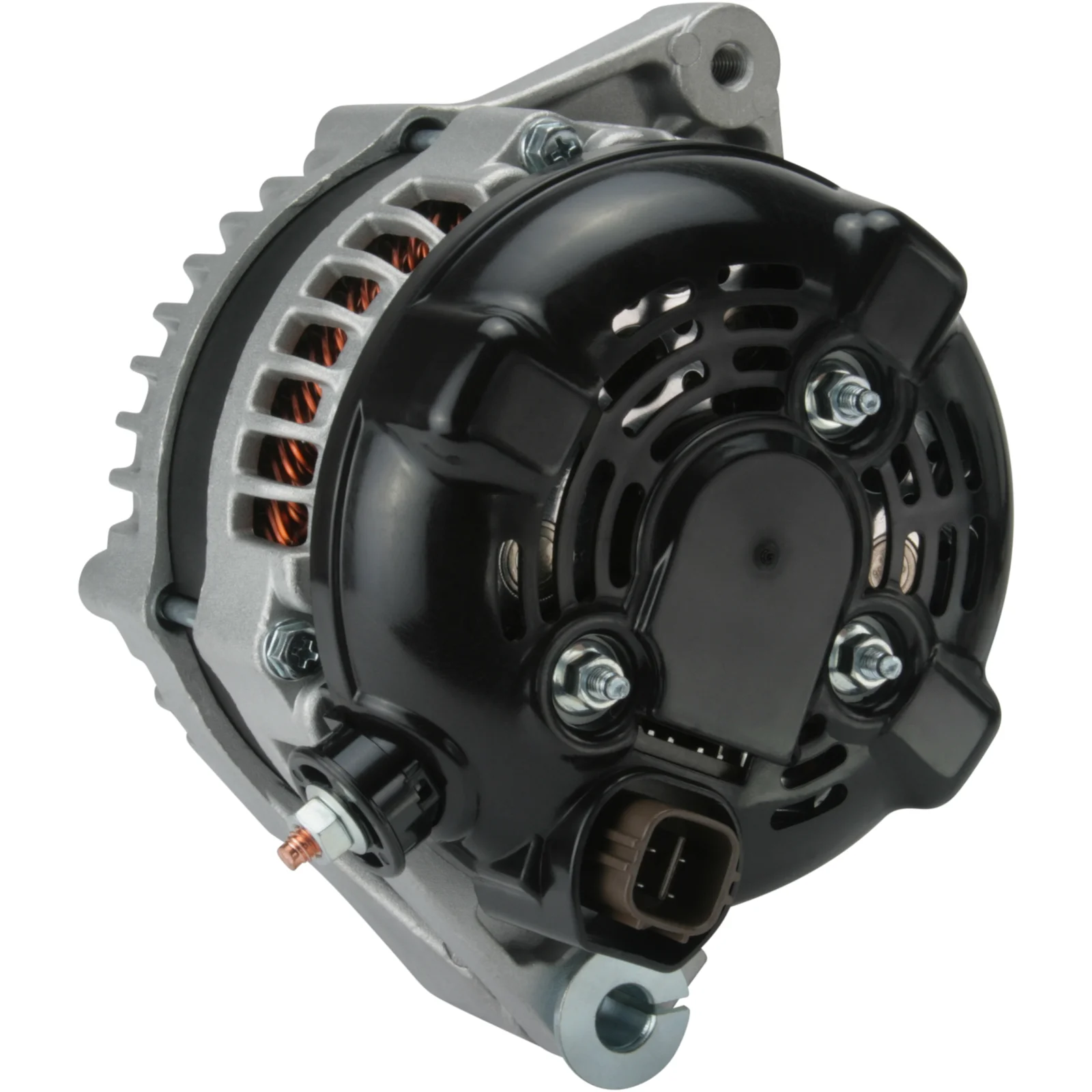

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113969

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Remskive dia.: 58.00

Beskrivelse

spænding: 14
Amp: 100
Remskive dist.: 95.00
Bredde/beslag arm: 58.00
Bøsning hul: 10.50
Bælte. juster. bøsning hul pos.: 56
Bælte. juster. bøsning hul 1: M8
Remskive dia.: 58.00
Riller/remskive: 7
Radius: 83.00
Radius 2: 86.00
B+: M6
Position/B+ i min.: 40
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL78
Terminaltype: S-IG-L-DF/DFM
Remskive: SP/FW
Blæser: IF
Regulator-type: IR

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 56
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 95.00
Radius 83.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type S-IG-L-DF/DFM
Voltage 14
Width/holder arm 58.00
Amp 100

  • OEM
    F032113969, 2069ir, 27060-30060, 27060-30130, 27060-30131, 27060-30210, 104210-3410, 104210-3411, 104210-5440, 104210-5441, 104210-5442

  • Konkurrentreferens
    A6041, A6527S, CAL40225, CAL40293, DAN1070, DRA0246, F042205238, LRA03067, 8EL011713-121, 28-5679, 235.187.1002, 24056R, 112673, 112787, 210775, 210775A, 440516, 553219RI, 9090514, 12060863, 0986082010

  • NormaliseratArtNr
    a6041, a6527s, cal40225, cal40293, dan1070, dra0246, f032113969, f042205238, lra03067, 8el011713121, 2069ir, 24056r, 112673, 112787, 210775, 210775a, 285679, 440516, 553219ri, 9090514, 12060863, 0986082010, 1042103410, 1042103411, 1042105440, 1042105441, 1042105442, 2351871002, 2706030060, 2706030130, 2706030131, 2706030210

  • Passar modeller
    Toyota Model: Hiace Model series: Hiace Bus Model type: D-4D (KDH200) Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus From date: 01-08-2001 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: wagon
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Van From date: 01-08-2001 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser 150 Type of engine: TDi Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: KDJ15_, GRJ15_ From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 150 Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J15 From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV From date: 01-09-2002 To date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-07-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-09-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    spænding: 14
    Amp: 100
    Remskive dist.: 95.00
    Bredde/beslag arm: 58.00
    Bøsning hul: 10.50
    Bælte. juster. bøsning hul pos.: 56
    Bælte. juster. bøsning hul 1: M8
    Remskive dia.: 58.00
    Riller/remskive: 7
    Radius: 83.00
    Radius 2: 86.00
    B+: M6
    Position/B+ i min.: 40
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL78
    Terminaltype: S-IG-L-DF/DFM
    Remskive: SP/FW
    Blæser: IF
    Regulator-type: IR

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 56
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 40
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 95.00
    Radius 83.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type S-IG-L-DF/DFM
    Voltage 14
    Width/holder arm 58.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032113969, 2069ir, 27060-30060, 27060-30130, 27060-30131, 27060-30210, 104210-3410, 104210-3411, 104210-5440, 104210-5441, 104210-5442

    • Konkurrentreferens
      A6041, A6527S, CAL40225, CAL40293, DAN1070, DRA0246, F042205238, LRA03067, 8EL011713-121, 28-5679, 235.187.1002, 24056R, 112673, 112787, 210775, 210775A, 440516, 553219RI, 9090514, 12060863, 0986082010

    • NormaliseratArtNr
      a6041, a6527s, cal40225, cal40293, dan1070, dra0246, f032113969, f042205238, lra03067, 8el011713121, 2069ir, 24056r, 112673, 112787, 210775, 210775a, 285679, 440516, 553219ri, 9090514, 12060863, 0986082010, 1042103410, 1042103411, 1042105440, 1042105441, 1042105442, 2351871002, 2706030060, 2706030130, 2706030131, 2706030210

    • Passar modeller
      Toyota Model: Hiace Model series: Hiace Bus Model type: D-4D (KDH200) Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus From date: 01-08-2001 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: wagon
      Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Van From date: 01-08-2001 To date: 01-08-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser 150 Type of engine: TDi Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: KDJ15_, GRJ15_ From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 150 Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J15 From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV From date: 01-09-2002 To date: 01-08-2009 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-07-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-09-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
