Vare nr.: F032113970

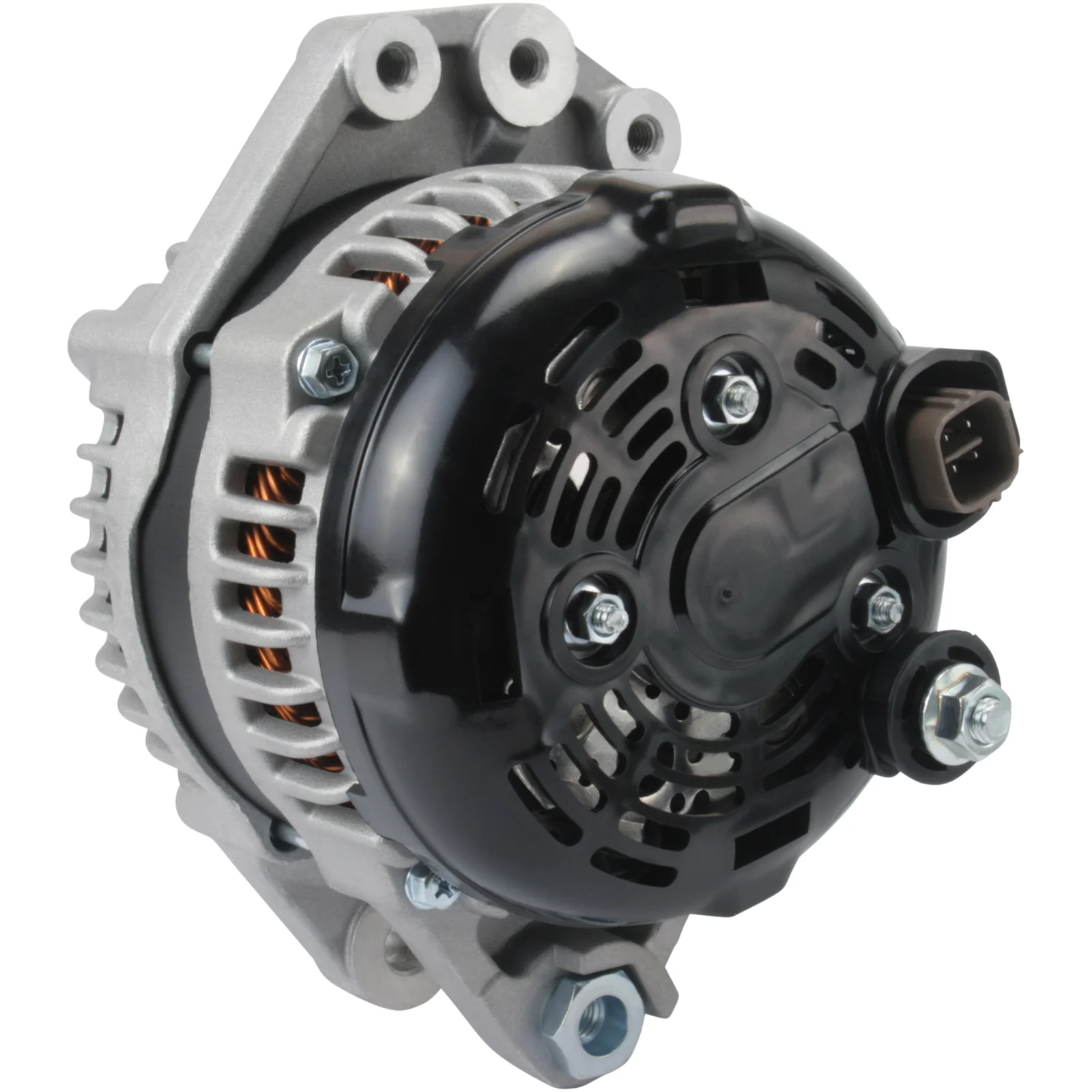

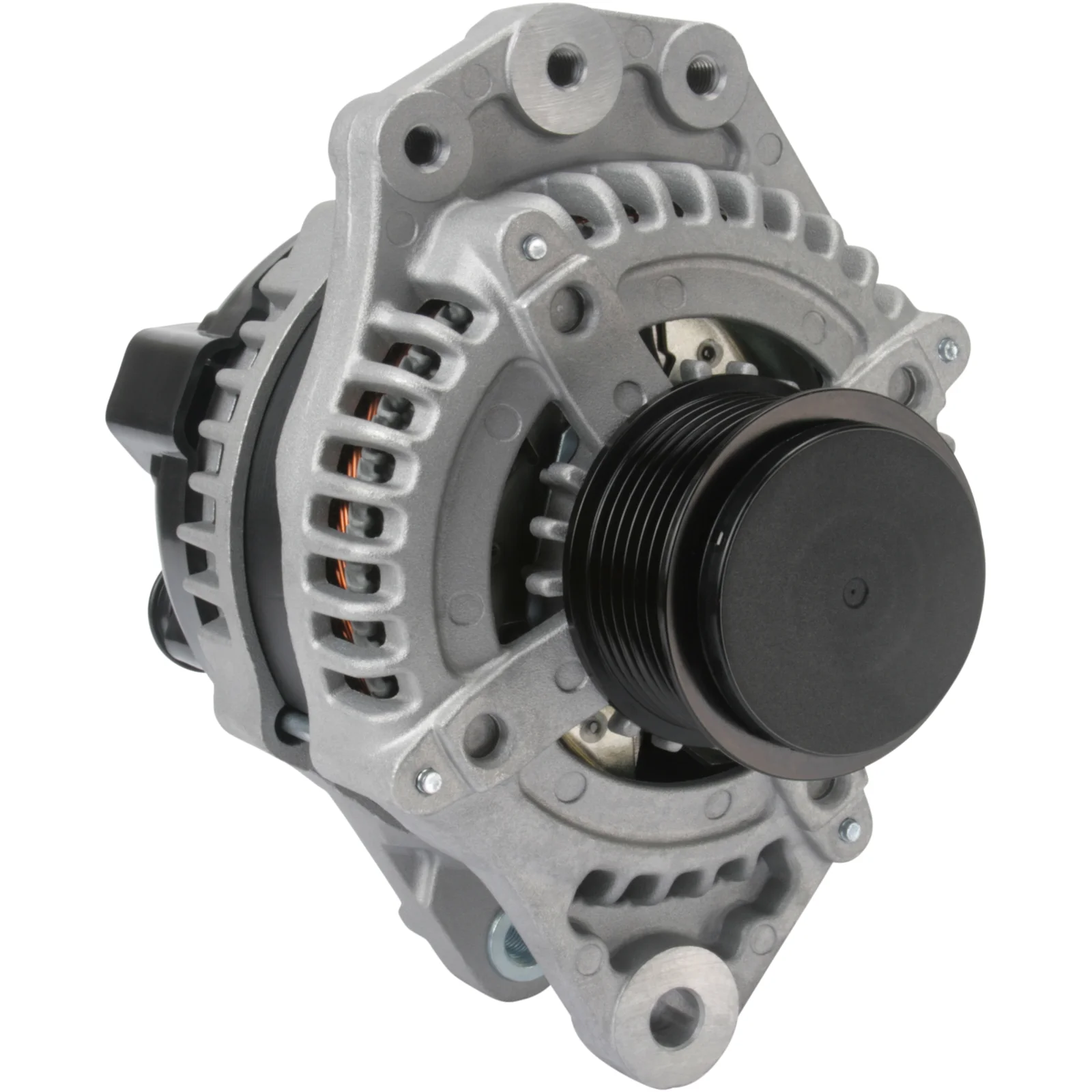

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: Udløb, Mount. bøsning dist.: 41,70

Beskrivelse

Spænding: 14
Amp: 100
Remskive dist.: 31,40
Bredde/holder arm: 16,30
Monteringsbeslag dist.: 41,70
Beslaghul: 11,00
Bæltejusteringsbeslag hul position.: 60
Bæltejusteringsbeslag hul 1: M8
Remskive dia.: 60,00
Vulst/Remskive: 7
Radius: 83,00
Radius 2: 86,00
Radius 3: 85,00
Radius 4: 85,00
B+: M8
Position/B+ i min.: 20
Rotation: CW
Stik nr.: PL60
Total længde mm: 181,00
Remskive: SP/FW
Regulator type: IR
Producentinfo: BN

Specifikation

B+ M8
Mount. bracket dist. 41.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL60
Bracket hole 11.00
Position/B+ in min. 20
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 31.40
Radius 83.00
Radius 2 86.00
Radius 3 85.00
Radius 4 85.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 181.00 mm
Width/holder arm 16.30
Amp 100
  • OEM

    F032113970, 1986A01313, 27060-33050, 27060-33051, 104210-3730, 104210-3731, 104210-3732, 7790879, 12317790879
  • Konkurrentreferens

    A6023, A6023(P), A6484(DENSO), CAL40154, DAN981, DENDAN981, DRA0234, DRA0234N, F042A02181, 28-5555, 4851, 23941N, 23941R, 210675, 210675A, 440959, 553154RI, 12090260, 32118851
  • NormaliseratArtNr

    a6023, a6023p, a6484denso, cal40154, dan981, dendan981, dra0234, dra0234n, f032113970, f042a02181, 1986a01313, 4851, 23941n, 23941r, 210675, 210675a, 285555, 440959, 553154ri, 7790879, 12090260, 32118851, 1042103730, 1042103731, 1042103732, 2706033050, 2706033051, 12317790879
  • Passar modeller

    Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 100
    Remskive dist.: 31,40
    Bredde/holder arm: 16,30
    Monteringsbeslag dist.: 41,70
    Beslaghul: 11,00
    Bæltejusteringsbeslag hul position.: 60
    Bæltejusteringsbeslag hul 1: M8
    Remskive dia.: 60,00
    Vulst/Remskive: 7
    Radius: 83,00
    Radius 2: 86,00
    Radius 3: 85,00
    Radius 4: 85,00
    B+: M8
    Position/B+ i min.: 20
    Rotation: CW
    Stik nr.: PL60
    Total længde mm: 181,00
    Remskive: SP/FW
    Regulator type: IR
    Producentinfo: BN
  • Specifikation
    B+ M8
    Mount. bracket dist. 41.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL60
    Bracket hole 11.00
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 31.40
    Radius 83.00
    Radius 2 86.00
    Radius 3 85.00
    Radius 4 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 181.00 mm
    Width/holder arm 16.30
    Amp 100
  • Køretøjsmatchning
    • OEM

      F032113970, 1986A01313, 27060-33050, 27060-33051, 104210-3730, 104210-3731, 104210-3732, 7790879, 12317790879
    • Konkurrentreferens

      A6023, A6023(P), A6484(DENSO), CAL40154, DAN981, DENDAN981, DRA0234, DRA0234N, F042A02181, 28-5555, 4851, 23941N, 23941R, 210675, 210675A, 440959, 553154RI, 12090260, 32118851
    • NormaliseratArtNr

      a6023, a6023p, a6484denso, cal40154, dan981, dendan981, dra0234, dra0234n, f032113970, f042a02181, 1986a01313, 4851, 23941n, 23941r, 210675, 210675a, 285555, 440959, 553154ri, 7790879, 12090260, 32118851, 1042103730, 1042103731, 1042103732, 2706033050, 2706033051, 12317790879
    • Passar modeller

      Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
