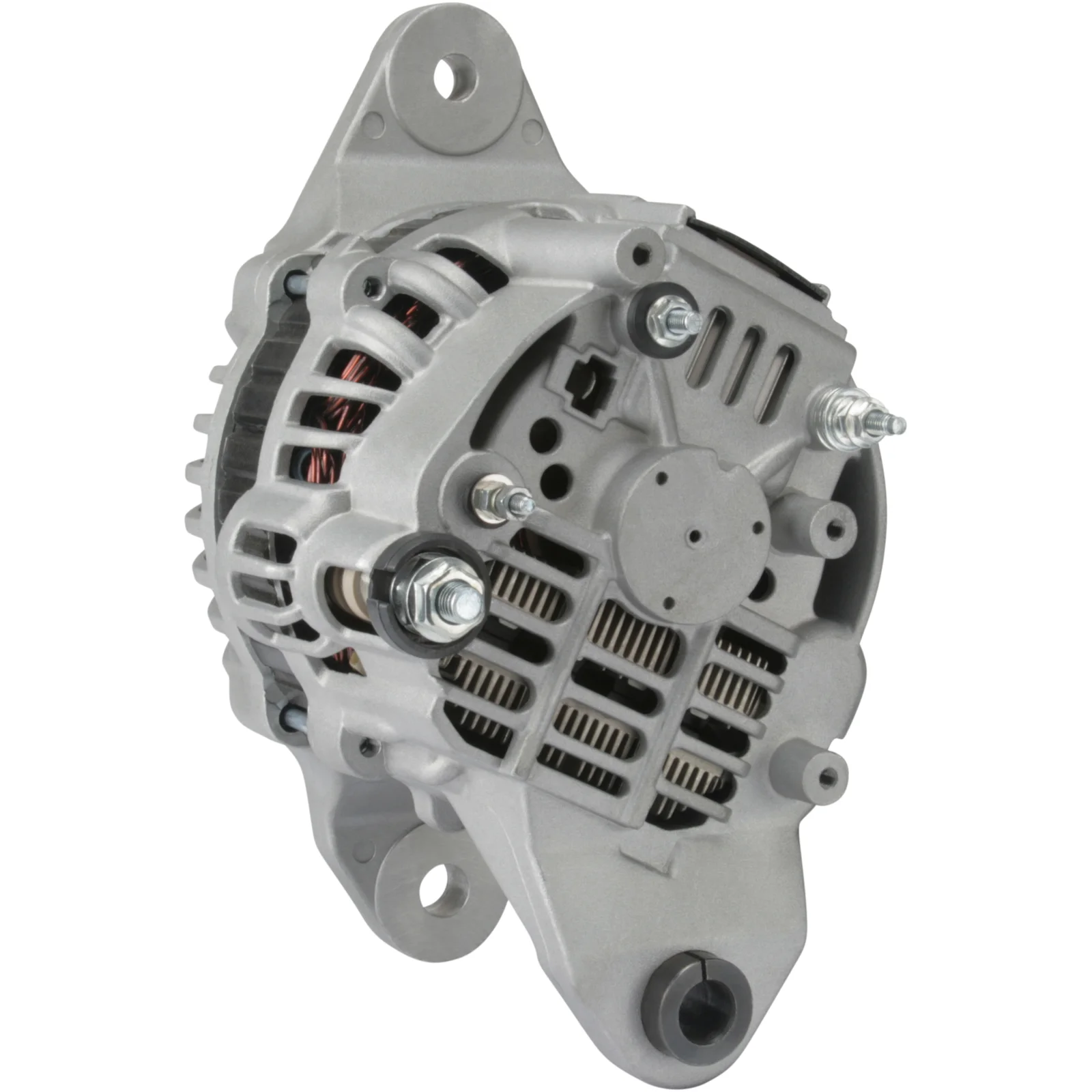

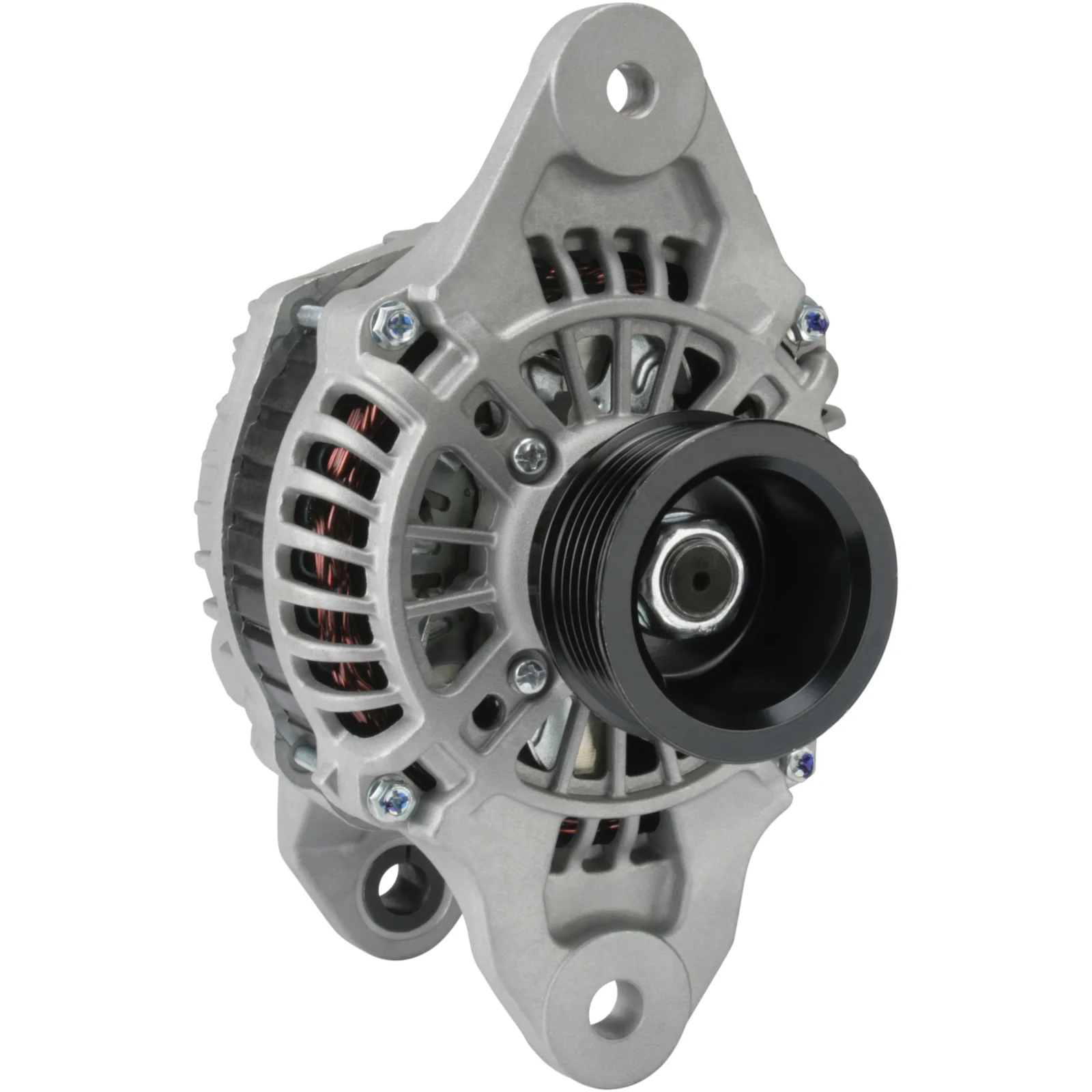

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113971

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 115, Rotation: CW, Monteringsbeslag for fordelerdæksel: 104,00

Beskrivelse

Generator 12V-115A passer til Penta 12V - 115A til Yourex produkt bestilling 90-605-3009

Spænding: 14
Amp: 115
Terminal: W
Skive diameter: 44,50
Bredde/holderarm: 14,00
Monteringsbeslag afstand: 104,00
Beslagshul: 14,00
Bæltejusteringsbeslag hulpos.: 60
Bæltejusteringsbeslag hul 1: 11,00
Skive diameter: 62,00
Riller/skive: 6
Radius: 99,00
Radius 2: 99,00
B+: M8
Position/B+ i min.: 43
D+ Størrelse: M4
Rotation: med uret
W stiktype: M5
Samlet længde mm: 204,00
Skive: SP

Filer

Specifikation

B+ M8
Mount. bracket dist. 104.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 60
Bracket hole 14.00
Position/B+ in min. 43
Pulley SP
Pulley dia. 62.00
Pulley dist. 44.50
Radius 99.00
D+ Size M4
Radius 2 99.00
Rotation CW
Grooves/pulley 6
Terminal W
Voltage 14
W plug type M5
Total length 204.00 mm
Width/holder arm 14.00
Amp 115

  • OEM
    A003TR0091, A003TR0091ZT, A003TR0093, A003TR0093ZT, A003TR0094, A003TR0094ZT, A3T-R0091ZT, A3T-R0093ZT, A3T-R0094ZT, a3tr0091, A3TR0091ZT, A3TR0093, A3TR0093AM, A3TR0093ZT, A3TR0094, A3TR0094ZT, F032113971, 384018, 874502, 3587216, 3603650, 3803650, 3803846, 3803903, 3803911, 3817662, 3819662, 3840181

  • Konkurrentreferens
    A5348, A5348(MITSUBISHI), CAL35194, CAL35256, CAL35288, DRA0684, LRA02921, MITA3TR0091, MITA3TR0092, MITA3TR0093, MITA3TR0094, 8EL015643-401, 28-5535, 500.135.1152, 815.524.115, 815.549.115, 815.552.115, 12745, 12745N, 113031, 553351RI, 12061001

  • Bilmärken
    Volvo Penta

  • NormaliseratArtNr
    a003tr0091, a003tr0091zt, a003tr0093, a003tr0093zt, a003tr0094, a003tr0094zt, a3tr0091, a3tr0091zt, a3tr0093, a3tr0093am, a3tr0093zt, a3tr0094, a3tr0094zt, a5348, a5348mitsubishi, cal35194, cal35256, cal35288, dra0684, f032113971, lra02921, mita3tr0091, mita3tr0092, mita3tr0093, mita3tr0094, 8el015643401, 12745, 12745n, 113031, 285535, 384018, 553351ri, 874502, 3587216, 3603650, 3803650, 3803846, 3803903, 3803911, 3817662, 3819662, 3840181, 12061001, 815524115, 815549115, 815552115, 5001351152

  • Passar modeller
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D1-13 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D1-20 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D1-30 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D2-40 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D2-55 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D4-250 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D6-310 From date: 01-01-2005 Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D6-435 From date: 01-01-2005 Approved: Yes
    Volvo Penta Series: Industri Model: TAD 1030 GE Engine type: Extra generator 12V
    Volvo Penta Series: Industri Model: TAD 1032 GE Engine type: Extra generator 12V
    Volvo Penta Series: Marin Model: D 1-... Year: 01.04-
    Volvo Penta Series: Marin Model: D 1-13 A, B, F
    Volvo Penta Series: Marin Model: D 1-20 A, B, F
    Volvo Penta Series: Marin Model: D 2-55... Engine type: 12V - 115A
    Volvo Penta Series: Marin Model: D 2-75 A, B, C, F
    Volvo Penta Series: Marin Model: D 6-... Engine type: 12V - 115A
    1 / 4
  • Beskrivelse
    Generator 12V-115A passer til Penta 12V - 115A til Yourex produkt bestilling 90-605-3009

    Spænding: 14
    Amp: 115
    Terminal: W
    Skive diameter: 44,50
    Bredde/holderarm: 14,00
    Monteringsbeslag afstand: 104,00
    Beslagshul: 14,00
    Bæltejusteringsbeslag hulpos.: 60
    Bæltejusteringsbeslag hul 1: 11,00
    Skive diameter: 62,00
    Riller/skive: 6
    Radius: 99,00
    Radius 2: 99,00
    B+: M8
    Position/B+ i min.: 43
    D+ Størrelse: M4
    Rotation: med uret
    W stiktype: M5
    Samlet længde mm: 204,00
    Skive: SP

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 104.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 60
    Bracket hole 14.00
    Position/B+ in min. 43
    Pulley SP
    Pulley dia. 62.00
    Pulley dist. 44.50
    Radius 99.00
    D+ Size M4
    Radius 2 99.00
    Rotation CW
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type M5
    Total length 204.00 mm
    Width/holder arm 14.00
    Amp 115
  • Køretøjsmatchning

    • OEM
      A003TR0091, A003TR0091ZT, A003TR0093, A003TR0093ZT, A003TR0094, A003TR0094ZT, A3T-R0091ZT, A3T-R0093ZT, A3T-R0094ZT, a3tr0091, A3TR0091ZT, A3TR0093, A3TR0093AM, A3TR0093ZT, A3TR0094, A3TR0094ZT, F032113971, 384018, 874502, 3587216, 3603650, 3803650, 3803846, 3803903, 3803911, 3817662, 3819662, 3840181

    • Konkurrentreferens
      A5348, A5348(MITSUBISHI), CAL35194, CAL35256, CAL35288, DRA0684, LRA02921, MITA3TR0091, MITA3TR0092, MITA3TR0093, MITA3TR0094, 8EL015643-401, 28-5535, 500.135.1152, 815.524.115, 815.549.115, 815.552.115, 12745, 12745N, 113031, 553351RI, 12061001

    • Bilmärken
      Volvo Penta

    • NormaliseratArtNr
      a003tr0091, a003tr0091zt, a003tr0093, a003tr0093zt, a003tr0094, a003tr0094zt, a3tr0091, a3tr0091zt, a3tr0093, a3tr0093am, a3tr0093zt, a3tr0094, a3tr0094zt, a5348, a5348mitsubishi, cal35194, cal35256, cal35288, dra0684, f032113971, lra02921, mita3tr0091, mita3tr0092, mita3tr0093, mita3tr0094, 8el015643401, 12745, 12745n, 113031, 285535, 384018, 553351ri, 874502, 3587216, 3603650, 3803650, 3803846, 3803903, 3803911, 3817662, 3819662, 3840181, 12061001, 815524115, 815549115, 815552115, 5001351152

    • Passar modeller
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D1-13 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D1-20 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D1-30 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D2-40 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D2-55 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D4-250 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D6-310 From date: 01-01-2005 Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D6-435 From date: 01-01-2005 Approved: Yes
      Volvo Penta Series: Industri Model: TAD 1030 GE Engine type: Extra generator 12V
      Volvo Penta Series: Industri Model: TAD 1032 GE Engine type: Extra generator 12V
      Volvo Penta Series: Marin Model: D 1-... Year: 01.04-
      Volvo Penta Series: Marin Model: D 1-13 A, B, F
      Volvo Penta Series: Marin Model: D 1-20 A, B, F
      Volvo Penta Series: Marin Model: D 2-55... Engine type: 12V - 115A
      Volvo Penta Series: Marin Model: D 2-75 A, B, C, F
      Volvo Penta Series: Marin Model: D 6-... Engine type: 12V - 115A
