Vare nr.: F032114191

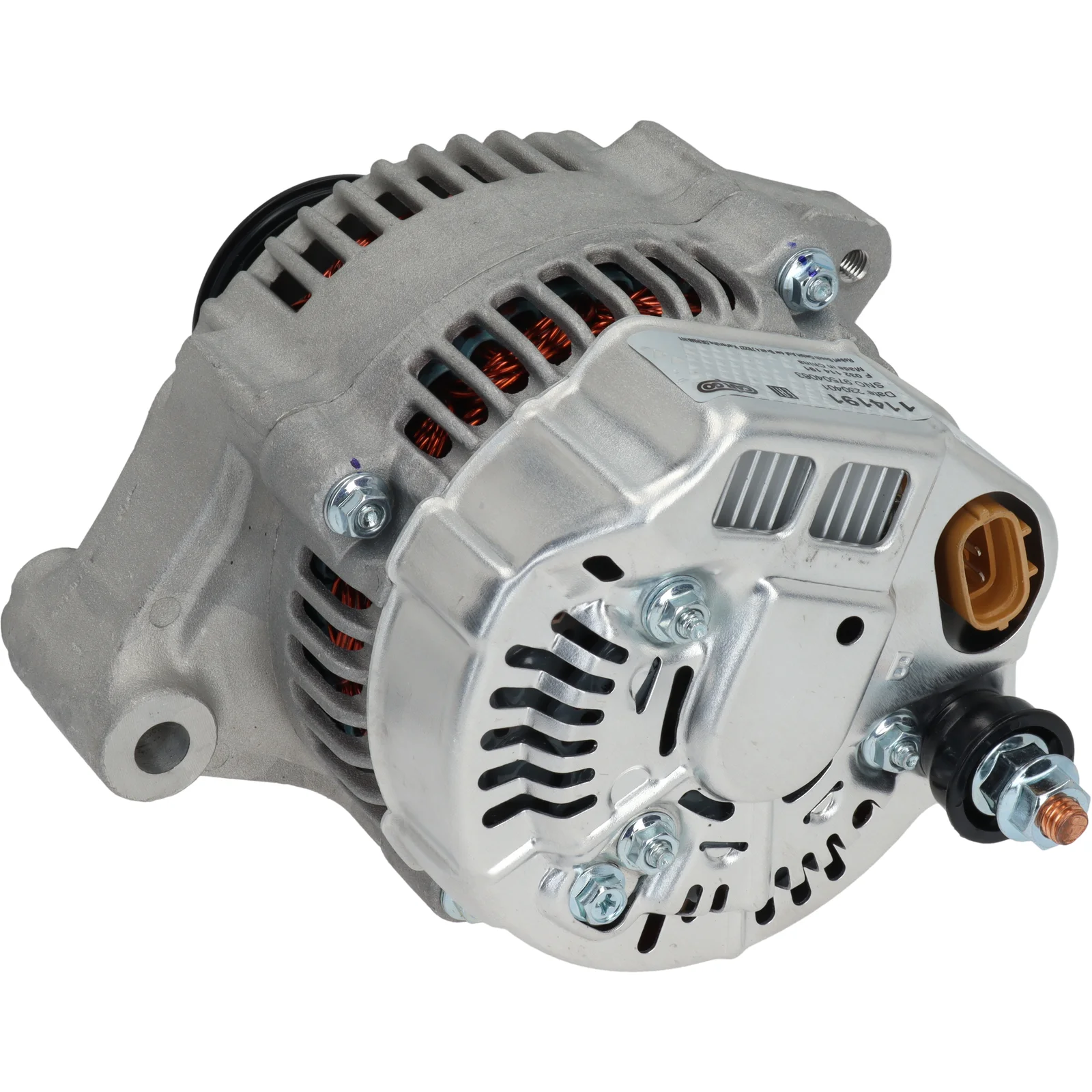

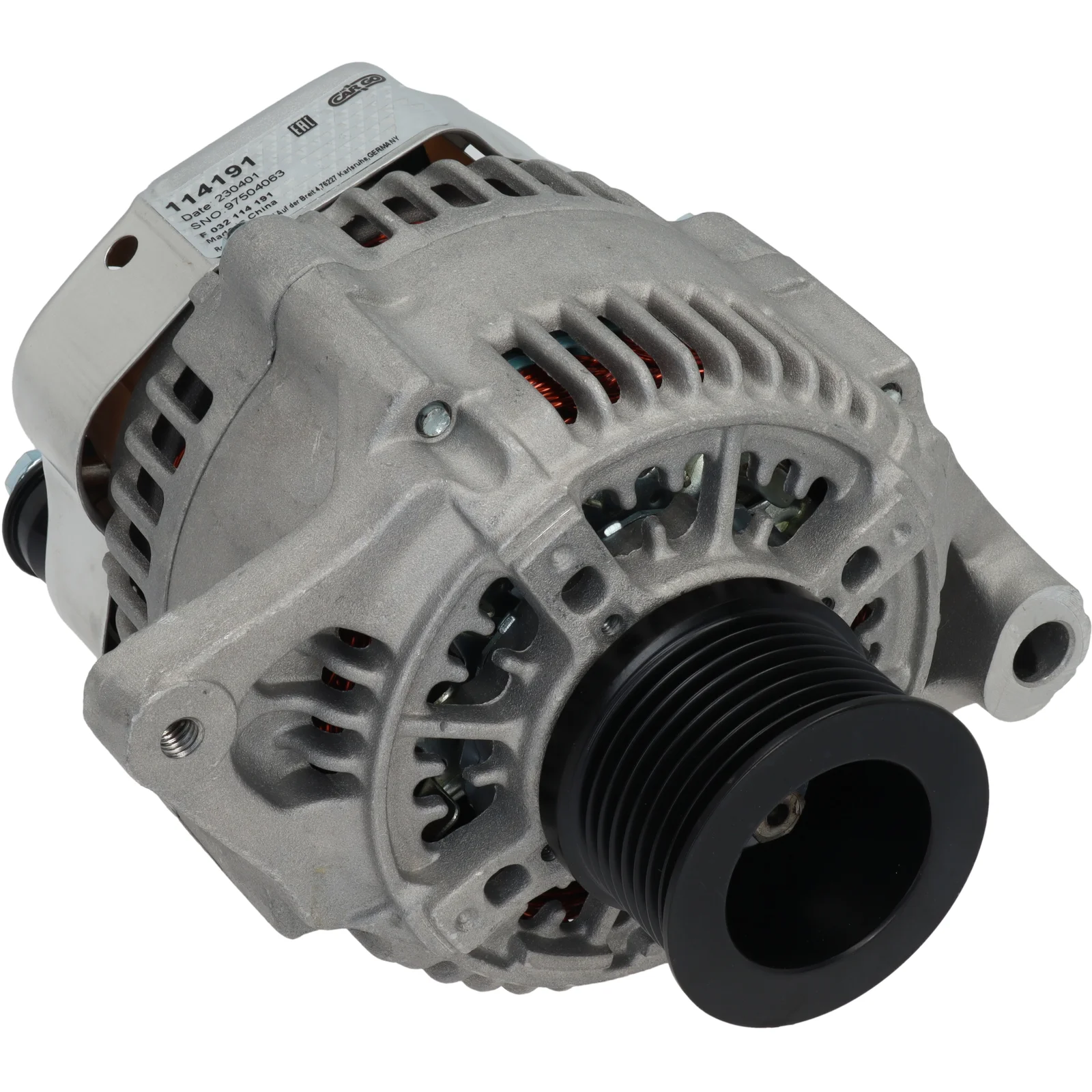

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Remskive diameter: 55,00

Beskrivelse

Spænding: 14
Amp: 90
Remskive ?? distrik.: 74,80
Bredde/fæstearm: 51,00
Holderøje: 10,20
Remspændindstilling. holderøje position.: 60
Remspændindstilling. holderøje hul 1: M8
Remskive dia.: 55,00
Riller/remskive: 8
Radie: 86,00
Radie 2: 87,00
B+: M8
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: CW
Stik no.: PL128
W stiktype: Stik
Total længde mm: 178,00
Remskive: SP
Regulator type: IR

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.20
Position/B+ in min. 20
Pulley SP
Pulley dia. 55.00
Pulley dist. 74.80
Radius 86.00
D+ Size Plug
Radius 2 87.00
Regulator type IR
Rotation CW
Grooves/pulley 8
Voltage 14
W plug type Plug
Total length 178.00 mm
Width/holder arm 51.00
Amp 90
  • OEM

    F032114191, 021080-1600, 102211-9090, 84254289, 84254290, 84416587, 84416590, 87422777, 162000090143
  • Konkurrentreferens

    A6356, A9245(LETRIKA), A9245S, CAL21136, CAL40A10, DAN2013, LRA03698, MG137, MG274, 28-6759, 519.139.902, 635.509.090, 12776, 12776N
  • NormaliseratArtNr

    a6356, a9245letrika, a9245s, cal21136, cal40a10, dan2013, f032114191, lra03698, mg137, mg274, 12776, 12776n, 286759, 84254289, 84254290, 84416587, 84416590, 87422777, 0210801600, 519139902, 635509090, 1022119090, 162000090143
  • Passar modeller

    Case Model: Loaders Model series: Various Models Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
    Deutz-Fahr Model: D Series Model series: D 3607 Size of motor: 1.9 Brand of engine: F2L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Volvo Model: FM Series Model series: FM 340 Size of motor: 9.4 Brand of engine: D9B340 Body: Platform / Chassis From date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Remskive ?? distrik.: 74,80
    Bredde/fæstearm: 51,00
    Holderøje: 10,20
    Remspændindstilling. holderøje position.: 60
    Remspændindstilling. holderøje hul 1: M8
    Remskive dia.: 55,00
    Riller/remskive: 8
    Radie: 86,00
    Radie 2: 87,00
    B+: M8
    Position/B+ i min.: 20
    D+ Størrelse: Stik
    Rotation: CW
    Stik no.: PL128
    W stiktype: Stik
    Total længde mm: 178,00
    Remskive: SP
    Regulator type: IR
  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.20
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 74.80
    Radius 86.00
    D+ Size Plug
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 8
    Voltage 14
    W plug type Plug
    Total length 178.00 mm
    Width/holder arm 51.00
    Amp 90
  • Køretøjsmatchning
    • OEM

      F032114191, 021080-1600, 102211-9090, 84254289, 84254290, 84416587, 84416590, 87422777, 162000090143
    • Konkurrentreferens

      A6356, A9245(LETRIKA), A9245S, CAL21136, CAL40A10, DAN2013, LRA03698, MG137, MG274, 28-6759, 519.139.902, 635.509.090, 12776, 12776N
    • NormaliseratArtNr

      a6356, a9245letrika, a9245s, cal21136, cal40a10, dan2013, f032114191, lra03698, mg137, mg274, 12776, 12776n, 286759, 84254289, 84254290, 84416587, 84416590, 87422777, 0210801600, 519139902, 635509090, 1022119090, 162000090143
    • Passar modeller

      Case Model: Loaders Model series: Various Models Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
      Deutz-Fahr Model: D Series Model series: D 3607 Size of motor: 1.9 Brand of engine: F2L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
      Volvo Model: FM Series Model series: FM 340 Size of motor: 9.4 Brand of engine: D9B340 Body: Platform / Chassis From date: 01-09-2005 Fuel: Diesel Approved: Yes
