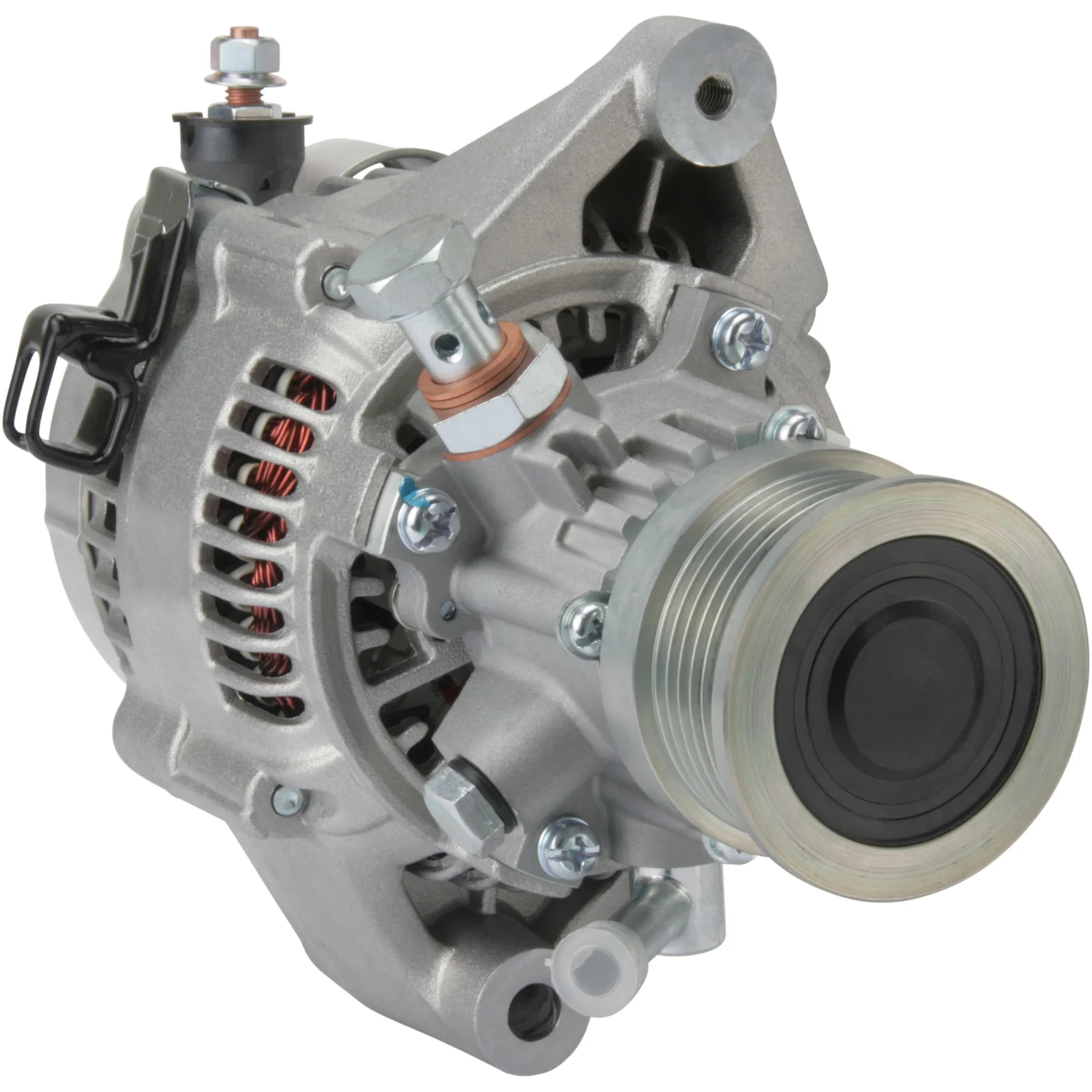

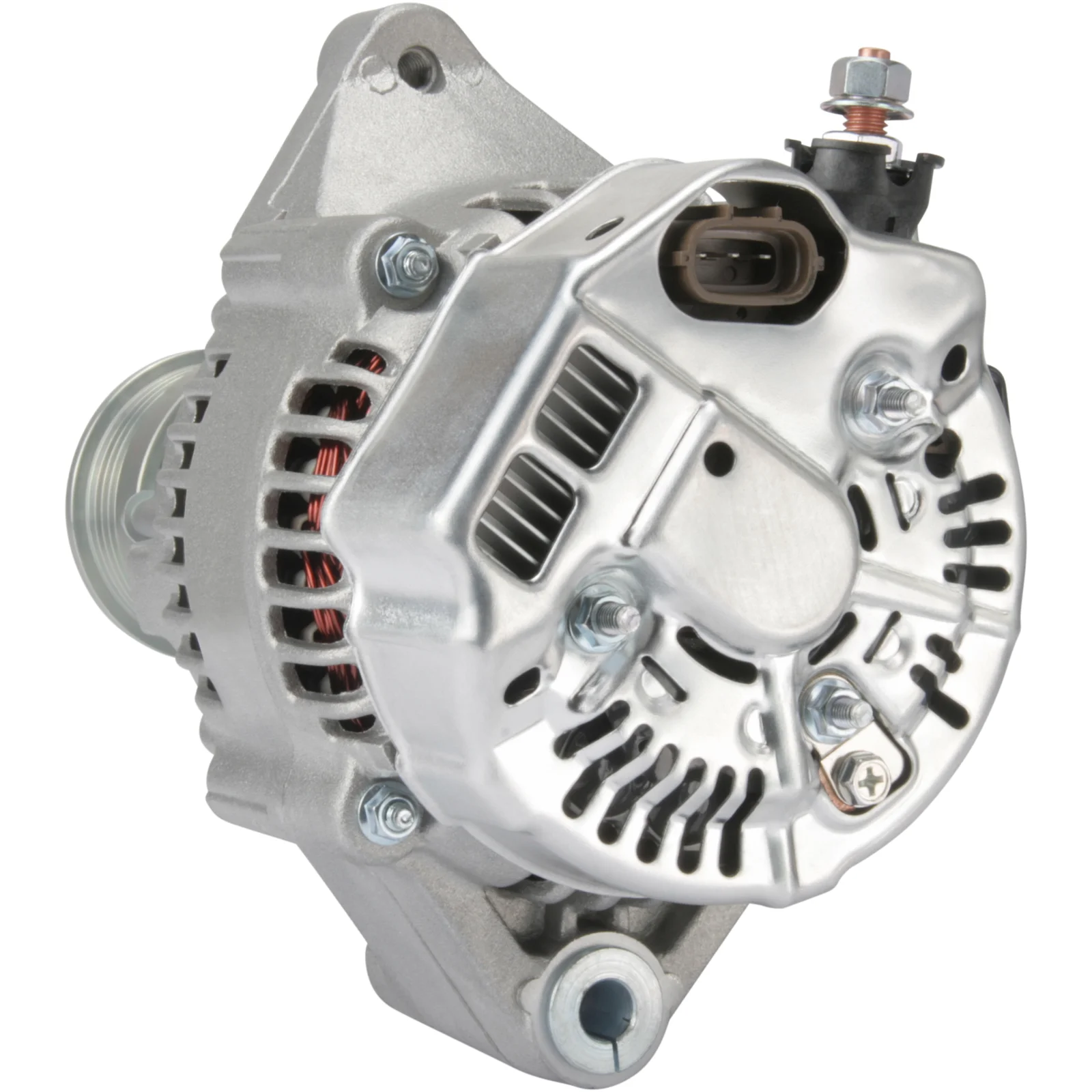

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114201

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Remskives diameter: 59,50

Beskrivelse

Spænding: 14
Amp: 100
Remskive dist.: 150.50
Bredde/fæstearm: 72.00
Klampehul: 10.50
Bæltejustering bøsningens position: 1
Bæltejustering bøsning 1: M8
Remskive dia.: 59.50
Riller/remskive: 6
Radie: 80.00
Radie 2: 84.00
B+: M8
D+ Størrelse: Stik
Rotation: med uret
Stik no.: PL58
Terminaltype: IG-L
Remskive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 1
Plug no. PL58
Bracket hole 10.50
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 150.50
Radius 80.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type IG-L
Voltage 14
Width/holder arm 72.00
Amp 100

  • OEM
    F032114201, ja1808ir, 37300-27502, 37300-27503, 37300-27504, 37300-27600, 37300-27601, 37300-27602, 100213-2940, 100213-2950, 100213-2980, 100213-2982, 100213-2990, 100213-2991, 100213-2992, 100213-2993, 102213-2993

  • Konkurrentreferens
    A6210, A6366, CAL40201, DRA0117, DRA1275, LRA03715, 8EL011712-311, 28-4745, 28-6826, 226.312.1002, 23265N, 23265R, 112467, 209373, 209373A, 401808RI, 12060844, 0986084400

  • NormaliseratArtNr
    a6210, a6366, cal40201, dra0117, dra1275, f032114201, ja1808ir, lra03715, 8el011712311, 23265n, 23265r, 112467, 209373, 209373a, 284745, 286826, 401808ri, 12060844, 0986084400, 1002132940, 1002132950, 1002132980, 1002132982, 1002132990, 1002132991, 1002132992, 1002132993, 1022132993, 2263121002, 3730027502, 3730027503, 3730027504, 3730027600, 3730027601, 3730027602

  • Passar modeller
    Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC Body: Hatchback From date: 01-04-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC From date: 01-01-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-07-2004 To date: 01-08-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-08-2005 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: Getz Model series: Getz Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: TB Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Hyundai Model: Matrix Model series: Matrix Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: FC Body: Estate From date: 01-10-2001 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 100
    Remskive dist.: 150.50
    Bredde/fæstearm: 72.00
    Klampehul: 10.50
    Bæltejustering bøsningens position: 1
    Bæltejustering bøsning 1: M8
    Remskive dia.: 59.50
    Riller/remskive: 6
    Radie: 80.00
    Radie 2: 84.00
    B+: M8
    D+ Størrelse: Stik
    Rotation: med uret
    Stik no.: PL58
    Terminaltype: IG-L
    Remskive: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 1
    Plug no. PL58
    Bracket hole 10.50
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 150.50
    Radius 80.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type IG-L
    Voltage 14
    Width/holder arm 72.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032114201, ja1808ir, 37300-27502, 37300-27503, 37300-27504, 37300-27600, 37300-27601, 37300-27602, 100213-2940, 100213-2950, 100213-2980, 100213-2982, 100213-2990, 100213-2991, 100213-2992, 100213-2993, 102213-2993

    • Konkurrentreferens
      A6210, A6366, CAL40201, DRA0117, DRA1275, LRA03715, 8EL011712-311, 28-4745, 28-6826, 226.312.1002, 23265N, 23265R, 112467, 209373, 209373A, 401808RI, 12060844, 0986084400

    • NormaliseratArtNr
      a6210, a6366, cal40201, dra0117, dra1275, f032114201, ja1808ir, lra03715, 8el011712311, 23265n, 23265r, 112467, 209373, 209373a, 284745, 286826, 401808ri, 12060844, 0986084400, 1002132940, 1002132950, 1002132980, 1002132982, 1002132990, 1002132991, 1002132992, 1002132993, 1022132993, 2263121002, 3730027502, 3730027503, 3730027504, 3730027600, 3730027601, 3730027602

    • Passar modeller
      Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC Body: Hatchback From date: 01-04-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Accent Model series: Accent Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: LC From date: 01-01-2002 To date: 01-11-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-07-2004 To date: 01-08-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Getz Model series: Getz Model type: GLS Type of engine: CRDi Size of motor: 1.5 Brand of engine: D4FA Type description: TB Body: Hatchback From date: 01-08-2005 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: Getz Model series: Getz Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: TB Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Hyundai Model: Matrix Model series: Matrix Type of engine: CRDi Size of motor: 1.5 Brand of engine: D3-EA Type description: FC Body: Estate From date: 01-10-2001 To date: 01-08-2010 Fuel: Diesel Approved: Yes
