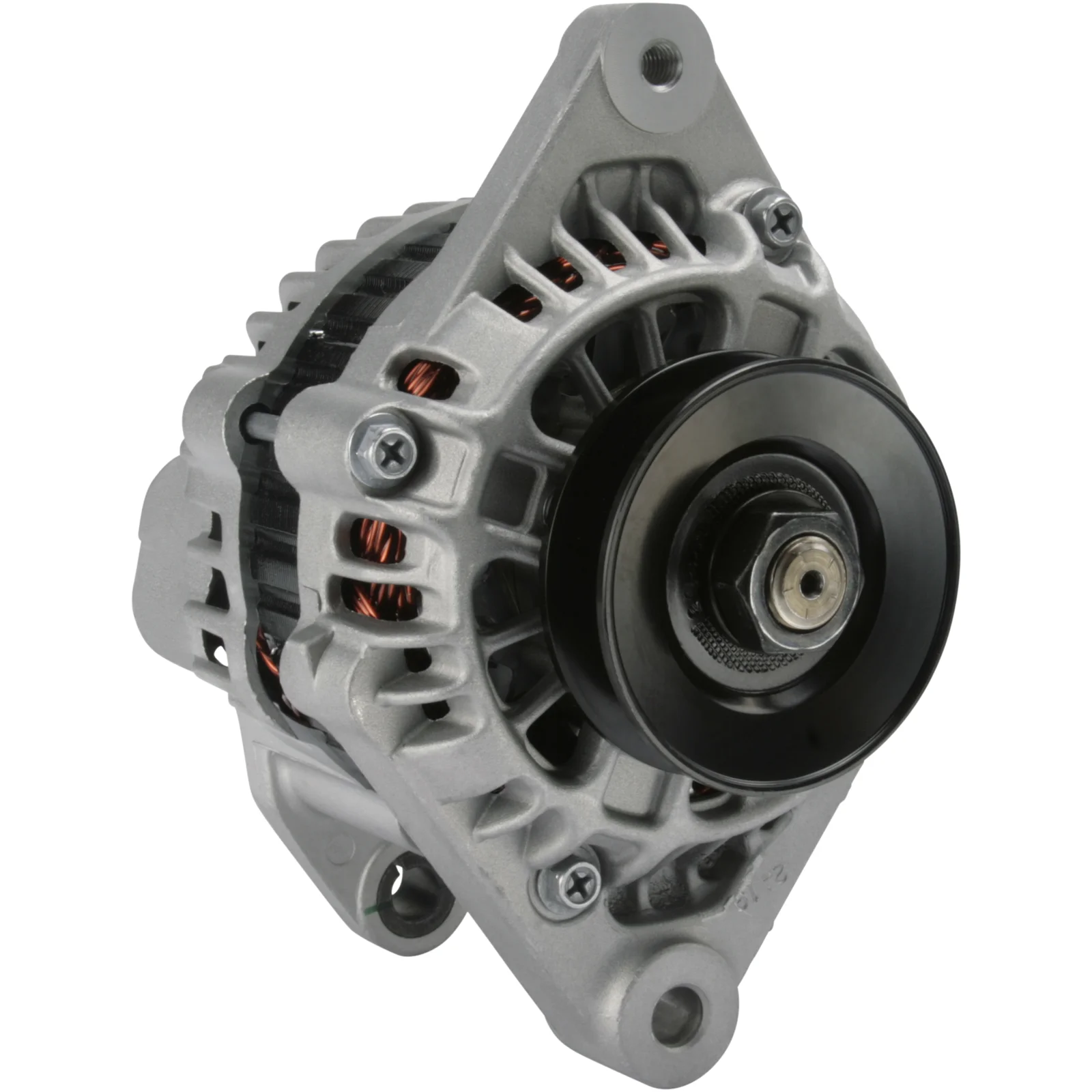

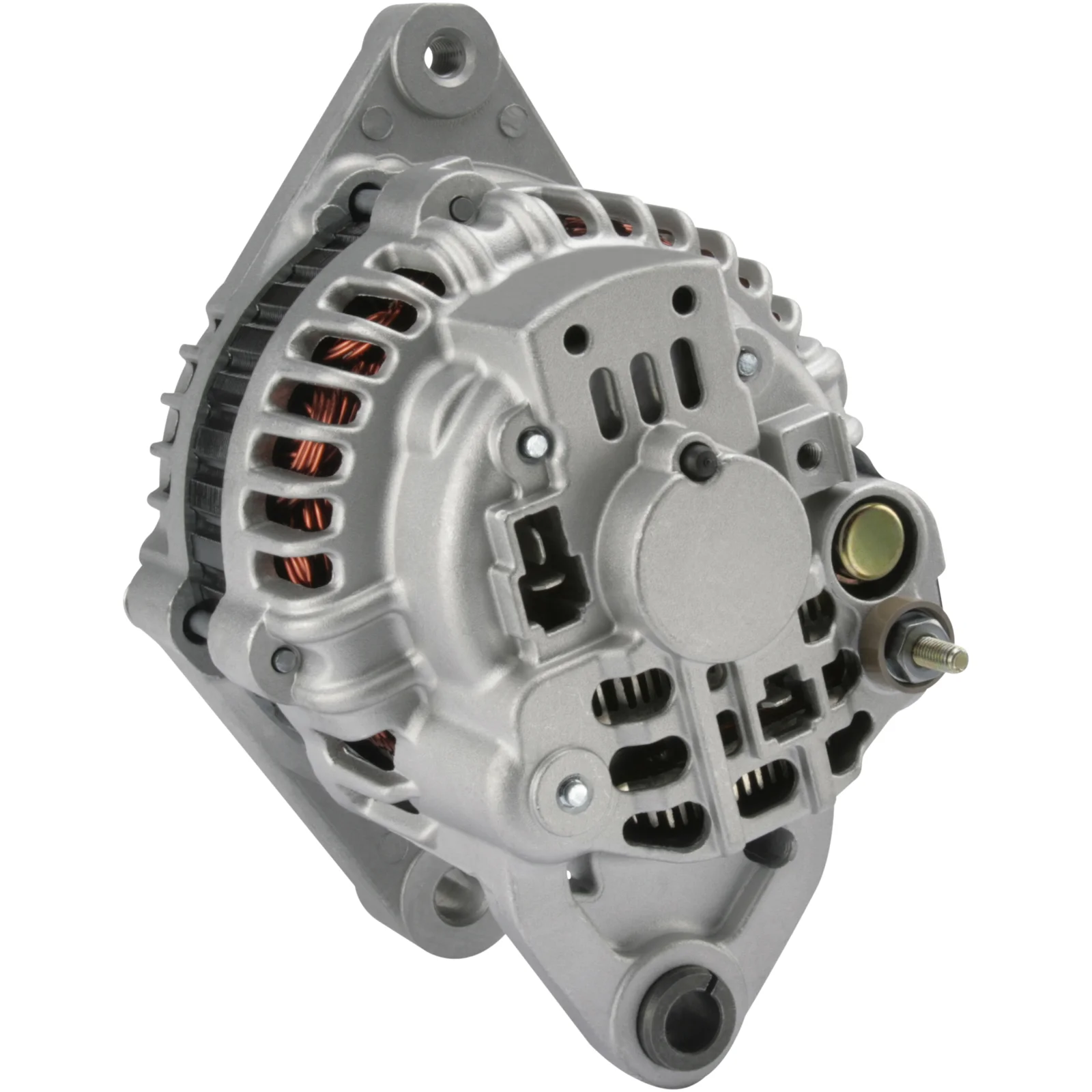

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114219

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Monteringsbeslag for fordeling: 66.00

Beskrivelse

Spænding: 14
Amp: 50
Terminal: W
Remskive afstand: 43,00
Bredde/holderarm: 15,00
Mount. beslag afstand: 66,00
Beslaghullet: 10,00
Bælte. justeringsbeslags hul: 60
Bælte. justeringsbeslags hul 1: M8
Remskive diameter: 66,00
Riller/remskive: 1
Radius: 77,00
Radius 2: 77,00
B+: M6
Position/B+ i min.: 20
Rotation: CW
W stiktype: Stik
Samlet længde mm: 151,00
Remskive: P
Regulator type: IR
Produktion info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.00
Position/B+ in min. 20
Prod. info BN
Pulley P
Pulley dia. 66.00
Pulley dist. 43.00
Radius 77.00
Radius 2 77.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal W
Voltage 14
W plug type Plug
Total length 151.00 mm
Width/holder arm 15.00
Amp 50

  • OEM
    e7230-64012, F032114219, ta000a58101

  • Konkurrentreferens
    CAL32157, 695.516.050, 20565N, 553131RI

  • NormaliseratArtNr
    cal32157, e723064012, f032114219, ta000a58101, 20565n, 553131ri, 695516050

  • Passar modeller
    Daedong Kioti Model: DK35 Series Model series: DK35 Series Brand of engine: Kubota Approved: Yes
    Daedong Kioti Model: DK40 Series Model series: DK40 Series Brand of engine: Kubota Approved: Yes
    Daedong Kioti Model: DK65 Series Model series: DK65 Series Brand of engine: Kubota Approved: Yes
    Daedong Kioti Model: DK65S Series Model series: DK65S Series Brand of engine: Kubota Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 50
    Terminal: W
    Remskive afstand: 43,00
    Bredde/holderarm: 15,00
    Mount. beslag afstand: 66,00
    Beslaghullet: 10,00
    Bælte. justeringsbeslags hul: 60
    Bælte. justeringsbeslags hul 1: M8
    Remskive diameter: 66,00
    Riller/remskive: 1
    Radius: 77,00
    Radius 2: 77,00
    B+: M6
    Position/B+ i min.: 20
    Rotation: CW
    W stiktype: Stik
    Samlet længde mm: 151,00
    Remskive: P
    Regulator type: IR
    Produktion info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Bracket hole 10.00
    Position/B+ in min. 20
    Prod. info BN
    Pulley P
    Pulley dia. 66.00
    Pulley dist. 43.00
    Radius 77.00
    Radius 2 77.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal W
    Voltage 14
    W plug type Plug
    Total length 151.00 mm
    Width/holder arm 15.00
    Amp 50
  • Køretøjsmatchning

    • OEM
      e7230-64012, F032114219, ta000a58101

    • Konkurrentreferens
      CAL32157, 695.516.050, 20565N, 553131RI

    • NormaliseratArtNr
      cal32157, e723064012, f032114219, ta000a58101, 20565n, 553131ri, 695516050

    • Passar modeller
      Daedong Kioti Model: DK35 Series Model series: DK35 Series Brand of engine: Kubota Approved: Yes
      Daedong Kioti Model: DK40 Series Model series: DK40 Series Brand of engine: Kubota Approved: Yes
      Daedong Kioti Model: DK65 Series Model series: DK65 Series Brand of engine: Kubota Approved: Yes
      Daedong Kioti Model: DK65S Series Model series: DK65S Series Brand of engine: Kubota Approved: Yes
