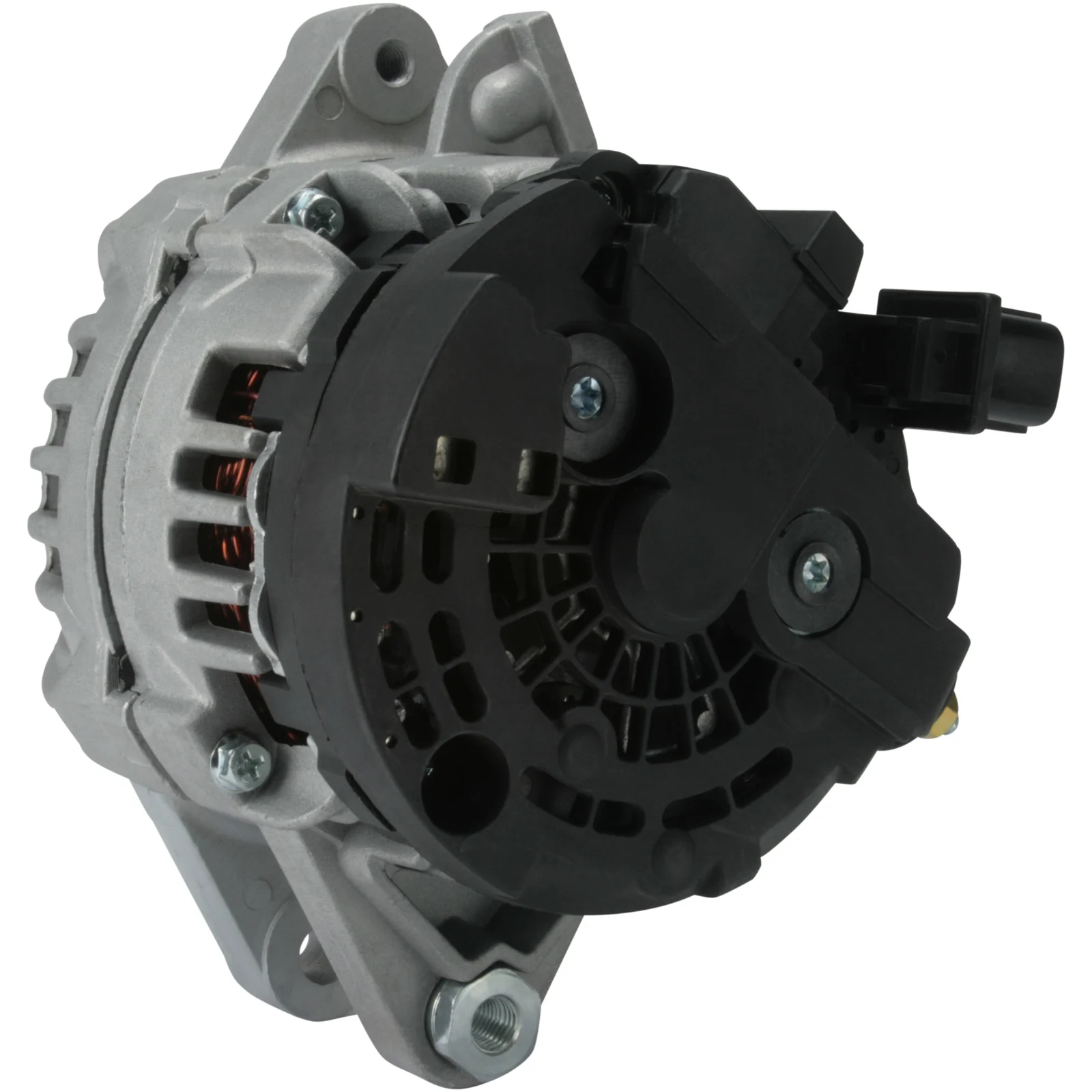

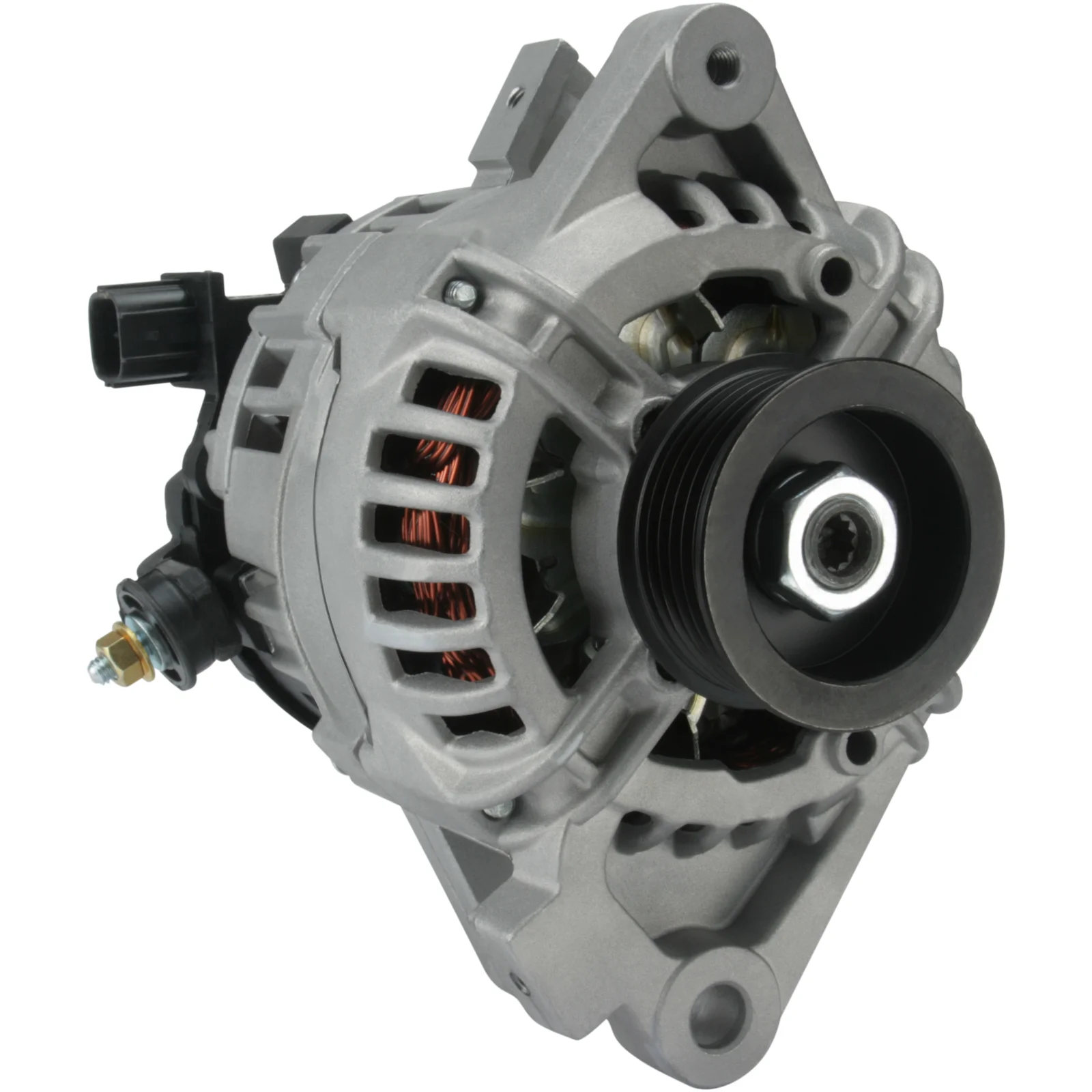

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114290

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag for fordeling: 37.00

Beskrivelse

Spænding: 14
Amp: 80
Remskive dist.: 29.00
Bredde/holder arm: 19.00
Monteringsbeslag dist.: 37.00
Beslagshul: 10.50
Bælte. just. bracketholers. posit.: 60
Bælte. just. beslastet hul 1: M8
Remskive dia.: 57.00
Grofører/spor: 6
Radius: 89.00
Radius 2: 81.50
B+: M6
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL78
Total længde mm: 173.00
Remskive: SP
Køler: IF
Regulator type: IR
Produktion info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 37.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 57.00
Pulley dist. 29.00
Radius 89.00
D+ Size Plug
Radius 2 81.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 173.00 mm
Width/holder arm 19.00
Amp 80

  • OEM
    F032114290, 2102ir, 27060-0q030, 27060-40020, 27060-40041, 27060-40050, 104210-8150, 104210-8160, 104210-8161, 104210-8320, 104210-8321, 0124225052, 0124225071

  • Konkurrentreferens
    A0753S, A6066, CAL10402, CAL40329, DAN1077, DENDAN1020, dra0618, F042205183, LRA03254, 28-5866, 195.918.080, 195.977.080, 235.327.802, 20018N, 20494R, 112868, 113227, 210829, 210829A, 210889, 210889A, 440825, 443291, 553353RI, 553762RI, 9090829, 12060923, 12061006, 0986082120

  • NormaliseratArtNr
    a0753s, a6066, cal10402, cal40329, dan1077, dendan1020, dra0618, f032114290, f042205183, lra03254, 2102ir, 20018n, 20494r, 112868, 113227, 210829, 210829a, 210889, 210889a, 270600q030, 285866, 440825, 443291, 553353ri, 553762ri, 9090829, 12060923, 12061006, 0124225052, 0124225071, 195918080, 195977080, 235327802, 0986082120, 1042108150, 1042108160, 1042108161, 1042108320, 1042108321, 2706040020, 2706040041, 2706040050

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-01-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-11-2005 To date: 01-11-2010 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Remskive dist.: 29.00
    Bredde/holder arm: 19.00
    Monteringsbeslag dist.: 37.00
    Beslagshul: 10.50
    Bælte. just. bracketholers. posit.: 60
    Bælte. just. beslastet hul 1: M8
    Remskive dia.: 57.00
    Grofører/spor: 6
    Radius: 89.00
    Radius 2: 81.50
    B+: M6
    Position/B+ i min.: 20
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL78
    Total længde mm: 173.00
    Remskive: SP
    Køler: IF
    Regulator type: IR
    Produktion info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 37.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 29.00
    Radius 89.00
    D+ Size Plug
    Radius 2 81.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 19.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032114290, 2102ir, 27060-0q030, 27060-40020, 27060-40041, 27060-40050, 104210-8150, 104210-8160, 104210-8161, 104210-8320, 104210-8321, 0124225052, 0124225071

    • Konkurrentreferens
      A0753S, A6066, CAL10402, CAL40329, DAN1077, DENDAN1020, dra0618, F042205183, LRA03254, 28-5866, 195.918.080, 195.977.080, 235.327.802, 20018N, 20494R, 112868, 113227, 210829, 210829A, 210889, 210889A, 440825, 443291, 553353RI, 553762RI, 9090829, 12060923, 12061006, 0986082120

    • NormaliseratArtNr
      a0753s, a6066, cal10402, cal40329, dan1077, dendan1020, dra0618, f032114290, f042205183, lra03254, 2102ir, 20018n, 20494r, 112868, 113227, 210829, 210829a, 210889, 210889a, 270600q030, 285866, 440825, 443291, 553353ri, 553762ri, 9090829, 12060923, 12061006, 0124225052, 0124225071, 195918080, 195977080, 235327802, 0986082120, 1042108150, 1042108160, 1042108161, 1042108320, 1042108321, 2706040020, 2706040041, 2706040050

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-01-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-11-2005 To date: 01-11-2010 Fuel: Petrol Approved: Yes
