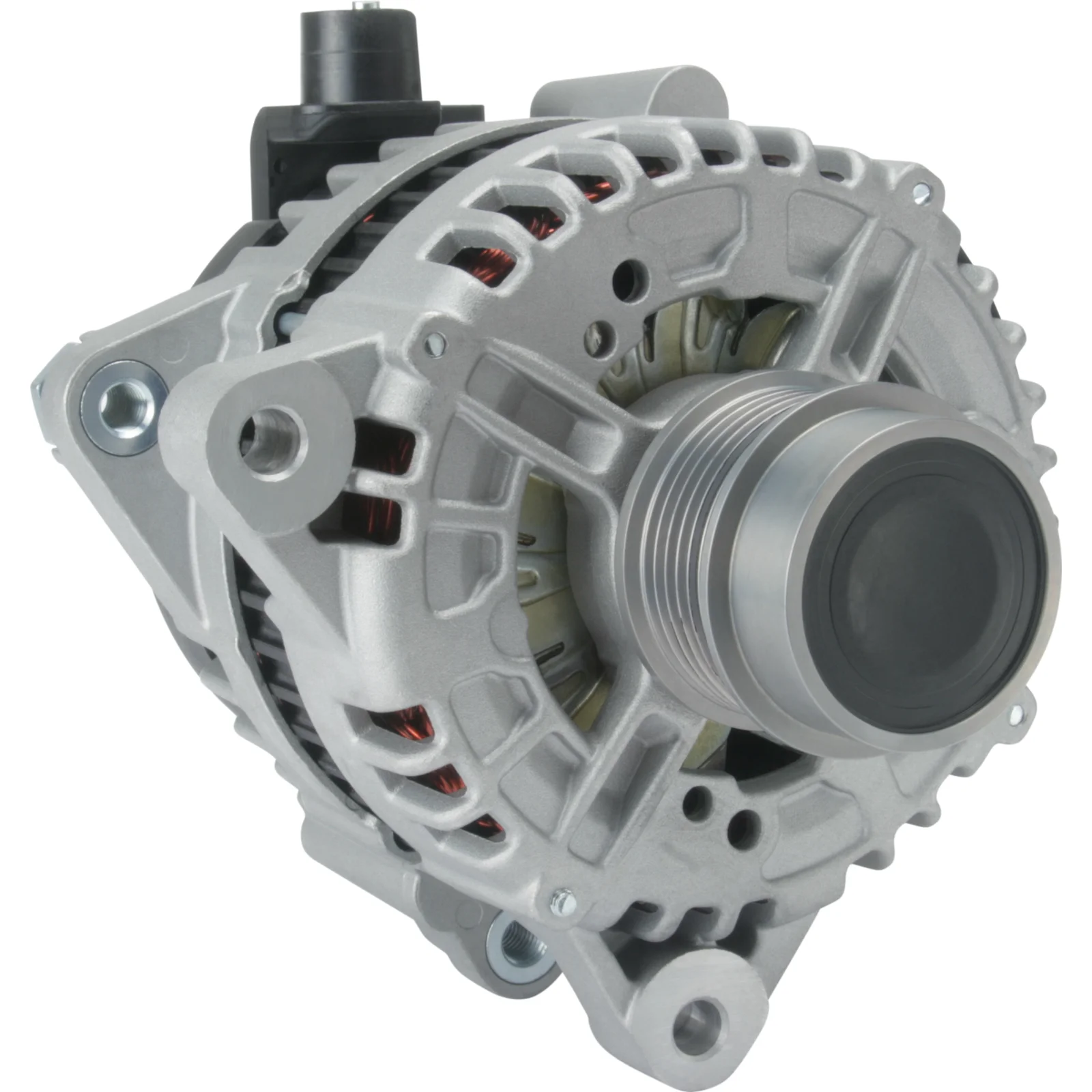

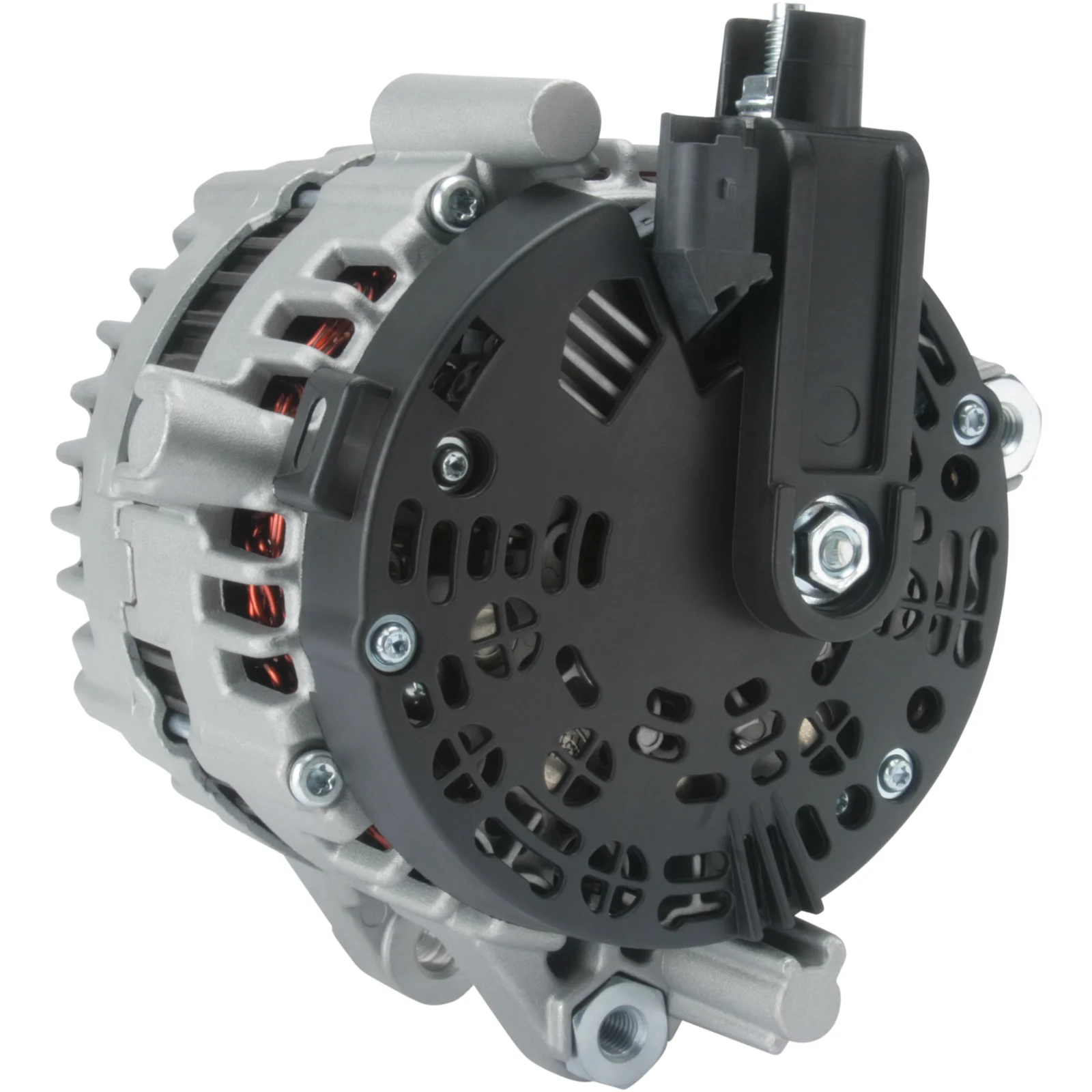

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114391

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag distributeur: 45,00

Beskrivelse

Spænding: 14
Amp: 180
Remskive dest.: 42,50
Bredde/holderarm: 21,00
Monteringsbeslag dist.: 45,00
Beslags hul: 10,20
Bæltejusteringsbeslag hulpos.: 46
Bæltejusteringsbeslag hul 1: 10,80
Remskive dia.: 57,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 3
D+ størrelse: Stik
Rotation: med uret
Stik nr.: PL72
Total længde mm: 192,00
Terminaltype: L-DFM
Remskive: SP/FW
Regulator_type: IR
Produktsinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 46
Plug no. PL72
Bracket hole 10.20
Position/B+ in min. 3
Prod. info BN
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 192.00 mm
Width/holder arm 21.00
Amp 180

  • OEM
    F032114391, 1888ir, 0121715001, 0121715101, 9652035480, 9653459080, 9657129680

  • Konkurrentreferens
    A0204, CAL10150, DRA0308, 8EL738212-701, 28-5698, 229.139.1802, 4706, 5702F8, 5705CJ, 5705EJ, 24077N, 24077R, 209054, 209054A, 12090283, 32081330, 0986081330

  • NormaliseratArtNr
    a0204, cal10150, dra0308, f032114391, 8el738212701, 1888ir, 4706, 5702f8, 5705cj, 5705ej, 24077n, 24077r, 209054, 209054a, 285698, 12090283, 32081330, 0121715001, 0121715101, 0986081330, 2291391802, 9652035480, 9653459080, 9657129680

  • Passar modeller
    Citroen Model: C5 Model series: C5 Type of engine: HDi Size of motor: 2.7 Brand of engine: DT17ED4 Type description: TD_ Body: Estate From date: 01-02-2008 Fuel: Diesel Approved: Yes Manufacture type: break
    Citroen Model: C6 Model series: C6 Type of engine: HDi Size of motor: 2.7 Brand of engine: DT17TED4 Type description: TD_ From date: 01-09-2005 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Citroen Model: C6 Model series: C6 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17BTED4) Type description: TD_ From date: 01-09-2005 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Peugeot Model: 407 Model series: 407 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17) Type description: 6C_ Body: Coupe From date: 01-10-2005 Fuel: Diesel Approved: Yes
    Peugeot Model: 407 Model series: 407 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17) Type description: 6E_ Body: Estate From date: 01-10-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: SW
    Peugeot Model: 407 Model series: 407 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17TED4) Type description: 6D_ From date: 01-10-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Peugeot Model: 607 Model series: 607 Type of engine: HDi 24V Size of motor: 2.7 Brand of engine: DT17TED4 Type description: 9D From date: 01-12-2004 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Remskive dest.: 42,50
    Bredde/holderarm: 21,00
    Monteringsbeslag dist.: 45,00
    Beslags hul: 10,20
    Bæltejusteringsbeslag hulpos.: 46
    Bæltejusteringsbeslag hul 1: 10,80
    Remskive dia.: 57,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 3
    D+ størrelse: Stik
    Rotation: med uret
    Stik nr.: PL72
    Total længde mm: 192,00
    Terminaltype: L-DFM
    Remskive: SP/FW
    Regulator_type: IR
    Produktsinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 10.80
    Belt. adj. brackethole pos. 46
    Plug no. PL72
    Bracket hole 10.20
    Position/B+ in min. 3
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 42.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type L-DFM
    Voltage 14
    Total length 192.00 mm
    Width/holder arm 21.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032114391, 1888ir, 0121715001, 0121715101, 9652035480, 9653459080, 9657129680

    • Konkurrentreferens
      A0204, CAL10150, DRA0308, 8EL738212-701, 28-5698, 229.139.1802, 4706, 5702F8, 5705CJ, 5705EJ, 24077N, 24077R, 209054, 209054A, 12090283, 32081330, 0986081330

    • NormaliseratArtNr
      a0204, cal10150, dra0308, f032114391, 8el738212701, 1888ir, 4706, 5702f8, 5705cj, 5705ej, 24077n, 24077r, 209054, 209054a, 285698, 12090283, 32081330, 0121715001, 0121715101, 0986081330, 2291391802, 9652035480, 9653459080, 9657129680

    • Passar modeller
      Citroen Model: C5 Model series: C5 Type of engine: HDi Size of motor: 2.7 Brand of engine: DT17ED4 Type description: TD_ Body: Estate From date: 01-02-2008 Fuel: Diesel Approved: Yes Manufacture type: break
      Citroen Model: C6 Model series: C6 Type of engine: HDi Size of motor: 2.7 Brand of engine: DT17TED4 Type description: TD_ From date: 01-09-2005 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Citroen Model: C6 Model series: C6 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17BTED4) Type description: TD_ From date: 01-09-2005 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Peugeot Model: 407 Model series: 407 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17) Type description: 6C_ Body: Coupe From date: 01-10-2005 Fuel: Diesel Approved: Yes
      Peugeot Model: 407 Model series: 407 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17) Type description: 6E_ Body: Estate From date: 01-10-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: SW
      Peugeot Model: 407 Model series: 407 Type of engine: HDi Size of motor: 2.7 Brand of engine: UHZ (DT17TED4) Type description: 6D_ From date: 01-10-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Peugeot Model: 607 Model series: 607 Type of engine: HDi 24V Size of motor: 2.7 Brand of engine: DT17TED4 Type description: 9D From date: 01-12-2004 To date: 01-07-2011 Fuel: Diesel Approved: Yes
