HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114412

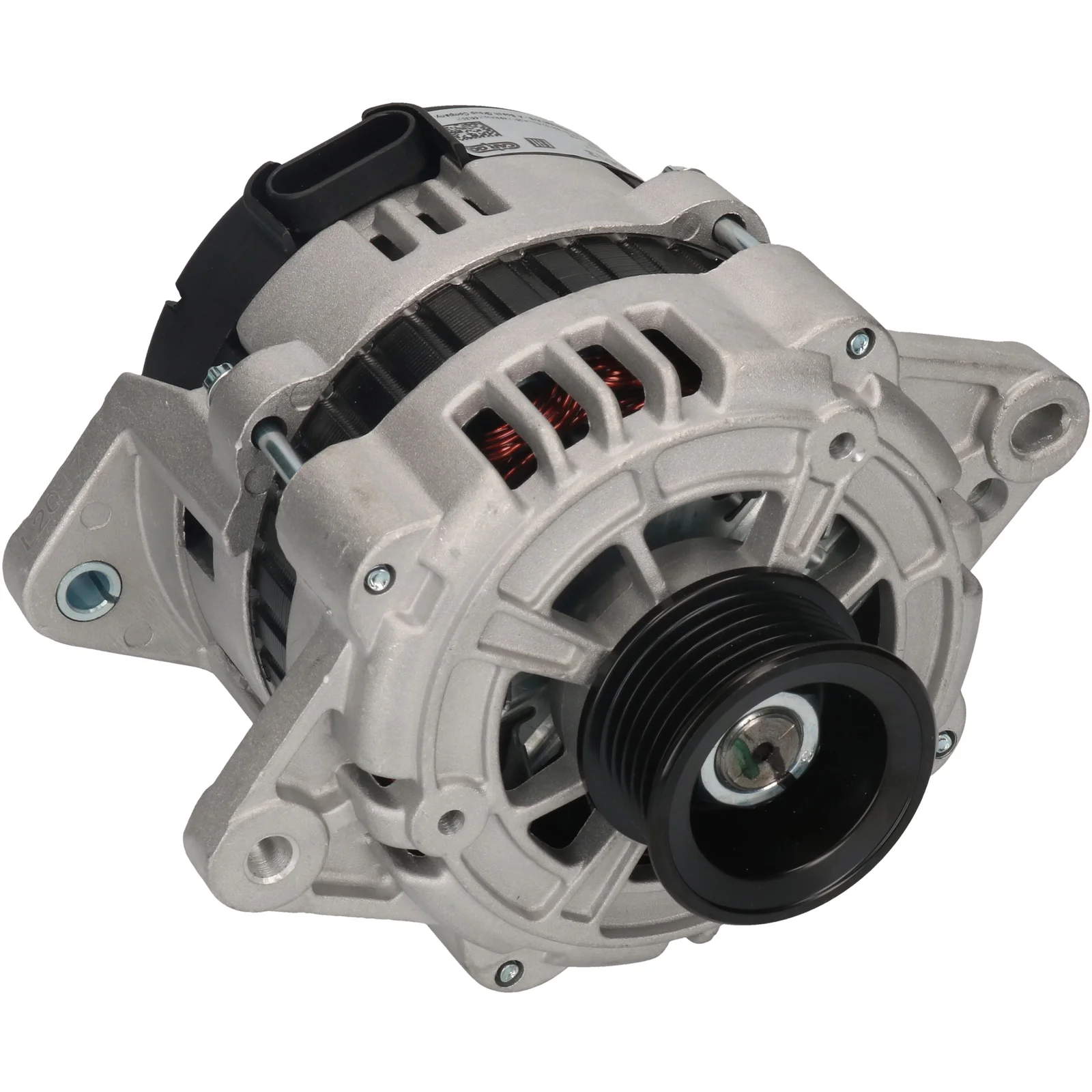

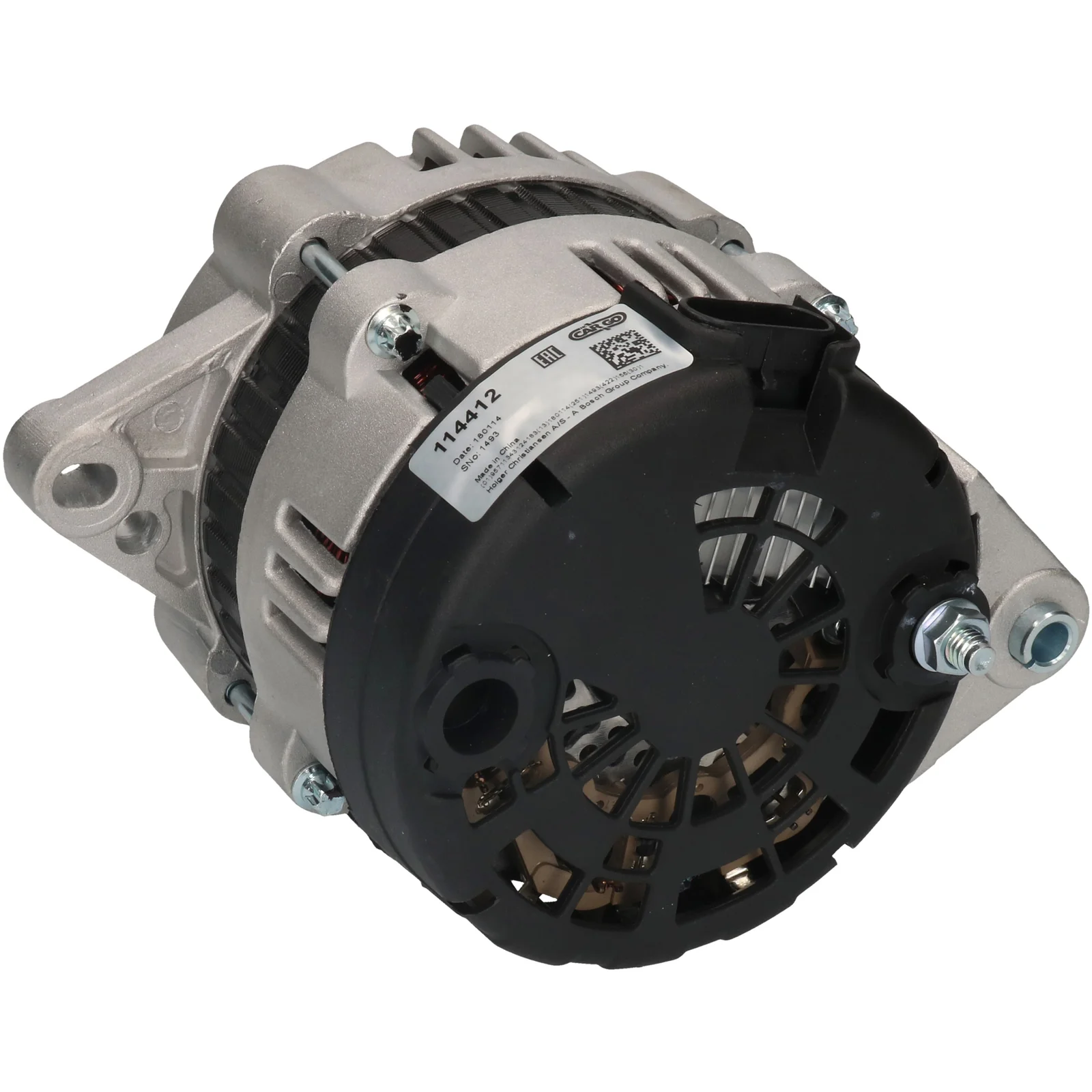

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 85, Rotation: CW, Monteringsbeslag for fordeling: 81.00

Beskrivelse

Spænding: 14
Amp: 85
Remskive afstand: 36.00
Bredde/holder arm: 12.30
Monteringsbeslag afstand: 81.00
Beslag hul: 8.40
Beslag hul 2: 12.40
Remskive justering hul pos.: 60
Remskive justering hul 1: 8.20
Remskivement dia.: 50.00
Grooves/remskive: 6
Radius: 80.00
Radius 2: 86.00
B+: M8
Position/B+ i min.: 29
D+ størrelse: Plug
Rotation: med uret
Plug no.: PL122
Total længde mm: 180.00
Remskive: SP
Ventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Plug no. PL122
Bracket hole 8.40
Bracket hole 2 12.40
Position/B+ in min. 29
Pulley SP
Pulley dia. 50.00
Pulley dist. 36.00
Radius 80.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 180.00 mm
Width/holder arm 12.30
Amp 85

  • OEM
    F032114412, 1986A01681, 96540542, 96838439, 96954113

  • Konkurrentreferens
    A9046, A9240, ALT-1212, ALT-7600, ALT-H216, CAL46107, DRA0302, F042A0E000, F042A0H216, 8EL015630-411, 28-6631, 235.505.085, 235.510.085, 8483, 8483N, 8483R, 210643, 210643A, 444201, 12060901, 0986083430

  • NormaliseratArtNr
    a9046, a9240, alt1212, alt7600, alth216, cal46107, dra0302, f032114412, f042a0e000, f042a0h216, 8el015630411, 1986a01681, 8483, 8483n, 8483r, 210643, 210643a, 286631, 444201, 12060901, 96540542, 96838439, 96954113, 235505085, 235510085, 0986083430

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo / Kalos Hatchback Size of motor: 1.6 Brand of engine: L44 (96CUL4) Type description: T200 Body: Hatchback Fuel: Petrol Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Model type: Special Value Size of motor: 1.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Lacetti Estate Model series: Lacetti Estate Size of motor: 1.8 Brand of engine: L84 (110CUL4) Type description: J200 Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
    Chevrolet Model: Nubira Model series: Nubira Size of motor: 1.4 Brand of engine: F14D3 From date: 01-01-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Nubira Model series: Nubira Size of motor: 1.8 Brand of engine: F18D3 Body: Estate From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lacetti Hatch Model series: Lacetti Hatch Size of motor: 1.4 Brand of engine: F14D3 Body: Hatchback From date: 01-06-2002 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lacetti Model series: Lacetti Size of motor: 1.6 Brand of engine: F16D3 Type description: KLAN Body: Hatchback From date: 01-02-2004 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Saloon Size of motor: 1.6 Brand of engine: LXV Body: Saloon From date: 01-08-1997 To date: 01-06-2008 Fuel: Petrol Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Size of motor: 1.6 Brand of engine: F16D3 From date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Size of motor: 1.6 Brand of engine: F16D3 Type description: KLAN Body: Estate From date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nubira Model series: Nubira Size of motor: 1.8 Brand of engine: T18SED Type description: KLAN Body: Estate From date: 01-07-2003 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 85
    Remskive afstand: 36.00
    Bredde/holder arm: 12.30
    Monteringsbeslag afstand: 81.00
    Beslag hul: 8.40
    Beslag hul 2: 12.40
    Remskive justering hul pos.: 60
    Remskive justering hul 1: 8.20
    Remskivement dia.: 50.00
    Grooves/remskive: 6
    Radius: 80.00
    Radius 2: 86.00
    B+: M8
    Position/B+ i min.: 29
    D+ størrelse: Plug
    Rotation: med uret
    Plug no.: PL122
    Total længde mm: 180.00
    Remskive: SP
    Ventilator: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Plug no. PL122
    Bracket hole 8.40
    Bracket hole 2 12.40
    Position/B+ in min. 29
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 36.00
    Radius 80.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 12.30
    Amp 85
  • Køretøjsmatchning

    • OEM
      F032114412, 1986A01681, 96540542, 96838439, 96954113

    • Konkurrentreferens
      A9046, A9240, ALT-1212, ALT-7600, ALT-H216, CAL46107, DRA0302, F042A0E000, F042A0H216, 8EL015630-411, 28-6631, 235.505.085, 235.510.085, 8483, 8483N, 8483R, 210643, 210643A, 444201, 12060901, 0986083430

    • NormaliseratArtNr
      a9046, a9240, alt1212, alt7600, alth216, cal46107, dra0302, f032114412, f042a0e000, f042a0h216, 8el015630411, 1986a01681, 8483, 8483n, 8483r, 210643, 210643a, 286631, 444201, 12060901, 96540542, 96838439, 96954113, 235505085, 235510085, 0986083430

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo / Kalos Hatchback Size of motor: 1.6 Brand of engine: L44 (96CUL4) Type description: T200 Body: Hatchback Fuel: Petrol Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Model type: Special Value Size of motor: 1.6 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Lacetti Estate Model series: Lacetti Estate Size of motor: 1.8 Brand of engine: L84 (110CUL4) Type description: J200 Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
      Chevrolet Model: Nubira Model series: Nubira Size of motor: 1.4 Brand of engine: F14D3 From date: 01-01-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Nubira Model series: Nubira Size of motor: 1.8 Brand of engine: F18D3 Body: Estate From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lacetti Hatch Model series: Lacetti Hatch Size of motor: 1.4 Brand of engine: F14D3 Body: Hatchback From date: 01-06-2002 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lacetti Model series: Lacetti Size of motor: 1.6 Brand of engine: F16D3 Type description: KLAN Body: Hatchback From date: 01-02-2004 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Saloon Size of motor: 1.6 Brand of engine: LXV Body: Saloon From date: 01-08-1997 To date: 01-06-2008 Fuel: Petrol Approved: Yes
      Daewoo Model: Nubira Model series: Nubira Size of motor: 1.6 Brand of engine: F16D3 From date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nubira Model series: Nubira Size of motor: 1.6 Brand of engine: F16D3 Type description: KLAN Body: Estate From date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nubira Model series: Nubira Size of motor: 1.8 Brand of engine: T18SED Type description: KLAN Body: Estate From date: 01-07-2003 Fuel: Gasoline Approved: Yes
      1 / 3
