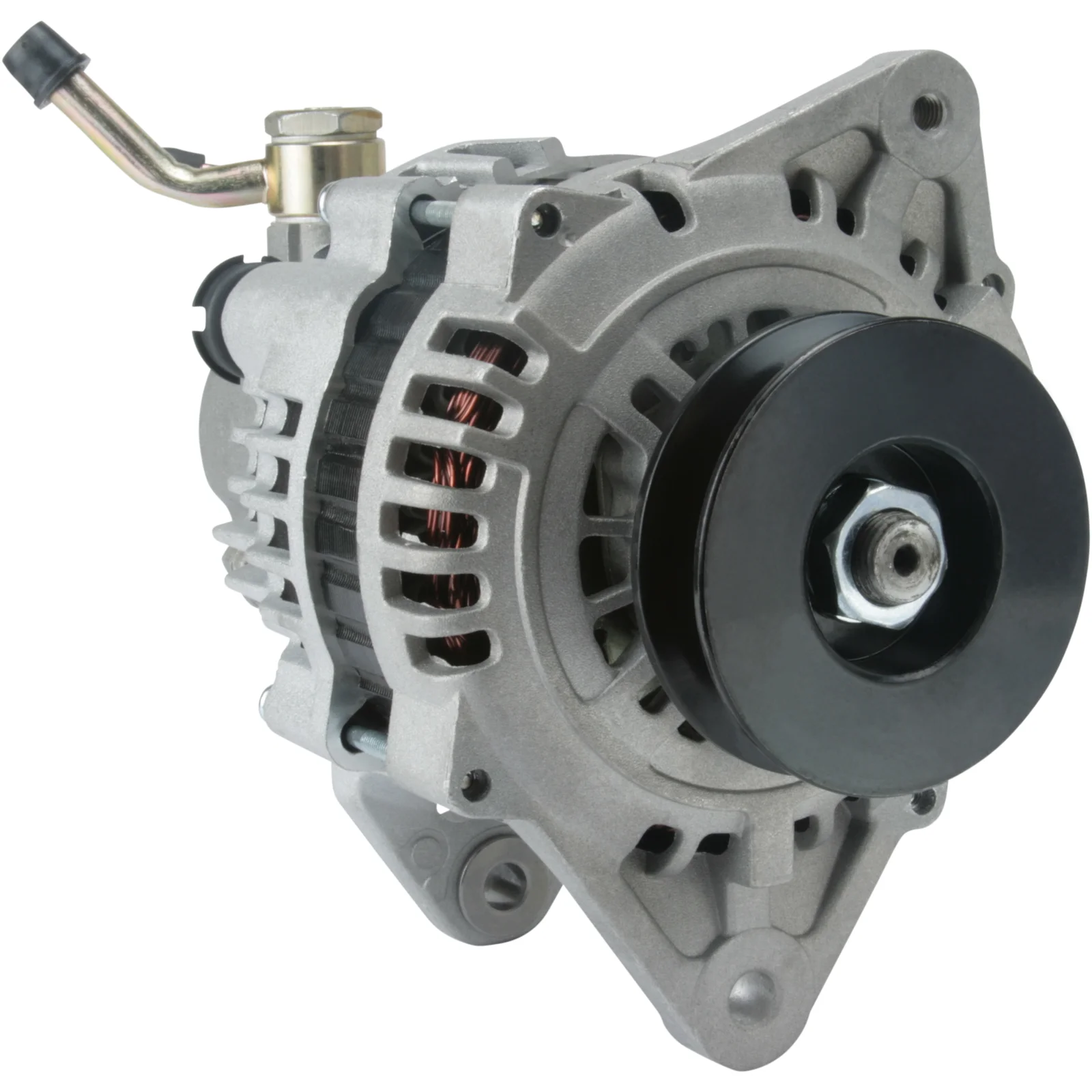

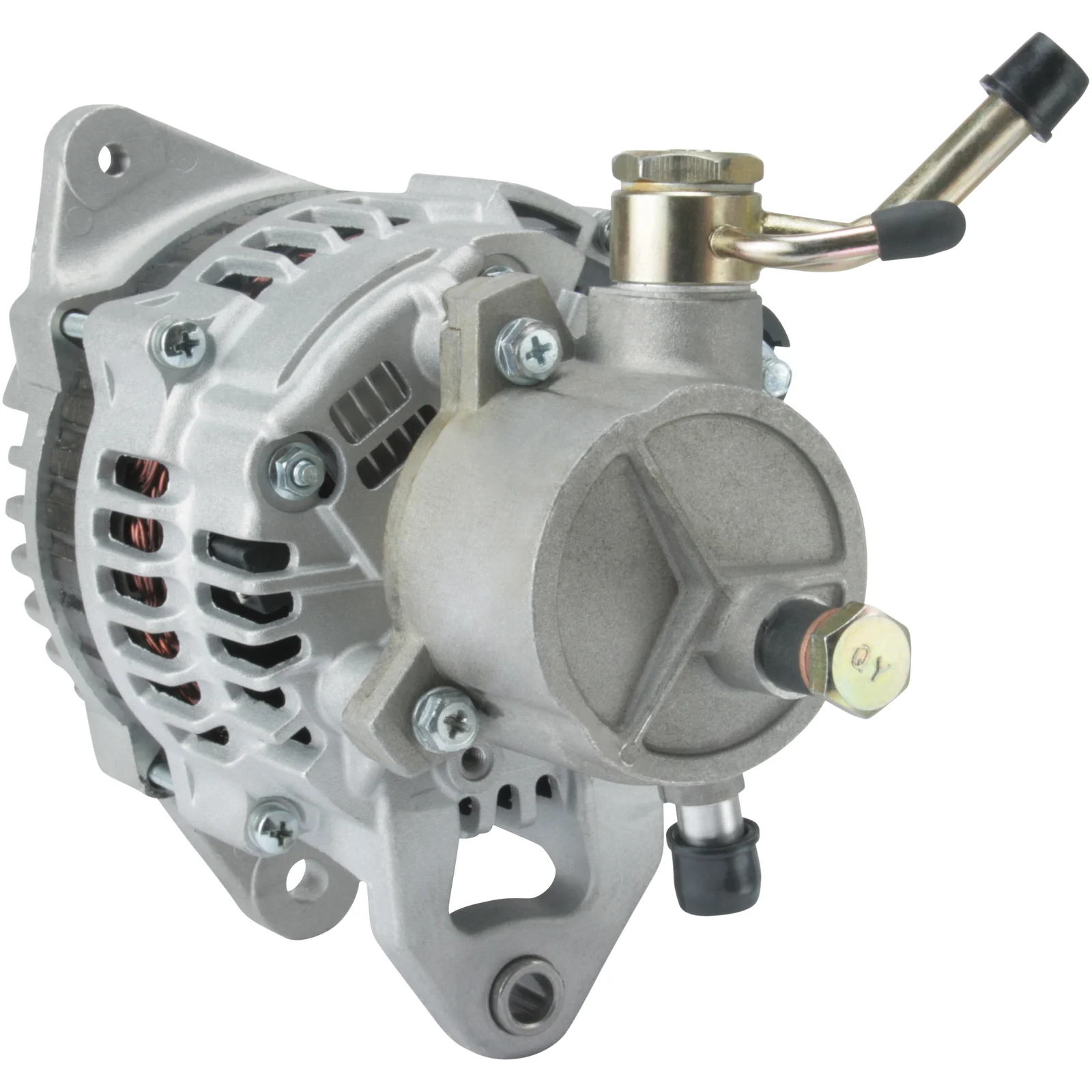

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114458

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 83,50

Beskrivelse

Spænding: 14
Amp: 60
Drevenøjagt.: 50,00
Bredde/holderarm: 13,50
Monteringsbeslag afstand.: 83,50
Beslagshul: 10,30
Båndjust. justeringsbeslagshul pos.: 8
Båndjust. justeringsbeslagshul 1: M8
Drevenødning: 84,00
Riller/drevenødning: 1
Radius: 84,00
Radius 2: 88,00
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Stik
Rotation: uret → uret
Stik nr.: PL07
Samlet længde mm.: 262,00
Dreven.: P
Regulator type: IR
Kølepumpe: Ja
Prod. info: BN
Service: Isuzu

Filer

Specifikation

B+ M8
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 8
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 84.00
Pulley dist. 50.00
Radius 84.00
D+ Size Plug
Radius 2 88.00
Regulator type IR
Rotation CW
Servicing Isuzu
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 262.00 mm
Width/holder arm 13.50
Amp 60

  • OEM
    F032114458, LR160-503, LR160-503E, 8972458502

  • Konkurrentreferens
    CAL20193, F042205196, F042A05064, 20334N, 553285RI

  • NormaliseratArtNr
    cal20193, f032114458, f042205196, f042a05064, lr160503, lr160503e, 20334n, 553285ri, 8972458502

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: D (TFR77H) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-T Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1-TC Type description: 8DH Body: Pick Up From date: 01-10-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: DiTD Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-10-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 60
    Drevenøjagt.: 50,00
    Bredde/holderarm: 13,50
    Monteringsbeslag afstand.: 83,50
    Beslagshul: 10,30
    Båndjust. justeringsbeslagshul pos.: 8
    Båndjust. justeringsbeslagshul 1: M8
    Drevenødning: 84,00
    Riller/drevenødning: 1
    Radius: 84,00
    Radius 2: 88,00
    B+: M8
    Position/B+ i min.: 10
    D+ Størrelse: Stik
    Rotation: uret → uret
    Stik nr.: PL07
    Samlet længde mm.: 262,00
    Dreven.: P
    Regulator type: IR
    Kølepumpe: Ja
    Prod. info: BN
    Service: Isuzu

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 83.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 8
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 84.00
    Pulley dist. 50.00
    Radius 84.00
    D+ Size Plug
    Radius 2 88.00
    Regulator type IR
    Rotation CW
    Servicing Isuzu
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 262.00 mm
    Width/holder arm 13.50
    Amp 60
  • Køretøjsmatchning

    • OEM
      F032114458, LR160-503, LR160-503E, 8972458502

    • Konkurrentreferens
      CAL20193, F042205196, F042A05064, 20334N, 553285RI

    • NormaliseratArtNr
      cal20193, f032114458, f042205196, f042a05064, lr160503, lr160503e, 20334n, 553285ri, 8972458502

    • Passar modeller
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: D (TFR77H) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-T Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JA1-TC Type description: 8DH Body: Pick Up From date: 01-10-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: DiTD Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-10-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
