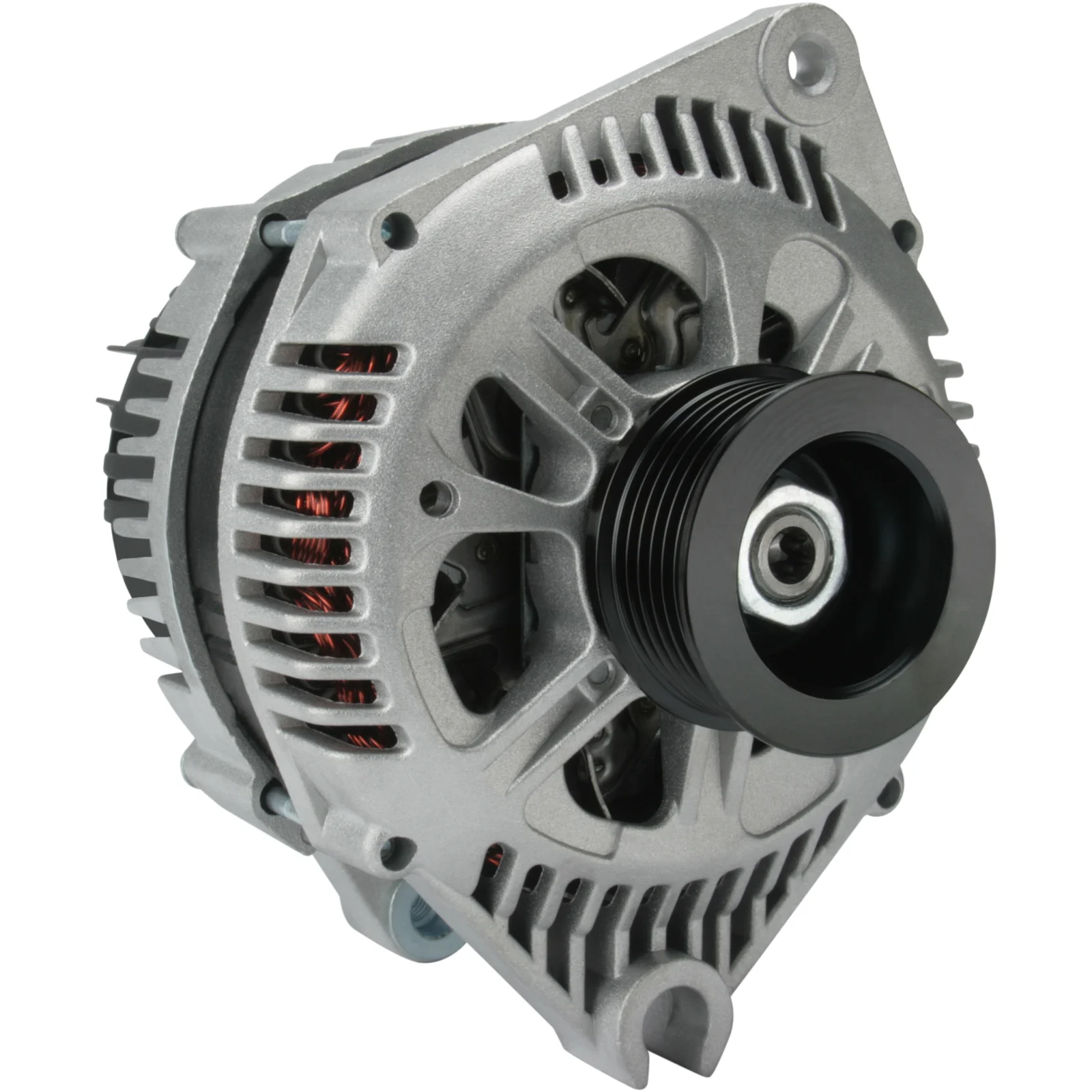

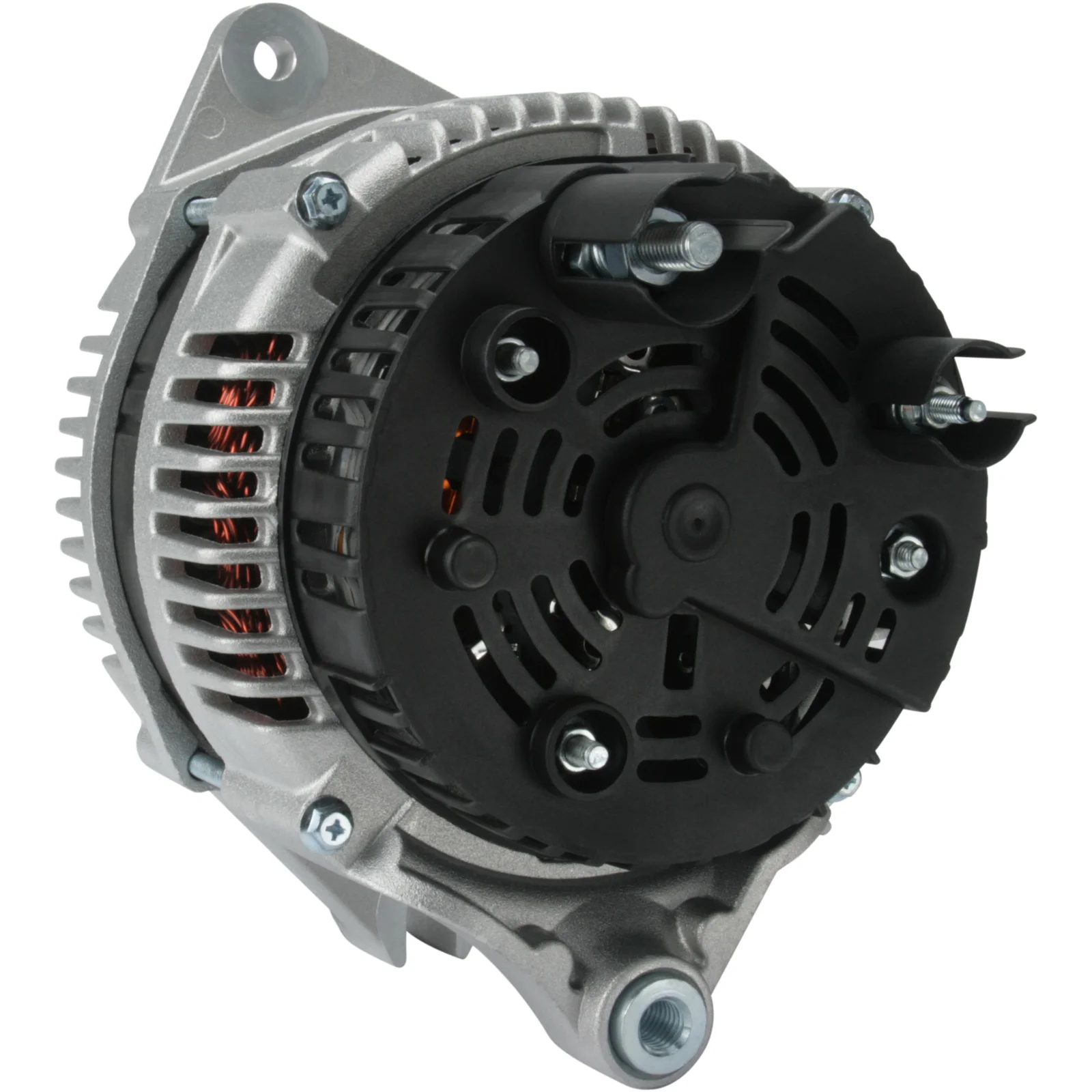

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114684

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstanden: 65,50

Beskrivelse

Spænding: 14
Amp: 120
Skive afstand: 51,50
Bredde/bærer arm: 26,50
Monteringsbeslag afstand: 65,50
Beslag hul: 10,50
Bælte justering beslag hul pos.: 5
Bælte justering beslag hul 1: 8,20
Skive dia.: 58,00
Riller/skive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 55
D+ Størrelse: M5
Rotation: CW
Total længde mm: 203,00
Skive: SP
Ventilator: IF
Regulator type: IR
Produktion info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 65.50
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 5
Bracket hole 10.50
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 58.00
Pulley dist. 51.50
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 203.00 mm
Width/holder arm 26.50
Amp 120

  • OEM
    a14vi37, F032114684, 1835ir, 2542388, 500362607

  • Konkurrentreferens
    A3116, A3116(VALEO), CAL15292, DRA3954, 8EL738253-001, 28-4681, 112516, 210849, 210849A, 437307, 12090313, 32437307, 0986081710

  • NormaliseratArtNr
    a14vi37, a3116, a3116valeo, cal15292, dra3954, f032114684, 8el738253001, 1835ir, 112516, 210849, 210849a, 284681, 437307, 2542388, 12090313, 32437307, 500362607, 0986081710

  • Passar modeller
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Platform / Chassis From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Van From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244, Z_ Body: Bus From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230L Body: Van From date: 01-08-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-07-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-06-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Platform / Chassis From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244, Z_ Body: Bus From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Bus From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Platform / Chassis From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Body: Platform / Chassis From date: 01-12-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Van From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Skive afstand: 51,50
    Bredde/bærer arm: 26,50
    Monteringsbeslag afstand: 65,50
    Beslag hul: 10,50
    Bælte justering beslag hul pos.: 5
    Bælte justering beslag hul 1: 8,20
    Skive dia.: 58,00
    Riller/skive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 55
    D+ Størrelse: M5
    Rotation: CW
    Total længde mm: 203,00
    Skive: SP
    Ventilator: IF
    Regulator type: IR
    Produktion info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 65.50
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 5
    Bracket hole 10.50
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP
    Pulley dia. 58.00
    Pulley dist. 51.50
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 203.00 mm
    Width/holder arm 26.50
    Amp 120
  • Køretøjsmatchning

    • OEM
      a14vi37, F032114684, 1835ir, 2542388, 500362607

    • Konkurrentreferens
      A3116, A3116(VALEO), CAL15292, DRA3954, 8EL738253-001, 28-4681, 112516, 210849, 210849A, 437307, 12090313, 32437307, 0986081710

    • NormaliseratArtNr
      a14vi37, a3116, a3116valeo, cal15292, dra3954, f032114684, 8el738253001, 1835ir, 112516, 210849, 210849a, 284681, 437307, 2542388, 12090313, 32437307, 500362607, 0986081710

    • Passar modeller
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Platform / Chassis From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Van From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244, Z_ Body: Bus From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230L Body: Van From date: 01-08-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-05-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.8 Brand of engine: 8140.63 Type description: 230 Body: Platform / Chassis From date: 01-05-1998 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-07-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230L Body: Van From date: 01-06-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Platform / Chassis From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244 Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43 Type description: 244, Z_ Body: Bus From date: 01-11-2003 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Bus From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Platform / Chassis From date: 01-02-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.63 Body: Van From date: 01-05-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Body: Platform / Chassis From date: 01-12-1998 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Bus From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TDi Size of motor: 2.8 Brand of engine: 8140.43 Type description: 230 Body: Van From date: 01-10-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      1 / 4
