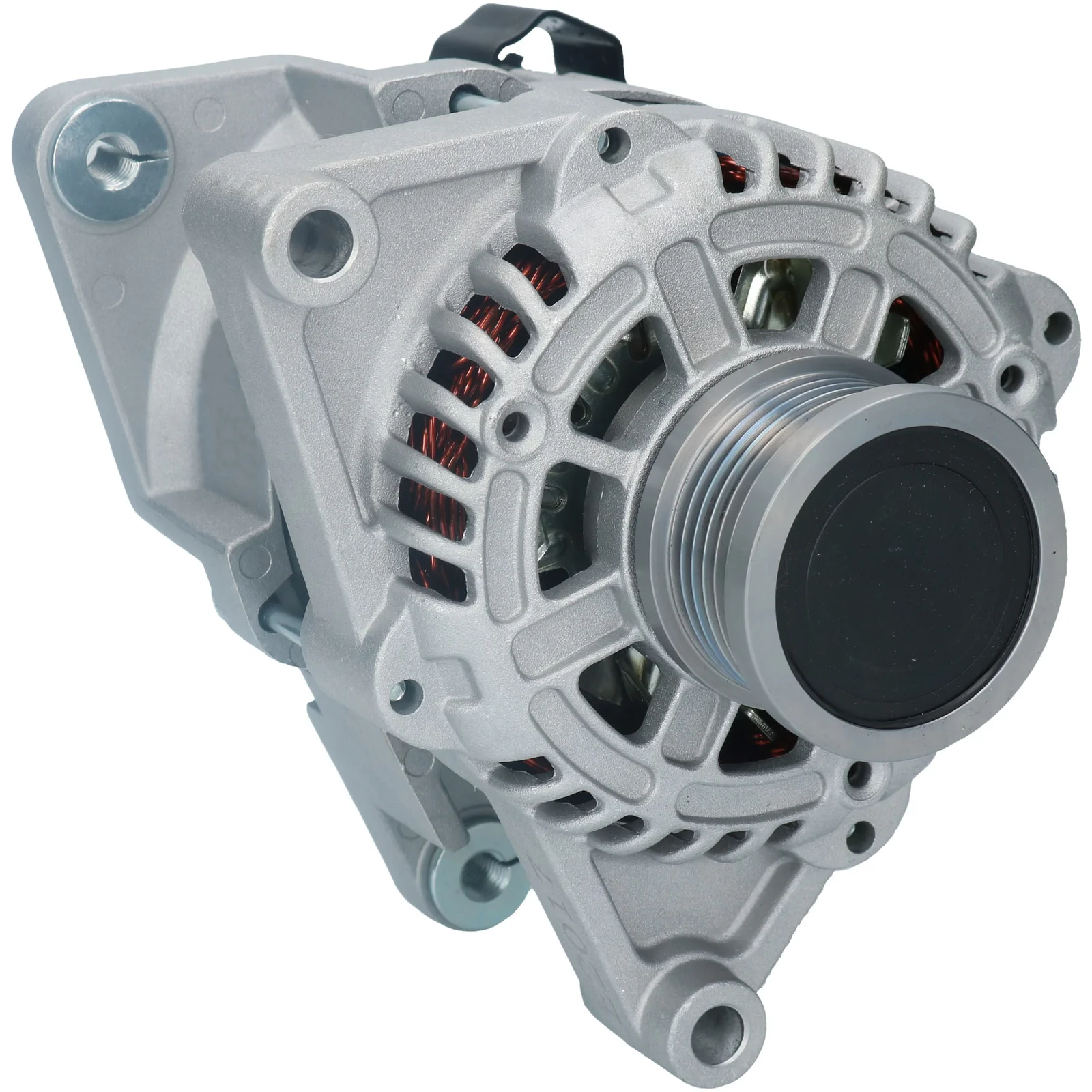

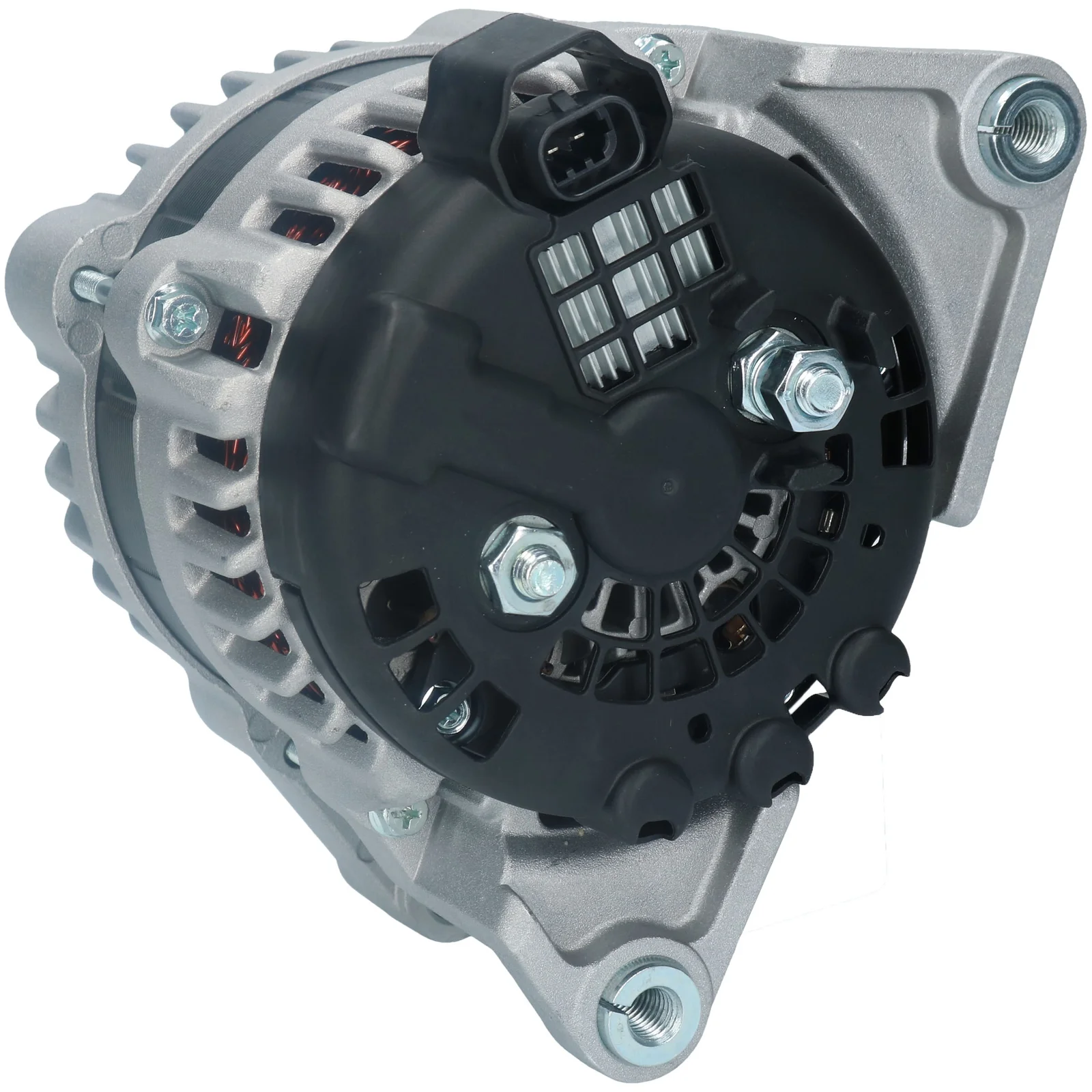

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114728

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: med uret, Monteringsbeslag for fordelingsdæksel: 58,00

Beskrivelse

Spenning: 14
Amp: 100
Kulleringens placering: 54,70
Bredde/holderarm: 33,70
Ekstra monteringsbeslag afstanden: 58,00
Beslagshuldring: 10,20
Bæltep. just. beslagshuldd-.pos.: 10
Bæltep. just. beslagshul 1: 10,20
Bæltep. just. beslagshul 2: M10
Kulleringens diameter: 53,30
Riller/kullering: 6
Radius: 92,50
Radius 2: 92,50
B+: M8
Position/B+ i min.: 10
D+ størrelse: Stolpe
Rotation: med uret
Stolpenummer: PL180
Samlet længde mm: 187,50
Terminaltype: L-F
Kommunikation: PWM
Kullering: SP/FW
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 58.00
Belt. adj. bracket hole 1 10.20
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 10
Plug no. PL180
Bracket hole 10.20
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 53.30
Pulley dist. 54.70
Radius 92.50
D+ Size Plug
Radius 2 92.50
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 187.50 mm
Width/holder arm 33.70
Amp 100

  • OEM
    F032114728, 1986A01734, 2142ir, 1202120, 1202284, 13500582, 13579663, 0124525484

  • Konkurrentreferens
    A1040, CAL42109, DRA0917, DRA0917N, LRA03361, 8EL011713-571, 28-5973, 135.580.100, 228.185.1002, 21512N, 113298, 210836, 210836A, 12090613, 0986083810

  • NormaliseratArtNr
    a1040, cal42109, dra0917, dra0917n, f032114728, lra03361, 8el011713571, 1986a01734, 2142ir, 21512n, 113298, 210836, 210836a, 285973, 1202120, 1202284, 12090613, 13500582, 13579663, 0124525484, 135580100, 0986083810, 2281851002

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.4 Brand of engine: A14XER Type description: T300 From date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Adam Model series: Adam Model type: LPG Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-07-2013 To date: 01-11-2018 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Adam Model series: Adam Model type: S Size of motor: 1.4 Brand of engine: B14NEH Body: Hatchback From date: 01-11-2014 To date: 01-01-2019 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecoflex Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-01-2012 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER From date: 01-06-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra Sports Tourer Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Type description: J Body: Estate From date: 01-12-2011 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-08-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    VW Model: Caddy Model series: Caddy Size of motor: 1.4 Brand of engine: AUD Type description: 9K9A Body: Van From date: 01-11-1995 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Amp: 100
    Kulleringens placering: 54,70
    Bredde/holderarm: 33,70
    Ekstra monteringsbeslag afstanden: 58,00
    Beslagshuldring: 10,20
    Bæltep. just. beslagshuldd-.pos.: 10
    Bæltep. just. beslagshul 1: 10,20
    Bæltep. just. beslagshul 2: M10
    Kulleringens diameter: 53,30
    Riller/kullering: 6
    Radius: 92,50
    Radius 2: 92,50
    B+: M8
    Position/B+ i min.: 10
    D+ størrelse: Stolpe
    Rotation: med uret
    Stolpenummer: PL180
    Samlet længde mm: 187,50
    Terminaltype: L-F
    Kommunikation: PWM
    Kullering: SP/FW
    Regulator type: IR
    Produktinfo: BN
    Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 58.00
    Belt. adj. bracket hole 1 10.20
    Belt. adj. bracket hole 2 M10
    Belt. adj. brackethole pos. 10
    Plug no. PL180
    Bracket hole 10.20
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 53.30
    Pulley dist. 54.70
    Radius 92.50
    D+ Size Plug
    Radius 2 92.50
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 187.50 mm
    Width/holder arm 33.70
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032114728, 1986A01734, 2142ir, 1202120, 1202284, 13500582, 13579663, 0124525484

    • Konkurrentreferens
      A1040, CAL42109, DRA0917, DRA0917N, LRA03361, 8EL011713-571, 28-5973, 135.580.100, 228.185.1002, 21512N, 113298, 210836, 210836A, 12090613, 0986083810

    • NormaliseratArtNr
      a1040, cal42109, dra0917, dra0917n, f032114728, lra03361, 8el011713571, 1986a01734, 2142ir, 21512n, 113298, 210836, 210836a, 285973, 1202120, 1202284, 12090613, 13500582, 13579663, 0124525484, 135580100, 0986083810, 2281851002

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-03-2011 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Size of motor: 1.4 Brand of engine: A14XER Type description: T300 From date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Opel Model: Adam Model series: Adam Model type: LPG Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-07-2013 To date: 01-11-2018 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Adam Model series: Adam Model type: S Size of motor: 1.4 Brand of engine: B14NEH Body: Hatchback From date: 01-11-2014 To date: 01-01-2019 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Ecoflex Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-01-2012 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER From date: 01-06-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra Sports Tourer Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Type description: J Body: Estate From date: 01-12-2011 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-08-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      VW Model: Caddy Model series: Caddy Size of motor: 1.4 Brand of engine: AUD Type description: 9K9A Body: Van From date: 01-11-1995 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
      1 / 4
