HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114857

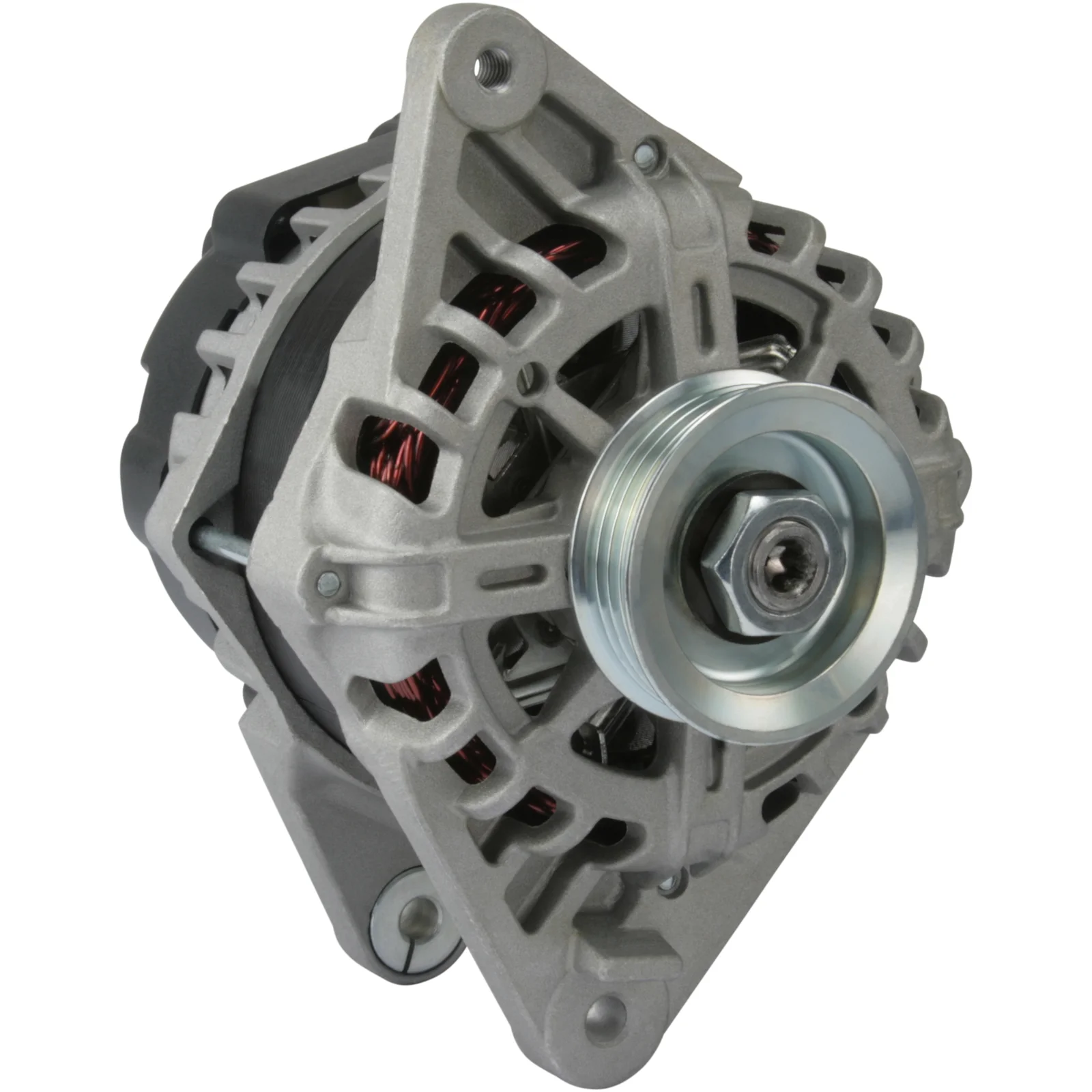

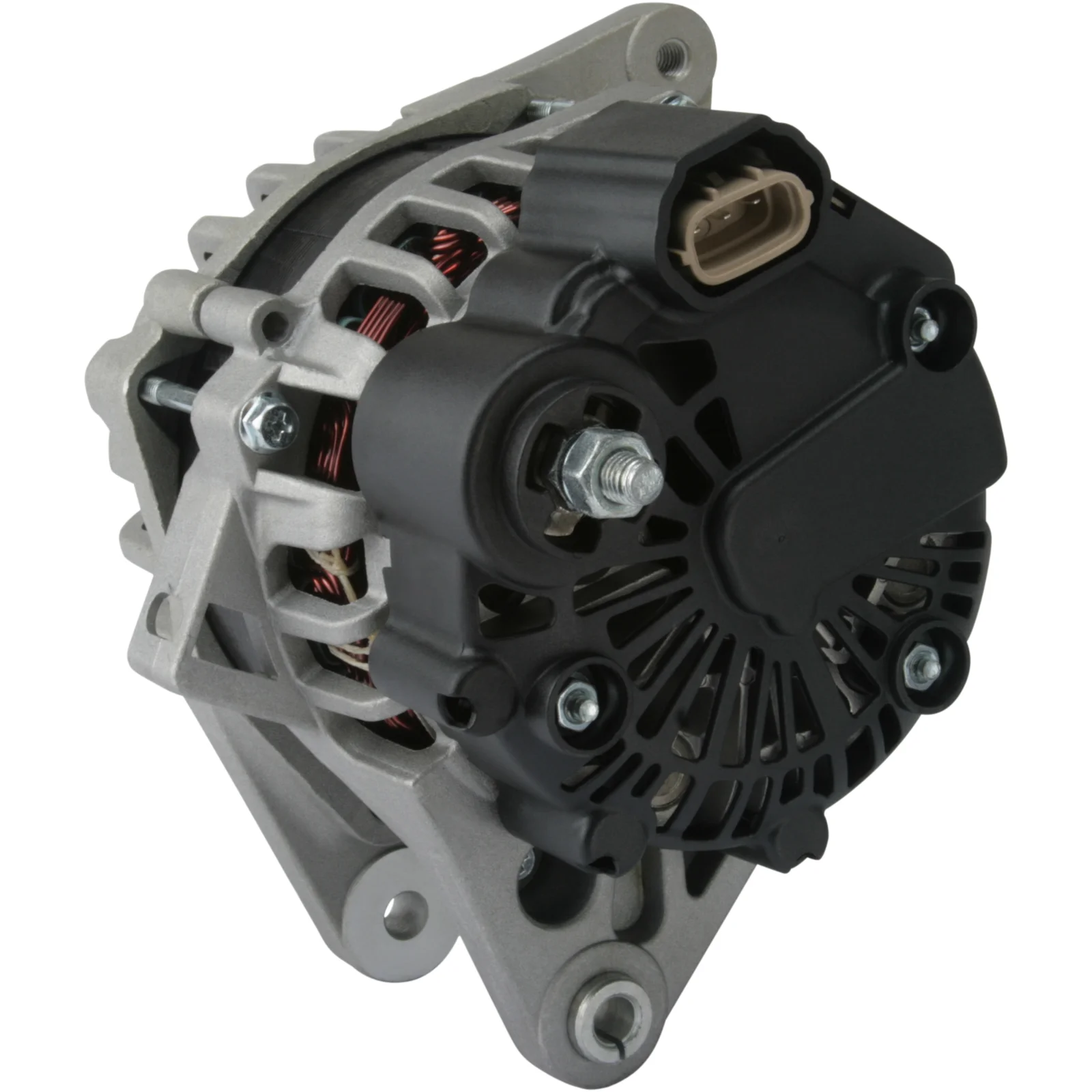

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Montering. bøsning afstand: 55.50

Beskrivelse

Spænding: 14
Amp: 90
Drevskive dist.: 35.00
Bredde/beslag arm: 13.00
Monteringsbeslag dist.: 55.50
Beslagshul: 8.50
Bælte justering beslagshul pos.: 55
Bælte justering beslagshul 1: M8
Drevskive dia.: 57.50
Riller/drevskive: 4
Radius: 90.00
Radius 2: 89.00
B+: M8
Position/B+ i min.: 46
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL133
Samlet længde mm: 178.00
Drevskive: SP
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL133
Bracket hole 8.50
Position/B+ in min. 46
Prod. info BN
Pulley SP
Pulley dia. 57.50
Pulley dist. 35.00
Radius 90.00
D+ Size Plug
Radius 2 89.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 178.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A0002655635, F032114857, 1927ir, 1986A01899, 37300-23650, 2655635

  • Konkurrentreferens
    A3233(VALEO), A9306S, CAL32129, DRA0225, DRA0225N, F042205240, F042206019, J5110536, lea0659, lra03052, 8EL738211-861, 28-5663, 224.197.902, 0986UR0803, 11311, 11311N, 113294, 210652, 210652A, 301927RI, 444361, 600162, 600737, 12060902, 0986084220

  • NormaliseratArtNr
    a0002655635, a3233valeo, a9306s, cal32129, dra0225, dra0225n, f032114857, f042205240, f042206019, j5110536, lea0659, lra03052, 8el738211861, 0986ur0803, 1927ir, 1986a01899, 11311, 11311n, 113294, 210652, 210652a, 285663, 301927ri, 444361, 600162, 600737, 2655635, 12060902, 224197902, 0986084220, 3730023650

  • Passar modeller
    Hyundai Model: Elantra Model series: Elantra Size of motor: 2.0 Brand of engine: G4GC Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
    Hyundai Model: i30 Model series: i30 CW Size of motor: 2.0 Brand of engine: G4GC-G Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC Type description: FD Body: Hatchback From date: 01-09-2008 To date: 01-11-2011 Fuel: Petrol Approved: Yes
    Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC-G Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Estate From date: 01-09-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Kia Model: Cee'd Model series: Pro Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-02-2008 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Kia Model: Pro Cee'd Model series: Pro Cee'd Model type: LPG Type of engine: BiFuel Size of motor: 2.0 Brand of engine: G4GC Type description: ED Body: Hatchback From date: 01-01-2009 To date: 01-12-2009 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Soul Model series: Soul Size of motor: 2.0 Brand of engine: G4GC Type description: AM Body: Hatchback From date: 01-09-2009 To date: 01-12-2011 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Drevskive dist.: 35.00
    Bredde/beslag arm: 13.00
    Monteringsbeslag dist.: 55.50
    Beslagshul: 8.50
    Bælte justering beslagshul pos.: 55
    Bælte justering beslagshul 1: M8
    Drevskive dia.: 57.50
    Riller/drevskive: 4
    Radius: 90.00
    Radius 2: 89.00
    B+: M8
    Position/B+ i min.: 46
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL133
    Samlet længde mm: 178.00
    Drevskive: SP
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL133
    Bracket hole 8.50
    Position/B+ in min. 46
    Prod. info BN
    Pulley SP
    Pulley dia. 57.50
    Pulley dist. 35.00
    Radius 90.00
    D+ Size Plug
    Radius 2 89.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 13.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      A0002655635, F032114857, 1927ir, 1986A01899, 37300-23650, 2655635

    • Konkurrentreferens
      A3233(VALEO), A9306S, CAL32129, DRA0225, DRA0225N, F042205240, F042206019, J5110536, lea0659, lra03052, 8EL738211-861, 28-5663, 224.197.902, 0986UR0803, 11311, 11311N, 113294, 210652, 210652A, 301927RI, 444361, 600162, 600737, 12060902, 0986084220

    • NormaliseratArtNr
      a0002655635, a3233valeo, a9306s, cal32129, dra0225, dra0225n, f032114857, f042205240, f042206019, j5110536, lea0659, lra03052, 8el738211861, 0986ur0803, 1927ir, 1986a01899, 11311, 11311n, 113294, 210652, 210652a, 285663, 301927ri, 444361, 600162, 600737, 2655635, 12060902, 224197902, 0986084220, 3730023650

    • Passar modeller
      Hyundai Model: Elantra Model series: Elantra Size of motor: 2.0 Brand of engine: G4GC Body: Estate Fuel: Petrol Approved: Yes Manufacture type: Estate
      Hyundai Model: i30 Model series: i30 CW Size of motor: 2.0 Brand of engine: G4GC-G Body: Estate From date: 01-02-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC Type description: FD Body: Hatchback From date: 01-09-2008 To date: 01-11-2011 Fuel: Petrol Approved: Yes
      Hyundai Model: i30 Model series: i30 Size of motor: 2.0 Brand of engine: G4GC-G Body: Hatchback From date: 01-10-2007 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Estate From date: 01-09-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Kia Model: Cee'd Model series: Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-12-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Kia Model: Cee'd Model series: Pro Cee'd Size of motor: 2.0 Brand of engine: G4GC Body: Hatchback From date: 01-02-2008 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Kia Model: Pro Cee'd Model series: Pro Cee'd Model type: LPG Type of engine: BiFuel Size of motor: 2.0 Brand of engine: G4GC Type description: ED Body: Hatchback From date: 01-01-2009 To date: 01-12-2009 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Soul Model series: Soul Size of motor: 2.0 Brand of engine: G4GC Type description: AM Body: Hatchback From date: 01-09-2009 To date: 01-12-2011 Fuel: Petrol Approved: Yes
      1 / 2
