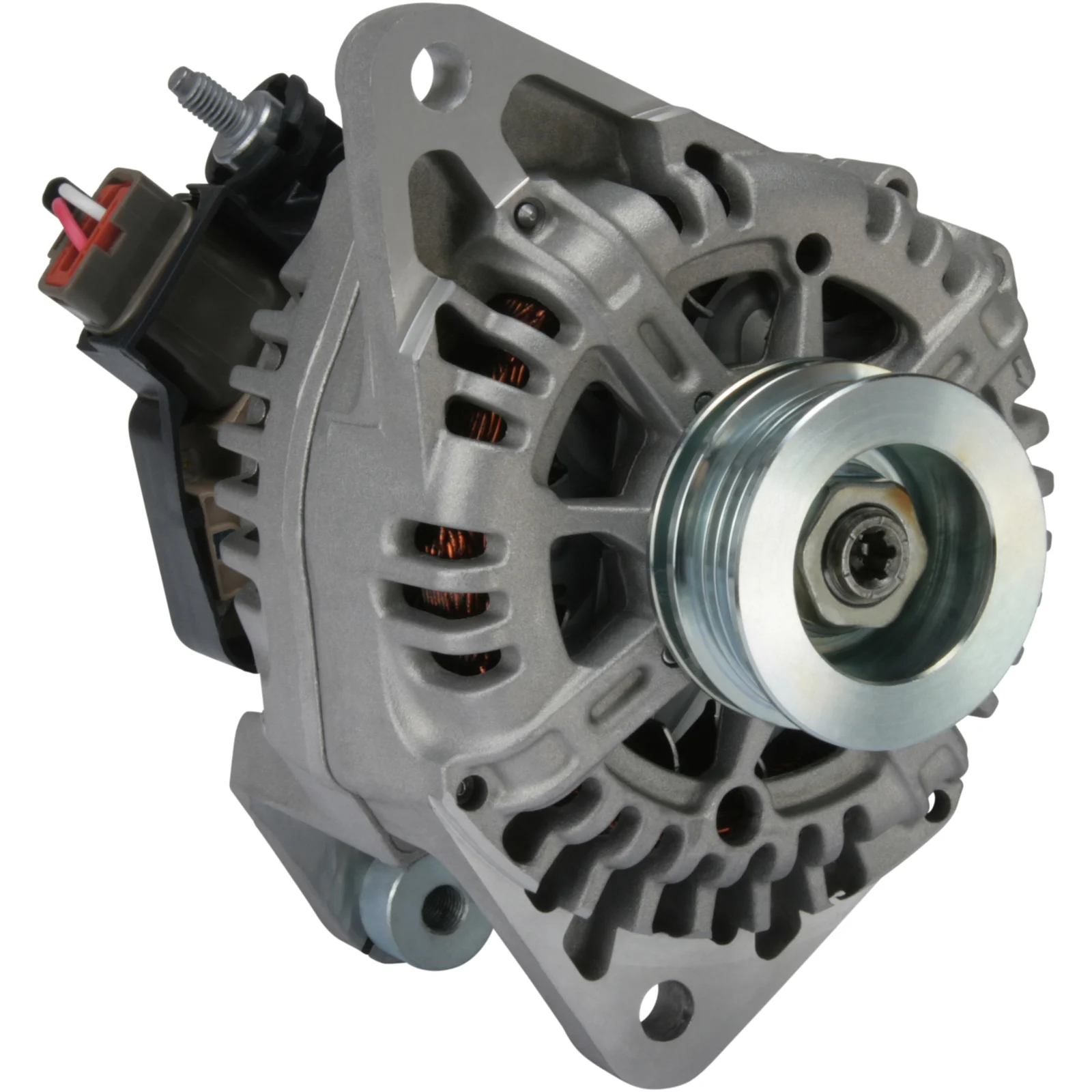

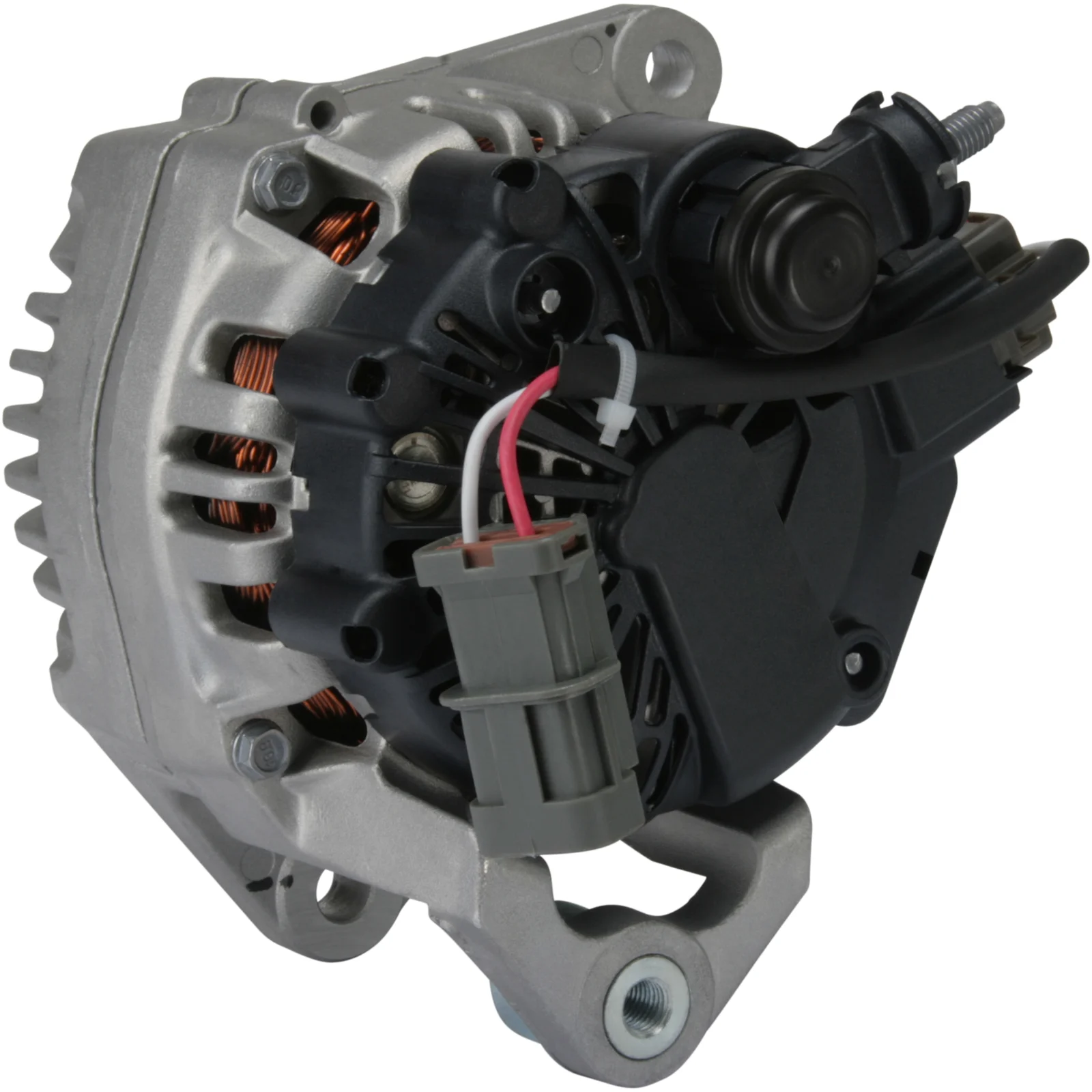

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114877

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag for fordelingskasse: 68,00

Beskrivelse

Spænding: 14
Amp: 80
Drevskive dist.: 45.50
Bredde/holderarm: 13.00
Mount. hængsel afstand: 68.00
Hængselhul: 10.50
Bælte. reguleringshængsels hul position: 50
Bælte. reguleringshængsels hul 1: 10.50
Drevskive dia.: 55.00
Riller/drevskive: 4
Radius: 85.00
Radius 2: 93.00
B+: M8
Position/B+ i min.: 5
D+ Størrelse: Plug
Rotation: CW
Plug nr.: PL100
Total længde mm: 180.00
Drevskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 68.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 50
Plug no. PL100
Bracket hole 10.50
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 45.50
Radius 85.00
D+ Size Plug
Radius 2 93.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 180.00 mm
Width/holder arm 13.00
Amp 80

  • OEM
    F032114877, ja1725ir, tg8c011, 23100-ax600, 2542694, 2542694A, 2542694B

  • Konkurrentreferens
    A3191, A3191PR, CAL15293, DRA4289, J5111105, LRA02353, 8EL012429-641, 28-4855, 227.189.802, 23353, 23353N, 112162, 210857, 210857A, 401725RI, 437455, 439490, 9213492, 12060812, 0986083590, 0986084210, 944390903530

  • NormaliseratArtNr
    a3191, a3191pr, cal15293, dra4289, f032114877, j5111105, ja1725ir, lra02353, tg8c011, 8el012429641, 23100ax600, 23353, 23353n, 112162, 210857, 210857a, 284855, 401725ri, 437455, 439490, 2542694, 2542694a, 2542694b, 9213492, 12060812, 227189802, 0986083590, 0986084210, 944390903530

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Drevskive dist.: 45.50
    Bredde/holderarm: 13.00
    Mount. hængsel afstand: 68.00
    Hængselhul: 10.50
    Bælte. reguleringshængsels hul position: 50
    Bælte. reguleringshængsels hul 1: 10.50
    Drevskive dia.: 55.00
    Riller/drevskive: 4
    Radius: 85.00
    Radius 2: 93.00
    B+: M8
    Position/B+ i min.: 5
    D+ Størrelse: Plug
    Rotation: CW
    Plug nr.: PL100
    Total længde mm: 180.00
    Drevskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 68.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 50
    Plug no. PL100
    Bracket hole 10.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 45.50
    Radius 85.00
    D+ Size Plug
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 13.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032114877, ja1725ir, tg8c011, 23100-ax600, 2542694, 2542694A, 2542694B

    • Konkurrentreferens
      A3191, A3191PR, CAL15293, DRA4289, J5111105, LRA02353, 8EL012429-641, 28-4855, 227.189.802, 23353, 23353N, 112162, 210857, 210857A, 401725RI, 437455, 439490, 9213492, 12060812, 0986083590, 0986084210, 944390903530

    • NormaliseratArtNr
      a3191, a3191pr, cal15293, dra4289, f032114877, j5111105, ja1725ir, lra02353, tg8c011, 8el012429641, 23100ax600, 23353, 23353n, 112162, 210857, 210857a, 284855, 401725ri, 437455, 439490, 2542694, 2542694a, 2542694b, 9213492, 12060812, 227189802, 0986083590, 0986084210, 944390903530

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CG12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: 16V Size of motor: 1.2 Brand of engine: CR12DE Type description: K12 Body: Hatchback From date: 01-01-2003 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
