Vare nr.: F032114894

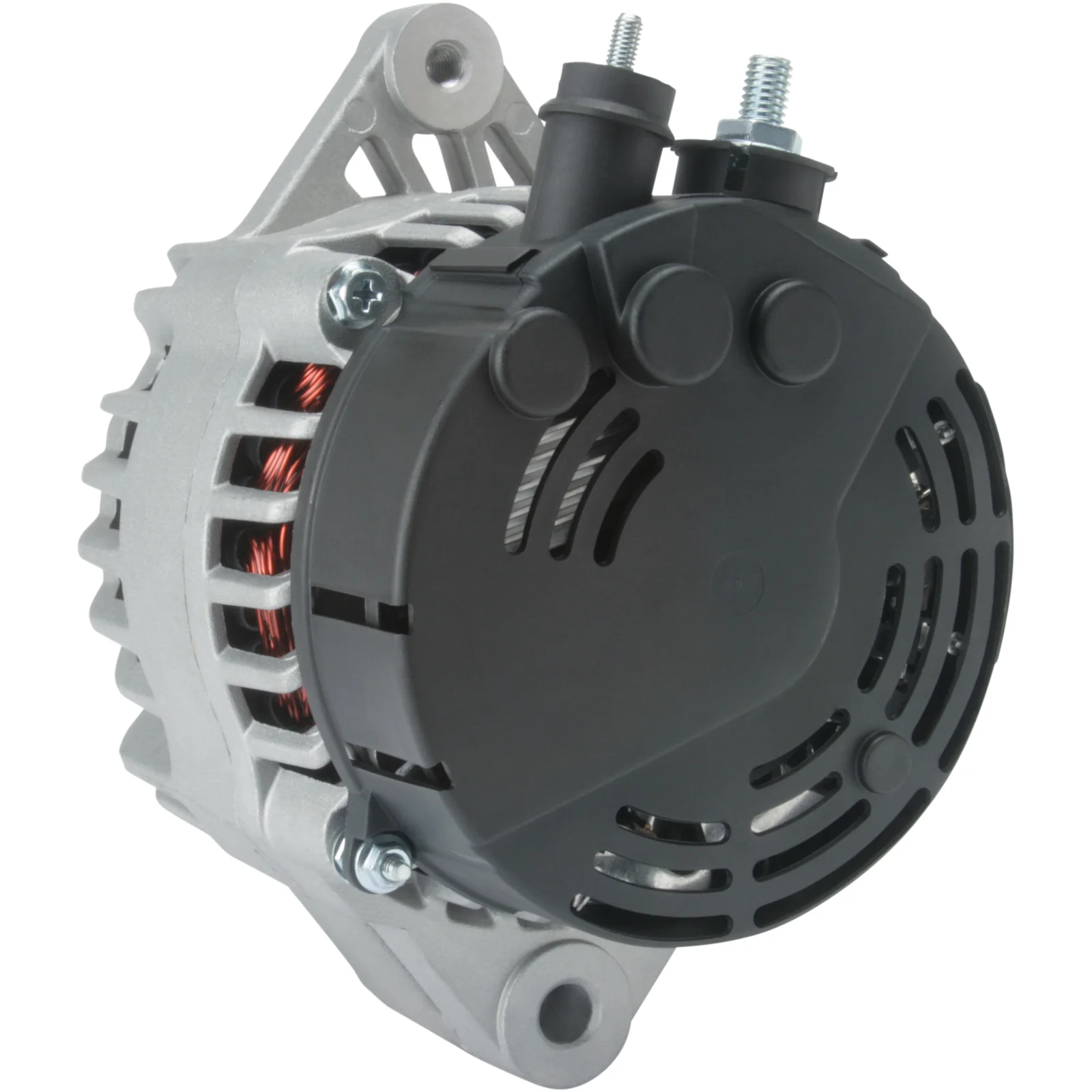

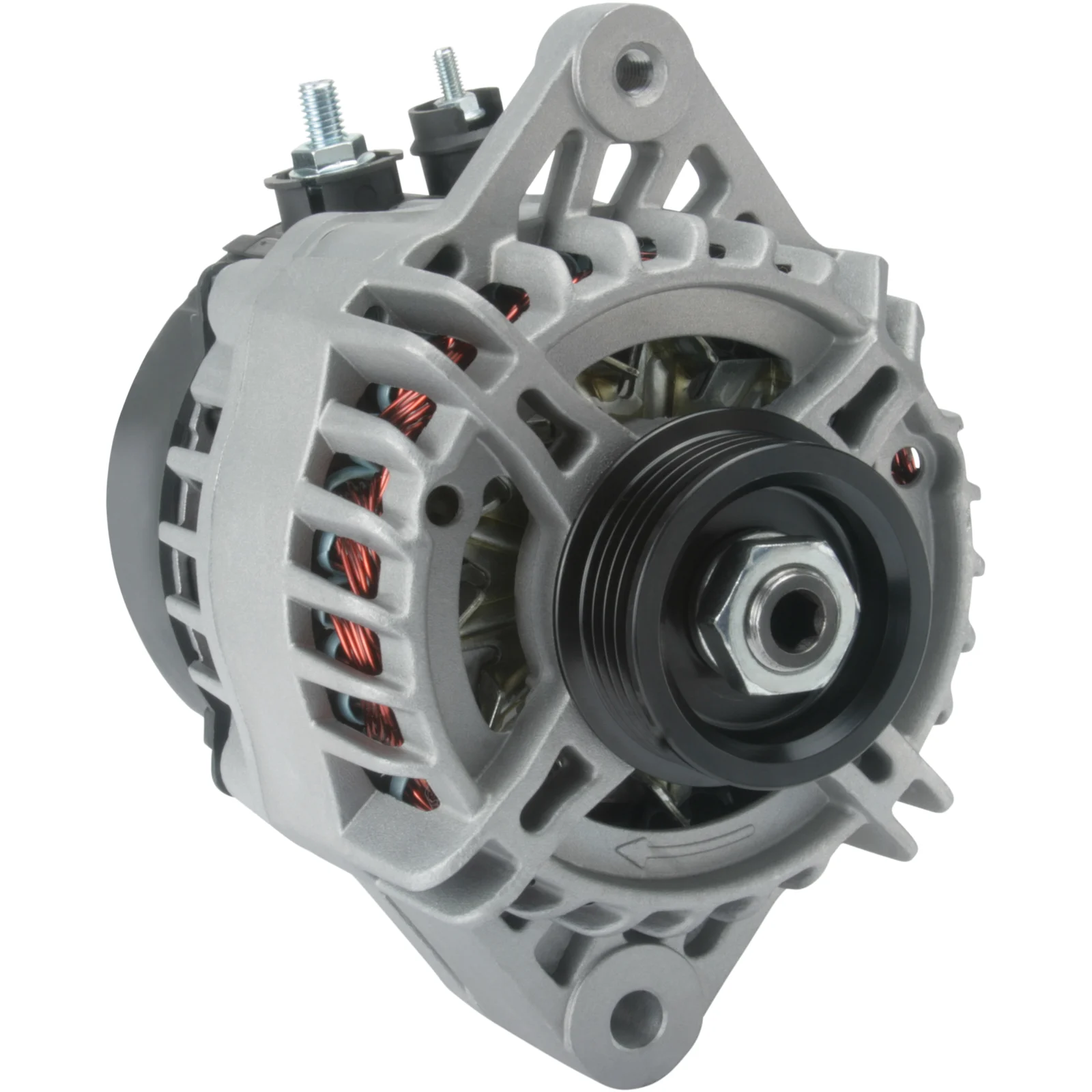

HC-Cargo Generator

Tekniske oplysninger:

Fakta: 14, Amp: 60, Rotation: CW, Remskiva dia.: 55.00

Beskrivelse

Spænding: 14
Amp: 60
Remskiva dist.: 90.50
Bredde/holderarm: 58.00
Bøjlehull: 10.50
Remskive. just. bøjlehull pos.: 60
Remskive. just. bøjlehull 1: M8
Remskive dia.: 55.00
Grove/remskive: 4
Radius: 80.00
Radius 2: 84.00
B+: M8
Position/B+: i min.: 2
D+ Størrelse: M5
Rotation: med uret
Samlet længde mm: 172.00
Remskive: SP
Regulator type: IR
Produktion info: BN

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.50
Position/B+ in min. 2
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.50
Radius 80.00
D+ Size M5
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 172.00 mm
Width/holder arm 58.00
Amp 60
  • OEM

    F032114894, 31400-80E10, 31400-83e10, 63321774, 63321832, 63351774
  • Konkurrentreferens

    A4097, LRA02330, 28-4827, 21240R, 12060976
  • NormaliseratArtNr

    a4097, f032114894, lra02330, 21240r, 284827, 3140080e10, 3140083e10, 12060976, 63321774, 63321832, 63351774
  • Passar modeller

    Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13BB Type description: EA,MA Body: Hatchback From date: 01-06-2001 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Swift Model series: Swift Type of engine: i Size of motor: 1.0 Brand of engine: G10A Type description: SF310,AA44 Body: Hatchback From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Wagon Model series: Wagon R Size of motor: 1.0 Brand of engine: G10A Body: MPV From date: 01-07-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 60
    Remskiva dist.: 90.50
    Bredde/holderarm: 58.00
    Bøjlehull: 10.50
    Remskive. just. bøjlehull pos.: 60
    Remskive. just. bøjlehull 1: M8
    Remskive dia.: 55.00
    Grove/remskive: 4
    Radius: 80.00
    Radius 2: 84.00
    B+: M8
    Position/B+: i min.: 2
    D+ Størrelse: M5
    Rotation: med uret
    Samlet længde mm: 172.00
    Remskive: SP
    Regulator type: IR
    Produktion info: BN
  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Bracket hole 10.50
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 90.50
    Radius 80.00
    D+ Size M5
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 58.00
    Amp 60
  • Køretøjsmatchning
    • OEM

      F032114894, 31400-80E10, 31400-83e10, 63321774, 63321832, 63351774
    • Konkurrentreferens

      A4097, LRA02330, 28-4827, 21240R, 12060976
    • NormaliseratArtNr

      a4097, f032114894, lra02330, 21240r, 284827, 3140080e10, 3140083e10, 12060976, 63321774, 63321832, 63351774
    • Passar modeller

      Suzuki Model: Swift Model series: Swift Size of motor: 1.3 Brand of engine: G13BB Type description: EA,MA Body: Hatchback From date: 01-06-2001 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
      Suzuki Model: Swift Model series: Swift Type of engine: i Size of motor: 1.0 Brand of engine: G10A Type description: SF310,AA44 Body: Hatchback From date: 01-01-1995 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Suzuki Model: Wagon Model series: Wagon R Size of motor: 1.0 Brand of engine: G10A Body: MPV From date: 01-07-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
