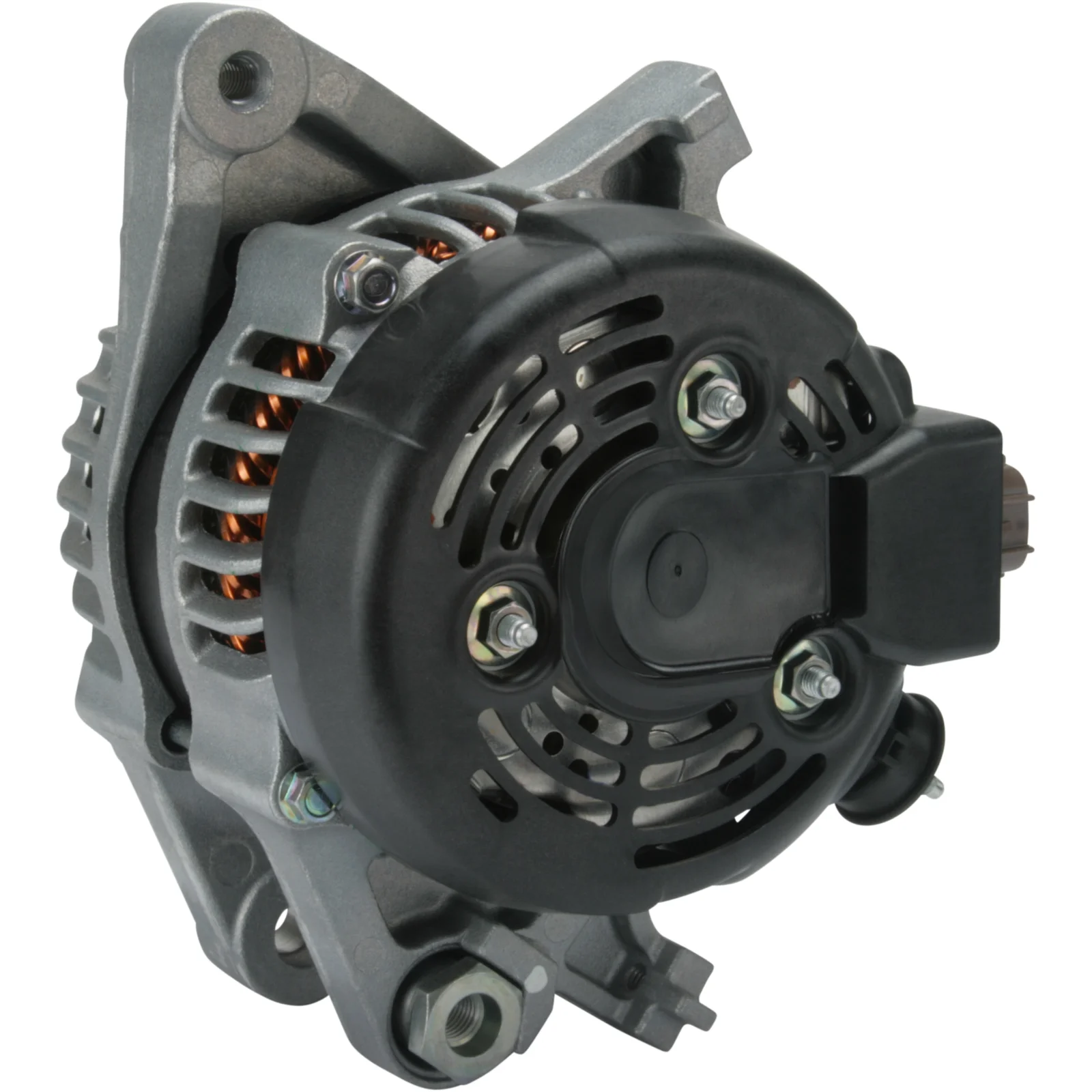

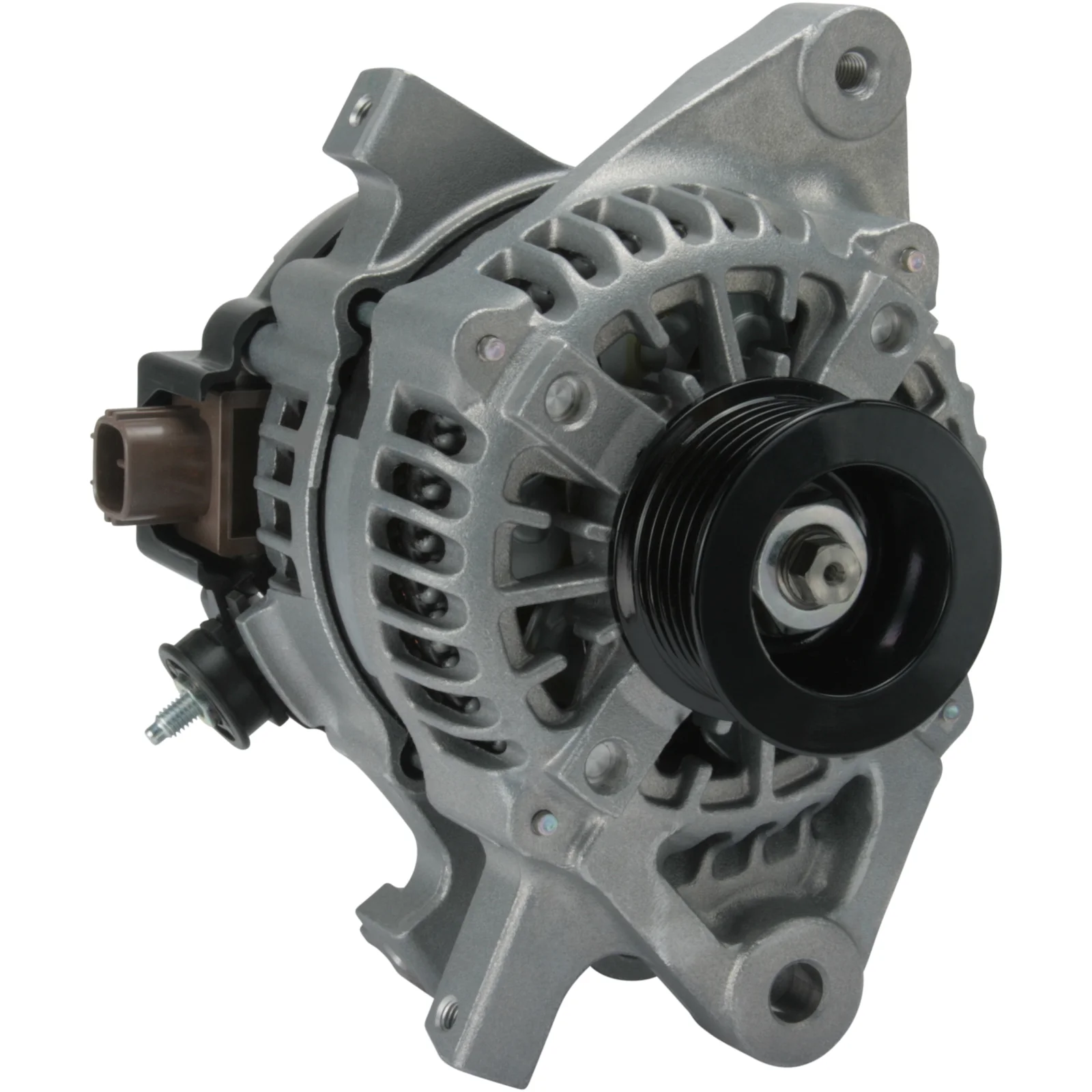

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114897

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsholder forfordelerrør: 36,30

Beskrivelse

Spænding: 14
Amp: 80
Remskive dist.: 29,50
Bredde/holderarm: 19,00
Monteringsbeslag dist.: 36,30
Beslags hul: 11,00
Bæltejustering beslags hul position.: 7
Bæltejustering beslags hul 1: M8
Remskive dia.: 52,50
Grotter/remskive: 6
Radius: 85,00
Radius 2: 83,00
B+: M6
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL146
Remskive: SP
Blæser: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 36.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 52.50
Pulley dist. 29.50
Radius 85.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Width/holder arm 19.00
Amp 80

  • OEM
    F032114897, TG1042109290, 1986A00644, 2125ir, 27060-0H151, 27060-0y010, 27060-0y030, 27060-47050, 104210-8350, 104210-8351, 104210-9250, 104210-9290

  • Konkurrentreferens
    A4088, A4088(MM), A6068, A6068(DENSO), A6379(DENSO), CAL40298, CAL40311, DAN1024, DAN1025, DENDAN1025, DRA0692, DRA0693, LRA03345, MAN7544, 28-5957, 195.909.090, 195.939.080, 235.329.802, 24104R, 210765, 210765A, 210840, 210840A, 553472RI, 553478RI, 9090831, 12060922, 12061043, 0986082360, 063377544010, 063377545010

  • NormaliseratArtNr
    a4088, a4088mm, a6068, a6068denso, a6379denso, cal40298, cal40311, dan1024, dan1025, dendan1025, dra0692, dra0693, f032114897, lra03345, man7544, tg1042109290, 1986a00644, 2125ir, 24104r, 210765, 210765a, 210840, 210840a, 270600h151, 270600y010, 270600y030, 285957, 553472ri, 553478ri, 9090831, 12060922, 12061043, 195909090, 195939080, 235329802, 0986082360, 1042108350, 1042108351, 1042109250, 1042109290, 2706047050, 063377544010, 063377545010

  • Passar modeller
    Daihatsu Model: Charade Model series: Charade Type of engine: 16V Size of motor: 1.3 Brand of engine: 1NR-FE Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP90 Body: Hatchback From date: 01-11-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P9_ Body: Hatchback From date: 01-07-2010 To date: 01-05-2011 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Remskive dist.: 29,50
    Bredde/holderarm: 19,00
    Monteringsbeslag dist.: 36,30
    Beslags hul: 11,00
    Bæltejustering beslags hul position.: 7
    Bæltejustering beslags hul 1: M8
    Remskive dia.: 52,50
    Grotter/remskive: 6
    Radius: 85,00
    Radius 2: 83,00
    B+: M6
    Position/B+ i min.: 20
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL146
    Remskive: SP
    Blæser: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 36.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 52.50
    Pulley dist. 29.50
    Radius 85.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 19.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032114897, TG1042109290, 1986A00644, 2125ir, 27060-0H151, 27060-0y010, 27060-0y030, 27060-47050, 104210-8350, 104210-8351, 104210-9250, 104210-9290

    • Konkurrentreferens
      A4088, A4088(MM), A6068, A6068(DENSO), A6379(DENSO), CAL40298, CAL40311, DAN1024, DAN1025, DENDAN1025, DRA0692, DRA0693, LRA03345, MAN7544, 28-5957, 195.909.090, 195.939.080, 235.329.802, 24104R, 210765, 210765A, 210840, 210840A, 553472RI, 553478RI, 9090831, 12060922, 12061043, 0986082360, 063377544010, 063377545010

    • NormaliseratArtNr
      a4088, a4088mm, a6068, a6068denso, a6379denso, cal40298, cal40311, dan1024, dan1025, dendan1025, dra0692, dra0693, f032114897, lra03345, man7544, tg1042109290, 1986a00644, 2125ir, 24104r, 210765, 210765a, 210840, 210840a, 270600h151, 270600y010, 270600y030, 285957, 553472ri, 553478ri, 9090831, 12060922, 12061043, 195909090, 195939080, 235329802, 0986082360, 1042108350, 1042108351, 1042109250, 1042109290, 2706047050, 063377544010, 063377545010

    • Passar modeller
      Daihatsu Model: Charade Model series: Charade Type of engine: 16V Size of motor: 1.3 Brand of engine: 1NR-FE Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP90 Body: Hatchback From date: 01-11-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P9_ Body: Hatchback From date: 01-07-2010 To date: 01-05-2011 Fuel: Gasoline Approved: Yes
