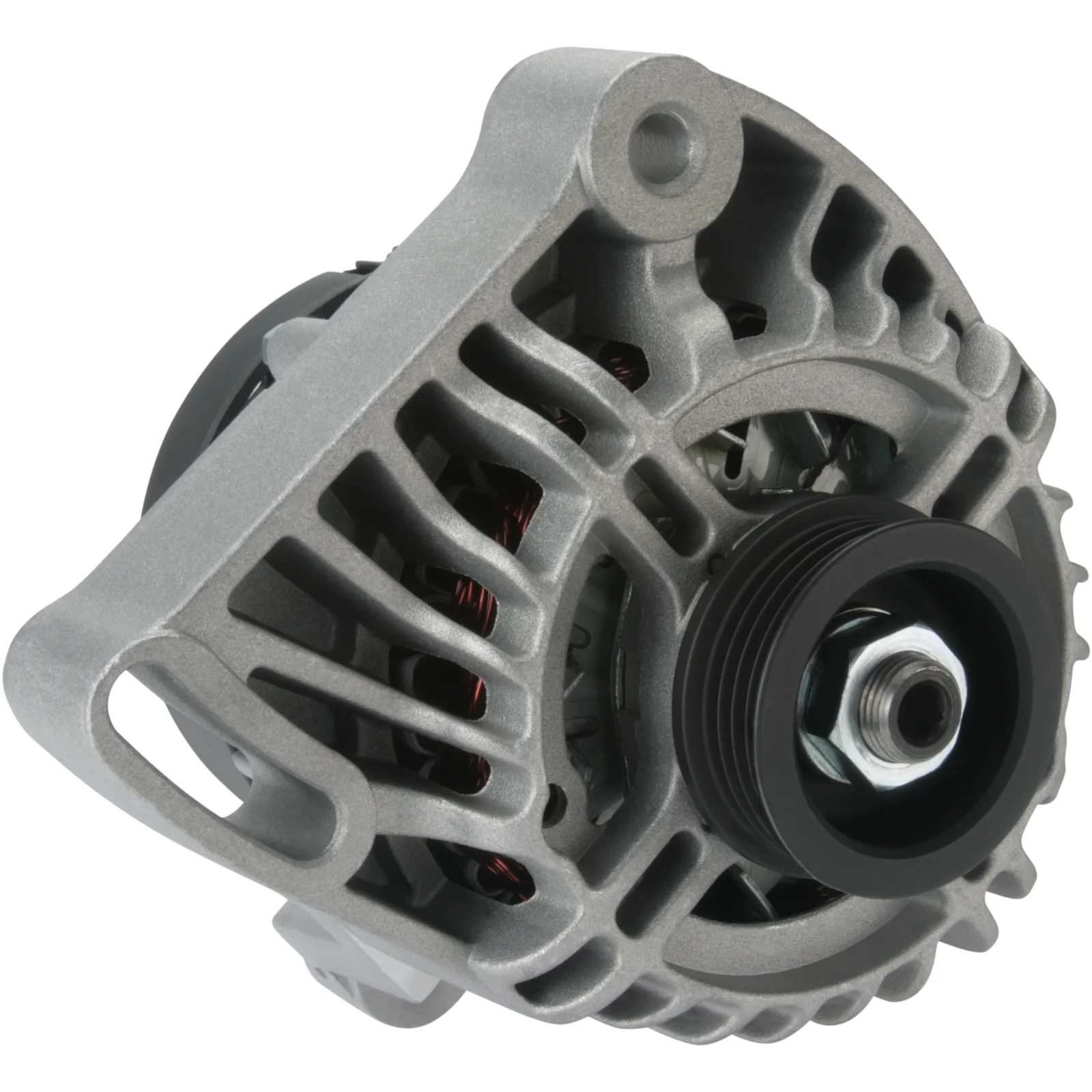

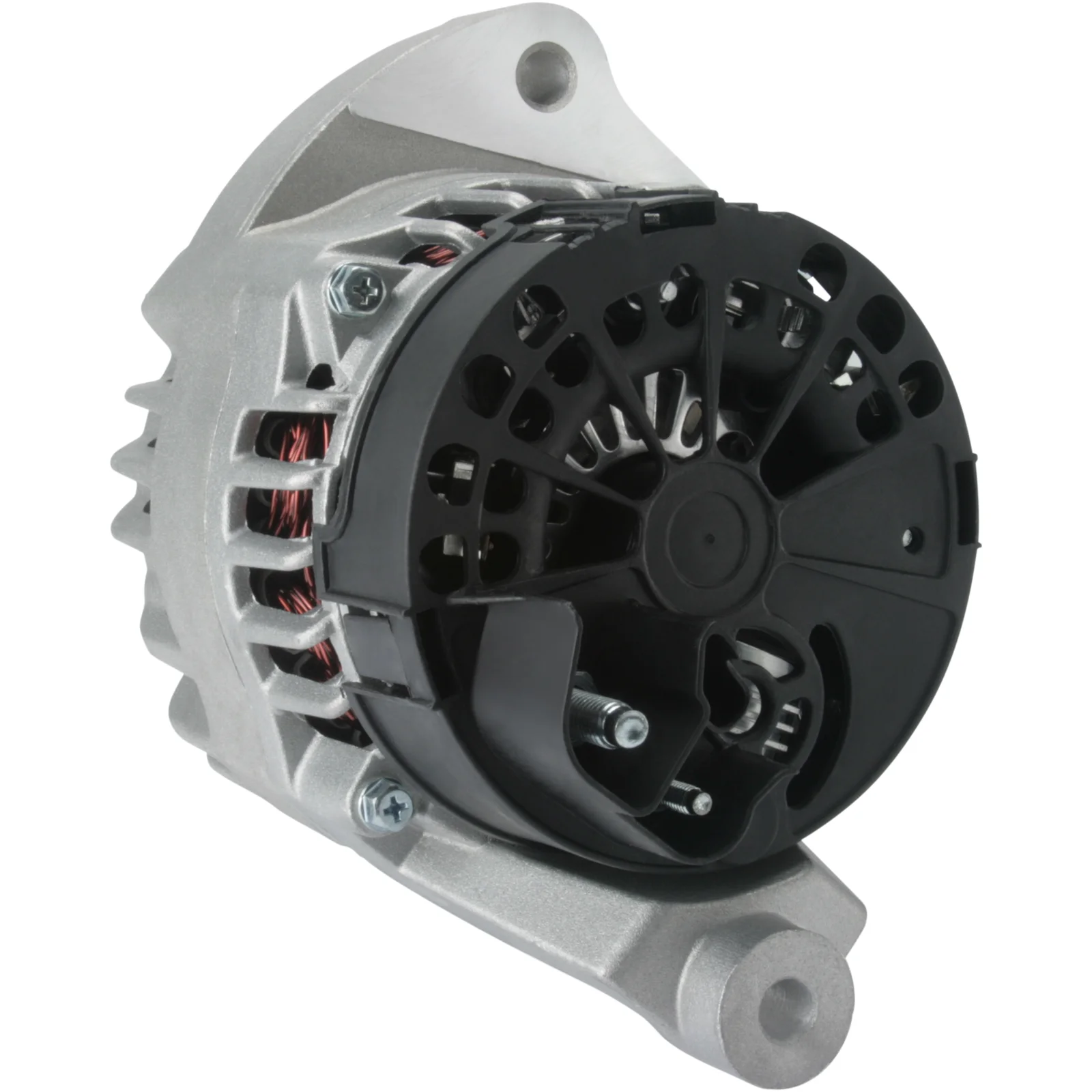

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114899

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Bælteskive diameter: 55.00

Beskrivelse

Voltage: 14
Amp.: 70
Remskive dist.: 55.00
Bredde/beslag arm: 32.00
Bøjlehuls: 10.30
Båndreg. justeringshuls position.: 16
Båndreg. justeringshuls 1: 10.50
Remskivens diameter: 55.00
Riller/remskive: 4
Radius: 84.50
Radius 2: 106.00
B+: M8
Position/B+ i min.: 7
D+ Størrelse: M5
Rotation: med uret
Samlet længde mm: 184.00
Remskive: SP
Kølevifte: IF
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 16
Bracket hole 10.30
Position/B+ in min. 7
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 55.00
Radius 84.50
D+ Size M5
Radius 2 106.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 4
Voltage 14
Total length 184.00 mm
Width/holder arm 32.00
Amp 70

  • OEM
    F032114899, 1844ir, 1986A02005, 102211-8220, 102211-8221, 46554402, 46554405, 46813065, 46816029, 46843093, 51859047, 63321761, 63321869, 63377001

  • Konkurrentreferens
    A4003PR4, A4124PR, A6700PR, CAL30189, DRA0860, GA16600, MAN7001, 8EL012429-351, 8EL749555-001, 218.129.752, 4385, 23099N, 200316, 210746, 210746A, 210756, 210756A, 301844RI, 440783, 440893, 443107, 9212731, 12090173, 12090897, 32080490, 0986080490, 063377001010

  • NormaliseratArtNr
    a4003pr4, a4124pr, a6700pr, cal30189, dra0860, f032114899, ga16600, man7001, 8el012429351, 8el749555001, 1844ir, 1986a02005, 4385, 23099n, 200316, 210746, 210746a, 210756, 210756a, 301844ri, 440783, 440893, 443107, 9212731, 12090173, 12090897, 32080490, 46554402, 46554405, 46813065, 46816029, 46843093, 51859047, 63321761, 63321869, 63377001, 218129752, 0986080490, 1022118220, 1022118221, 063377001010

  • Passar modeller
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 8V Size of motor: 1.2 Brand of engine: 223A5.000 Type description: 223AXA1A Body: MPV From date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 8V Size of motor: 1.2 Brand of engine: 223A5.000 Type description: 223ZXA1A Body: Van From date: 01-03-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Estate From date: 01-04-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 169 Body: Hatchback From date: 01-10-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: X Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 141_ Body: Van From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.1 Brand of engine: 187A.1000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 169 Body: Twin Cab From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.2 Brand of engine: 188A.4000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 141_ Body: Van From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Model type: Bipower Type of engine: Bifuel Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Hatchback From date: 01-08-2001 To date: 01-05-2003 Fuel: Diesel/Electro Approved: Yes
    Fiat Model: Punto Model series: Punto Model type: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Box From date: 01-01-2003 To date: 01-12-2010 Fuel: LNG Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-1999 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188AX Body: Van From date: 01-02-2000 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-2003 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 176B2.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Strada Model series: Strada Size of motor: 1.2 Brand of engine: 178B5.000 Body: Pick Up From date: 01-06-1999 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Size of motor: 1.2 Brand of engine: 188A4.000 Body: Hatchback From date: 01-10-2003 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Size of motor: 1.2 Brand of engine: 188A5.000 Body: Hatchback From date: 01-10-2003 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Voltage: 14
    Amp.: 70
    Remskive dist.: 55.00
    Bredde/beslag arm: 32.00
    Bøjlehuls: 10.30
    Båndreg. justeringshuls position.: 16
    Båndreg. justeringshuls 1: 10.50
    Remskivens diameter: 55.00
    Riller/remskive: 4
    Radius: 84.50
    Radius 2: 106.00
    B+: M8
    Position/B+ i min.: 7
    D+ Størrelse: M5
    Rotation: med uret
    Samlet længde mm: 184.00
    Remskive: SP
    Kølevifte: IF
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 16
    Bracket hole 10.30
    Position/B+ in min. 7
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 55.00
    Radius 84.50
    D+ Size M5
    Radius 2 106.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 4
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 32.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032114899, 1844ir, 1986A02005, 102211-8220, 102211-8221, 46554402, 46554405, 46813065, 46816029, 46843093, 51859047, 63321761, 63321869, 63377001

    • Konkurrentreferens
      A4003PR4, A4124PR, A6700PR, CAL30189, DRA0860, GA16600, MAN7001, 8EL012429-351, 8EL749555-001, 218.129.752, 4385, 23099N, 200316, 210746, 210746A, 210756, 210756A, 301844RI, 440783, 440893, 443107, 9212731, 12090173, 12090897, 32080490, 0986080490, 063377001010

    • NormaliseratArtNr
      a4003pr4, a4124pr, a6700pr, cal30189, dra0860, f032114899, ga16600, man7001, 8el012429351, 8el749555001, 1844ir, 1986a02005, 4385, 23099n, 200316, 210746, 210746a, 210756, 210756a, 301844ri, 440783, 440893, 443107, 9212731, 12090173, 12090897, 32080490, 46554402, 46554405, 46813065, 46816029, 46843093, 51859047, 63321761, 63321869, 63377001, 218129752, 0986080490, 1022118220, 1022118221, 063377001010

    • Passar modeller
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 8V Size of motor: 1.2 Brand of engine: 223A5.000 Type description: 223AXA1A Body: MPV From date: 01-03-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 8V Size of motor: 1.2 Brand of engine: 223A5.000 Type description: 223ZXA1A Body: Van From date: 01-03-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Estate From date: 01-04-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 169 Body: Hatchback From date: 01-10-2004 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: X Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 141_ Body: Van From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 1.1 Brand of engine: 187A.1000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 169 Body: Twin Cab From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 1.2 Brand of engine: 188A.4000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 141_ Body: Van From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Model type: Bipower Type of engine: Bifuel Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Hatchback From date: 01-08-2001 To date: 01-05-2003 Fuel: Diesel/Electro Approved: Yes
      Fiat Model: Punto Model series: Punto Model type: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Box From date: 01-01-2003 To date: 01-12-2010 Fuel: LNG Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-1999 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188AX Body: Van From date: 01-02-2000 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-2003 To date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 176B2.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Strada Model series: Strada Size of motor: 1.2 Brand of engine: 178B5.000 Body: Pick Up From date: 01-06-1999 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Size of motor: 1.2 Brand of engine: 188A4.000 Body: Hatchback From date: 01-10-2003 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Size of motor: 1.2 Brand of engine: 188A5.000 Body: Hatchback From date: 01-10-2003 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
