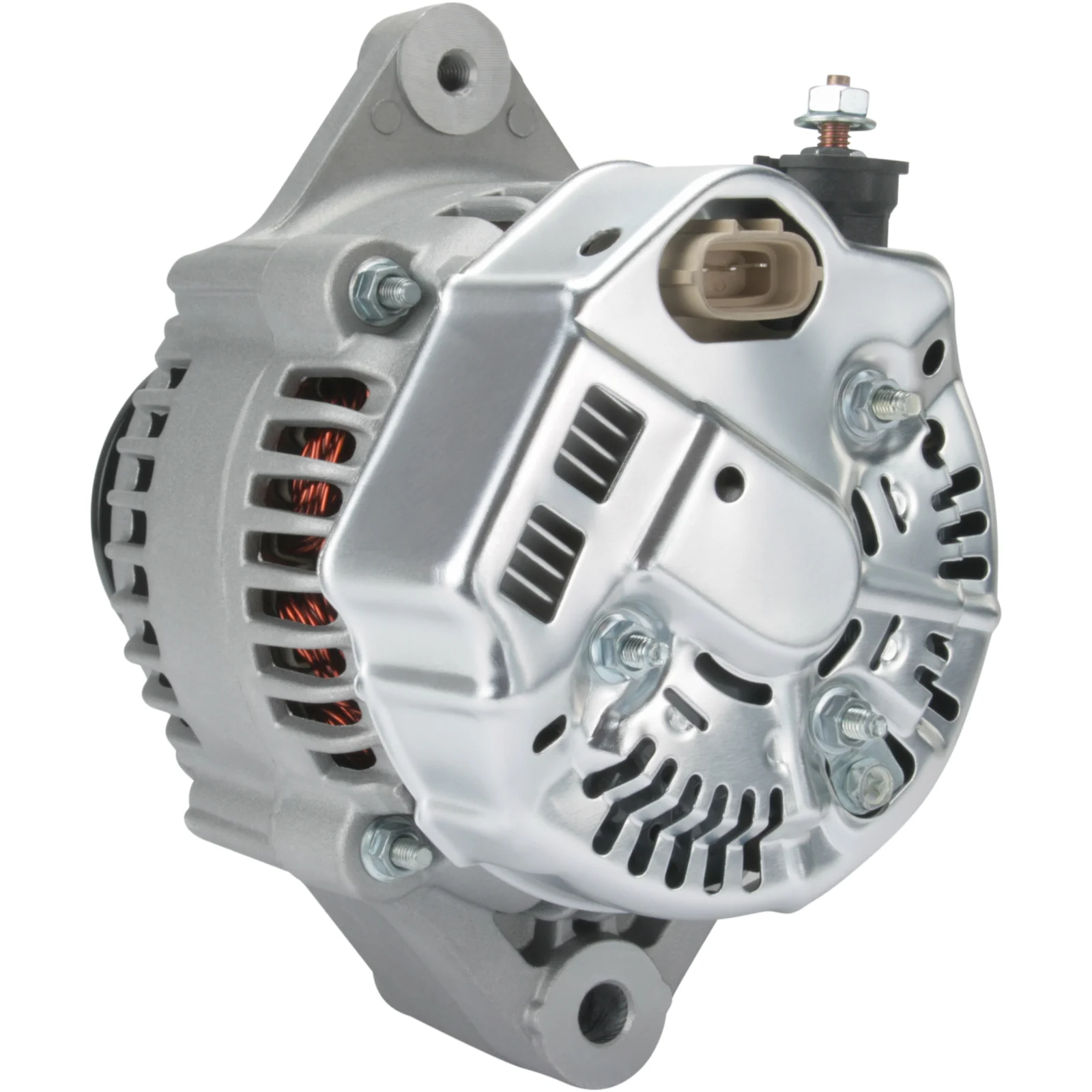

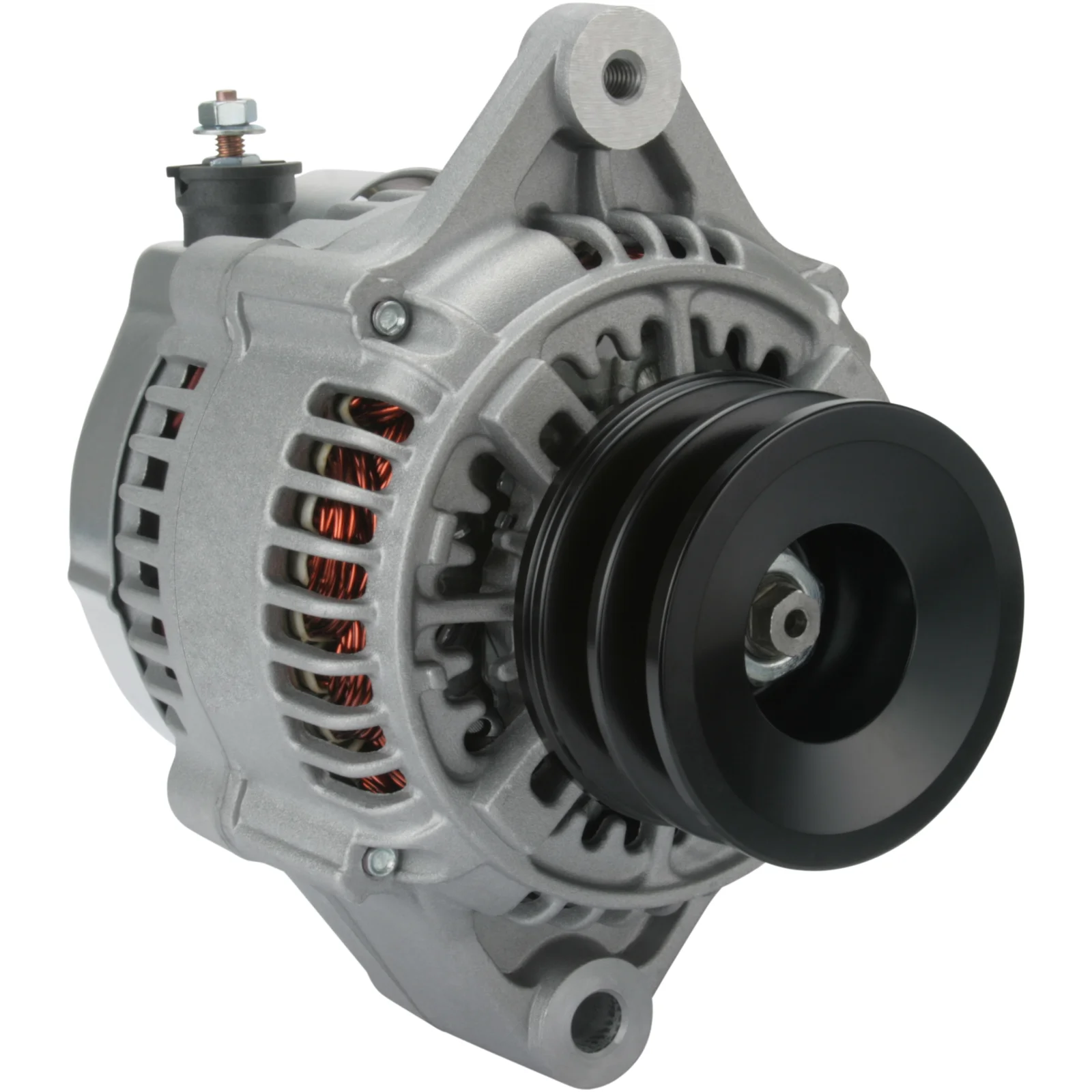

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114902

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Remskive dia.: 70,50

Beskrivelse

Spænding: 14
Amp: 90
Drevskive afstand: 95,50
Bredde/holder arm: 58,00
Klampehullet: 10,00
Bæltespændingsjustering klampehulens pos.: 60
Bæltespændingsjustering klampehul 1: M8
Drevskive diameter: 70,50
Riller/drevskive: 2
Radie: 83,50
Radie 2: 78,50
B+: M8
Position/B+ i min.: 3
D+: Stik
Rotation: uret
Stik nr.: PL128
W stiktype: Stik
Samlet længde mm: 174,00
Drevskive: DP
Produktoplysninger: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL128
Bracket hole 10.00
Position/B+ in min. 3
Prod. info BN
Pulley DP
Pulley dia. 70.50
Pulley dist. 95.50
Radius 83.50
D+ Size Plug
Radius 2 78.50
Rotation CW
Grooves/pulley 2
Voltage 14
W plug type Plug
Total length 174.00 mm
Width/holder arm 58.00
Amp 90

  • OEM
    F032114902, 32868-03201, 102211-1830, 102211-9010

  • Konkurrentreferens
    A6679(DENSO), 645.506.090, 11633, 11633N

  • NormaliseratArtNr
    a6679denso, f032114902, 11633, 11633n, 645506090, 1022111830, 1022119010, 3286803201

  • Passar modeller
    Caterpillar Model: 302.5C Model series: 302.5C Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Caterpillar Model: Skid Steer Loader Model series: 248B Brand of engine: 3044T Approved: Yes
    Hyundai Model: R27Z-9 Model series: R27Z-9 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Ingersoll-Rand Model: G11ME Model series: G11ME Model type: Generator Sets Brand of engine: S3L2 Approved: Yes
    Mahindra Model: 2516 4WD HST/SHUTTLE Model series: 2516 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: 3016 4WD HST/SHUTTLE Model series: 3016 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: MAX 25 4WD HST Model series: MAX 25 4WD HST Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mahindra Model: MAX 28XL 4WD HST/SHUTTLE Model series: MAX 28XL 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: GS231 Model series: GS231 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: GS251 Model series: GS251 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MM25T Model series: MM25T Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MM30T Model series: MM30T Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MT2600 Model series: MT2600 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: MT28 & MT28H Model series: MT28 & MT28H Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: V325 Model series: V325 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VS329 Model series: VS329 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VS334 Model series: VS334 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Mitsubishi Model: VY434 Model series: VY434 Model type: Combines Brand of engine: S3L2 Approved: Yes
    Terex Model: TC25 Model series: TC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: EB 300 SRS Model series: EB 300 SRS Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: EC25 Model series: EC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    Volvo Model: VOLVO EC30 Model series: VOLVO EC30 Model type: Excavators Brand of engine: S3L2 Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Drevskive afstand: 95,50
    Bredde/holder arm: 58,00
    Klampehullet: 10,00
    Bæltespændingsjustering klampehulens pos.: 60
    Bæltespændingsjustering klampehul 1: M8
    Drevskive diameter: 70,50
    Riller/drevskive: 2
    Radie: 83,50
    Radie 2: 78,50
    B+: M8
    Position/B+ i min.: 3
    D+: Stik
    Rotation: uret
    Stik nr.: PL128
    W stiktype: Stik
    Samlet længde mm: 174,00
    Drevskive: DP
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL128
    Bracket hole 10.00
    Position/B+ in min. 3
    Prod. info BN
    Pulley DP
    Pulley dia. 70.50
    Pulley dist. 95.50
    Radius 83.50
    D+ Size Plug
    Radius 2 78.50
    Rotation CW
    Grooves/pulley 2
    Voltage 14
    W plug type Plug
    Total length 174.00 mm
    Width/holder arm 58.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032114902, 32868-03201, 102211-1830, 102211-9010

    • Konkurrentreferens
      A6679(DENSO), 645.506.090, 11633, 11633N

    • NormaliseratArtNr
      a6679denso, f032114902, 11633, 11633n, 645506090, 1022111830, 1022119010, 3286803201

    • Passar modeller
      Caterpillar Model: 302.5C Model series: 302.5C Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Caterpillar Model: Skid Steer Loader Model series: 248B Brand of engine: 3044T Approved: Yes
      Hyundai Model: R27Z-9 Model series: R27Z-9 Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Ingersoll-Rand Model: G11ME Model series: G11ME Model type: Generator Sets Brand of engine: S3L2 Approved: Yes
      Mahindra Model: 2516 4WD HST/SHUTTLE Model series: 2516 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mahindra Model: 3016 4WD HST/SHUTTLE Model series: 3016 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mahindra Model: MAX 25 4WD HST Model series: MAX 25 4WD HST Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mahindra Model: MAX 28XL 4WD HST/SHUTTLE Model series: MAX 28XL 4WD HST/SHUTTLE Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: GS231 Model series: GS231 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: GS251 Model series: GS251 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MM25T Model series: MM25T Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MM30T Model series: MM30T Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MT2600 Model series: MT2600 Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: MT28 & MT28H Model series: MT28 & MT28H Model type: Ag Tractors Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: V325 Model series: V325 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: VS329 Model series: VS329 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: VS334 Model series: VS334 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Mitsubishi Model: VY434 Model series: VY434 Model type: Combines Brand of engine: S3L2 Approved: Yes
      Terex Model: TC25 Model series: TC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Volvo Model: EB 300 SRS Model series: EB 300 SRS Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Volvo Model: EC25 Model series: EC25 Model type: Excavators Brand of engine: S3L2 Approved: Yes
      Volvo Model: VOLVO EC30 Model series: VOLVO EC30 Model type: Excavators Brand of engine: S3L2 Approved: Yes
