Vare nr.: F032115317

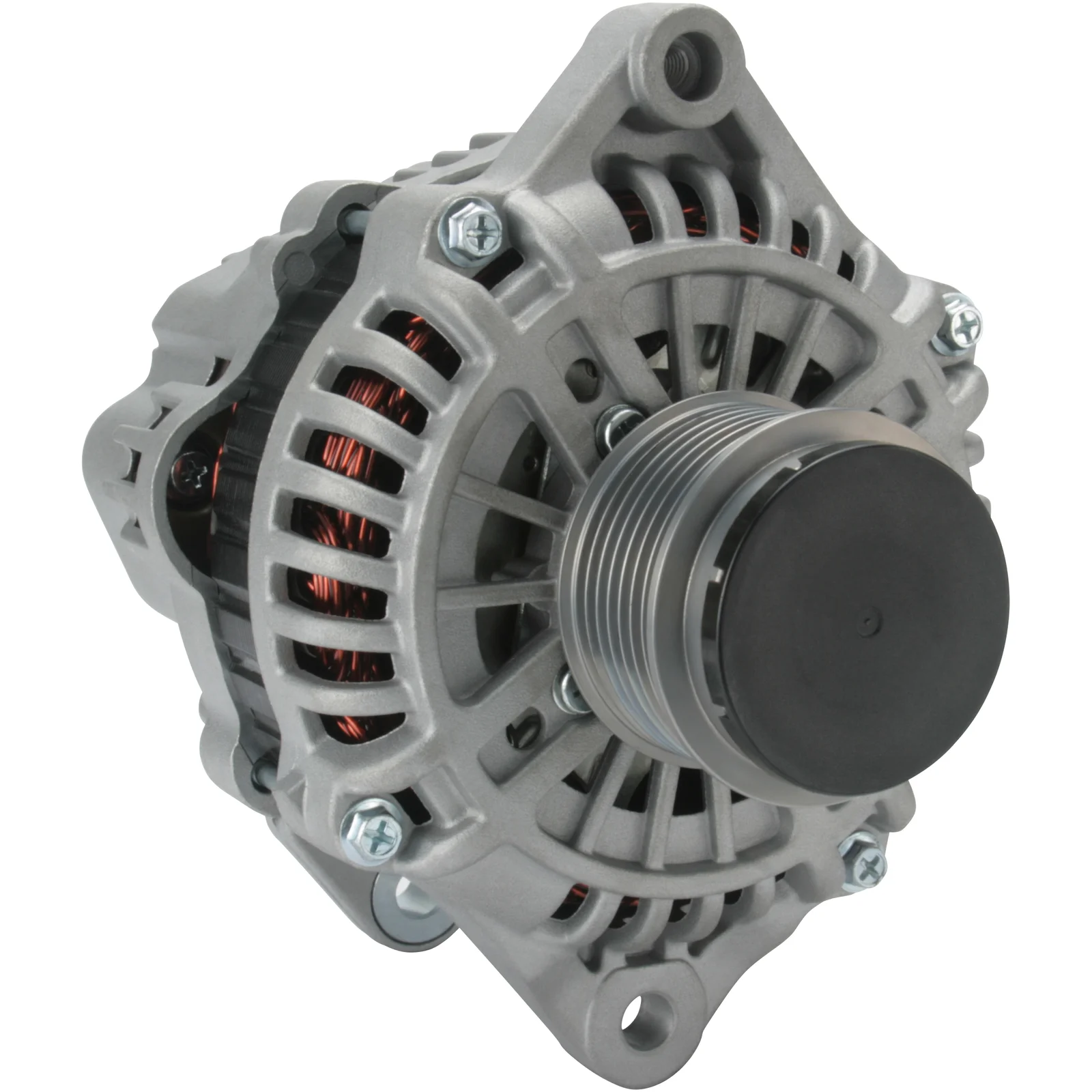

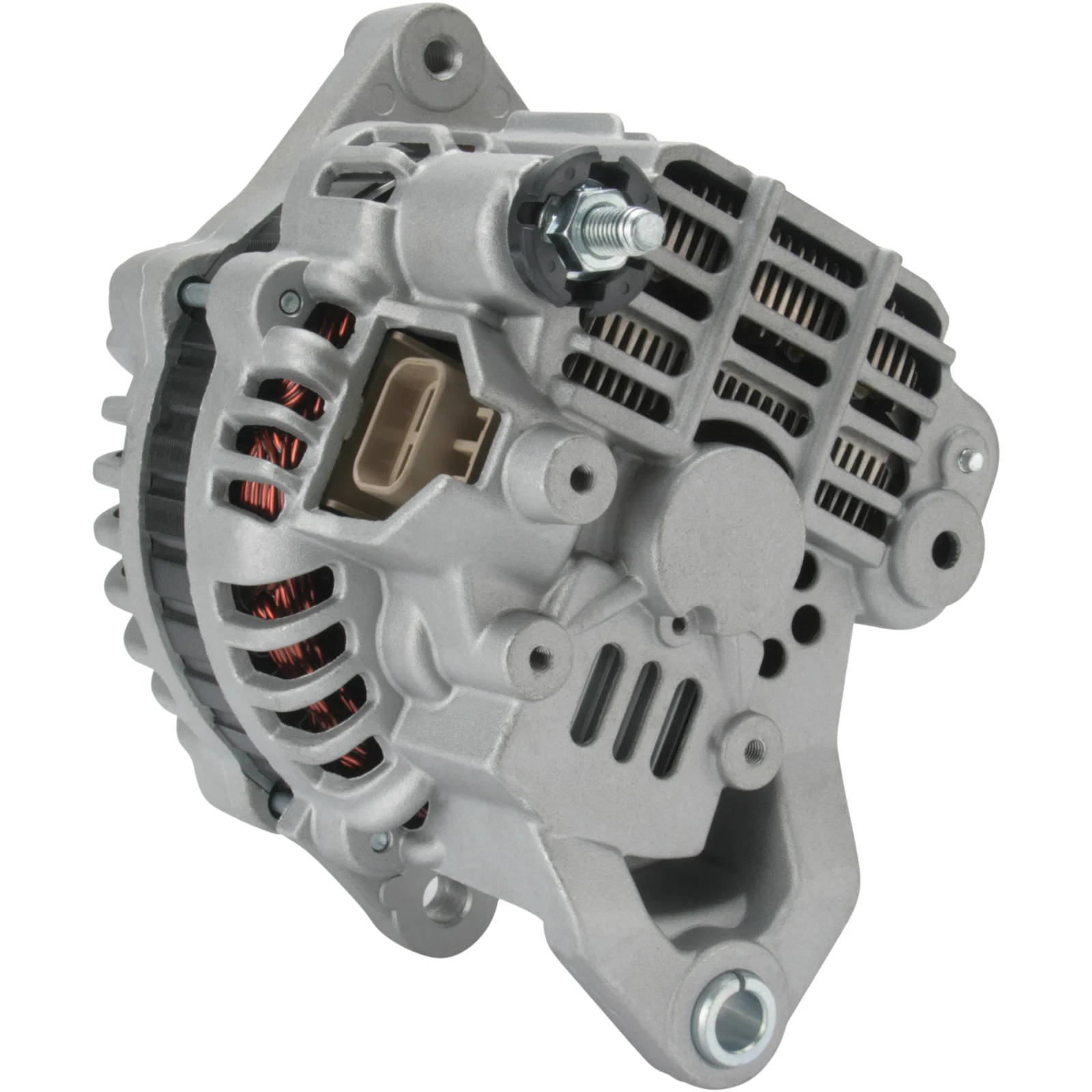

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstand: 81.00

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 38,50
Bredde/beslag arm: 13,00
Monteringsbeslag dist.: 81,00
Beslaghul: 10,50
Båndjust. beslaghul pos.: 60
Båndjust. beslaghul 1: M8
Remskive dia.: 60,00
Riller/remskive: 7
Radius: 85,00
Radius 2: 85,00
Rotation: CW
Stik no.: PL07
Total længde mm: 190,00
Remskive: SP/FW
Regulator type: IR
Prod. info: BN

Specifikation

Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Prod. info BN
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 38.50
Radius 85.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 190.00 mm
Width/holder arm 13.00
Amp 120
  • OEM

    A002TG0281, A2TG0281, F032115317, 2081ir, 23100-dc000, 5001865233, 5010553879
  • Konkurrentreferens

    A5269, CAL35172, DRA0082, LRA02856, 28-4972, 230.310.1202, 575.517.120, 23856N, 113032, 444248, 553326RI
  • NormaliseratArtNr

    a002tg0281, a2tg0281, a5269, cal35172, dra0082, f032115317, lra02856, 2081ir, 23100dc000, 23856n, 113032, 284972, 444248, 553326ri, 575517120, 2303101202, 5001865233, 5010553879
  • Passar modeller

    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Bus From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Platform / Chassis From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Interstar Model series: Interstar Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD30 Body: Van From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: F9 Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: J9 Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: U9, E9 Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED, UD Body: Platform / Chassis From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: HD, FD Body: Van From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Model type: 140 Type of engine: DCi Size of motor: 3.0 Brand of engine: ZD3202 Type description: JD Body: Bus From date: 01-10-2003 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 120.35 Size of motor: 3.0 Brand of engine: ZD3A600 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: DXi3 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Mascott Model series: 160.35 Size of motor: 3.0 Brand of engine: ZD3A604 Type description: Mascott Body: Platform / Chassis From date: 01-05-2004 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3200 Type description: JD Body: Bus From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: ED,UD,HD Body: Platform / Chassis From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD3202 Type description: FD Body: Van From date: 01-10-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
