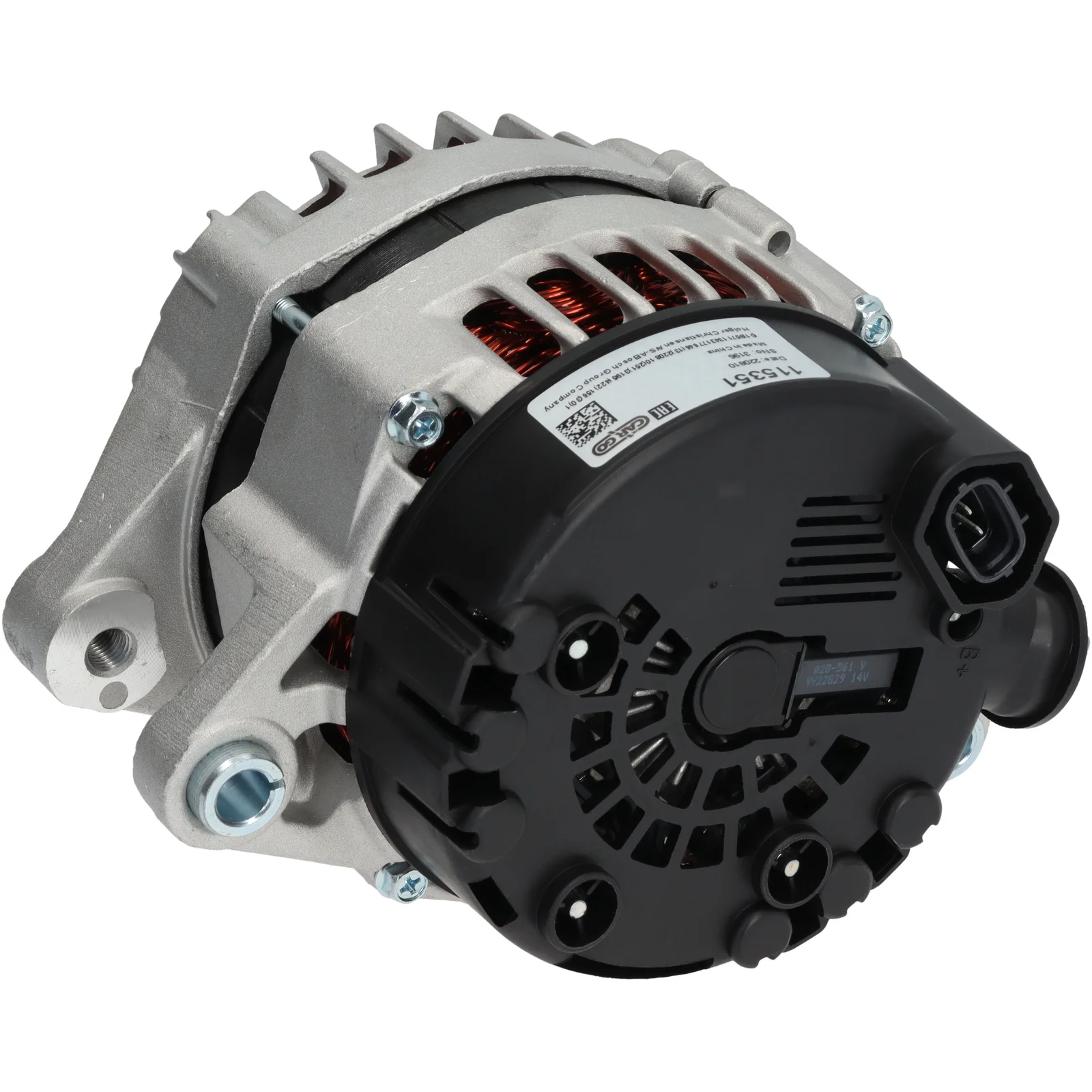

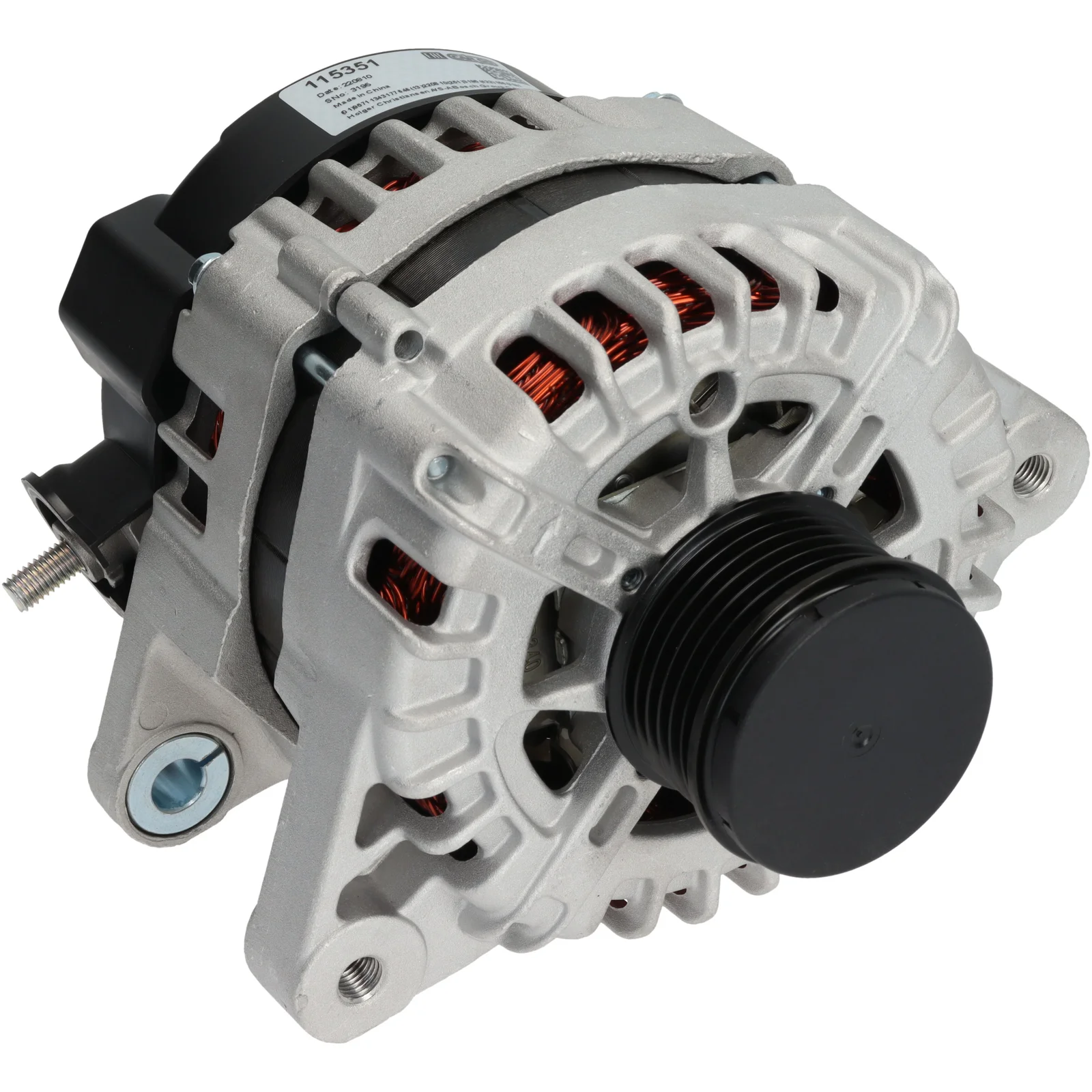

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115351

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Mount. bøjle fordeling: 37,50

Beskrivelse

Spænding: 14
Amp: 150
Bredde/holderarm: 20.20
Fæstningsbeslag afstand: 37.50
Fæstningshuls: M10-1.25
Bælte just. holderhuls pos.: 53
Bælte just. fægthuls 1: M10-1.25
Bælte just. holderhuls 2: 10.50
Remskive dia.: 55.00
Grooves/remskive: 6
Radius: 87.00
Radius 2: 89.50
B+: M8
Position/B+ i min.: 4
D+ Størrelse: Støpsel
Rotation: CW
Støpsel nr.: PL176
Samlet længde mm: 177.00
Remskive: SP/FW
Ventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 37.50
Belt. adj. bracket hole 1 M10-1.25
Belt. adj. bracket hole 2 10.50
Belt. adj. brackethole pos. 53
Plug no. PL176
Bracket hole M10-1.25
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Radius 87.00
D+ Size Plug
Radius 2 89.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 177.00 mm
Width/holder arm 20.20
Amp 150

  • OEM
    F032115351, FG15S029, 37300-2f000, 2656070

  • Konkurrentreferens
    A3237(VALEO), A3237S, A9279S, CAL32150, DRA1351, LRA04303, 28-7912, 155.599.150, 554130RI, 600770, 12061187

  • NormaliseratArtNr
    a3237s, a3237valeo, a9279s, cal32150, dra1351, f032115351, fg15s029, lra04303, 287912, 373002f000, 554130ri, 600770, 2656070, 12061187, 155599150

  • Passar modeller
    Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Bredde/holderarm: 20.20
    Fæstningsbeslag afstand: 37.50
    Fæstningshuls: M10-1.25
    Bælte just. holderhuls pos.: 53
    Bælte just. fægthuls 1: M10-1.25
    Bælte just. holderhuls 2: 10.50
    Remskive dia.: 55.00
    Grooves/remskive: 6
    Radius: 87.00
    Radius 2: 89.50
    B+: M8
    Position/B+ i min.: 4
    D+ Størrelse: Støpsel
    Rotation: CW
    Støpsel nr.: PL176
    Samlet længde mm: 177.00
    Remskive: SP/FW
    Ventilator: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 37.50
    Belt. adj. bracket hole 1 M10-1.25
    Belt. adj. bracket hole 2 10.50
    Belt. adj. brackethole pos. 53
    Plug no. PL176
    Bracket hole M10-1.25
    Position/B+ in min. 4
    Pulley SP/FW
    Pulley dia. 55.00
    Radius 87.00
    D+ Size Plug
    Radius 2 89.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 20.20
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115351, FG15S029, 37300-2f000, 2656070

    • Konkurrentreferens
      A3237(VALEO), A3237S, A9279S, CAL32150, DRA1351, LRA04303, 28-7912, 155.599.150, 554130RI, 600770, 12061187

    • NormaliseratArtNr
      a3237s, a3237valeo, a9279s, cal32150, dra1351, f032115351, fg15s029, lra04303, 287912, 373002f000, 554130ri, 600770, 2656070, 12061187, 155599150

    • Passar modeller
      Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
