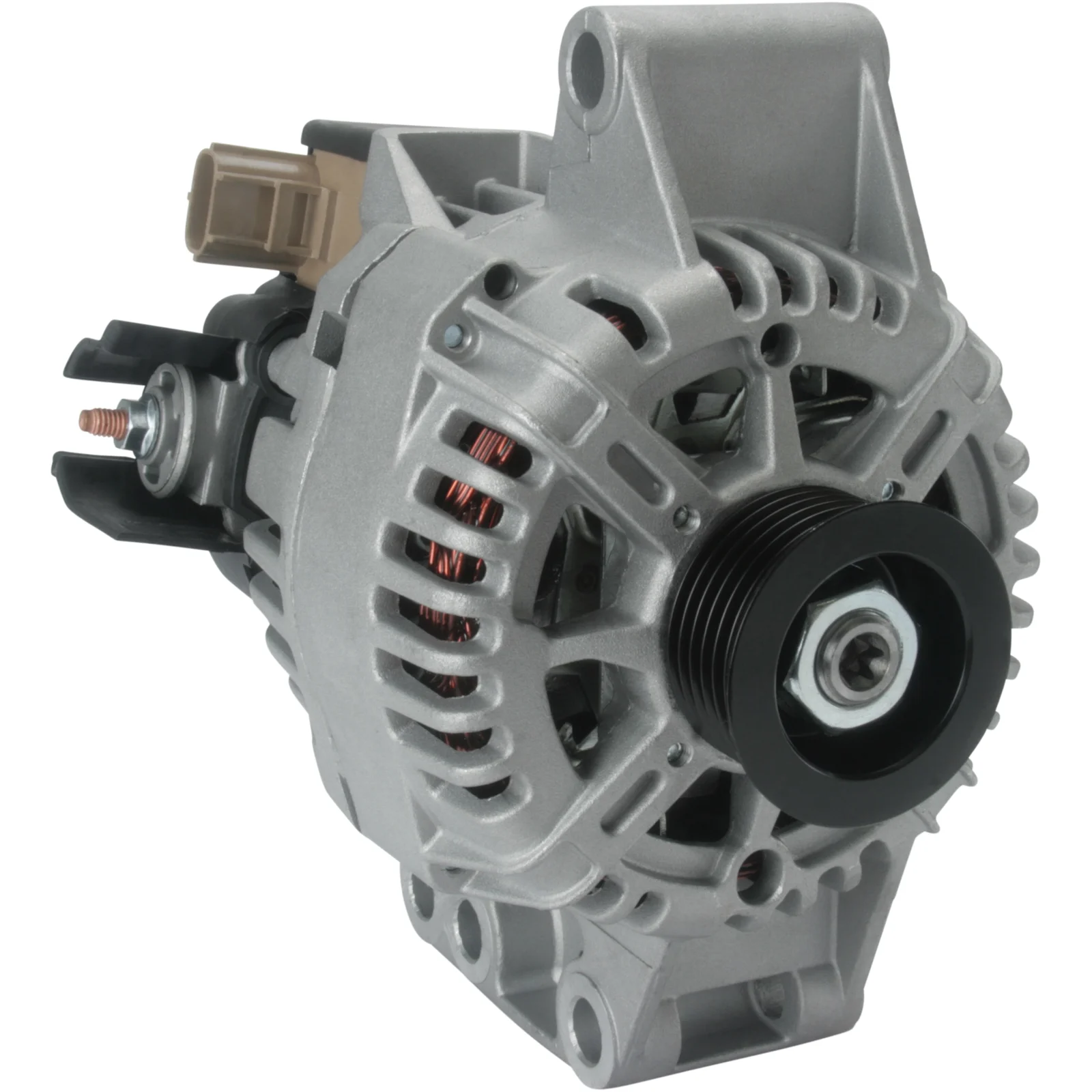

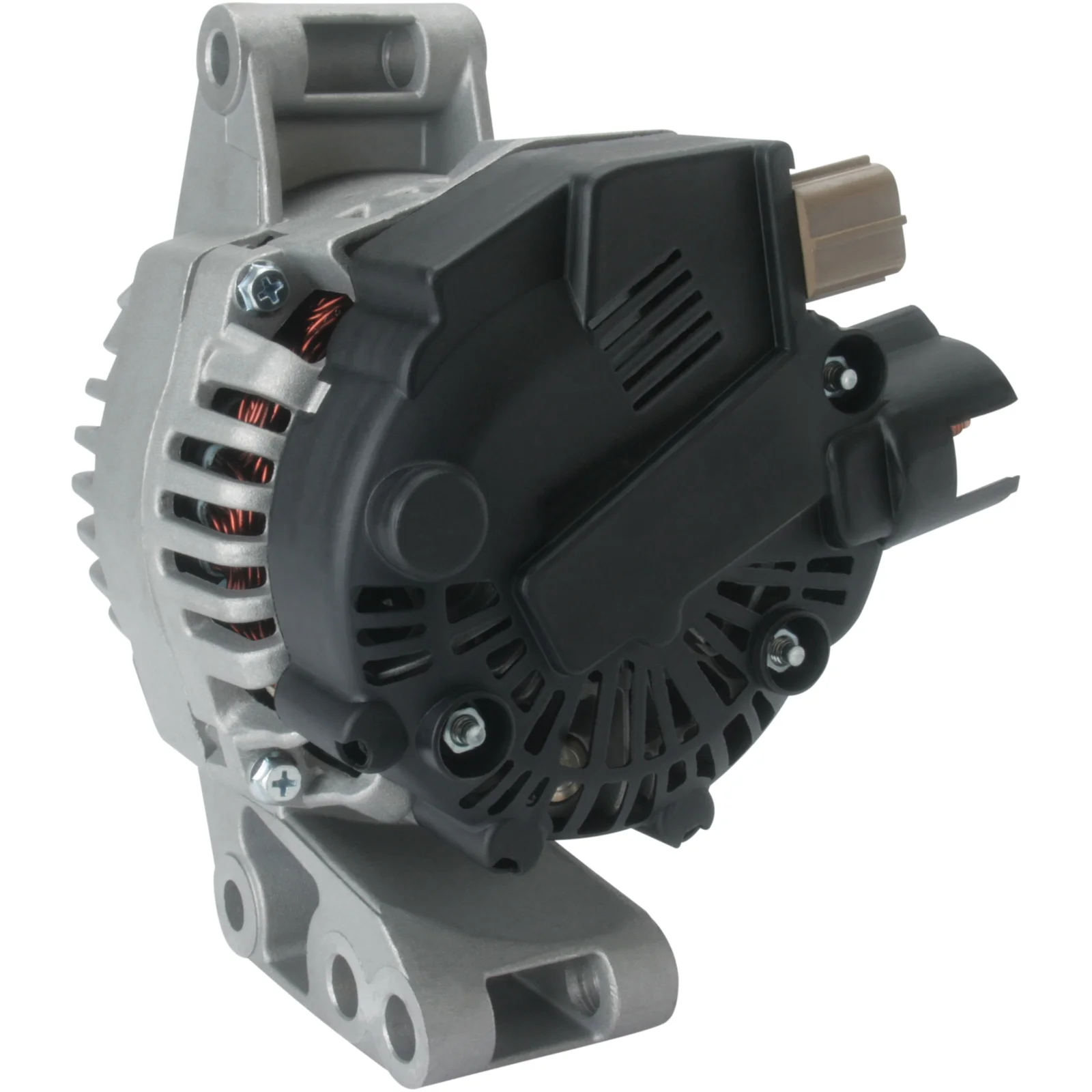

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115659

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: HØJRE, Monteringsbeslag fordeler: 51,00

Beskrivelse

Spænding: 14
Ampere: 80
Bøsning afstand.: 39.50
Bredde/holderarm: 55.00
Montagebeslag afstand.: 51.00
Beslagshul: 10.00
Beslagshul 2: 12.00
Bælte. just. bøsningens pos.: 60
Bælte. just. bøsningens hul 1: 10.00
Bælte. just. bøsningens hul 2: 14.00
Pulley dia.: 48.50
Rifler/pulley: 6
B+: M6
Position/B+ i min.: 13
D+ Størrelse: Plug
Rotation: med uret
Plug nr.: PL57
Total længde mm: 164.00
Terminaltype: FR-SIG-A
Bøsning: SP
Ventilator: IF
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 51.00
Belt. adj. bracket hole 1 10.00
Belt. adj. bracket hole 2 14.00
Belt. adj. brackethole pos. 60
Plug no. PL57
Bracket hole 10.00
Bracket hole 2 12.00
Position/B+ in min. 13
Prod. info BN
Pulley SP
Pulley dia. 48.50
Pulley dist. 39.50
D+ Size Plug
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-SIG-A
Voltage 14
Total length 164.00 mm
Width/holder arm 55.00
Amp 80

  • OEM
    F032115659, tg7s012, TG7S017, 4s5t10300aa, 4S5T10300AB, 4S5T10300AC, 1993ir, 1451865, 1486810, 1718576, 2543302, 2543302A

  • Konkurrentreferens
    A3584S, CAL15353, DRA0322, LRA03193, 8EL011712-511, 8EL738212-211, 27-5805, 219.162.802, 595.580.080, 20028R, 20028RW, 210425, 210425A, 301993RI, 439728, 440063, 12090243, 0986080750

  • NormaliseratArtNr
    a3584s, cal15353, dra0322, f032115659, lra03193, tg7s012, tg7s017, 4s5t10300aa, 4s5t10300ab, 4s5t10300ac, 8el011712511, 8el738212211, 1993ir, 20028r, 20028rw, 210425, 210425a, 275805, 301993ri, 439728, 440063, 1451865, 1486810, 1718576, 2543302, 2543302a, 12090243, 219162802, 595580080, 0986080750

  • Passar modeller
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: A9A,A9B Type description: RB Body: Van From date: 01-09-2002 To date: 01-03-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: BAA Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4D Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4K Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4M Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4N Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4P Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4S Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9A Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9B Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: BAA Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4D Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4K Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4M Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4N Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4P Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4S Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Ampere: 80
    Bøsning afstand.: 39.50
    Bredde/holderarm: 55.00
    Montagebeslag afstand.: 51.00
    Beslagshul: 10.00
    Beslagshul 2: 12.00
    Bælte. just. bøsningens pos.: 60
    Bælte. just. bøsningens hul 1: 10.00
    Bælte. just. bøsningens hul 2: 14.00
    Pulley dia.: 48.50
    Rifler/pulley: 6
    B+: M6
    Position/B+ i min.: 13
    D+ Størrelse: Plug
    Rotation: med uret
    Plug nr.: PL57
    Total længde mm: 164.00
    Terminaltype: FR-SIG-A
    Bøsning: SP
    Ventilator: IF
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 51.00
    Belt. adj. bracket hole 1 10.00
    Belt. adj. bracket hole 2 14.00
    Belt. adj. brackethole pos. 60
    Plug no. PL57
    Bracket hole 10.00
    Bracket hole 2 12.00
    Position/B+ in min. 13
    Prod. info BN
    Pulley SP
    Pulley dia. 48.50
    Pulley dist. 39.50
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type FR-SIG-A
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 55.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032115659, tg7s012, TG7S017, 4s5t10300aa, 4S5T10300AB, 4S5T10300AC, 1993ir, 1451865, 1486810, 1718576, 2543302, 2543302A

    • Konkurrentreferens
      A3584S, CAL15353, DRA0322, LRA03193, 8EL011712-511, 8EL738212-211, 27-5805, 219.162.802, 595.580.080, 20028R, 20028RW, 210425, 210425A, 301993RI, 439728, 440063, 12090243, 0986080750

    • NormaliseratArtNr
      a3584s, cal15353, dra0322, f032115659, lra03193, tg7s012, tg7s017, 4s5t10300aa, 4s5t10300ab, 4s5t10300ac, 8el011712511, 8el738212211, 1993ir, 20028r, 20028rw, 210425, 210425a, 275805, 301993ri, 439728, 440063, 1451865, 1486810, 1718576, 2543302, 2543302a, 12090243, 219162802, 595580080, 0986080750

    • Passar modeller
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: A9A,A9B Type description: RB Body: Van From date: 01-09-2002 To date: 01-03-2004 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: BAA Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4D Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4K Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4M Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4N Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4P Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.3 Brand of engine: J4S Type description: RB Body: Van From date: 01-05-2002 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9A Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: A9B Body: Hatchback From date: 01-08-2002 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: BAA Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4D Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4K Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4M Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4N Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4P Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4S Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
