HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115660

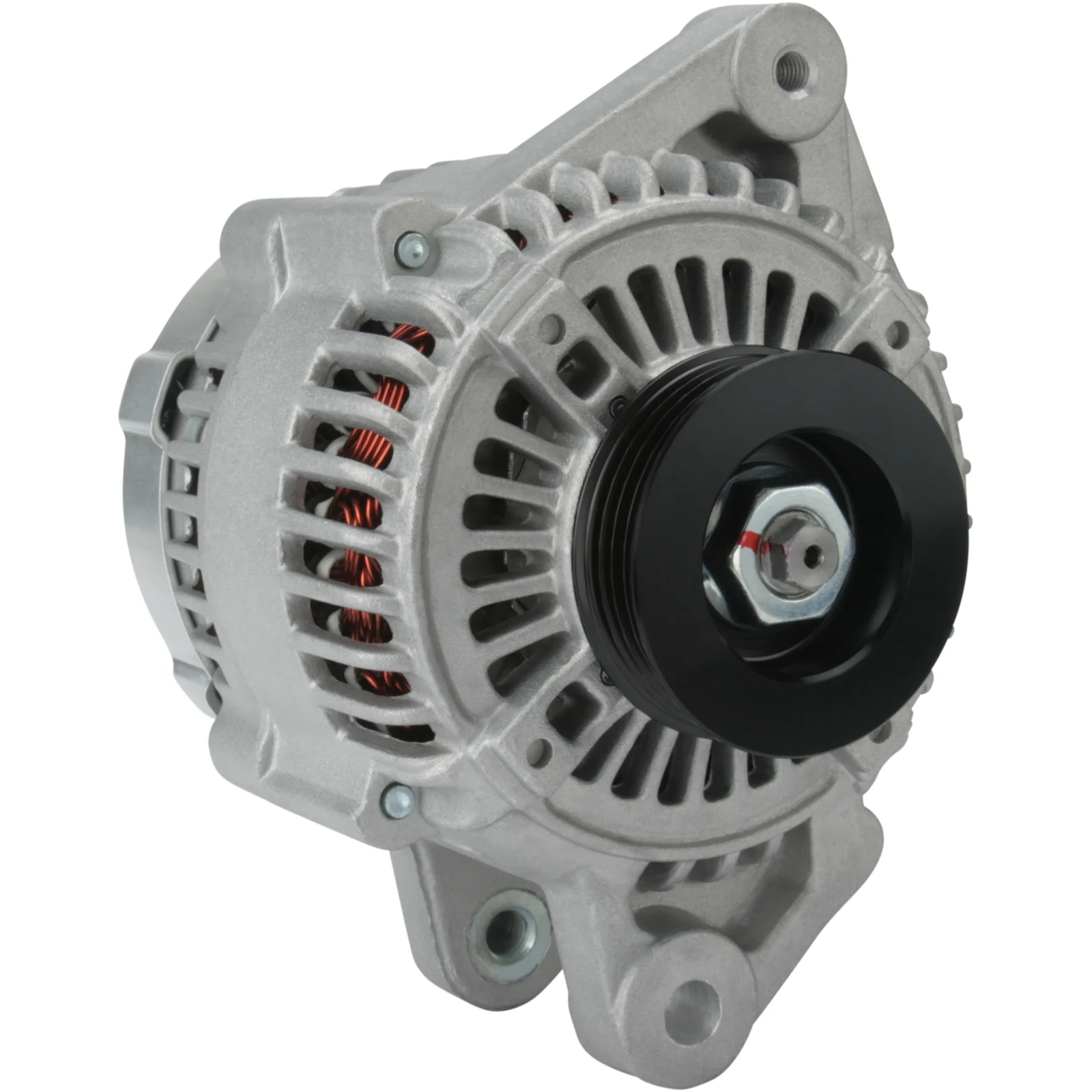

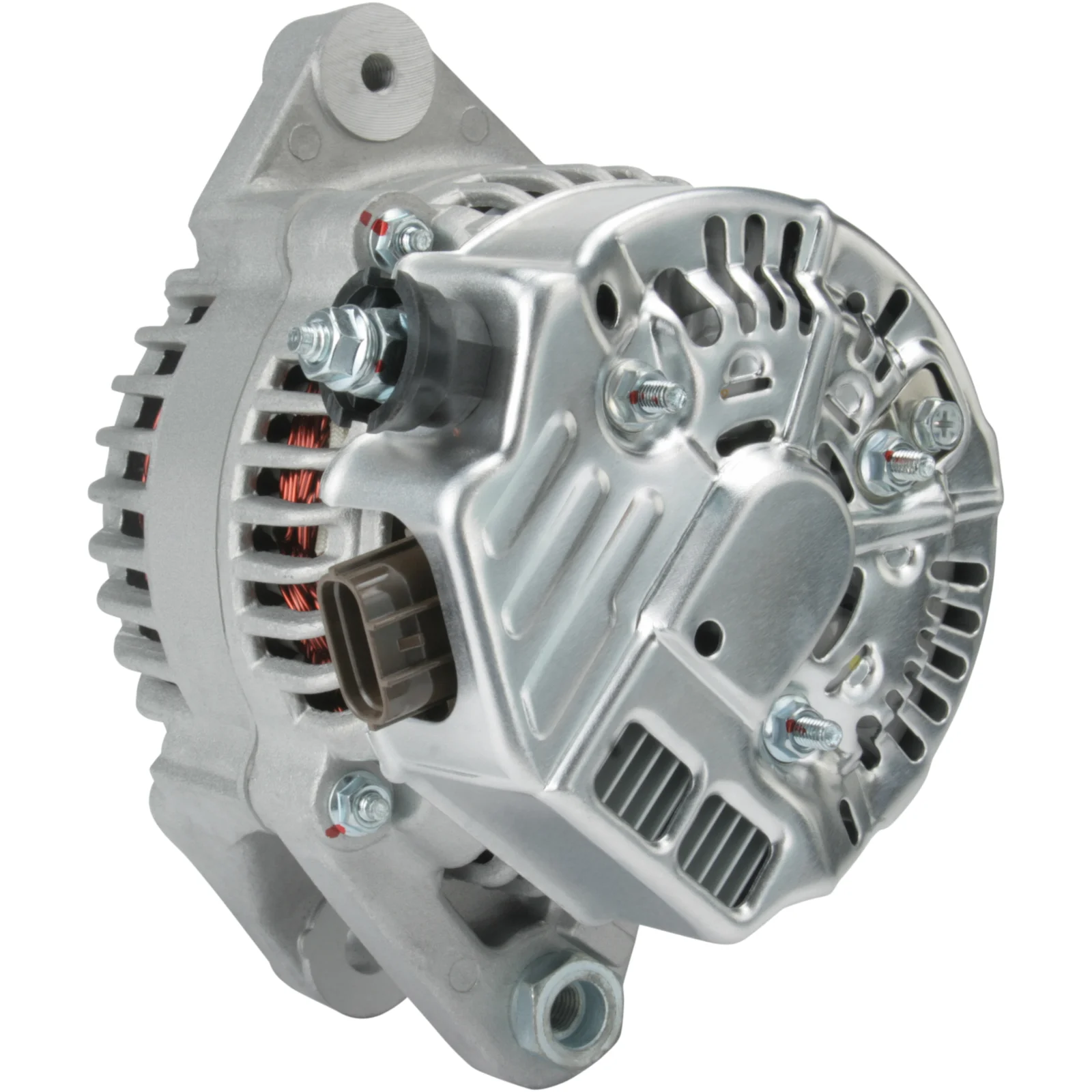

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag afstand: 41,00

Beskrivelse

Spænding: 14
Amp: 70
Remskive dist.: 34,00
Bredde/holderarm: 18,00
Monteringsbeslag dist.: 41,00
Beslagshul: 11,00
Bæltespændingsbeslag hulpos.: 3
Bæltespændingsbeslag hul 1: M8
Remskive dia.: 60,00
Riller/remskive: 4
Radius: 81,00
Radius 2: 81,50
B+: M6

Filer

Specifikation

B+ M6
Mount. bracket dist. 41.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL67
Bracket hole 11.00
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 34.00
Radius 81.00
D+ Size Plug
Radius 2 81.50
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 160.00 mm
Width/holder arm 18.00
Amp 70

  • OEM
    F032115660, ja1793ir, 27060-21010, 27060-21011, 27060-21040, 27060-21041, 27060-21050, 27060-33010, 102211-5260, 102211-5380, 102211-5650

  • Konkurrentreferens
    A6072, A6072(DENSO), ALT-5139, CAL44100, DAN964, DAN966, DRA1614, DRA4107, F042205005, J5112106, J5112133, LEA0601, MAN7504, 8EL012426-671, 28-3869, 195.540.080, 235.168.702, 13896N, 111598, 209394, 209394A, 401793RI, 440293, 443173, 9045811, 9213555, 12060775, 063377442, 0986045811, 063377442010, 063377504010

  • NormaliseratArtNr
    a6072, a6072denso, alt5139, cal44100, dan964, dan966, dra1614, dra4107, f032115660, f042205005, j5112106, j5112133, ja1793ir, lea0601, man7504, 8el012426671, 13896n, 111598, 209394, 209394a, 283869, 401793ri, 440293, 443173, 9045811, 9213555, 12060775, 063377442, 195540080, 235168702, 0986045811, 1022115260, 1022115380, 1022115650, 2706021010, 2706021011, 2706021040, 2706021041, 2706021050, 2706033010, 063377442010, 063377504010

  • Passar modeller
    Toyota Model: Echo Model series: Echo Saloon Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P1_ Body: Saloon From date: 01-08-1999 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP10 Body: Hatchback From date: 01-11-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP13 Body: Hatchback From date: 01-04-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10_ Body: Hatchback From date: 01-01-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10 Body: Hatchback From date: 01-03-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-08-1999 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-11-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP21 Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TSi Size of motor: 1.4 Brand of engine: CPTA Type description: 6R_ Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Remskive dist.: 34,00
    Bredde/holderarm: 18,00
    Monteringsbeslag dist.: 41,00
    Beslagshul: 11,00
    Bæltespændingsbeslag hulpos.: 3
    Bæltespændingsbeslag hul 1: M8
    Remskive dia.: 60,00
    Riller/remskive: 4
    Radius: 81,00
    Radius 2: 81,50
    B+: M6

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 41.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL67
    Bracket hole 11.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 34.00
    Radius 81.00
    D+ Size Plug
    Radius 2 81.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 18.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032115660, ja1793ir, 27060-21010, 27060-21011, 27060-21040, 27060-21041, 27060-21050, 27060-33010, 102211-5260, 102211-5380, 102211-5650

    • Konkurrentreferens
      A6072, A6072(DENSO), ALT-5139, CAL44100, DAN964, DAN966, DRA1614, DRA4107, F042205005, J5112106, J5112133, LEA0601, MAN7504, 8EL012426-671, 28-3869, 195.540.080, 235.168.702, 13896N, 111598, 209394, 209394A, 401793RI, 440293, 443173, 9045811, 9213555, 12060775, 063377442, 0986045811, 063377442010, 063377504010

    • NormaliseratArtNr
      a6072, a6072denso, alt5139, cal44100, dan964, dan966, dra1614, dra4107, f032115660, f042205005, j5112106, j5112133, ja1793ir, lea0601, man7504, 8el012426671, 13896n, 111598, 209394, 209394a, 283869, 401793ri, 440293, 443173, 9045811, 9213555, 12060775, 063377442, 195540080, 235168702, 0986045811, 1022115260, 1022115380, 1022115650, 2706021010, 2706021011, 2706021040, 2706021041, 2706021050, 2706033010, 063377442010, 063377504010

    • Passar modeller
      Toyota Model: Echo Model series: Echo Saloon Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P1_ Body: Saloon From date: 01-08-1999 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP10 Body: Hatchback From date: 01-11-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP13 Body: Hatchback From date: 01-04-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10_ Body: Hatchback From date: 01-01-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10 Body: Hatchback From date: 01-03-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-08-1999 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-11-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP21 Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: TSi Size of motor: 1.4 Brand of engine: CPTA Type description: 6R_ Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      1 / 3
