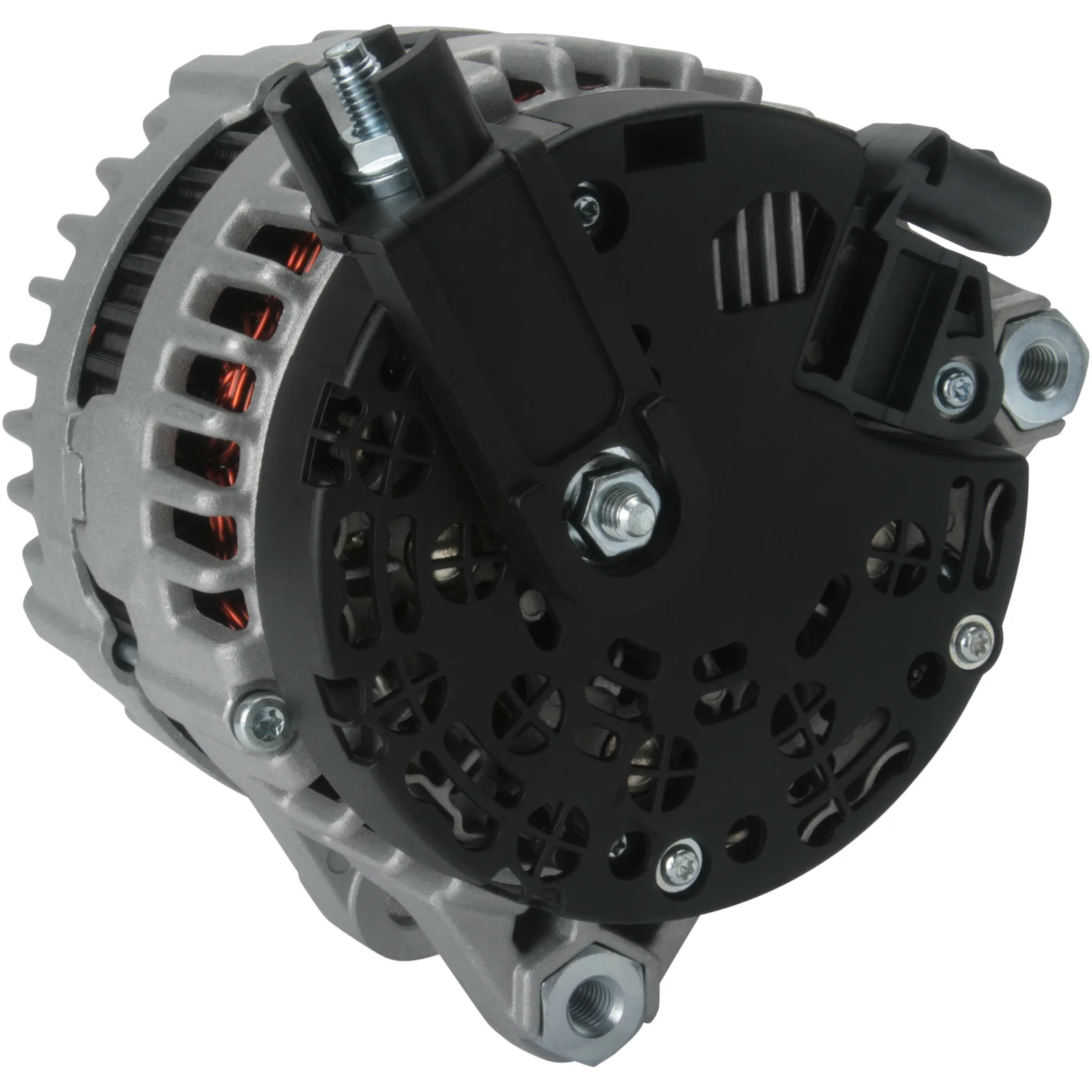

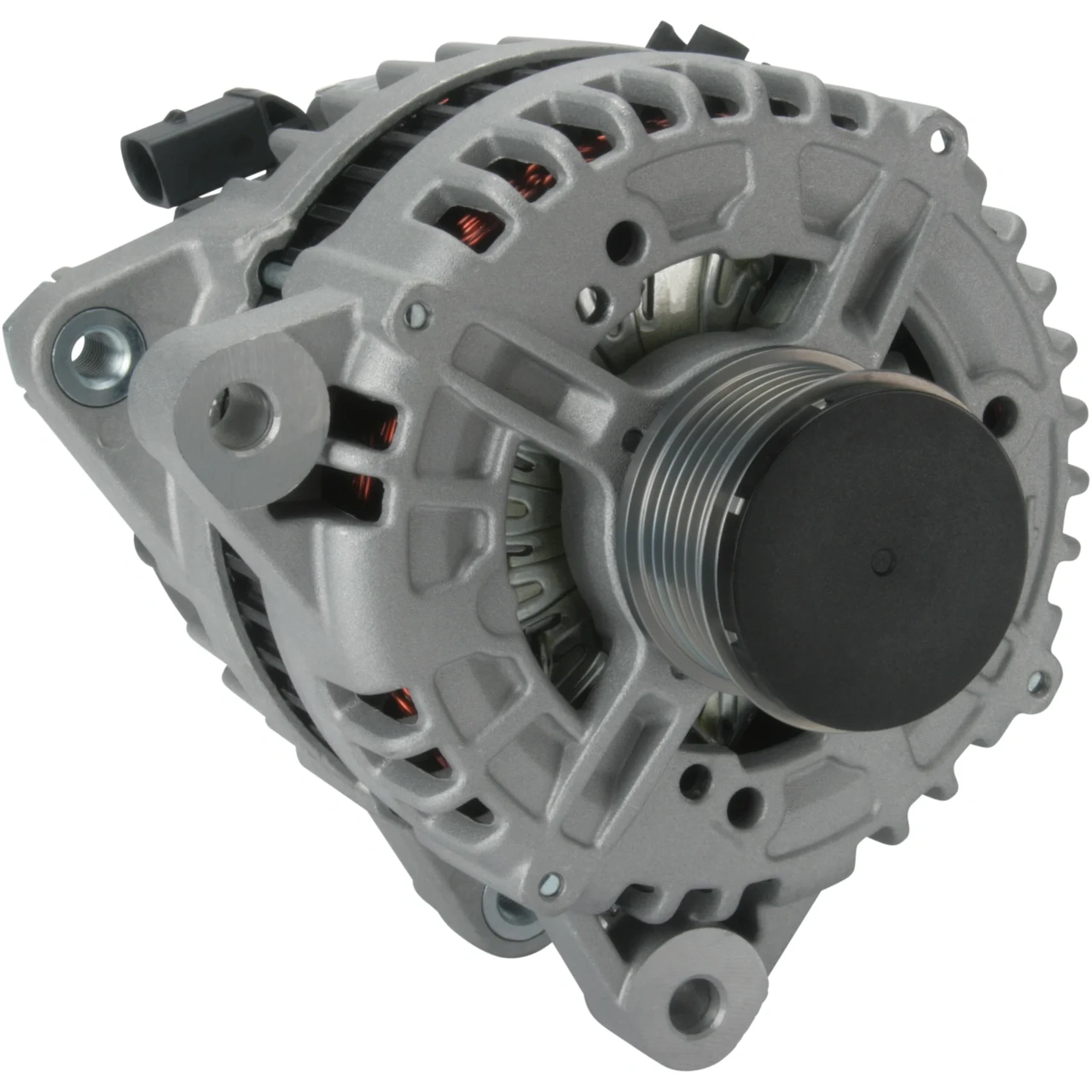

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115671

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Mont. bøsning for fordeling: 47.00

Beskrivelse

Spænding: 14
Amp.: 180
Puley afstand: 43.00
Bredde/holderarm: 21.00
Monteringsbeslag afstand: 47.00
Beslagshul: 10.50
Bælt. justering. beslags hul Pos.: 47
Bælt. justering. beslags hul 1: 10.80
Pulley dia.: 54.00
Riller/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 57
Rotation: med uret
Stik nr.: PL174
Samlet længde mm: 185.00
Terminal type: COM
Kommunikation: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 57
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 43.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 21.00
Amp 180

  • OEM
    F032115671, lr001200, 6g9n10300yc, 1986A00675, 8697585, 36000223, 0121715024, 0121715124

  • Konkurrentreferens
    A0502, A0502PR, CAL10434, DRA0476, LRA03455, 28-6565, 219.191.1802, 455.527.180, 20008N, 20008R, 113053, 209100, 209100A, 444203, 9090848, 12090345, 32081390, 0986081390

  • NormaliseratArtNr
    a0502, a0502pr, cal10434, dra0476, f032115671, lr001200, lra03455, 6g9n10300yc, 1986a00675, 20008n, 20008r, 113053, 209100, 209100a, 286565, 444203, 8697585, 9090848, 12090345, 32081390, 36000223, 0121715024, 0121715124, 455527180, 0986081390, 2191911802

  • Passar modeller
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: SD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-01-2007 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Volvo Model: V70 Model series: V70 Type of engine: Diesel Size of motor: 2.0 Brand of engine: D4204T Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp.: 180
    Puley afstand: 43.00
    Bredde/holderarm: 21.00
    Monteringsbeslag afstand: 47.00
    Beslagshul: 10.50
    Bælt. justering. beslags hul Pos.: 47
    Bælt. justering. beslags hul 1: 10.80
    Pulley dia.: 54.00
    Riller/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 57
    Rotation: med uret
    Stik nr.: PL174
    Samlet længde mm: 185.00
    Terminal type: COM
    Kommunikation: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 10.80
    Belt. adj. brackethole pos. 47
    Plug no. PL174
    Bracket hole 10.50
    Position/B+ in min. 57
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 43.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 21.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032115671, lr001200, 6g9n10300yc, 1986A00675, 8697585, 36000223, 0121715024, 0121715124

    • Konkurrentreferens
      A0502, A0502PR, CAL10434, DRA0476, LRA03455, 28-6565, 219.191.1802, 455.527.180, 20008N, 20008R, 113053, 209100, 209100A, 444203, 9090848, 12090345, 32081390, 0986081390

    • NormaliseratArtNr
      a0502, a0502pr, cal10434, dra0476, f032115671, lr001200, lra03455, 6g9n10300yc, 1986a00675, 20008n, 20008r, 113053, 209100, 209100a, 286565, 444203, 8697585, 9090848, 12090345, 32081390, 36000223, 0121715024, 0121715124, 455527180, 0986081390, 2191911802

    • Passar modeller
      Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: SD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-01-2007 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Volvo Model: V70 Model series: V70 Type of engine: Diesel Size of motor: 2.0 Brand of engine: D4204T Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
