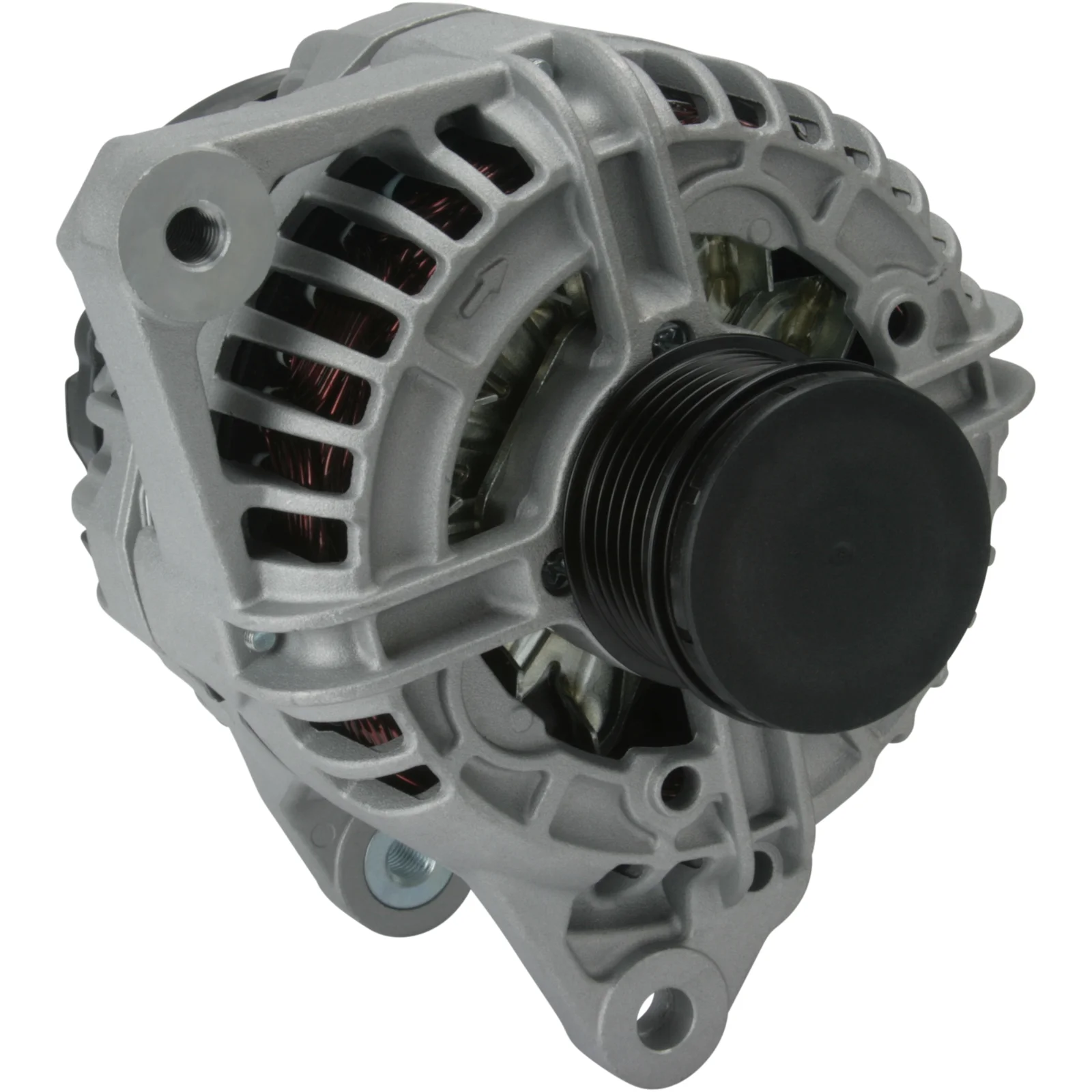

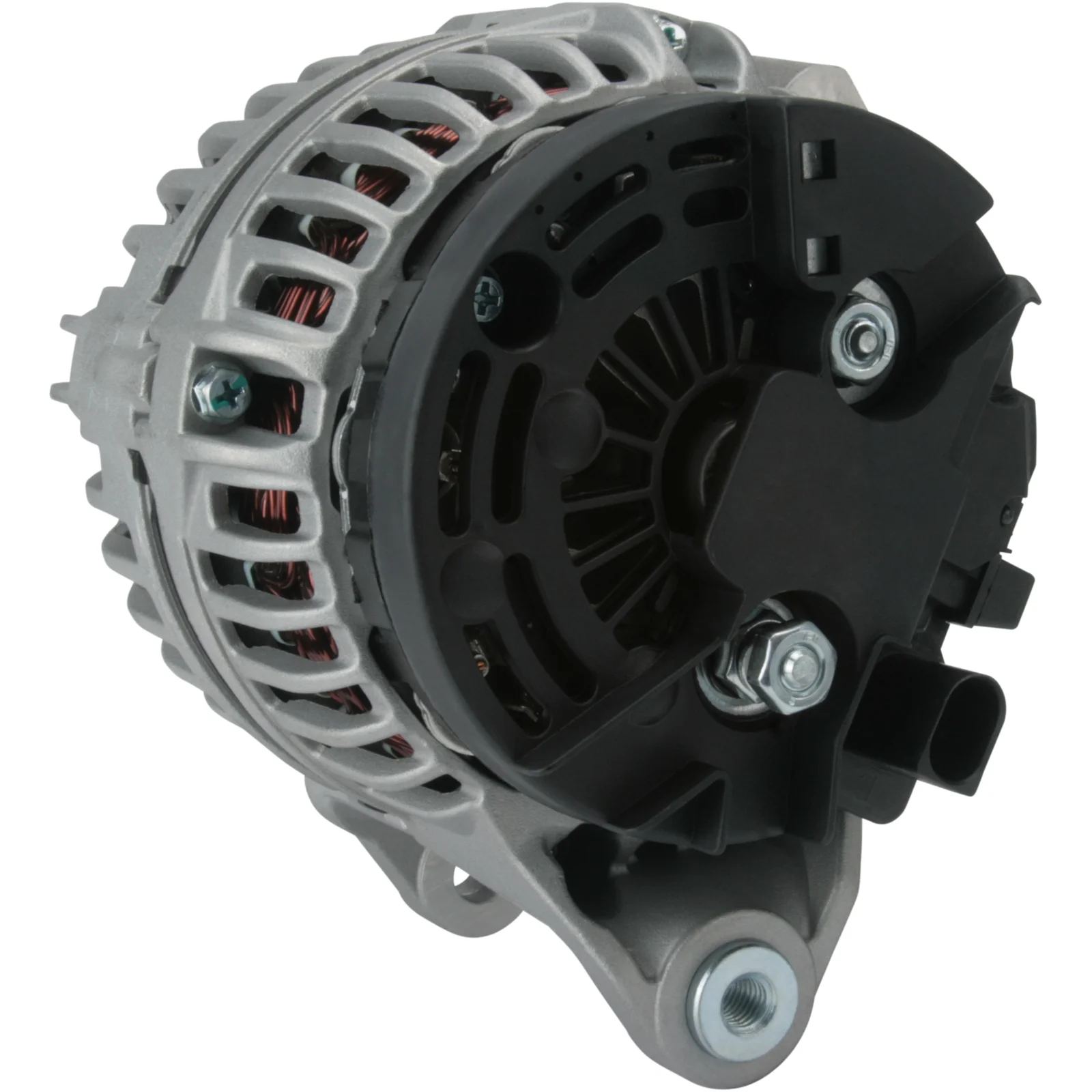

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115678

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag fordeling: 82,00

Beskrivelse

Spenning: 14
Amp: 150
Remskive distr.: 32.00
Bredde/holderarm: 14.00
Montagebeslag afstanden: 82.00
Beslagshul: M10
Bæltejusteringsbeslag hul position: 47
Bæltejusteringsbeslag hul 1: M10
Remskivedi.: 53.00
Riller/remskive: 6
Radius: 94.00
Radius 2: 104.00
B+: M8
Position/B+ i min.: 30
D+ Størrelse: Stik
Rotation: CW
Stik no.: PL61
Samlet længde mm: 184.00
Terminaltype: L-DFM
Remskive: SP/FW
Spændingsregulator type: IR
Produktion info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 47
Plug no. PL61
Bracket hole M10
Position/B+ in min. 30
Prod. info BN
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 32.00
Radius 94.00
D+ Size Plug
Radius 2 104.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 184.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F00E100285, F00E100551, F032115678, 1986A00135, 1986A00873, 1986A00874, 0124525056, 0124525057, 0124525252, 0124525253, 9976030127X, 99760301200, 99760301201, 99760301202, 99760301203, 99760301204, 99760301205, 99760301206, 99760301207, 99760301208, 99760301209

  • Konkurrentreferens
    A0227, A0227(P), CAL10336, CAL10412, DRB7140, LRA03090, 28-5693, 28-5702, 11130, 11130AN, 11131-OS, 443443, 444329, 9090508, 12047140, 32047140, 0986047140, 0986047143, 0986047146, 0986047147

  • NormaliseratArtNr
    a0227, a0227p, cal10336, cal10412, drb7140, f00e100285, f00e100551, f032115678, lra03090, 1986a00135, 1986a00873, 1986a00874, 11130, 11130an, 11131os, 285693, 285702, 443443, 444329, 9090508, 12047140, 32047140, 0124525056, 0124525057, 0124525252, 0124525253, 0986047140, 0986047143, 0986047146, 0986047147, 9976030127x, 99760301200, 99760301201, 99760301202, 99760301203, 99760301204, 99760301205, 99760301206, 99760301207, 99760301208, 99760301209

  • Passar modeller
    Porsche Model: 911 Model series: 911 Model type: 4S Size of motor: 3.8 Brand of engine: M97.01 Type description: 997 Body: Coupe From date: 01-09-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.4 Brand of engine: M96.01 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-10-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 Body: Coupe From date: 01-07-2004 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Type of engine: M96.05 Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 Body: Convertible From date: 01-04-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Type of engine: S Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-02-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4S Size of motor: 3.8 Brand of engine: M97.01 Type description: 997 Body: Convertible From date: 01-04-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4S Size of motor: 3.8 Brand of engine: M97.01 Type description: 997 Body: Coupe From date: 01-07-2004 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera S S4 Size of motor: 3.8 Brand of engine: M97.01S Type description: 997 Body: Convertible From date: 01-08-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera S Size of motor: 3.8 Brand of engine: M97.01 Type description: 997 Body: Convertible From date: 01-04-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera S Size of motor: 3.8 Brand of engine: M97.01S Type description: 997 Body: Convertible From date: 01-08-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.4 Brand of engine: M96.01 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 Body: Convertible From date: 01-04-2005 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 Body: Convertible From date: 01-04-2005 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 Body: Coupe From date: 01-08-2004 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 From date: 01-07-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.8 Brand of engine: M97.01 Type description: 997 From date: 01-07-2006 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Type of engine: S Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-02-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: S Type of engine: Turbo Size of motor: 3.6 Brand of engine: M96.70 Body: Coupe From date: 01-02-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: S4 Size of motor: 3.8 Brand of engine: M97.01 Type description: 997 Body: Convertible From date: 01-04-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Convertible From date: 01-02-1998 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-10-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.6 Brand of engine: M96.05 Type description: 997 Body: Coupe From date: 01-07-2004 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Targa Model type: Carrera 4S Size of motor: 3.8 Brand of engine: M97.01S Type description: 997 Body: Targa From date: 01-11-2006 To date: 01-12-2008 Fuel: Petrol Approved: Yes
    Porsche Model: Boxster Model series: Boxster Size of motor: 2.7 Brand of engine: M96.25 Body: Convertible From date: 01-11-2004 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Porsche Model: Carrera Model series: Carrera Model type: GT Size of motor: 5.7 Brand of engine: M80.01 Body: Convertible From date: 01-07-2003 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Porsche Model: Cayman Model series: Cayman Model type: S Size of motor: 3.4 Brand of engine: M97.21 Body: Coupe From date: 01-11-2005 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
