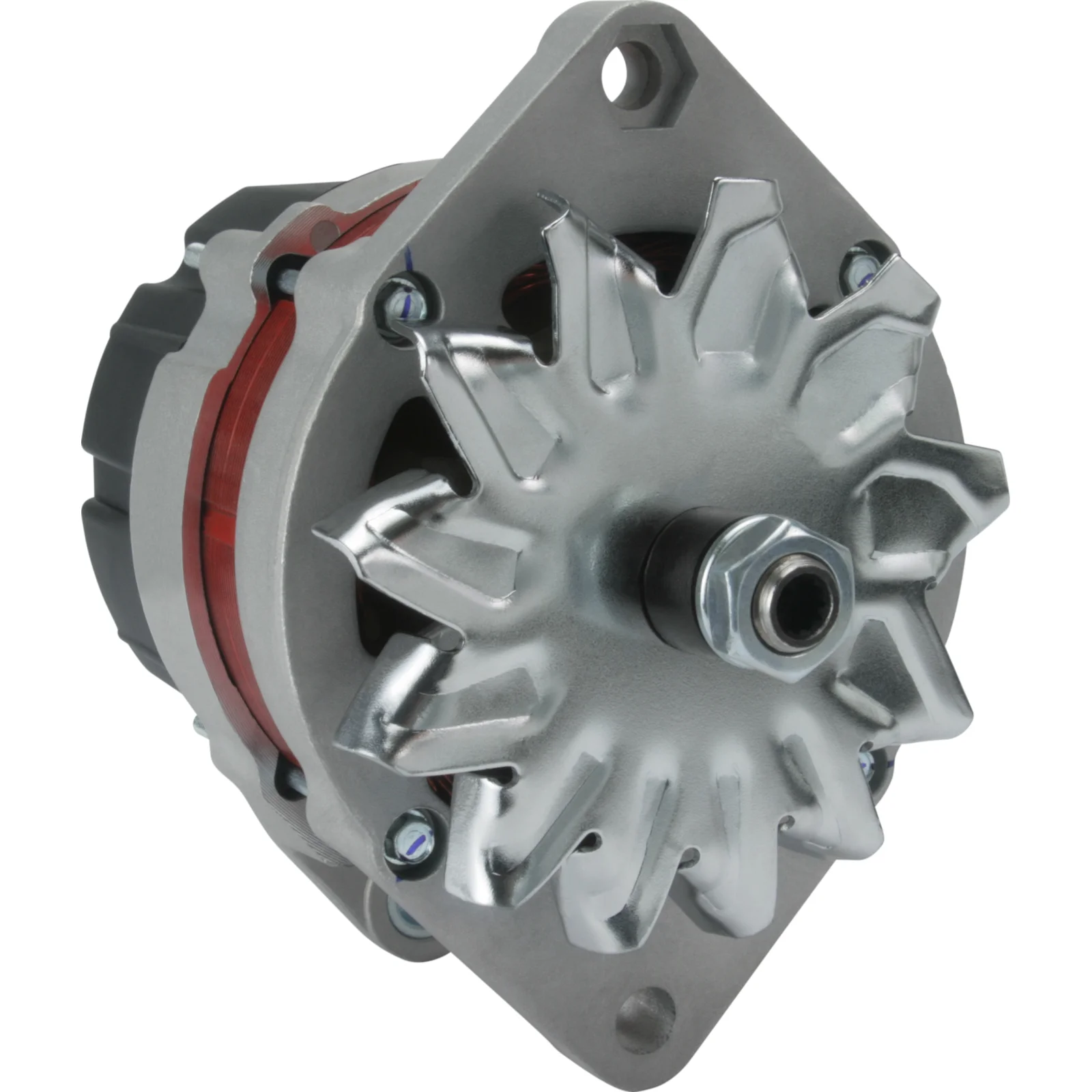

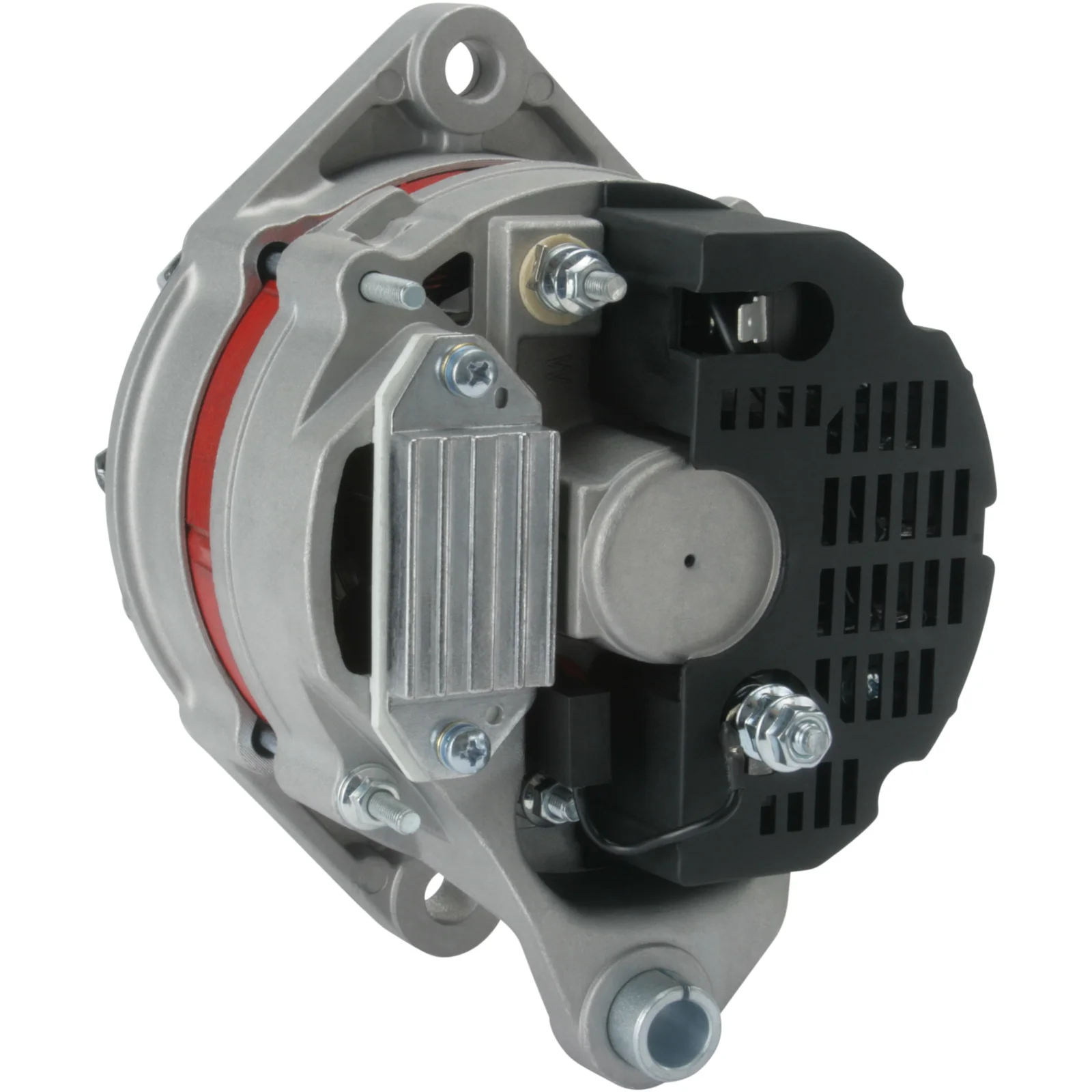

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115689

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag for fordeling: 66,00

Beskrivelse

Spænding: 14
Amp.: 80
Terminal: W
Bredde/beslag arm: 17,00
-monteringsbeslag afstand: 66,00
Beslagshul: 12,30
Bælte justering beslaghul pos.: 60
Bælte justering beslag hul 1: 10,80
Radius: 85,00
Radius 2: 81,00
B+: M6
Position/B+ i min.: 25
D+ Størrelse: 6,30
Rotation: uret
W stiktype: M5
Samlet længde mm: 174,00
Aksel: uden
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 60
Bracket hole 12.30
Position/B+ in min. 25
Prod. info BN
Pulley w/o
Radius 85.00
D+ Size 6.30
Radius 2 81.00
Regulator type IR
Rotation CW
Terminal W
Voltage 14
W plug type M5
Total length 174.00 mm
Width/holder arm 17.00
Amp 80

  • OEM
    AAK3166, aak3563, aak4543, CT6005712872, F032115689, 11.201.463, 11.201.662, 11.203.298, 395250A1, 47906830, 63304807, 72277319, 73327987, 84296693, 84296707, 84402416, 84402418, 84402419, 84522025, 99457034, 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 294397320, 6005712872

  • Konkurrentreferens
    A4114, A9308S, CAL21146, dra0970, IA1152, MG357, MG515, MG540, 28-2692, 218.105.652, 565.014.080, 2353

  • NormaliseratArtNr
    a4114, a9308s, aak3166, aak3563, aak4543, cal21146, ct6005712872, dra0970, f032115689, ia1152, mg357, mg515, mg540, 2353, 282692, 395250a1, 11201463, 11201662, 11203298, 47906830, 63304807, 72277319, 73327987, 84296693, 84296707, 84402416, 84402418, 84402419, 84522025, 99457034, 218105652, 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 294397320, 565014080, 6005712872

  • Passar modeller
    Deutz-Fahr Model: Agrocompact Model series: F100DT Brand of engine: 1000.4WT Approved: Yes
    Deutz-Fahr Model: Agrocompact Model series: F70DT Brand of engine: 1000.3WT Approved: Yes
    Deutz-Fahr Model: Agrocompact Model series: F75DT Brand of engine: 1000.4W Approved: Yes
    Deutz-Fahr Model: Agrocompact Model series: F90DT Brand of engine: 1000.4WT Approved: Yes
    Deutz-Fahr Model: Antares II Model series: 110DT Brand of engine: 1000.6A Approved: Yes
    Deutz-Fahr Model: Antares Model series: 110 Brand of engine: 1000.6A Approved: Yes
    Deutz-Fahr Model: Antares Model series: 130 Brand of engine: 1000.6A Approved: Yes
    Huerlimann Model: XF-H Model series: 100DT Brand of engine: 1000.4WT Approved: Yes
    Huerlimann Model: XF-H Model series: 55DT Brand of engine: 1000.3W Approved: Yes
    Huerlimann Model: XF-H Model series: 70DT Brand of engine: 1000.3WT Approved: Yes
    Huerlimann Model: XF-H Model series: 75DT Brand of engine: 1000.4W Approved: Yes
    Huerlimann Model: XF-H Model series: 90DT Brand of engine: 1000.4WT Approved: Yes
    Same Model: Frutteto II Model series: 100DT Brand of engine: 1000.4WT Approved: Yes
    Same Model: Frutteto II Model series: 70DT Brand of engine: 1000.3W Approved: Yes
    Same Model: Frutteto II Model series: 75DT Brand of engine: 1000.4W Approved: Yes
    Same Model: Frutteto II Model series: 90DT Brand of engine: 1000.4WT Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp.: 80
    Terminal: W
    Bredde/beslag arm: 17,00
    -monteringsbeslag afstand: 66,00
    Beslagshul: 12,30
    Bælte justering beslaghul pos.: 60
    Bælte justering beslag hul 1: 10,80
    Radius: 85,00
    Radius 2: 81,00
    B+: M6
    Position/B+ i min.: 25
    D+ Størrelse: 6,30
    Rotation: uret
    W stiktype: M5
    Samlet længde mm: 174,00
    Aksel: uden
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 10.80
    Belt. adj. brackethole pos. 60
    Bracket hole 12.30
    Position/B+ in min. 25
    Prod. info BN
    Pulley w/o
    Radius 85.00
    D+ Size 6.30
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Terminal W
    Voltage 14
    W plug type M5
    Total length 174.00 mm
    Width/holder arm 17.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      AAK3166, aak3563, aak4543, CT6005712872, F032115689, 11.201.463, 11.201.662, 11.203.298, 395250A1, 47906830, 63304807, 72277319, 73327987, 84296693, 84296707, 84402416, 84402418, 84402419, 84522025, 99457034, 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 294397320, 6005712872

    • Konkurrentreferens
      A4114, A9308S, CAL21146, dra0970, IA1152, MG357, MG515, MG540, 28-2692, 218.105.652, 565.014.080, 2353

    • NormaliseratArtNr
      a4114, a9308s, aak3166, aak3563, aak4543, cal21146, ct6005712872, dra0970, f032115689, ia1152, mg357, mg515, mg540, 2353, 282692, 395250a1, 11201463, 11201662, 11203298, 47906830, 63304807, 72277319, 73327987, 84296693, 84296707, 84402416, 84402418, 84402419, 84522025, 99457034, 218105652, 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 294397320, 565014080, 6005712872

    • Passar modeller
      Deutz-Fahr Model: Agrocompact Model series: F100DT Brand of engine: 1000.4WT Approved: Yes
      Deutz-Fahr Model: Agrocompact Model series: F70DT Brand of engine: 1000.3WT Approved: Yes
      Deutz-Fahr Model: Agrocompact Model series: F75DT Brand of engine: 1000.4W Approved: Yes
      Deutz-Fahr Model: Agrocompact Model series: F90DT Brand of engine: 1000.4WT Approved: Yes
      Deutz-Fahr Model: Antares II Model series: 110DT Brand of engine: 1000.6A Approved: Yes
      Deutz-Fahr Model: Antares Model series: 110 Brand of engine: 1000.6A Approved: Yes
      Deutz-Fahr Model: Antares Model series: 130 Brand of engine: 1000.6A Approved: Yes
      Huerlimann Model: XF-H Model series: 100DT Brand of engine: 1000.4WT Approved: Yes
      Huerlimann Model: XF-H Model series: 55DT Brand of engine: 1000.3W Approved: Yes
      Huerlimann Model: XF-H Model series: 70DT Brand of engine: 1000.3WT Approved: Yes
      Huerlimann Model: XF-H Model series: 75DT Brand of engine: 1000.4W Approved: Yes
      Huerlimann Model: XF-H Model series: 90DT Brand of engine: 1000.4WT Approved: Yes
      Same Model: Frutteto II Model series: 100DT Brand of engine: 1000.4WT Approved: Yes
      Same Model: Frutteto II Model series: 70DT Brand of engine: 1000.3W Approved: Yes
      Same Model: Frutteto II Model series: 75DT Brand of engine: 1000.4W Approved: Yes
      Same Model: Frutteto II Model series: 90DT Brand of engine: 1000.4WT Approved: Yes
      1 / 4
