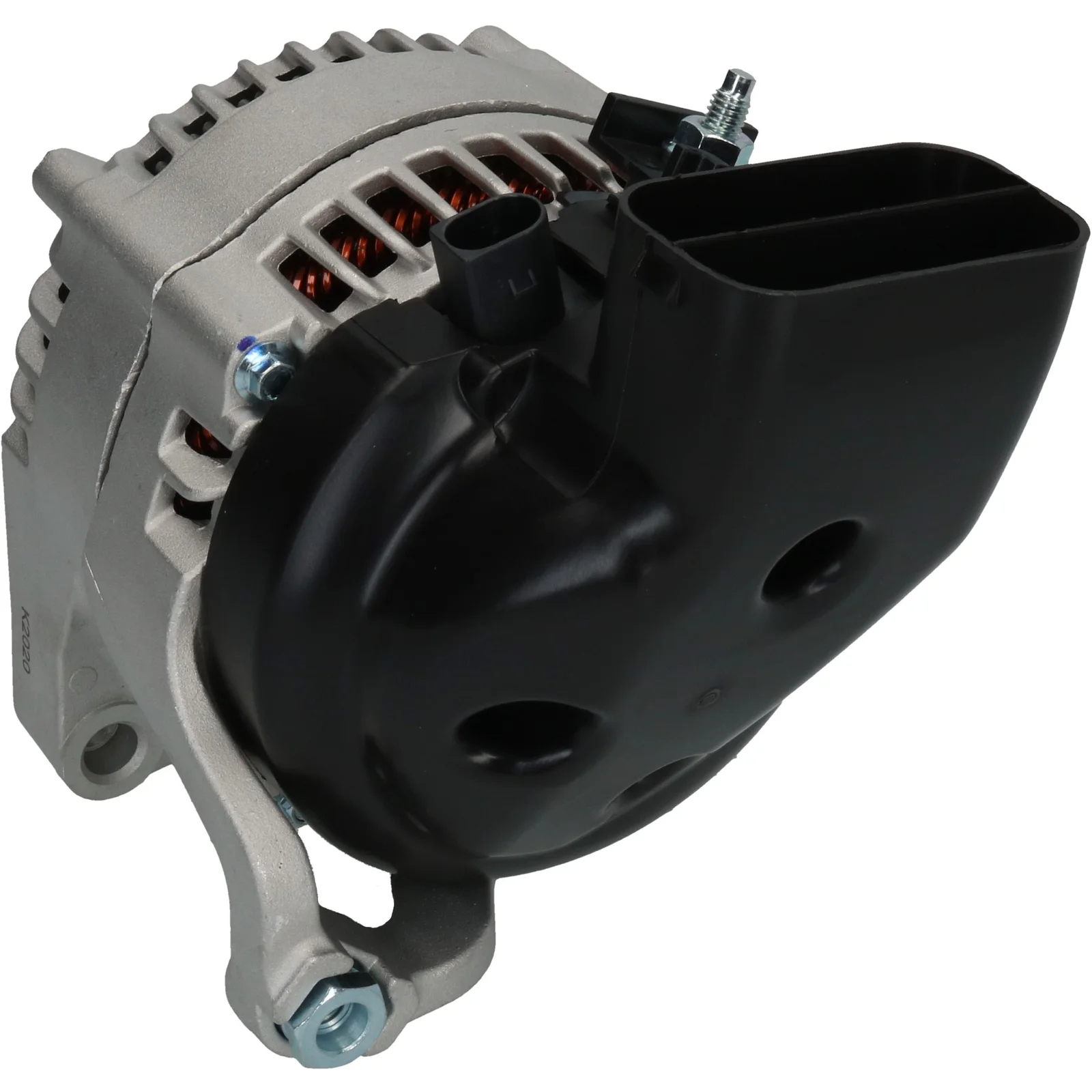

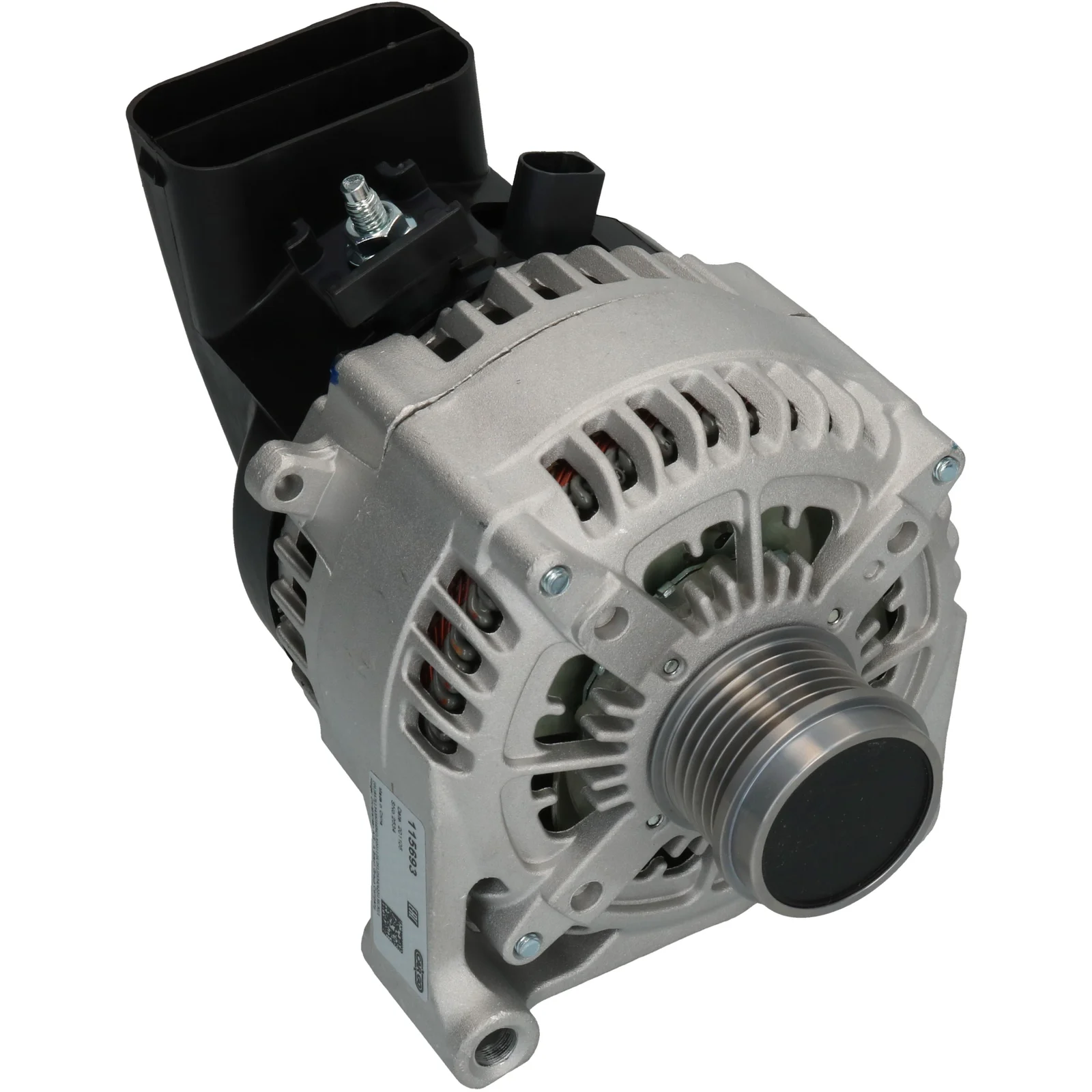

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115693

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 170, Rotation: CW, Monteringsbøjle forfordeling: 75,50

Beskrivelse

Spænding: 14
Amp: 170
Hjulm. dist.: 49,50
Bredde/beslag arm: 27,50
Monteringsbeslag dist.: 75,50
Beslagshul: 10,30
Bæltejustering beslags hul position.: 45
Bæltejustering beslags hul 1: 10,80
Hjuldiameter: 49,00
Riller/hjul: 6
Radius: 93,00
Radius 2: 93,00
B+: M8
Position/B+ i min.: 58
Rotation: P housekeeping the content about the alternator.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 10.30
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 49.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 223.00 mm
Width/holder arm 27.50
Amp 170

  • OEM
    F032115693, 1986A00610, 104210-6330, 104210-6331, 104210-6332, 104210-6333, 104210-6334, 7605060, 12317605060, 12317610260

  • Konkurrentreferens
    A6346, CAL40425, dan1125, DRA1477, 28-7605, 215.587.170, 24111, 209296, 209296A, 440961, 554455RI, 12090620, 32084740, 0986084740

  • NormaliseratArtNr
    a6346, cal40425, dan1125, dra1477, f032115693, 1986a00610, 24111, 209296, 209296a, 287605, 440961, 554455ri, 7605060, 12090620, 32084740, 215587170, 0986084740, 1042106330, 1042106331, 1042106332, 1042106333, 1042106334, 12317605060, 12317610260

  • Passar modeller
    BMW Model: 1 Model series: 114 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 114 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2011 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2011 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-07-2012 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F30 From date: 01-07-2012 To date: 01-08-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F30 From date: 01-11-2012 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
