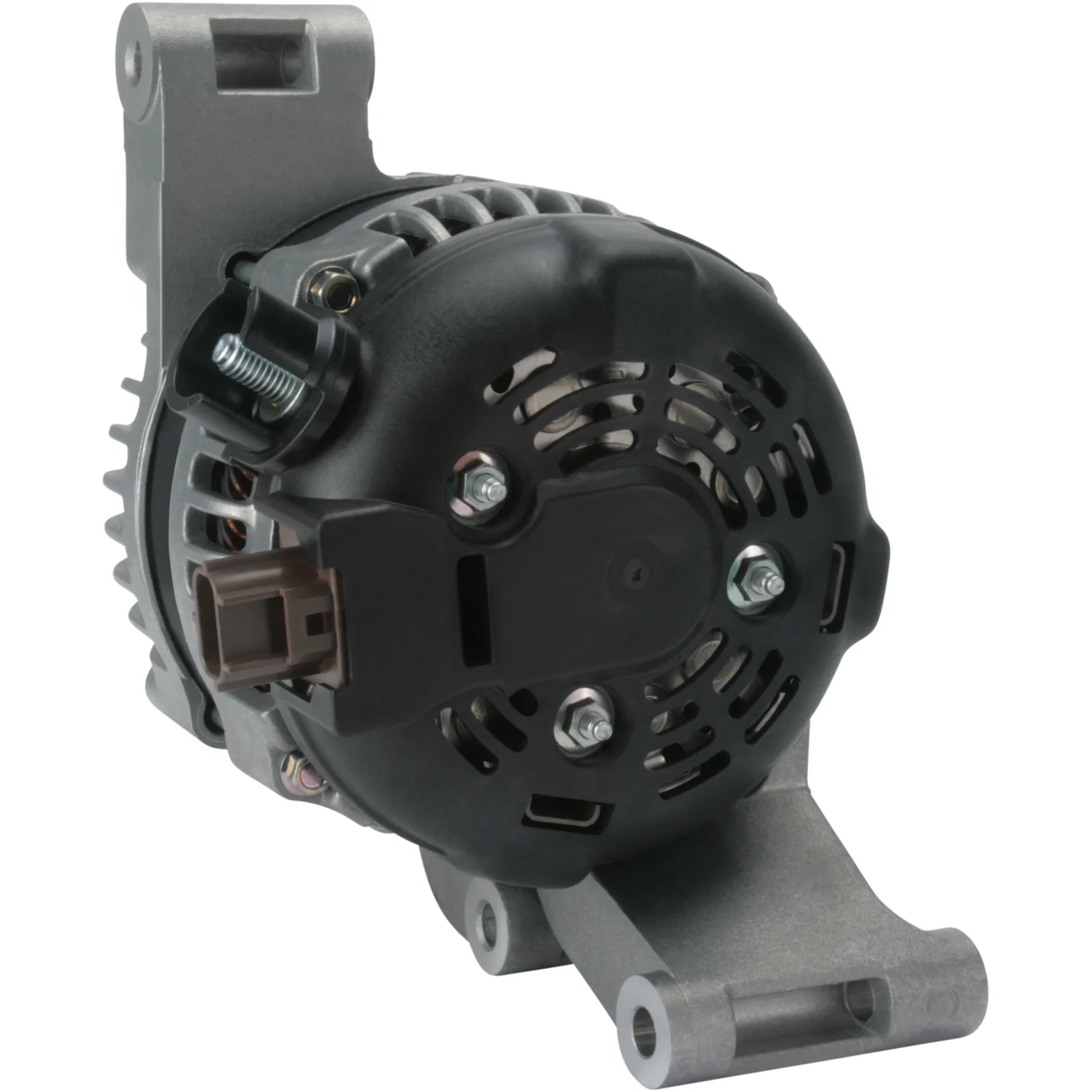

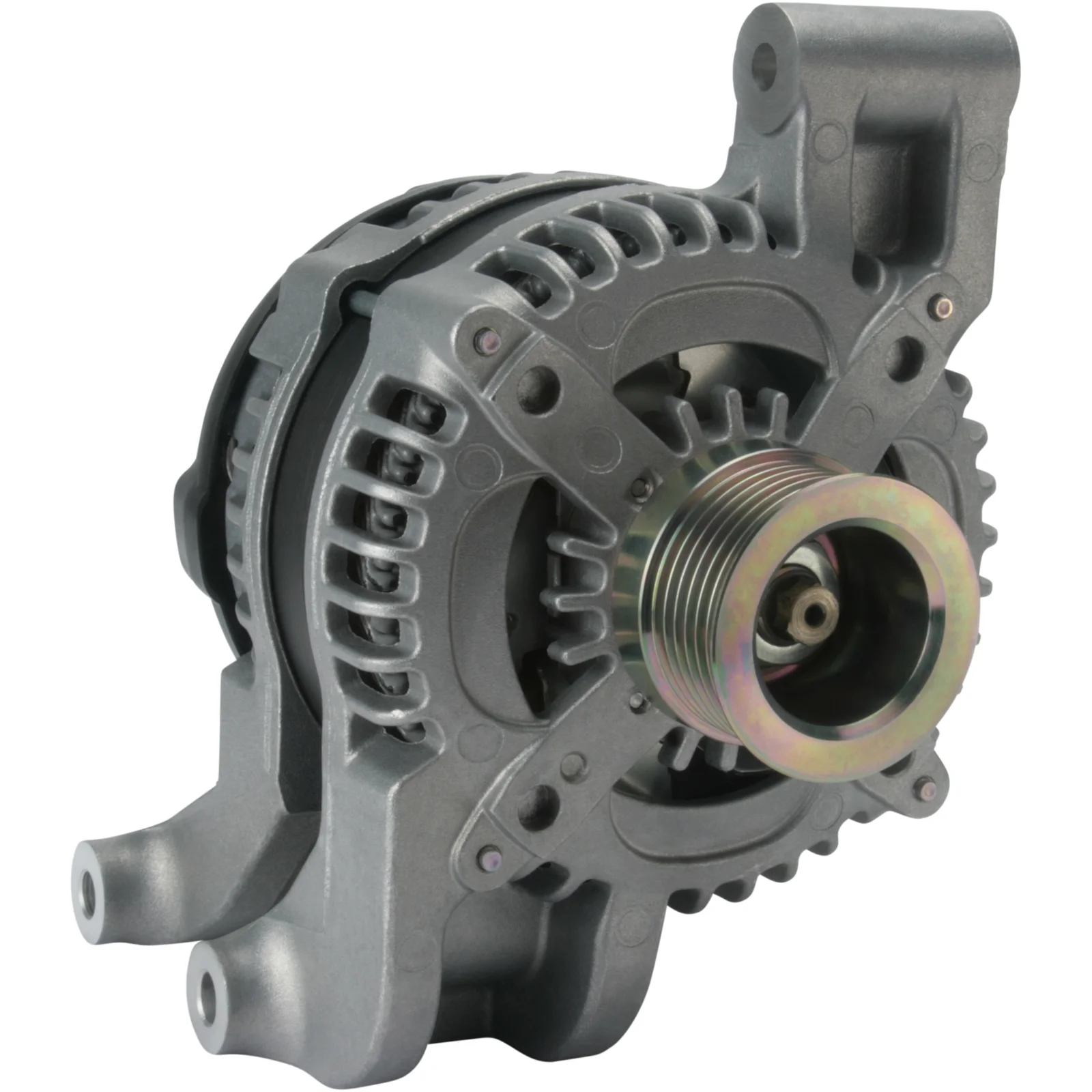

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115750

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag for fordelerdæksel: 68,30

Beskrivelse

Nominel spænding: 14
Amp: 150
Remskive afstand: 74,60
Bredde/holderarm: 72,00
Mount. bøsning afstand: 68,30
Bøsning hul: 9,40
Bøsning hul 2: 9,00x9,60
Belt. justering bøsning hul 1: 9,00
Remskive diameter: 49,00
Riller/remskive: 6
B+: M8
Position/B+ i min.: 50
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL57
Samlet længde mm: 177,00
Terminaltype: LI-RC-BVS
Remskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 68.30
Belt. adj. bracket hole 1 9.00
Plug no. PL57
Bracket hole 9.40
Bracket hole 2 9.00x9.60
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 74.60
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type LI-RC-BVS
Voltage 14
Total length 177.00 mm
Width/holder arm 72.00
Amp 150

  • OEM
    F032115750, 3M5T10300XC, 3m5t10300xd, 1986A01329, 104210-2720, 104210-3542, 104210-3543, 104210-5780, 1387219, 1535294

  • Konkurrentreferens
    A6048, A6048(DENSO), CAL40232, DAN931, DRA0083, LRA03070, MAN7417, 8EL012240-901, 27-5682, 219.305.1502, 595.557.150, 112734, 210439, 210439A, 9214434, 12090209, 32118720, 063377417, 0986086440, 063377417010

  • NormaliseratArtNr
    a6048, a6048denso, cal40232, dan931, dra0083, f032115750, lra03070, man7417, 3m5t10300xc, 3m5t10300xd, 8el012240901, 1986a01329, 112734, 210439, 210439a, 275682, 1387219, 1535294, 9214434, 12090209, 32118720, 063377417, 595557150, 0986086440, 1042102720, 1042103542, 1042103543, 1042105780, 2193051502, 063377417010

  • Passar modeller
    Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LS, LT Body: Hatchback From date: 01-07-2007 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LS, LT From date: 01-05-2005 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LT Body: Coupe From date: 01-12-2007 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LV Body: Hatchback From date: 01-03-2009 To date: 01-08-2011 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 2.0 Brand of engine: AODA Body: MPV From date: 01-03-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 2.0 Brand of engine: AODB Body: MPV From date: 01-03-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 2.0 Brand of engine: SYDA Body: MPV From date: 01-03-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: CNG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-04-2009 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DAW_ Body: Estate From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DA_ Body: Hatchback From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DA_ From date: 01-04-2005 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODB Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODB Type description: DA_ Body: Hatchback From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODB Type description: DA_ From date: 01-04-2005 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Type description: DA_ Body: Hatchback From date: 01-06-2005 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Type description: DA_ From date: 01-06-2005 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Nominel spænding: 14
    Amp: 150
    Remskive afstand: 74,60
    Bredde/holderarm: 72,00
    Mount. bøsning afstand: 68,30
    Bøsning hul: 9,40
    Bøsning hul 2: 9,00x9,60
    Belt. justering bøsning hul 1: 9,00
    Remskive diameter: 49,00
    Riller/remskive: 6
    B+: M8
    Position/B+ i min.: 50
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL57
    Samlet længde mm: 177,00
    Terminaltype: LI-RC-BVS
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 68.30
    Belt. adj. bracket hole 1 9.00
    Plug no. PL57
    Bracket hole 9.40
    Bracket hole 2 9.00x9.60
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 74.60
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type LI-RC-BVS
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 72.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115750, 3M5T10300XC, 3m5t10300xd, 1986A01329, 104210-2720, 104210-3542, 104210-3543, 104210-5780, 1387219, 1535294

    • Konkurrentreferens
      A6048, A6048(DENSO), CAL40232, DAN931, DRA0083, LRA03070, MAN7417, 8EL012240-901, 27-5682, 219.305.1502, 595.557.150, 112734, 210439, 210439A, 9214434, 12090209, 32118720, 063377417, 0986086440, 063377417010

    • NormaliseratArtNr
      a6048, a6048denso, cal40232, dan931, dra0083, f032115750, lra03070, man7417, 3m5t10300xc, 3m5t10300xd, 8el012240901, 1986a01329, 112734, 210439, 210439a, 275682, 1387219, 1535294, 9214434, 12090209, 32118720, 063377417, 595557150, 0986086440, 1042102720, 1042103542, 1042103543, 1042105780, 2193051502, 063377417010

    • Passar modeller
      Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LS, LT Body: Hatchback From date: 01-07-2007 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LS, LT From date: 01-05-2005 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LT Body: Coupe From date: 01-12-2007 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Ford Australia Model: Focus Model series: Focus Size of motor: 2.0 Type description: LV Body: Hatchback From date: 01-03-2009 To date: 01-08-2011 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 2.0 Brand of engine: AODA Body: MPV From date: 01-03-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 2.0 Brand of engine: AODB Body: MPV From date: 01-03-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 2.0 Brand of engine: SYDA Body: MPV From date: 01-03-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: CNG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-04-2009 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DAW_ Body: Estate From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DA_ Body: Hatchback From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DA_ From date: 01-04-2005 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODB Type description: DAW_ Body: Estate From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODB Type description: DA_ Body: Hatchback From date: 01-07-2004 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODB Type description: DA_ From date: 01-04-2005 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Type description: DA_ Body: Hatchback From date: 01-06-2005 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Type description: DA_ From date: 01-06-2005 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
